BN-LINK Outdoor Power Stake with Dusk to Dawn Timer

1. บทนำและเรื่องอื่นๆview

Thank you for choosing the BN-LINK Outdoor Power Stake. This device is designed to provide convenient and reliable power distribution for your outdoor electrical needs, featuring a dusk to dawn sensor, multiple timer options, and remote control functionality. Its robust, waterproof design ensures safe operation in various outdoor environments.

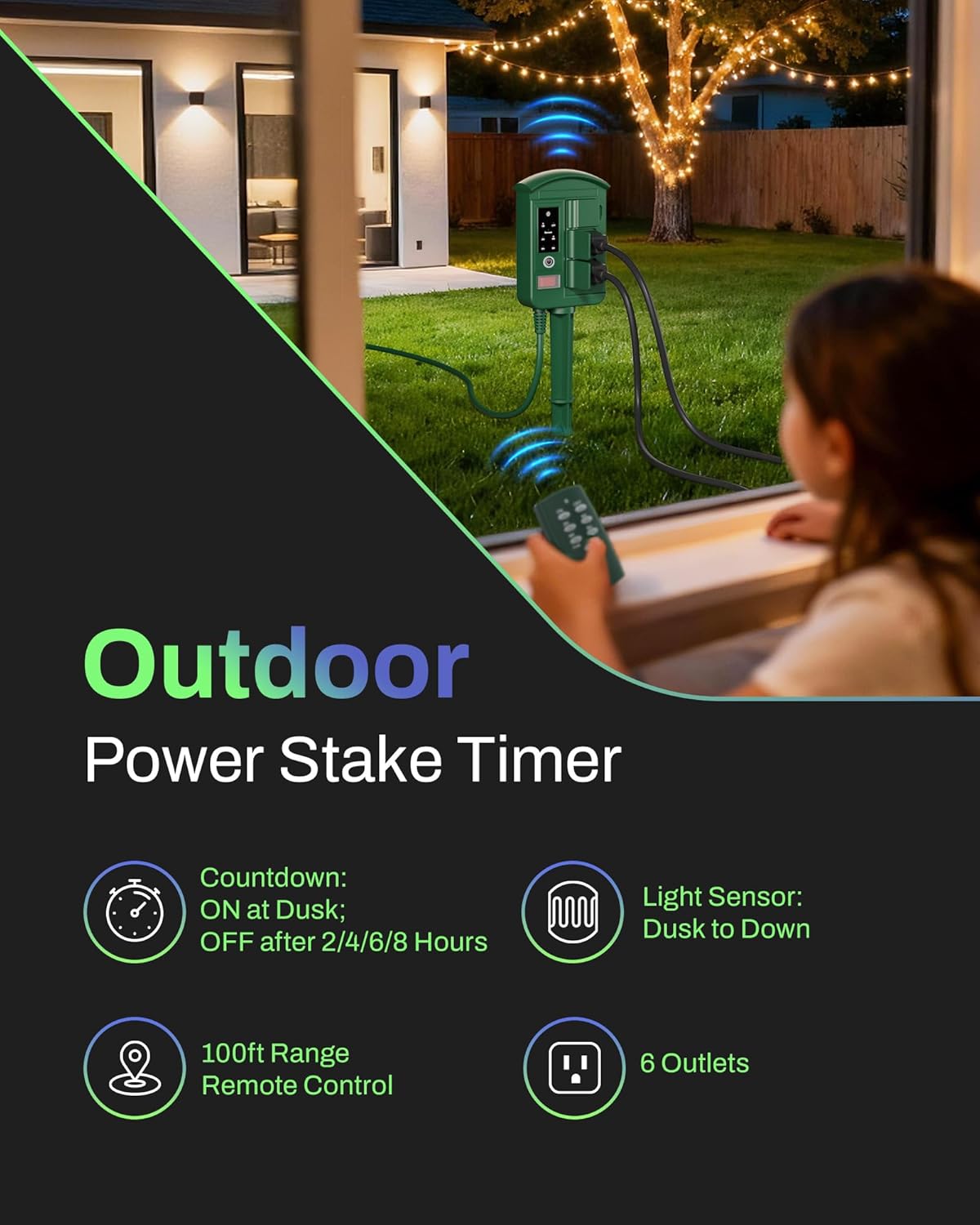

Figure 1: BN-LINK Outdoor Power Stake in an outdoor setting.

2. คุณสมบัติของผลิตภัณฑ์

• Dusk to Dawn & Countdown Timer: Offers flexible timing options including automatic dusk to dawn operation, always ON/OFF, or countdown timers (2/4/6/8 hours) after activation.
• Waterproof & Safe for Outdoor Use: ETL-certified housing and individual outlet covers provide protection against rain, snow, and dust. Includes built-in overload protection and a heavy-duty SJTW cord for enhanced safety and durability.
• ประหยัดพลังงาน: The integrated photocell sensor helps manage power usage, contributing to energy savings and extending the lifespan of connected devices.
• รีโมทคอนโทรล: Control your outdoor devices from up to 100 feet away with the included wireless remote, eliminating the need to go outside.
• 6 Grounded Outlets & 6FT Extension Cord: Features 6 grounded outlets (3 on each side) to accommodate multiple devices, along with a 6-foot heavy-duty cord for flexible placement.

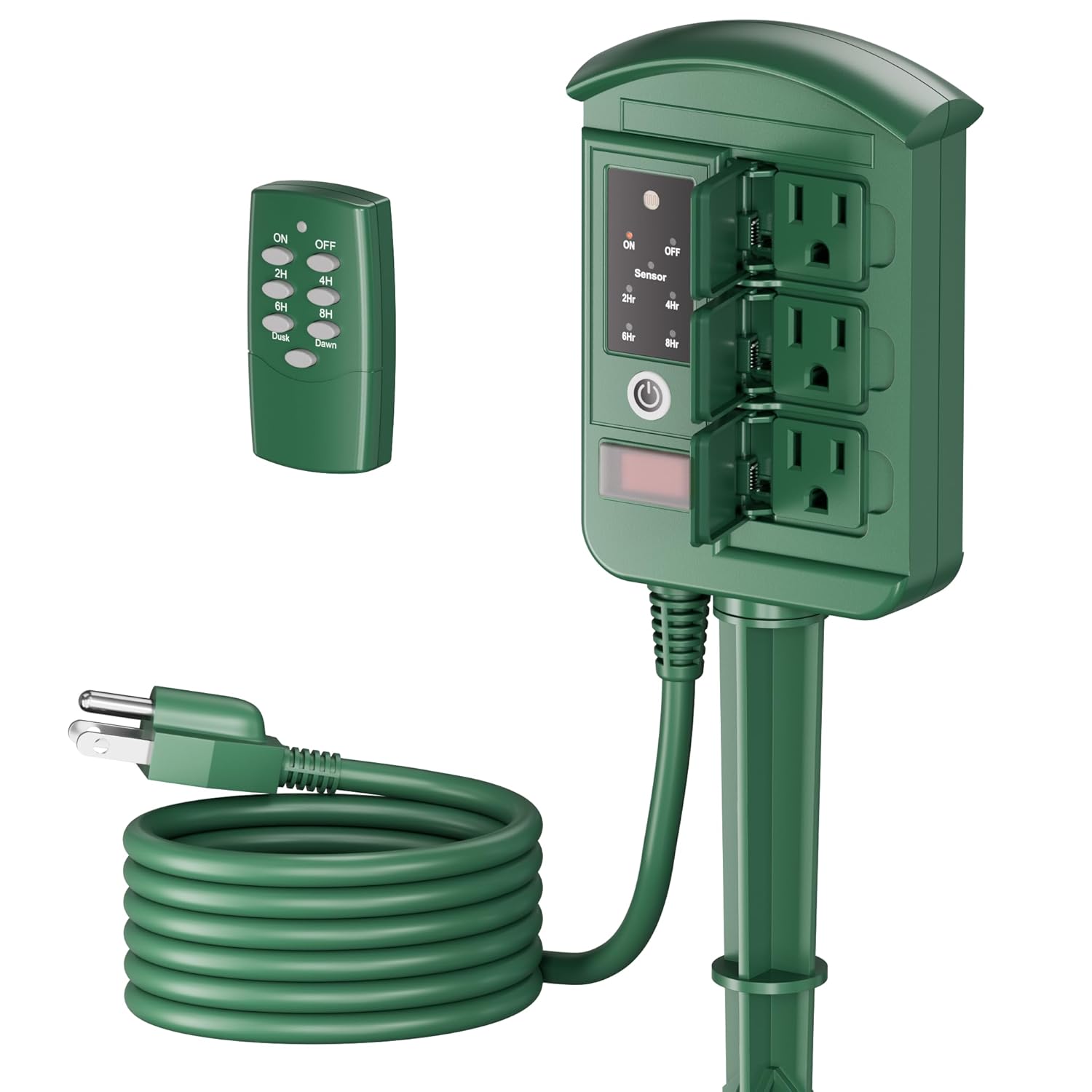

Figure 2: Power Stake in use, demonstrating multiple outlets.

3. เนื้อหาบรรจุภัณฑ์

• 1 x BN-LINK Outdoor Power Stake Unit
• 1 x รีโมทคอนโทรลไร้สาย
• 1 x Ground Stake (multi-part assembly)
• 1 x คู่มือการใช้งาน
• 1 x A23 Battery for Remote Control

4. การตั้งค่าและการติดตั้ง

1. ประกอบเสาหลักดิน: The ground stake comes in two parts. Screw the pointed end into the extension piece.
2. Attach Power Stake Unit: Securely twist the bottom of the power stake unit onto the assembled ground stake.
3. ตำแหน่งหน่วย: Insert the ground stake firmly into the soil in your desired outdoor location. Ensure the unit is stable and the outlets are easily accessible.
4. เสียบปลั๊กไฟ: Connect the 6-foot heavy-duty power cord of the unit into a grounded outdoor electrical outlet.
5. ติดตั้งแบตเตอรี่ระยะไกล: Open the battery compartment on the back of the remote control and insert the provided A23 battery, observing polarity.

Figure 3: Installation of the power stake unit.

5. คู่มือการใช้งาน

The BN-LINK Outdoor Power Stake can be operated manually using the buttons on the unit or wirelessly with the remote control.

Manual Operation (On Unit)

• ปุ่มเปิด/ปิด: Press the main power button on the unit to cycle through ON, OFF, and Sensor modes.
• ปุ่มตั้งเวลา: In Sensor mode, press the 2H, 4H, 6H, or 8H buttons to set a countdown timer for the outlets to remain active after dusk.

การควบคุมการทำงานด้วยรีโมทคอนโทรล

The remote control allows you to manage the power stake from up to 100 feet away. Ensure the remote has a clear line of sight to the power stake for optimal performance.

• ปุ่มเปิด/ปิด: Press 'ON' to activate the outlets, and 'OFF' to deactivate them.
• ปุ่มตั้งเวลา (2 ชั่วโมง, 4 ชั่วโมง, 6 ชั่วโมง, 8 ชั่วโมง): Press these buttons to set the desired duration for the outlets to remain active after the dusk sensor triggers.
• Sensor Button: Activates the dusk to dawn mode, turning lights on at dusk and off at dawn.

Figure 4: Control panel of the power stake.

6. ฟังก์ชั่นจับเวลา

• โหมด Dusk to Dawn: When activated (via unit button or remote 'Sensor' button), the built-in photocell sensor will automatically turn on connected devices when it gets dark and turn them off when it becomes light.
• โหมดจับเวลาถอยหลัง: In conjunction with the dusk to dawn sensor, you can set a countdown timer (2, 4, 6, or 8 hours). The devices will turn on at dusk and then automatically turn off after the selected duration. This cycle repeats daily.
• เปิด/ปิดตลอดเวลา: Use the 'ON' or 'OFF' buttons on the unit or remote for continuous power or to manually shut off devices, overriding any timer settings.

7. รีโมทคอนโทรล

The wireless remote control provides convenient operation of your power stake. Its 100-foot range allows you to manage your outdoor lighting and appliances from indoors.

Figure 5: Remote control in use from indoors.

8. ข้อมูลด้านความปลอดภัย

• รายชื่อ ETL: This product is ETL listed, ensuring it meets recognized safety standards.
• การออกแบบกันน้ำ: The unit features a waterproof housing and individual flip covers for each outlet to protect against moisture.
• ระบบป้องกันการโอเวอร์โหลด: Built-in overload protection automatically cuts power to prevent damage from excessive current.
• Heavy-Duty Cord: Equipped with a durable SJTW 14/3C cable for reliable outdoor performance.
• Always ensure all connections are secure and covers are closed when not in use.
• ห้ามจุ่มเครื่องลงในน้ำ

9. การบำรุงรักษา

• Regularly inspect the power stake and cord for any signs of damage or wear.
• Keep the unit clean by wiping it with a damp ผ้า. อย่าใช้สารเคมีที่รุนแรงหรือน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อน
• Ensure the photocell sensor is free from obstructions (dirt, leaves) for accurate dusk to dawn operation.

10 การแก้ไขปัญหา

• หน่วยไม่เปิดเครื่อง: Check if the unit is securely plugged into a working outlet. Verify the overload protection switch has not tripped.
• การควบคุมระยะไกลไม่ทำงาน: Ensure the remote control battery is correctly installed and not depleted. Try operating the unit manually to confirm it is receiving power.
• Dusk to Dawn sensor not functioning: Ensure the photocell sensor is clean and not obstructed by objects or excessive light during dusk/dawn hours.
• Timer not activating/deactivating: Confirm the correct timer mode is selected and the unit is receiving sufficient light for the sensor to operate as intended.

11. ข้อมูลจำเพาะ

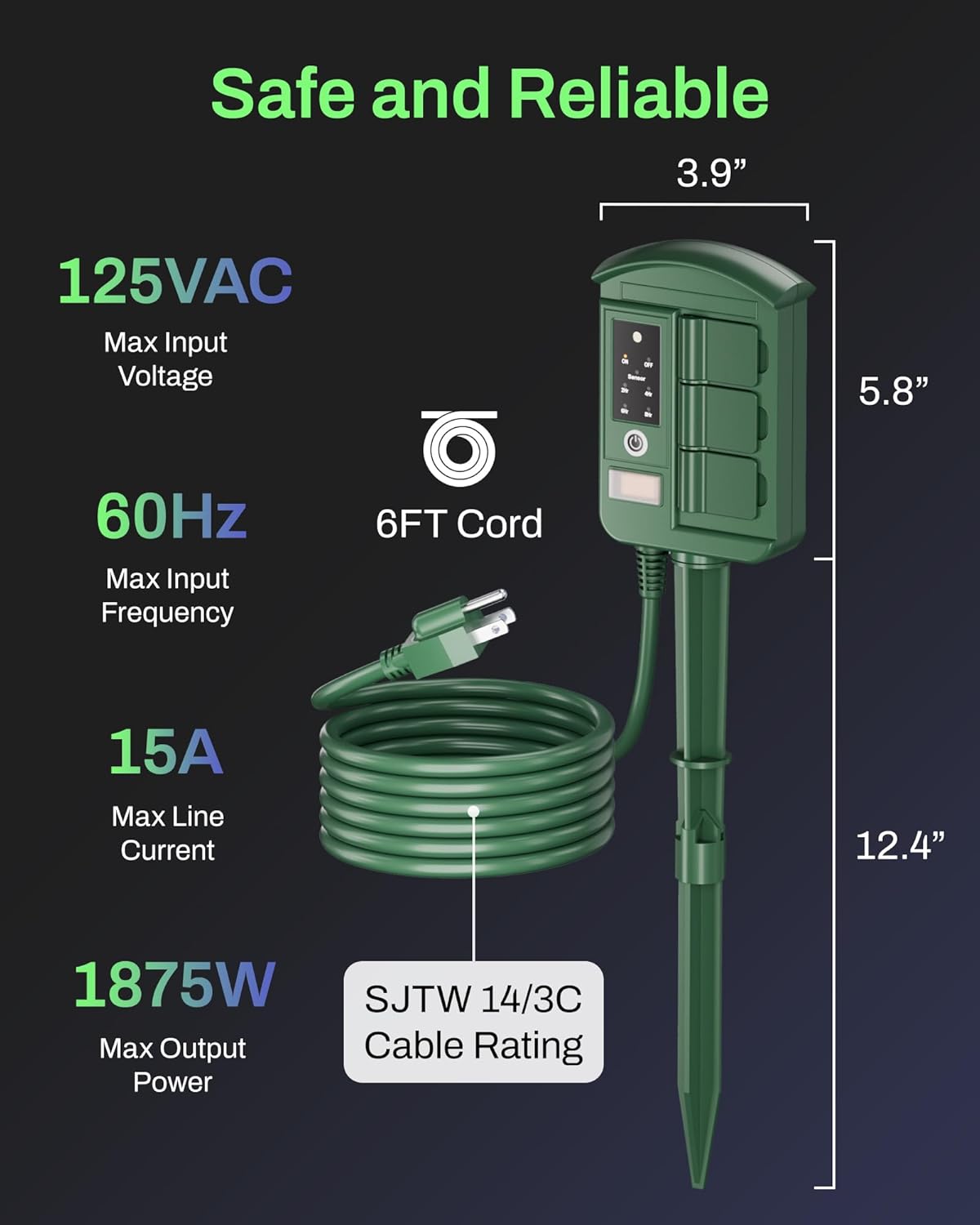

รูปที่ 6: ขนาดของผลิตภัณฑ์และข้อมูลจำเพาะทางไฟฟ้า

12. การรับประกันและการสนับสนุน

For warranty information or technical support, please contact BN-LINK customer service through their official website or the retailer where the product was purchased. Please have your model number (CP-203R) and purchase details ready.
