WOLFSTORM Winch Mounting Plate User Manual

การแนะนำ

This manual provides detailed instructions for the installation, operation, and maintenance of your WOLFSTORM Winch Mounting Plate, Model 206B-01-NRG03A102-BX. This product is designed specifically for 2024-2025 Ford Ranger models, excluding Raptor and Diesel Engine variants. Please read this manual thoroughly before installation to ensure proper fitment and safe operation.

The WOLFSTORM Winch Mounting Plate is constructed from heavy-duty Q235A steel with a black powder-coated finish, offering durability and resistance against wear. It is designed to accommodate winches up to 12,000 lbs capacity.

เนื้อหาแพ็คเกจ

ตรวจสอบว่าส่วนประกอบทั้งหมดมีอยู่ก่อนเริ่มการติดตั้ง:

• 1 x Winch Mounting Plate Assembly
• Mounting Hardware Kit (bolts, nuts, washers)
• Adaptive Cruise Control Relocation Bracket (if applicable)
• Power Supply Relocation Bracket (if applicable)

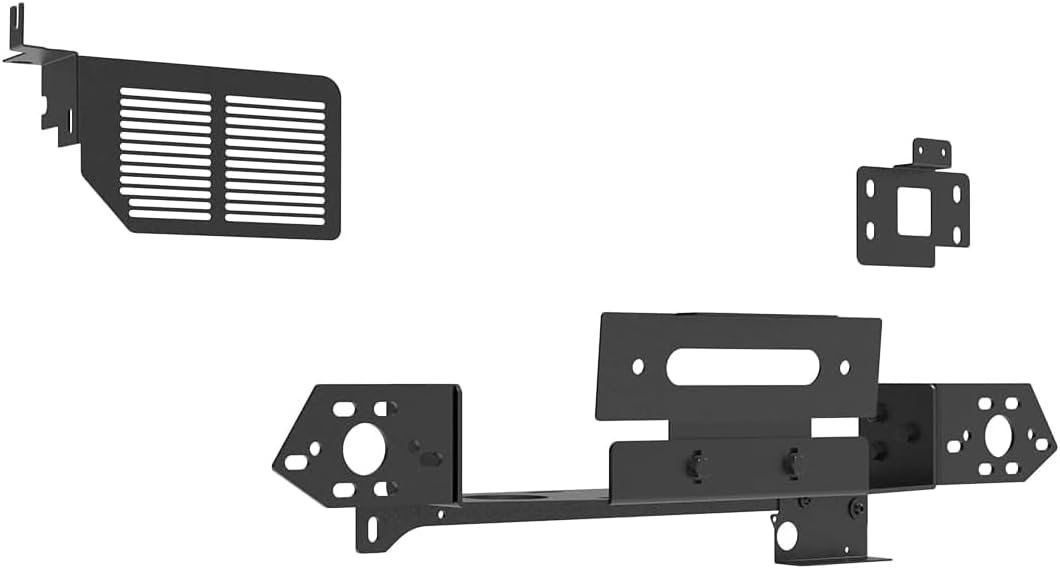

รูปที่ 1: เกินview of the WOLFSTORM Winch Mounting Plate components. This image displays the main winch plate, a smaller square bracket, and a rectangular vented bracket, all in black steel.

ความเข้ากันได้ของยานพาหนะ

• ฟอร์ด เรนเจอร์ 2024
• ฟอร์ด เรนเจอร์ 2025

Note: This product is NOT compatible with Ford Ranger Raptor models or Diesel Engine variants.

รูปที่ 2: Illustration of the winch plate fitment on the front of a 2024-2025 Ford Ranger. The image shows the vehicle's front bumper with the winch plate components overlaid, indicating compatibility.

คำแนะนำในการติดตั้ง

เวลาโดยประมาณในการติดตั้ง: 2-4 hours (professional installation recommended)

เครื่องมือที่จำเป็น: Standard automotive tools, including wrenches, sockets, and potentially a drill for specific components.

1. การตระเตรียม: จอดรถบนพื้นราบและดึงเบรกมือ ถอดขั้วลบของแบตเตอรี่รถยนต์ออก
2. Remove Front Bumper Components: Carefully remove any necessary front bumper components to access the frame mounting points. Refer to your vehicle's service manual for specific instructions on bumper removal.
3. Position Winch Plate: Align the WOLFSTORM Winch Mounting Plate with the factory mounting points on the vehicle's frame.

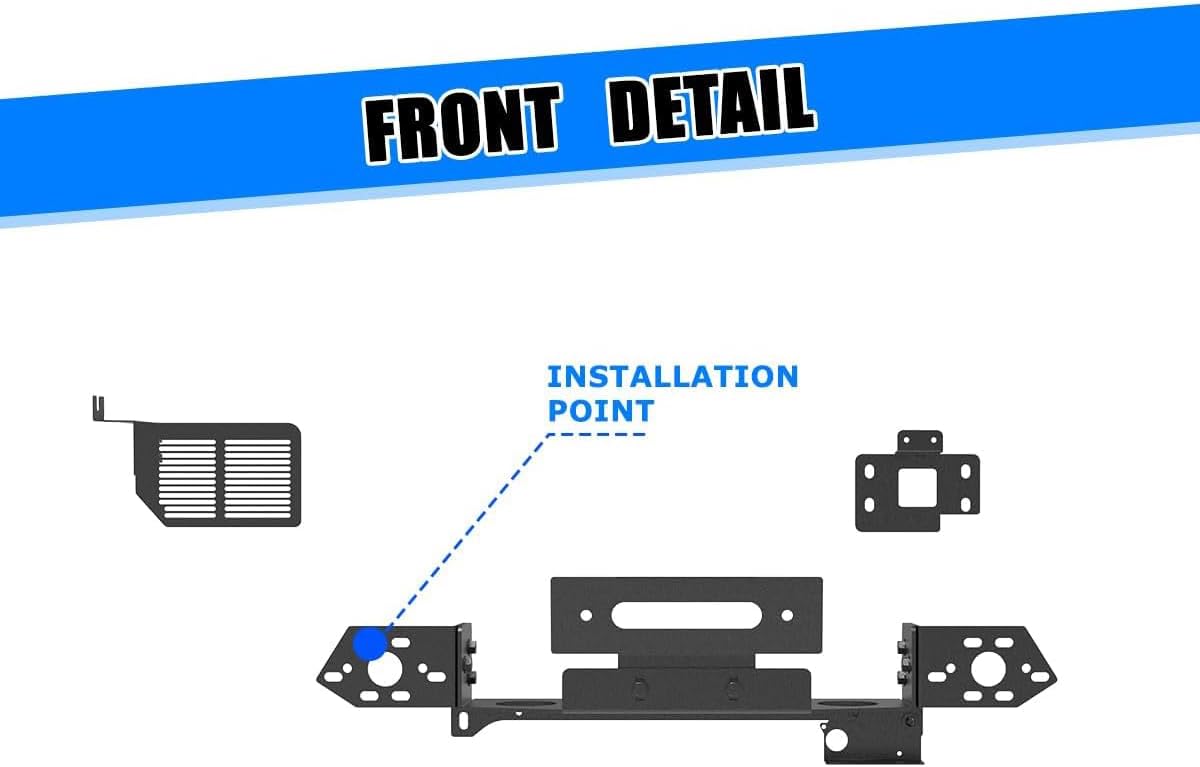

รูปที่ 3: รายละเอียด view highlighting an installation point on the winch plate. An arrow points to a specific mounting hole on the plate, indicating where it connects to the vehicle frame.

4. Secure Winch Plate: Use the provided hardware to securely bolt the winch plate to the frame. Ensure all bolts are tightened to the manufacturer's specifications.
5. Install Winch (Optional): If installing a winch, mount it onto the winch plate according to the winch manufacturer's instructions. This plate is designed for winches up to 12,000 lbs.

รูปที่ 4: Exploded diagram showing the winch plate assembly and its capacity. The image illustrates how the various components fit together and states the 12,000 lbs winch capacity.
6. Relocate Power Supply: The vehicle's power supply may need to be relocated to the grille area to accommodate the winch and mounting plate.


รูปที่ 5: Image showing the winch plate installed with a winch, indicating the need to relocate the power supply onto the grille. A red dashed box highlights the area where the power supply is typically located.

7. Install Adaptive Cruise Control Relocation Bracket: If your vehicle is equipped with Adaptive Cruise Control, install the provided relocation bracket. Drilling may be required for this step.


รูปที่ 6: Illustration of the Adaptive Cruise Control relocation bracket and its installation position. The image shows the bracket and notes that drilling is required for its proper mounting.

8. ประกอบกันชนกลับเข้าที่: Reinstall the front bumper components, ensuring all connections are secure and no wires are pinched.

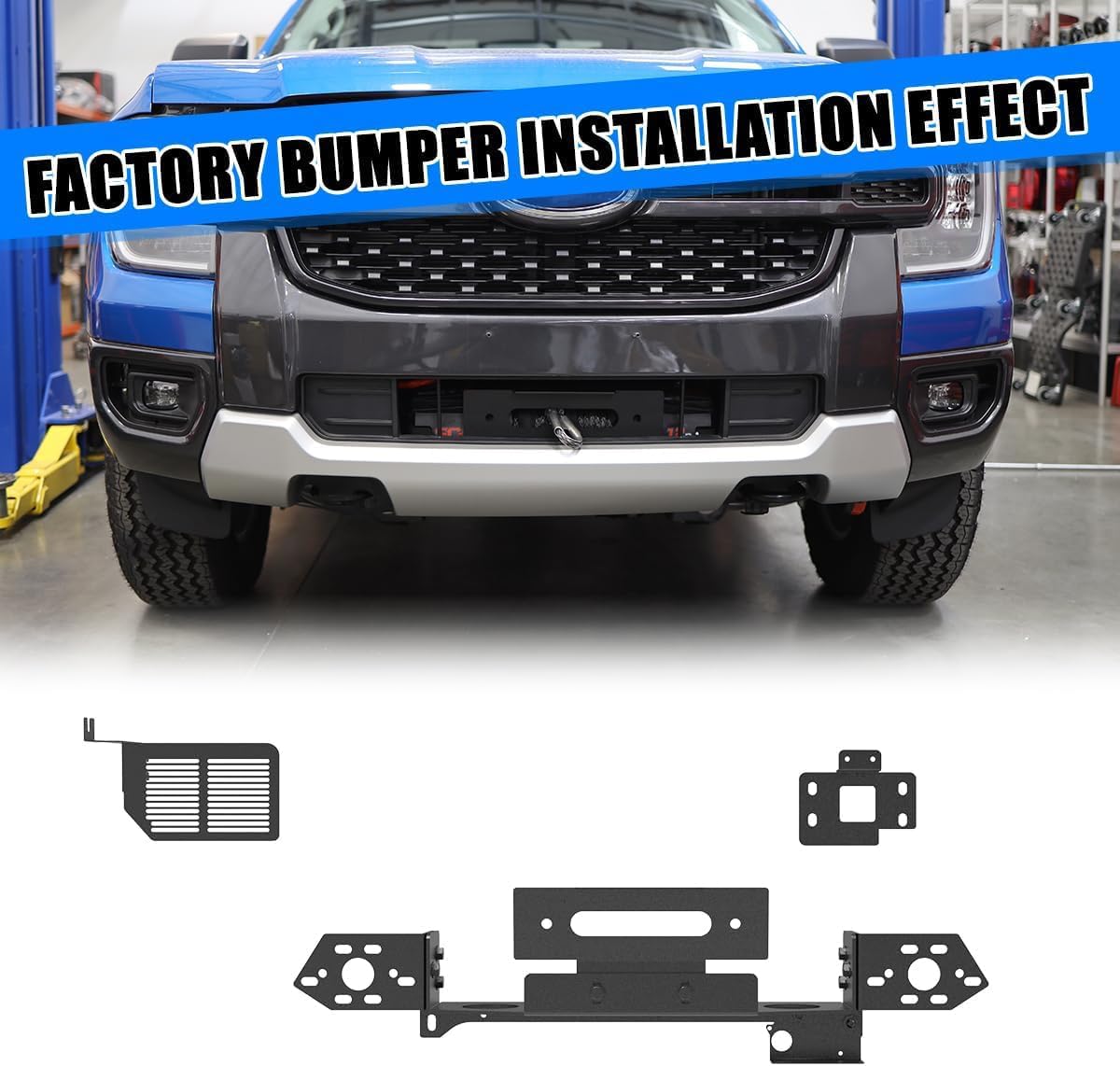

รูปที่ 7: Visual representation of the winch plate installed behind the factory bumper. The image shows the final appearance with the winch plate discreetly integrated.


รูปที่ 8: ด้านหน้า view of a Ford Ranger with the WOLFSTORM Winch Mounting Plate and a winch installed, demonstrating the overall appearance with the factory bumper reinstalled.

9. เชื่อมต่อแบตเตอรี่อีกครั้ง: เชื่อมต่อขั้วลบของแบตเตอรี่รถยนต์อีกครั้ง

คำแนะนำการใช้งาน

The WOLFSTORM Winch Mounting Plate itself does not require specific operating instructions. Its function is to provide a secure mounting point for a winch. Refer to your winch manufacturer's manual for proper operating procedures, safety guidelines, and maintenance specific to your winch.

Always ensure the winch is properly secured to the mounting plate before use. Regularly inspect all mounting hardware for tightness and signs of wear or damage.

การซ่อมบำรุง

To ensure the longevity and performance of your WOLFSTORM Winch Mounting Plate, follow these maintenance guidelines:

• การตรวจสอบปกติ: Periodically inspect the winch plate for any signs of rust, corrosion, cracks, or damage, especially after off-road use or exposure to harsh weather conditions.
• การตรวจสอบฮาร์ดแวร์: Regularly check all bolts and nuts securing the winch plate to the vehicle frame and the winch to the plate. Tighten any loose hardware to prevent movement or failure.
• การทำความสะอาด: Clean the winch plate with mild soap and water to remove dirt, mud, and road salt. Avoid abrasive cleaners or solvents that could damage the powder-coated finish.
• การเคลือบป้องกัน: If the powder coating is scratched or chipped, touch up with a rust-inhibiting paint to prevent corrosion.

การแก้ไขปัญหา

This section addresses common issues related to the winch mounting plate. For winch-specific issues, consult your winch's instruction manual.

• ปัญหา: Winch plate appears loose after installation.
  สารละลาย: Re-check all mounting bolts and nuts. Ensure they are properly tightened to the recommended torque specifications. Over time, vibrations can cause hardware to loosen.
• ปัญหา: Difficulty fitting the winch plate to the vehicle.
  สารละลาย: Verify vehicle compatibility (2024-2025 Ford Ranger, excluding Raptor/Diesel Engine). Ensure no obstructions are present and that factory mounting points are clear. Review ขั้นตอนการติดตั้งอย่างระมัดระวัง
• ปัญหา: Rust or corrosion appearing on the plate.
  สารละลาย: Clean the affected area thoroughly. Sand lightly if necessary to remove rust, then apply a rust-inhibiting primer and a black automotive paint to match the powder-coated finish. Regular cleaning and inspection can prevent this.

ข้อมูลจำเพาะ

รูปที่ 9: Diagram illustrating the multi-layered construction of the product material. It shows a Powder Coated Layer, a Carbon Steel Layer, and an Electro-galvanized "E-Coat" Layer, highlighting the durability features.

การรับประกันและการสนับสนุน

WOLFSTORM products are manufactured to high standards. For warranty information or technical support, please contact WOLFSTORM customer service through their official website or the retailer where the product was purchased. Please have your model number (206B-01-NRG03A102-BX) and purchase date available when contacting support.

For additional information or to explore other WOLFSTORM products, visit the WOLFSTORM Store.
