คู่มือการใช้งานเครื่องเป่าหิมะไร้สาย PowerSmart 80V ขนาด 24 นิ้ว

ข้อมูลด้านความปลอดภัยที่สำคัญ

คำเตือน: Keep hands and other body parts away from rotating parts. Always operate the snow blower with caution and follow the instructions in the user manual. Always wear appropriate protective clothing and eye protection when operating the snow blower.

ส่วนประกอบของผลิตภัณฑ์

The PowerSmart 80V 24-inch Cordless Snow Blower, Model HB2805B, is designed for efficient snow removal. It features a robust two-stage system and comes with two 6.0Ah batteries and a charger.

รูปที่ 1: หลัก view of the PowerSmart 80V 24-inch Cordless Snow Blower.

This infographic highlights the snow blower's performance capabilities, including its runtime, clearing capacity, and suitability for various snow types.

รูปที่ 2: ประสิทธิภาพเมื่อview of the snow blower.

The snow blower effectively clears a path 24 inches wide and up to 10 inches deep, making it suitable for driveways and walkways.

Figure 3: Clearing width and depth in action.

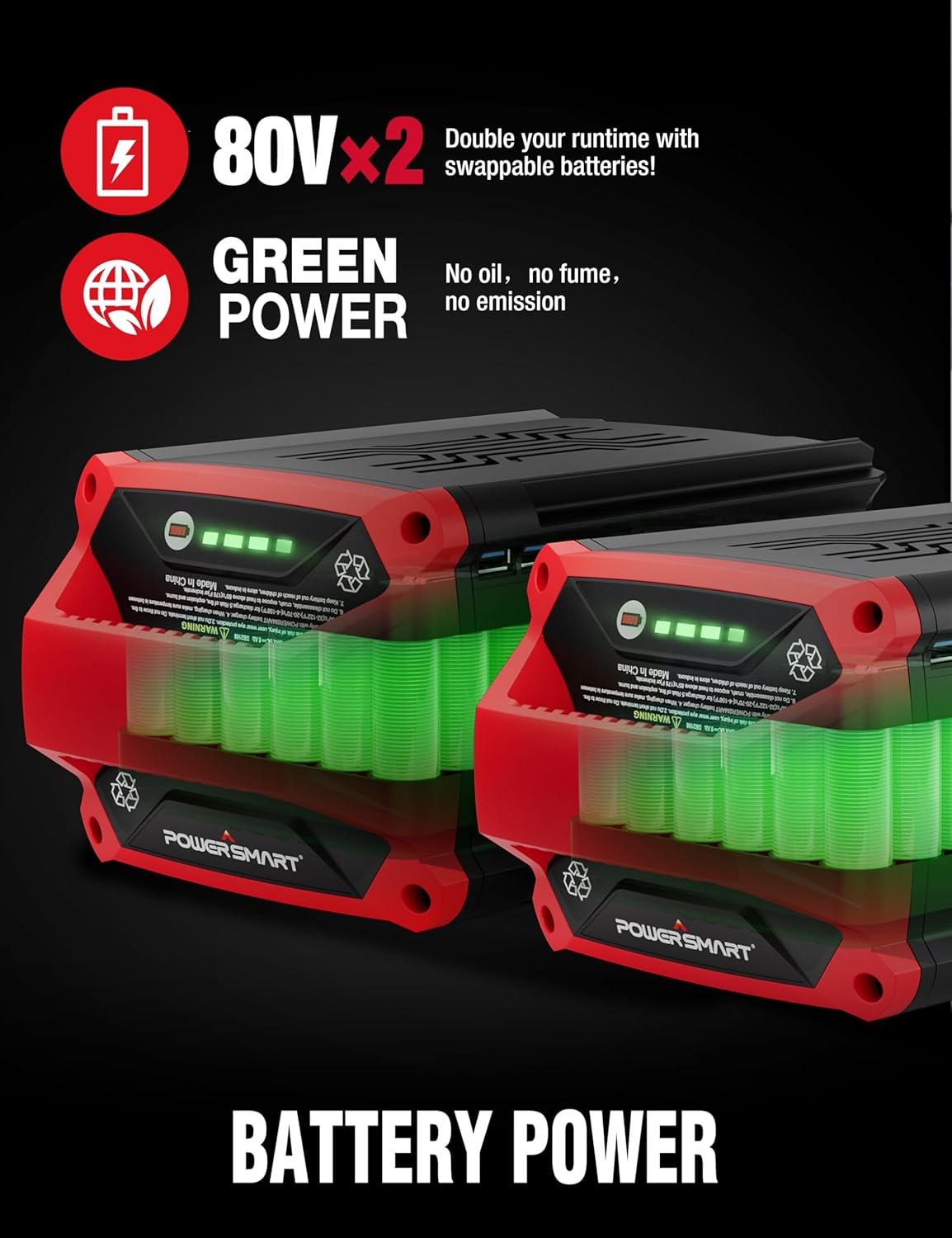

The unit is powered by two 80V 6.0Ah Lithium batteries, providing cordless operation and extended runtime.

Figure 4: PowerSmart 80V 6.0Ah Lithium batteries.

With its powerful battery system, the snow blower can clear up to 14 standard car spaces on a single charge.

Figure 5: Snow blower clearing capacity.

The heavy-duty two-stage construction features a steel auger to break up snow and a high-speed impeller to eject it, preventing clogging.

รูปที่ 6: สองวินาทีtage construction for anti-clogging performance.

The self-propelled system offers continuously variable transmission for smooth and effortless operation, with controls conveniently located on the handle.

Figure 7: Self-propelled CVT controls.

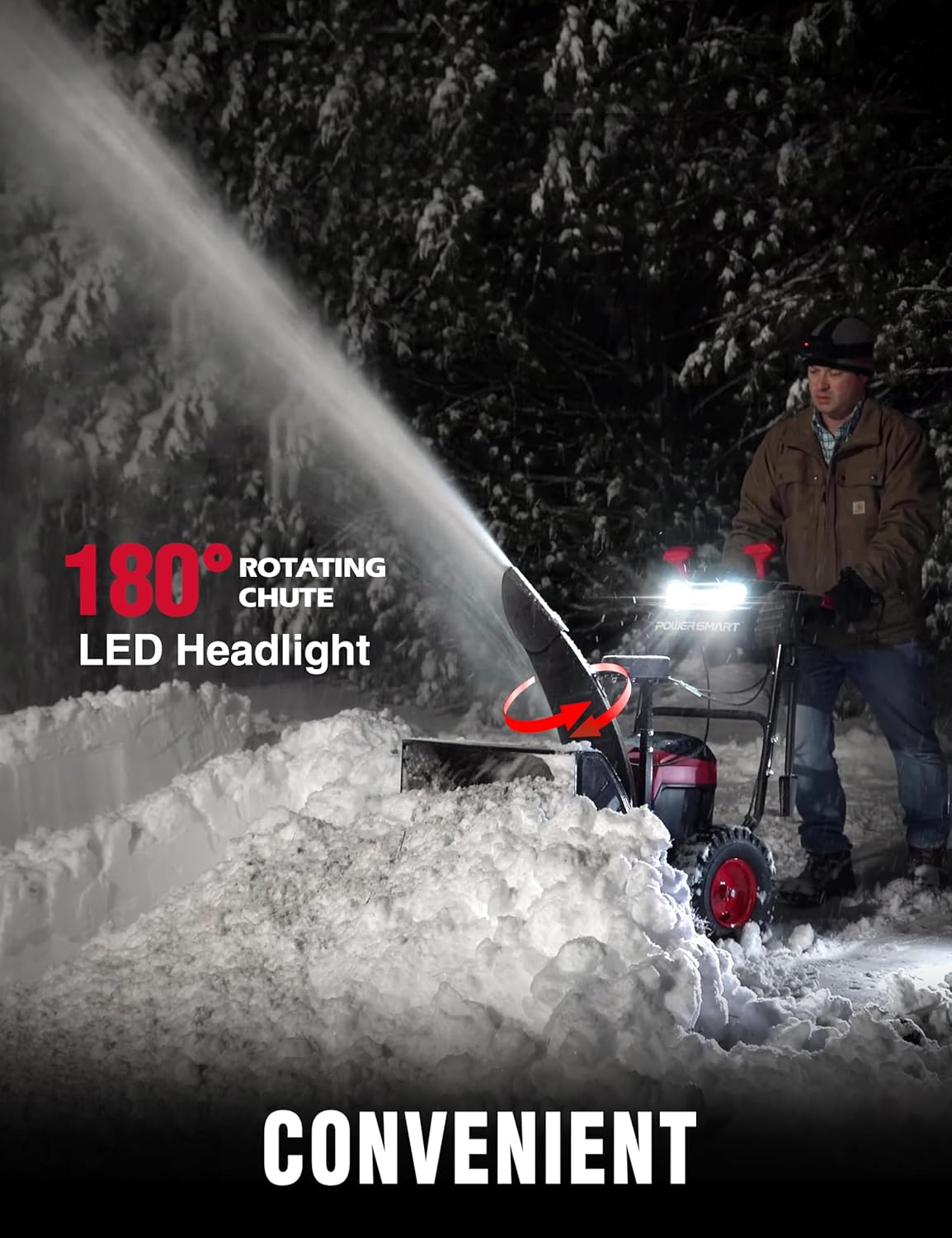

Equipped with an electronic chute adjustment joystick and an LED headlight, the snow blower provides visibility and precise snow direction control, even in low light conditions.

Figure 8: Convenient features: 180° rotating chute and LED headlight.

The snow blower features a high-quality brushless motor for efficient power delivery and a durable steel auger for effective snow handling.

Figure 9: Premium quality brushless motor and steel auger.

การตั้งค่าและการประกอบเบื้องต้น

Before operating your PowerSmart snow blower, ensure all components are correctly assembled according to the manufacturer's instructions. This typically involves attaching the handle, chute, and skid shoes.

Ensure the batteries are fully charged before first use. Insert the fully charged 80V 6.0Ah Lithium batteries into their designated compartments, ensuring they click securely into place. Verify all connections are tight and secure.

คำแนะนำการใช้งาน

Familiarize yourself with the controls before starting the snow blower. The unit features a self-propelled drive system and an electronic chute adjustment for ease of use.

1. การเริ่มต้นหน่วย: Press and hold the ON/OFF switch. Within 3 seconds, squeeze the drive or auger trigger to start the unit. If more than 3 seconds pass, restart the process.
2. ระบบขับเคลื่อนด้วยตนเอง: Engage the drive control lever to activate the self-propelled function. The continuously variable transmission allows for smooth speed adjustments (forward up to 3 km/h, reverse up to 0.93 km/h).
3. การเจาะสำรวจด้วยหัวเจาะ: Squeeze the auger trigger to activate the heavy-duty auger and impeller system for snow clearing.
4. การปรับราง: Use the electronic chute adjustment joystick to control the direction of snow discharge. The chute can rotate 180 degrees.
5. Clearing Performance: The snow blower offers a 24-inch clearing width and 10-inch snow depth capacity, with a plowing capacity of 1860 lbs/min. It is effective on both fluffy and heavy snow.
6. ไฟหน้า LED: Activate the LED headlight for improved visibility during operation in low-light conditions.
7. รันไทม์ของแบตเตอรี่: The two 80V 6.0Ah Lithium batteries provide approximately 50 minutes of runtime, capable of clearing up to 14 car spaces.

การซ่อมบำรุง

Regular maintenance ensures the longevity and optimal performance of your snow blower. After each use, clear any remaining snow or debris from the auger and chute. Inspect the auger blades and skid shoes for wear and tear. Store the unit in a dry, protected area, and ensure batteries are stored in a cool, dry place and charged periodically during off-season to maintain their health.

การแก้ไขปัญหา

If you encounter issues with your PowerSmart snow blower, refer to the following general guidelines. For specific problems, consult the detailed troubleshooting section in your full user manual.

• หน่วยไม่เริ่มต้น: Ensure batteries are fully charged and properly inserted. Check that the ON/OFF switch is pressed and the trigger is squeezed within 3 seconds.
• Reduced Performance/Clogging: This can occur with wet, heavy snow. Ensure the auger area and chute are clear of obstructions. Use the provided clearing tool if necessary, but always turn off the unit and remove the battery before clearing clogs.
• Battery Fault Indication: If a fault light appears, refer to the battery and charger manual for specific diagnostic steps. Ensure the battery is securely seated.

ข้อมูลจำเพาะทางเทคนิค

การรับประกันและการสนับสนุน

PowerSmart, founded by Amerisun Inc. and headquartered in Itasca, Illinois, is committed to providing reliable products and dependable service. Like all tools and equipment, products sometimes require repair or replacement.

PowerSmart has over 500 certified repair centers in the U.S. and provides full replacement parts through its IL headquarters. For any issues or support needs, please contact PowerSmart customer service.
