คู่มือผู้ใช้ระบบกล้องมองหลังไร้สายสำหรับรถ RV VEKOOTO รุ่น VK5

1. บทนำ

Welcome to your VEKOOTO Wireless RV Backup Camera System. This manual provides detailed instructions for the installation, operation, and maintenance of your VK5 system, designed to enhance safety and convenience when maneuvering your RV, truck, trailer, or camper. Please read this manual thoroughly before use to ensure proper setup and optimal performance.

The VEKOOTO VK5 system includes a 5-inch monitor and a magnetic, solar-charging wireless camera, providing a clear 1080P view for safe reversing and monitoring.

2. เนื้อหาบรรจุภัณฑ์

โปรดตรวจสอบว่ารายการทั้งหมดที่ระบุไว้ด้านล่างมีอยู่ในแพ็คเกจของคุณหรือไม่:

• จอภาพขนาด 5 นิ้ว 1 จอ
• 1x Magnetic Solar Rechargeable Camera
• รถชาร์จ 1x
• 1x เสาอากาศ
• 1x Suction Mount Bracket
• สายชาร์จ USB-C 1x
• 1x ที่ชาร์จติดผนัง
• 1x คู่มือผู้ใช้ (เอกสารนี้)

3. คุณสมบัติหลัก

• Magnetic Mount & Plug & Play: Features 12 powerful magnets for tool-free attachment. Monitor powers via Type-C or cigarette lighter for easy setup.
• 2.4GHz Stable Signal: Digital wireless signal offers strong anti-interference with up to 328ft transmission range in open spaces.
• 5-inch Monitor & Loop Recording: Continuously saves footage, overwriting oldest files. Supports up to 128GB TF cards (not included).
• Camera Auto Sync On/Off with Monitor: Camera automatically powers down when the monitor is off and starts up when the monitor is on, saving energy.
• 15,000mAh Battery & True Solar Charging: Integrated high-efficiency solar panel and a powerful battery provide up to 30 hours of continuous operation. Supports fast Type-C charging.
• IP69 Waterproof & IR Night Vision: Engineered for extreme weather, with infrared night vision providing clear views up to 30 feet in darkness.

4. คู่มือการติดตั้ง

4.1 Camera Installation (Magnetic Mount)

The camera features 12 strong magnets for easy attachment to any ferrous metal surface on your vehicle. No drilling or wiring is required for installation.

• Identify a suitable flat metal surface on the rear of your RV, truck, trailer, or campเอ่อ.
• Ensure the surface is clean and dry for optimal magnetic adhesion.
• Firmly press the camera onto the chosen surface. The strong magnets will secure it in place.
• Adjust the camera angle as needed to achieve the desired viewพื้นที่ที่กำลังก่อสร้าง
• บันทึก: If your vehicle has an aluminum or fiberglass body, the magnetic mount will not adhere directly. Contact VEKOOTO for a free metal plate accessory to enable magnetic mounting.

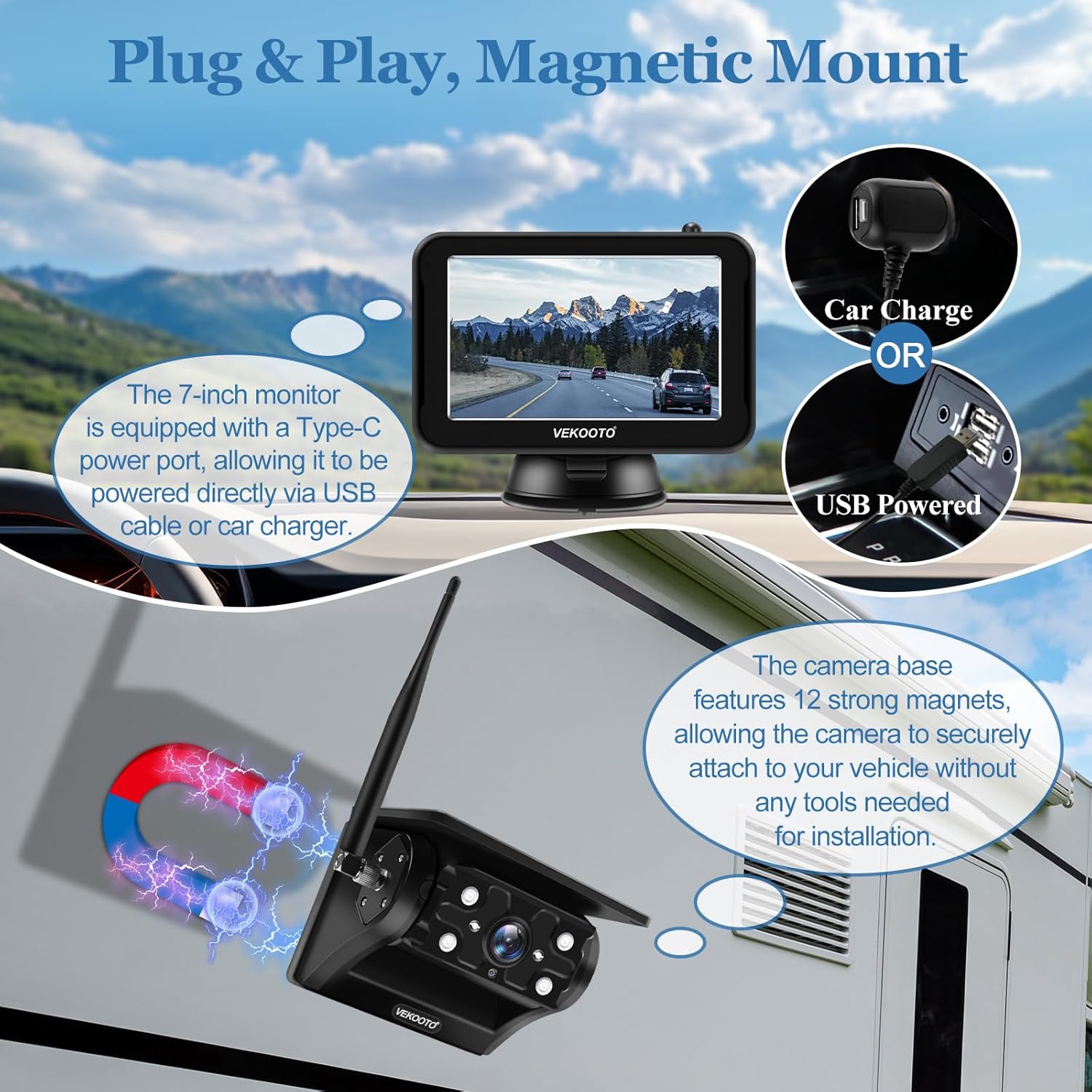

The camera attaches magnetically, and the monitor can be powered via a car charger or USB-C cable.

4.2 Monitor Installation and Power

The 5-inch monitor can be easily installed on your dashboard or windshield using the provided suction mount bracket.

• Attach the suction mount bracket to the monitor and secure it to your desired location in the vehicle.
• Connect the monitor to power using either the included Type-C cable or the cigarette lighter adapter.
• ตรวจสอบให้แน่ใจว่าการเชื่อมต่อสายไฟมีความปลอดภัย

4.3 Initial Camera Activation

For the very first use, the camera must be manually powered on. After this initial activation, the camera will automatically sync with the monitor's power state.

• ค้นหาปุ่มเปิดปิดบนกล้อง
• Press and hold the power button until the camera indicates it is on (e.g., an indicator light illuminates).

5. คู่มือการใช้งาน

5.1 Wireless Signal Connection

The camera and monitor establish a connection using a 2.4GHz Digital Wireless Signal. This provides a stable and interference-resistant connection.

• Once both the camera and monitor are powered on, they will automatically attempt to pair.
• The system offers a transmission range of up to 328 feet in open spaces, suitable for various vehicle lengths.

The system utilizes a 2.4GHz digital wireless signal for stable communication up to 328 feet.

5.2 ฟังก์ชั่นการตรวจสอบ

The 5-inch monitor provides a clear display and includes several useful features:

• สด View: Displays the real-time feed from the backup camera.
• การบันทึกแบบวนซ้ำ: Enabled by default, the monitor continuously records footage. When the storage is full, the oldest files จะถูกเขียนทับโดยอัตโนมัติ
• รองรับการ์ด TF: The monitor supports TF cards up to 128GB for storing recorded footage. (TF card not included).
• การเล่นซ้ำ: การเข้าถึงและอีกครั้งview วีดิโอที่บันทึกไว้ files directly on the monitor.

The 5-inch monitor supports loop recording and can display full or split screen views, with a slot for a TF card.

5.3 Camera Auto Sync On/Off

The VK5 system features an intelligent auto-sync function to conserve battery life and enhance convenience.

• When the monitor is powered off, the camera will automatically power down.
• When the monitor is powered on, the camera will automatically activate.
• You can configure the monitor to auto-sleep after 30s, 60s, or 90s, or keep it continuously on via the monitor settings.

The camera automatically syncs its power state with the monitor, reducing battery drain.

6. การจัดการพลังงาน

6.1 แบตเตอรี่และการชาร์จ

The camera is equipped with a robust 15,000mAh lithium battery and an integrated solar panel for efficient power management.

• ความจุแบตเตอรี่: The 15,000mAh battery provides up to 30 hours of continuous operation on a full charge.
• การชาร์จพลังงานแสงอาทิตย์: The high-efficiency monocrystalline solar panel can provide up to 400mA of current, continuously charging the battery when exposed to sunlight.
• Cable Charging: For faster charging or when solar charging is insufficient, use the provided USB-C charging cable and wall charger.

The camera features a 15,000mAh battery, supporting both solar and Type-C cable charging.

7. Environmental Features

7.1 Waterproof and Night Vision

The VEKOOTO VK5 camera is built to withstand challenging environmental conditions.

• กันน้ำ IP69: The camera boasts an IP69 waterproof rating, ensuring it can endure extended exposure to heavy rain, dust, and other elements without compromise.
• IR ไนท์วิชั่น: Equipped with infrared night vision, the camera provides a clear view up to 30 feet in complete darkness, enhancing safety during nighttime operations.

The camera is IP69 waterproof and features IR night vision for clear visibility in all conditions.

8 การแก้ไขปัญหา

If you encounter issues with your VEKOOTO VK5 system, please refer to the following common problems and solutions:

• ไม่มีภาพปรากฏบนจอภาพ:
  • Ensure both the camera and monitor are powered on. Remember to manually power on the camera for its first use.
  • Check all power connections to the monitor (Type-C or cigarette lighter).
  • Verify the camera battery has sufficient charge.
  • Ensure the camera and monitor are within effective wireless range (up to 328ft in open spaces) and there are no major obstructions.
• Poor Image Quality or Signal Interruption:
  • Reposition the camera or monitor to minimize interference from other electronic devices.
  • Ensure the camera's antenna is securely attached and oriented correctly.
  • Check for any physical obstructions between the camera and monitor.
• กล้องไม่ชาร์จไฟ:
  • For solar charging, ensure the solar panel is clean and exposed to direct sunlight.
  • For cable charging, verify the USB-C cable and wall charger are properly connected and functional.
• จอภาพไม่เปิดใช้งาน:
  • Check the power source (cigarette lighter or Type-C port) for functionality.
  • Ensure the power cable is securely connected to the monitor.
• Incorrect Cigarette Adapter USB-C Cable:
  • If the provided cigarette adapter's USB-C end does not fit the monitor, please contact VEKOOTO customer support for assistance or a replacement.

If these steps do not resolve your issue, please contact VEKOOTO customer support for further assistance.

9. ข้อมูลจำเพาะทางเทคนิค

10. การรับประกันและการสนับสนุน

VEKOOTO products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your product or visit the official VEKOOTO website. If you require technical assistance, have questions about your product, or need to report an issue, please contact VEKOOTO customer support through the following channels:

• อีเมล: Refer to your product packaging or the official VEKOOTO webเว็บไซต์สำหรับติดต่ออีเมล์
• Webเว็บไซต์: VEKOOTO Official Store on Amazon

Please have your model number (VK5) and purchase information ready when contacting support.
