ORICO AP3-3A2U2C-65-US

ORICO 65W GaN Travel Power Strip User Manual

Model: AP3-3A2U2C-65-US | Brand: ORICO

1. บทนำ

Thank you for choosing the ORICO 65W GaN Travel Power Strip. This device is designed to provide versatile and efficient power solutions for your electronic devices, especially during travel. It features multiple charging ports and a compact design for convenience. Please read this manual thoroughly before use to ensure proper operation and safety.

ORICO 65W GaN Travel Power Strip connected to a wall outlet

Figure 1: The ORICO 65W GaN Travel Power Strip plugged into a wall outlet, showcasing its compact design and integrated cable management.

2. สินค้าหมดview

2.1 เนื้อหาบรรจุภัณฑ์

  • ORICO 65W GaN Travel Power Strip (Model AP3-3A2U2C-65-US)
  • คู่มือการใช้งาน
  • กล่องบรรจุภัณฑ์
Contents of the ORICO 65W GaN Travel Power Strip package

Figure 2: Illustration of the package contents, including the power strip, manual, and packaging.

2.2 คุณสมบัติ

  • 7-in-1 Charging Ports: Includes 3 AC outlets, 2 USB-A ports, and 2 USB-C ports.
  • 65W GaN Fast Charging: Utilizes GaN technology for efficient and rapid charging of compatible devices, including laptops, tablets, and smartphones.
  • การออกแบบกะทัดรัดและพกพาสะดวก: Features a retractable cord and flat plug for easy storage and travel.
  • อนุมัติเรือสำราญ: Designed without a surge protector, making it suitable for use on cruise ships.
  • การกระจายความร้อนที่มีประสิทธิภาพ: Incorporates Graphene 360° Heat Dissipation, GaN Low-Temperature Fast Charging, and a Thermal Pad for safe operation.
Diagram showing 7-in-1 charging capabilities of the ORICO power strip

Figure 3: Visual representation of the power strip providing power to 7 devices simultaneously, including AC, USB-A, and USB-C connections.

Diagram illustrating the triple heat dissipation protection features of the ORICO power strip

รูปที่ 4: แผนภาพภายใน view highlighting the Graphene 360° Heat Dissipation, GaN Low-Temperature Fast Charging, and Thermal Pad for enhanced safety and efficiency.

3. การตั้งค่า

3.1 การแกะบรรจุภัณฑ์และการตรวจสอบ

  1. Carefully remove the power strip from its packaging.
  2. Inspect the device for any signs of damage. Do not use if damaged.
  3. ตรวจสอบให้แน่ใจว่ามีเนื้อหาแพ็คเกจที่ระบุไว้ครบถ้วน

3.2 การเชื่อมต่อกับแหล่งจ่ายไฟ

  1. Unwrap the integrated 4FT extension cord from the power strip. The cord is designed to wrap neatly around the unit for storage.
  2. Plug the flat-head power plug into a standard 125V AC wall outlet. The flat plug design minimizes obstruction to adjacent outlets.
  3. The power strip is now ready for use.
Image showing the flat plug design of the ORICO power strip

Figure 5: The flat plug design allows for easy connection to wall outlets without blocking adjacent receptacles.

4. คู่มือการใช้งาน

4.1 การใช้เต้ารับไฟฟ้ากระแสสลับ

  • The power strip features 3 AC outlets (1 three-prong, 2 two-prong).
  • Plug your AC-powered devices directly into these outlets.
  • Ensure the total power consumption of connected devices does not exceed the maximum rating of the power strip (refer to Specifications).

4.2 Using USB Charging Ports

The power strip includes 2 USB-A ports and 2 USB-C ports for charging various devices.

  • พอร์ต USB-C: Support up to 65W GaN fast charging for compatible devices like MacBook Pro/Air, iPad Pro, and modern iPhones.
  • พอร์ต USB-A: Provide standard USB charging for smartphones, smartwatches, and other USB-powered accessories.
  • For optimal fast charging, use high-quality USB cables compatible with your device's charging standards.

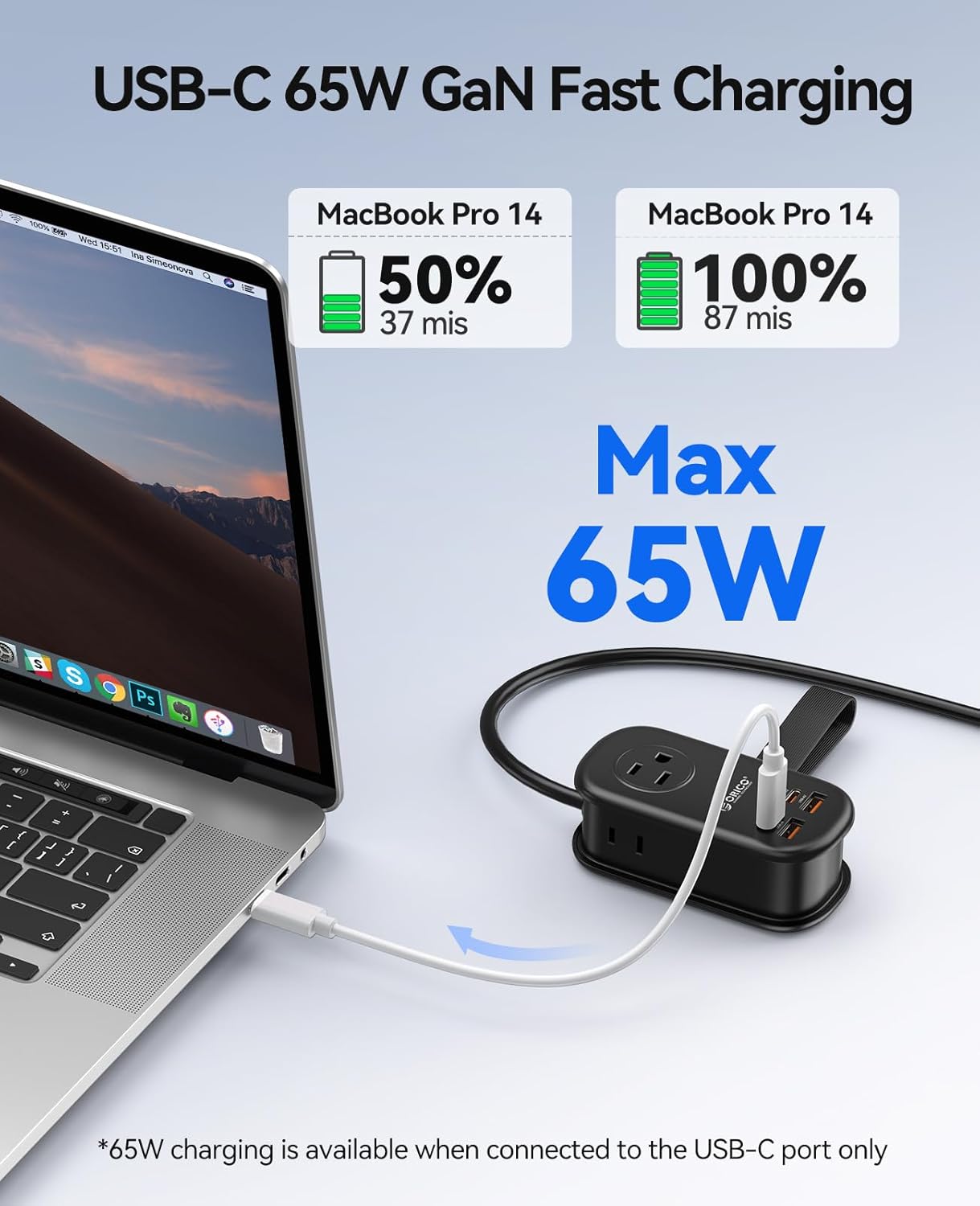

Image demonstrating 65W GaN fast charging for a MacBook Pro using the ORICO power strip

Figure 6: A MacBook Pro charging rapidly via the 65W USB-C port, showing battery percentage and charging time.

Diagrams illustrating various charging configurations for single, dual, triple, and quad USB ports

Figure 7: Charging power distribution across single, dual, triple, and quad USB port usage scenarios.

4.3 การชาร์จอุปกรณ์หลายเครื่องพร้อมกัน

The power strip is designed to charge multiple devices simultaneously. The intelligent GaN chip manages power distribution to optimize charging speeds for all connected devices.

Image showing various compatible devices with the ORICO power strip, categorized by port type

รูปที่ 8: อดีตamples of devices compatible with the USB-C, USB-A, and AC outlets, including MacBooks, iPhones, iPads, smartwatches, and small appliances.

วิดีโอ 1: จบแล้วview of the ORICO PD 65W Travel Power Strip, demonstrating its compact size and multiple charging ports in various usage scenarios.

5. การบำรุงรักษา

5.1 การทำความสะอาด

  • Before cleaning, ensure the power strip is unplugged from the wall outlet and all devices are disconnected.
  • เช็ดทำความสะอาดภายนอกด้วยผ้าแห้งเนื้อนุ่ม ห้ามใช้น้ำยาทำความสะอาดหรือวัสดุที่มีฤทธิ์กัดกร่อน

5.2 พื้นที่จัดเก็บ

  • When not in use, wrap the extension cord neatly around the power strip and secure it with the integrated strap.
  • เก็บอุปกรณ์ไว้ในที่แห้งและเย็น หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป

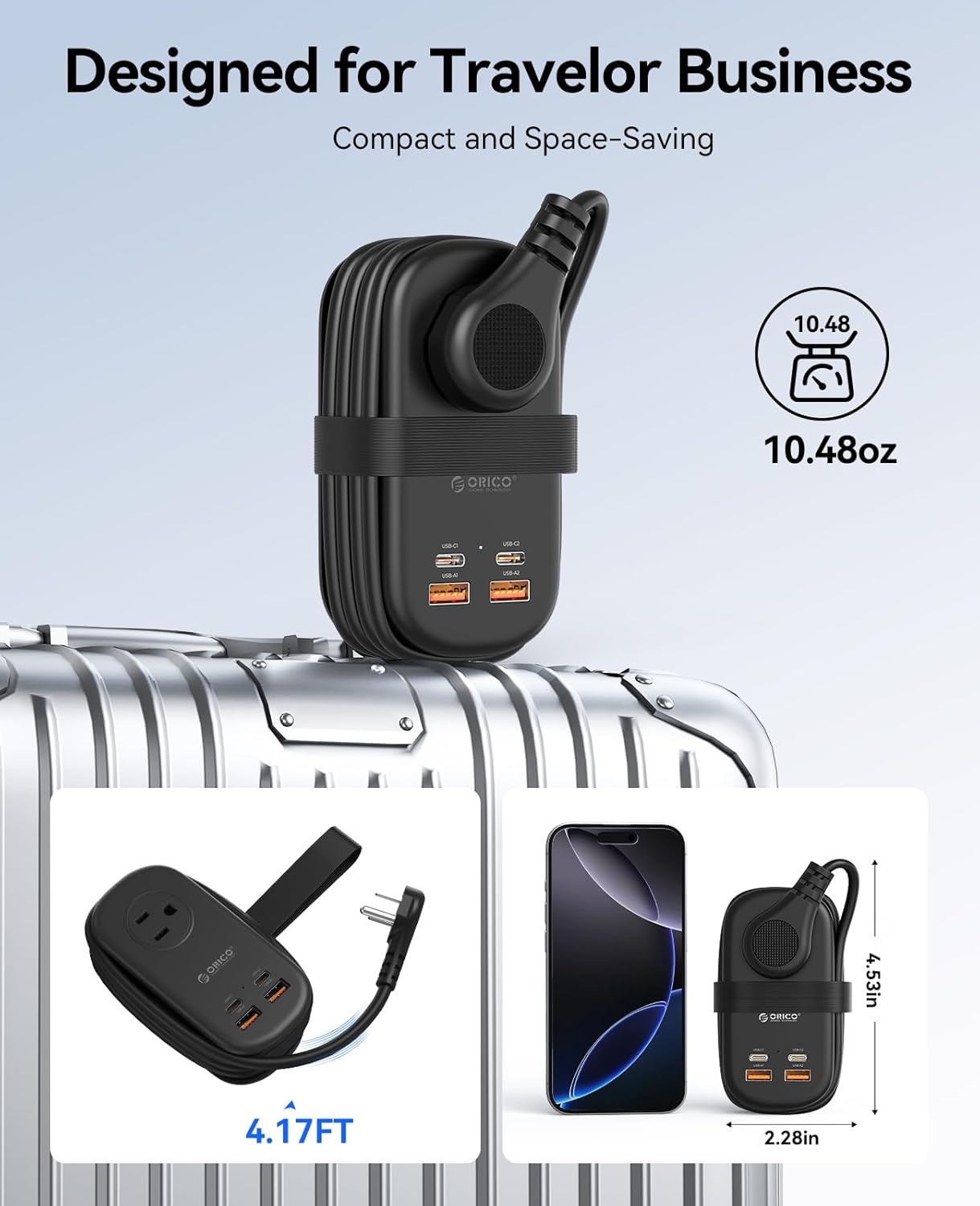

Image showing the compact, wrapped design of the ORICO power strip for travel

Figure 9: The power strip in its compact, travel-ready state, with the cord neatly wrapped and secured, ideal for luggage.

6 การแก้ไขปัญหา

  • อุปกรณ์ไม่ชาร์จ:
    • ตรวจสอบให้แน่ใจว่าปลั๊กพ่วงเสียบเข้ากับเต้ารับไฟฟ้าอย่างแน่นหนาแล้ว
    • Verify that the charging cable is properly connected to both the power strip and your device.
    • Test with a different cable or device to rule out cable or device issues.
    • Check if the device requires more power than the port can supply, especially for high-wattage devices on shared USB ports.
  • การชาร์จช้า:
    • Ensure you are using a fast-charging compatible cable for your device.
    • If multiple devices are connected, the total power output is shared, which may reduce individual port speeds.
    • Confirm your device supports the fast charging protocols provided by the USB-C ports.
  • Power strip feels warm:
    • It is normal for the power strip to generate some heat during operation, especially during fast charging or when multiple devices are connected.
    • The GaN technology and heat dissipation features are designed to manage this. If it becomes excessively hot or emits smoke/odor, unplug immediately and discontinue use.

7. ข้อมูลจำเพาะ

คุณสมบัติรายละเอียด
หมายเลขรุ่นAP3-3A2U2C-65-US
ยี่ห้อโอริโก้
ปลั๊กไฟทั้งหมด7 (3 AC, 2 USB-A, 2 USB-C)
ฉบับ ACtage125โวลต์
เอาท์พุต USB-CUp to 65W (GaN Fast Charging)
คุณสมบัติพิเศษCruise Ship Approved, Lightweight, USB Slots, Flat Plug
ความยาวสายเคเบิล4FT (approx. 1.22 meters)
ขนาด4.53" x 2.28" x 1.65" (approx. 11.5 x 5.8 x 4.2 cm)
น้ำหนักสินค้า11.3 ออนซ์ (ประมาณ 320 กรัม)

8. ข้อมูลด้านความปลอดภัย

  • ห้ามถอดประกอบหรือดัดแปลงอุปกรณ์
  • Keep away from water, moisture, and high temperatures.
  • This device is not a surge protector.
  • Do not overload the power strip beyond its rated capacity.
  • เก็บให้พ้นจากมือเด็ก
  • Use only in dry indoor locations.

9. การรับประกันและการสนับสนุน

สำหรับข้อมูลการรับประกันและการสนับสนุนทางเทคนิค โปรดดูที่เว็บไซต์อย่างเป็นทางการของ ORICO webหรือติดต่อผู้ค้าปลีกของคุณ เก็บใบเสร็จรับเงินไว้เพื่อใช้ในการเคลมประกัน

Video 2: A detailed demonstration of the ORICO AP3 65W Power Strip, highlighting its features and ease of use.

Video 3: A concise video showcasing the 65W GaN Travel Power Strip's design and functionality.
