COCOCAM 2PCS 4G Portable Magnetic Cellular Security Camera User Manual

1. บทนำ

This manual provides instructions for the COCOCAM 2PCS 4G Portable Magnetic Cellular Security Camera. This device is designed for versatile surveillance, offering 2K 3MP image quality and suitable for both indoor and outdoor environments. It features a 300° panning capability, a 10000mAh rechargeable battery, PIR and AI human detection, and an IP66 waterproof rating. The camera operates via a built-in Nano-SIM card for 4G LTE connectivity, eliminating the need for Wi-Fi.

Please read this manual thoroughly before operating the camera to ensure proper setup and usage.

Image: Two COCOCAM 4G Portable Magnetic Cellular Security Cameras, illustrating their compact design and magnetic bases for flexible installation.

2. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่าสินค้าทั้งหมดที่ระบุไว้ด้านล่างนี้รวมอยู่ในแพ็คเกจของคุณแล้ว หากมีสินค้าใดสูญหายหรือเสียหาย โปรดติดต่อฝ่ายสนับสนุนลูกค้า

• กล้องรักษาความปลอดภัย × 2
• Camera Stand × 2
• Round Sticker × 4
• Round Iron Sheet × 2
• สายชาร์จ USB × 2
• เครื่องมือทำความสะอาด × 2
• คู่มือการใช้งาน × 2

Image: The product packaging box, indicating 'Security Camera' and the COCOCAM brand logo.

3. คุณสมบัติของผลิตภัณฑ์

3.1 4G LTE Connectivity with Built-in SIM Card

The camera includes a built-in Nano-SIM card, providing a secure and stable 4G LTE connection. This feature allows for surveillance in locations without Wi-Fi access, such as RVs, campsites, temporary construction sites, or remote farms. The SIM card supports a 7-day free unlimited data trial, with various data packages available for continued use.

Image: A COCOCAM camera mounted on an outdoor metal structure, demonstrating its 4G LTE connectivity for remote monitoring.

ความละเอียด 3.2 2K และการมองเห็นกลางคืนแบบสี

Experience clear and detailed visuals with 2K resolution. The camera also features color night vision, providing visibility up to 20 meters (with white light) and 25 meters (with infrared) in low-light conditions, enhancing monitoring capabilities around the clock.

Image: A split image showing a camping scene in daylight and the same scene at night with clear color night vision, highlighting the camera's low-light performance.

3.3 300° Pan Capability

The camera offers a 300° panning capability, allowing you to remotely adjust the viewing angle and cover a wide area, ensuring comprehensive surveillance without blind spots.

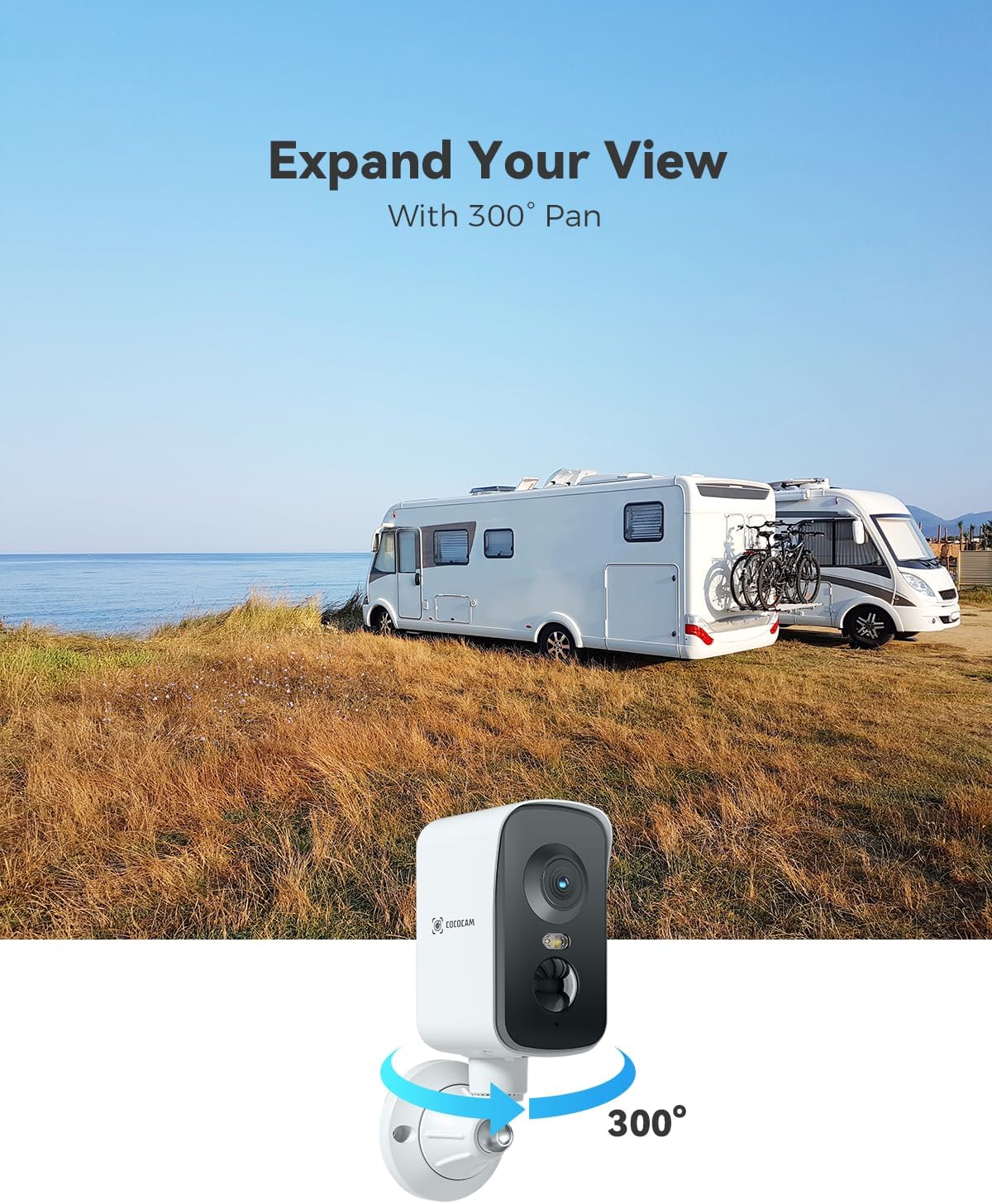

Image: A COCOCAM camera with an arrow indicating 300° pan, positioned in front of an RV by the sea, demonstrating its wide viewความสามารถ

3.4 10000mAh Rechargeable Battery

Equipped with a robust 10000mAh rechargeable battery, the camera provides long-lasting performance. A full charge can support approximately 4000-5000 triggers, making it suitable for extended use in remote locations.

ภาพ: โปร่งใส view of the COCOCAM camera, highlighting the large 10000mAh battery inside, indicating its power source.

3.5 PIR & AI Human Detection

The camera integrates Passive Infrared (PIR) and Artificial Intelligence (AI) human detection technology. This combination accurately identifies human movement, reducing false alarms from animals or environmental factors, and sends intelligent sound and light alerts to your device.

Image: A man walking in a grassy field with an RV and tent in the background, overlaid with a white box indicating AI human detection and a notification bubble for an alarm message.

3.6 Flexible Installation and IP66 Waterproof Rating

Installation is flexible with a magnetic base for metal surfaces, circular adhesive stickers for non-magnetic areas, or traditional drilling methods. The IP66 waterproof rating ensures the camera is protected against dust and powerful water jets, making it suitable for various outdoor conditions.

Image: A hand demonstrating the magnetic installation of the COCOCAM camera onto a wall, highlighting its ease of setup.

Image: A COCOCAM camera mounted on an outdoor wall, with water splashing on it, illustrating its IP66 waterproof capability.

4. คู่มือการติดตั้ง

4.1 การชาร์จกล้อง

Before first use, fully charge the camera using the provided USB charging cable. Connect the cable to the camera's charging port and a standard USB power adapter (not included). The charging indicator light will show the charging status.

4.2 การติดตั้งซิมการ์ดและการ์ด TF

The camera comes with a built-in Nano-SIM card. Ensure it is properly seated. If you wish to use local storage, insert a TF card (up to 128GB, not included) into the designated slot. Format the TF card through the app before use.

4.3 การดาวน์โหลดและการจับคู่แอป

1. Download the companion app (e.g., CloudEdge, check packaging for specific app name) from your smartphone's app store (iOS or Android).
2. สร้างบัญชีและเข้าสู่ระบบ
3. เปิดกล้อง
4. ทำตามคำแนะนำในแอปเพื่อเพิ่มกล้องของคุณ ซึ่งโดยทั่วไปจะเกี่ยวข้องกับการสแกนคิวอาร์โค้ดบนกล้องหรือป้อนรหัสประจำตัวด้วยตนเอง
5. Once paired, the camera will connect to the 4G network automatically.

4.4 การติดตั้งกล้อง

Choose an appropriate location for your camera, considering the desired viewing area and 4G signal strength. The camera offers multiple installation options:

• การติดตั้งแม่เหล็ก: Attach the camera's magnetic base directly to any metal surface.
• การติดตั้งด้วยกาว: For non-magnetic surfaces, use the provided circular adhesive stickers to attach the camera stand.
• Screw-in Mounting: For a more permanent installation, use screws to fix the camera stand to a wall or ceiling.

5. คู่มือการใช้งาน

5.1 สด View

Open the app and select your camera to access the live video feed. You can view the surveillance area in real-time.

5.2 Pan Control

Within the live view interface, use the on-screen controls to pan the camera horizontally up to 300° to adjust your field of view.

5.3 การตรวจจับการเคลื่อนไหวและการแจ้งเตือน

Configure PIR and AI human detection settings in the app. You can set sensitivity levels and define specific alert zones. When motion is detected, the camera will send instant notifications to your smartphone and can trigger sound and light alarms.

5.4 การบันทึกและการเก็บรักษา

The camera supports two storage options:

• การจัดเก็บการ์ด TF: Recordings are saved locally on an inserted TF card (up to 128GB).
• การเก็บข้อมูลบนคลาวด์: Optional cloud storage plans are available for secure backup of recorded events (e.g., 6-second clips with 7-day loop coverage).

5.5 เสียงสองทาง

Utilize the two-way audio feature through the app to communicate with individuals near the camera or deter intruders.

6. การบำรุงรักษา

6.1 การจัดการแบตเตอรี่

Monitor the battery level through the app. Recharge the camera when the battery is low to ensure continuous operation. Battery life varies based on usage frequency and environmental conditions.

6.2 การทำความสะอาด

ทำความสะอาดเลนส์และตัวกล้องเป็นระยะด้วยผ้านุ่มๆamp cloth. Avoid using harsh chemicals or abrasive materials that could damage the camera's surface or lens. The included cleaning tool can be used for delicate areas.

6.3 ข้อพิจารณาด้านสิ่งแวดล้อม

Despite its IP66 waterproof rating, avoid submerging the camera in water. Ensure the charging port cover is securely closed when not charging to maintain water resistance.

7 การแก้ไขปัญหา

• กล้องไม่เชื่อมต่อกับ 4G: Ensure the SIM card is properly inserted and activated. Check for 4G network coverage in your location. Restart the camera.
• คุณภาพของภาพไม่ดี: Clean the camera lens. Ensure there is adequate lighting. Check the app settings for resolution options.
• การตรวจจับการเคลื่อนไหวไม่ทำงาน: Verify that motion detection is enabled in the app settings. Adjust sensitivity levels. Ensure the camera's view ไม่ถูกกีดขวาง
• อายุการใช้งานแบตเตอรี่สั้น: เหตุการณ์ตรวจจับการเคลื่อนไหวที่เกิดขึ้นบ่อยครั้งแบบสด view streaming, and two-way audio use can drain the battery faster. Reduce detection frequency or recharge more often. Ensure the camera is fully charged.
• ปัญหาแอป: Ensure your app is updated to the latest version. Restart the app or your smartphone.

If problems persist, please refer to the support section or contact COCOCAM customer service.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

9.1 ข้อมูลการรับประกัน

COCOCAM is committed to providing high-quality products. For specific warranty details, please refer to the warranty card included in your package or visit the official COCOCAM website. Your privacy protection is a priority, with data saved on local servers or your own SD card, and transmitted securely with advanced encryption.

9.2 การสนับสนุนลูกค้า

For technical assistance, product inquiries, or troubleshooting, please contact COCOCAM customer support. Professional technical support is available to assist you.

• อีเมล: service@cococam.com
• เป็นทางการ Webเว็บไซต์: www.cococam.com

Image: An illustration emphasizing 100% privacy data security, showing support for both cloud storage and TF card storage up to 128GB, with a note to format the card before use.
