DMS Recessed Shutter Winder (Model AVVSEM6)

1. สินค้าหมดview

The DMS Recessed Shutter Winder (Model AVVSEM6) is designed for operating roller shutters and window blinds. This unit features a robust construction with a reinforced spring mechanism, ensuring reliable performance. It is supplied with a black cover plate for a clean, integrated appearance. The winder is designed for recessed installation, providing a discreet solution for your window treatments.

• โครงสร้างแข็งแรงทนทาน: Engineered for durability and long-term use.
• Reinforced Spring: Provides consistent and smooth operation.
• Black Cover Plate: Included for a finished, aesthetic installation.
• 6-Meter Tape Capacity: Suitable for various window sizes.

Image 1.1: The DMS Recessed Shutter Winder with its accompanying black cover plate, shown separated. The winder mechanism is made of galvanized metal, and the plate is black plastic.

2. ข้อมูลด้านความปลอดภัย

Please read and understand all instructions before installation and use. Failure to follow these instructions may result in injury or product damage.

• สวมอุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสม เช่น ถุงมือและอุปกรณ์ป้องกันดวงตาเสมอในระหว่างการติดตั้ง
• Ensure the installation area is clear of obstructions and electrical wiring.
• Do not attempt to modify the product. Any modifications will void the warranty and may compromise safety.
• ให้เด็กและสัตว์เลี้ยงอยู่ห่างจากบริเวณการติดตั้ง
• Ensure all fasteners are securely tightened to prevent the winder from detaching.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่าส่วนประกอบทั้งหมดอยู่ครบและไม่ได้รับความเสียหายก่อนดำเนินการติดตั้ง

• 1x Recessed Shutter Winder mechanism (with 6-meter tape)
• 1x Black Cover Plate

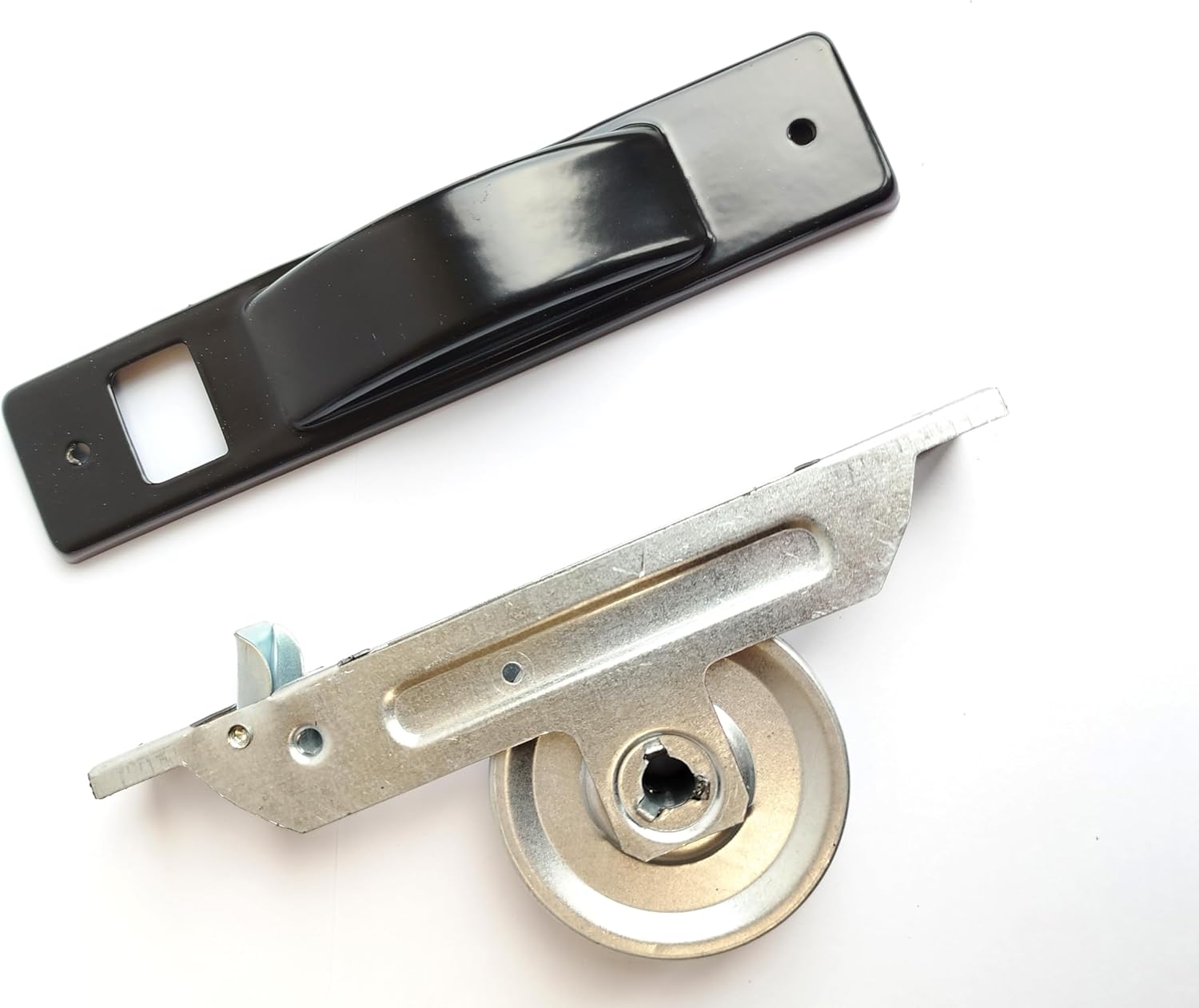

Image 3.1: The main components of the DMS Recessed Shutter Winder: the metal winder mechanism and the black plastic cover plate, laid out separately.

4. ข้อมูลจำเพาะ

Detailed technical specifications for the DMS Recessed Shutter Winder.

Image 4.1: Detailed dimensions of the DMS Recessed Shutter Winder and its black cover plate. Key measurements include total height, fixing hole distance, winder depth, and cover plate dimensions.

5. การตั้งค่าและการติดตั้ง

Follow these steps for proper installation of the recessed shutter winder.

1. เตรียมการเปิดงาน: Ensure the recessed opening in your wall or window frame is appropriately sized for the winder mechanism. Refer to the specifications for exact dimensions.
2. Attach the Shutter Tape: If not already attached, feed the shutter tape from your roller shutter through the winder mechanism and secure it according to the shutter system's instructions. Ensure the tape is correctly wound onto the winder's spool.
3. Position the Winder: Insert the winder mechanism into the prepared recessed opening. Align the fixing holes on the winder with the pre-drilled holes in the frame or wall.
4. ยึดเครื่องกว้านให้แน่น: Use appropriate screws (not included) to firmly attach the winder mechanism to the wall or frame. Ensure it is level and securely fastened to prevent movement during operation.
5. Install the Cover Plate: Place the black cover plate over the installed winder mechanism. Align the holes on the cover plate with the corresponding holes on the winder or frame. Secure the cover plate using small screws (not included) to complete the installation.

Image 5.1: The DMS Recessed Shutter Winder with the black cover plate correctly installed, showing the integrated appearance.

ภาพที่ 5.2: ภายใน view illustrating how the shutter tape is wound around the winder's spool, highlighting the tape path and mechanism.

6. คู่มือการใช้งาน

To operate your roller shutter or window blind using the DMS Recessed Shutter Winder:

• To Lower the Shutter: Gently pull the tape downwards. The winder's internal spring mechanism will allow the tape to unwind, lowering the shutter. Control the speed of descent by maintaining a firm grip on the tape.
• To Raise the Shutter: Gently pull the tape upwards. The winder's spring will assist in retracting the tape, raising the shutter. Guide the tape smoothly to avoid sudden movements.
• กลไกการล็อค: Some roller shutters have a built-in locking mechanism. Ensure the shutter is fully raised or lowered before engaging any such lock. The winder itself does not feature a locking mechanism; the shutter's position is maintained by the tension of the tape and the shutter's own design.

7. การบำรุงรักษา

The DMS Recessed Shutter Winder requires minimal maintenance to ensure long-lasting performance.

• การทำความสะอาด: Periodically wipe the visible parts of the winder and cover plate with a soft, damp ใช้ผ้าเช็ดทำความสะอาด หลีกเลี่ยงการใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย เพราะอาจทำให้พื้นผิวเสียหายได้
• การตรวจสอบ: Regularly inspect the shutter tape for any signs of wear, fraying, or damage. If the tape is damaged, it should be replaced by a qualified professional to prevent operational issues.
• การหล่อลื่น: The internal mechanism is designed for maintenance-free operation. Do not attempt to lubricate or disassemble the winder, as this may impair its function and void the warranty.

8 การแก้ไขปัญหา

If you encounter issues with your DMS Recessed Shutter Winder, refer to the following common problems and solutions:

9. การรับประกันและการสนับสนุน

DMS products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries, please reach out to the DMS customer service department through the contact information provided on the product packaging or the official DMS webเว็บไซต์.
