1. บทนำ
Thank you for choosing the COCOCAM 2K 4MP AI Baby Monitor. This advanced baby monitor is designed to provide comprehensive surveillance and peace of mind for parents. Featuring a 4MP QHD camera, 5-inch display, dual-band Wi-Fi, and intelligent AI detection capabilities, it ensures you stay connected with your baby at all times. This manual will guide you through the setup, operation, and maintenance of your new baby monitor.
Image: The COCOCAM Baby Monitor system, showing the camera unit and the portable 5-inch display, alongside a smartphone displaying the app interface.
2. อะไรอยู่ในกล่อง
กรุณาตรวจสอบเนื้อหาในแพ็คเกจของคุณเพื่อให้แน่ใจว่ามีสินค้าครบทั้งหมด:
- 1 × COCOCAM Baby Monitor Camera
- 1 × 5-inch Display Unit
- 1 × คู่มือผู้ใช้
- 1 × แผ่นยึด
- 2 × Power Supply Units
- 2 × Data Cables
- 1 × Screw Package (for mounting)
Video: An unboxing demonstration of the COCOCAM Baby Monitor, showing all included components neatly packaged.
3. คู่มือการติดตั้ง
3.1 การเปิดเครื่อง
- Connect one power supply unit to the camera and plug it into a power outlet.
- Connect the second power supply unit to the display unit. The display unit has a built-in 3000mAh battery and can operate wirelessly once charged.
- Press and hold the power button on the display unit to turn it on.
3.2 การจัดวางกล้อง
Place the camera on a flat, stable surface or mount it to a wall using the provided mounting plate and screws. Ensure the camera has a clear view of your baby's crib or play area. The camera features 355° horizontal and 90° vertical rotation for optimal viewการไอเอ็นจี

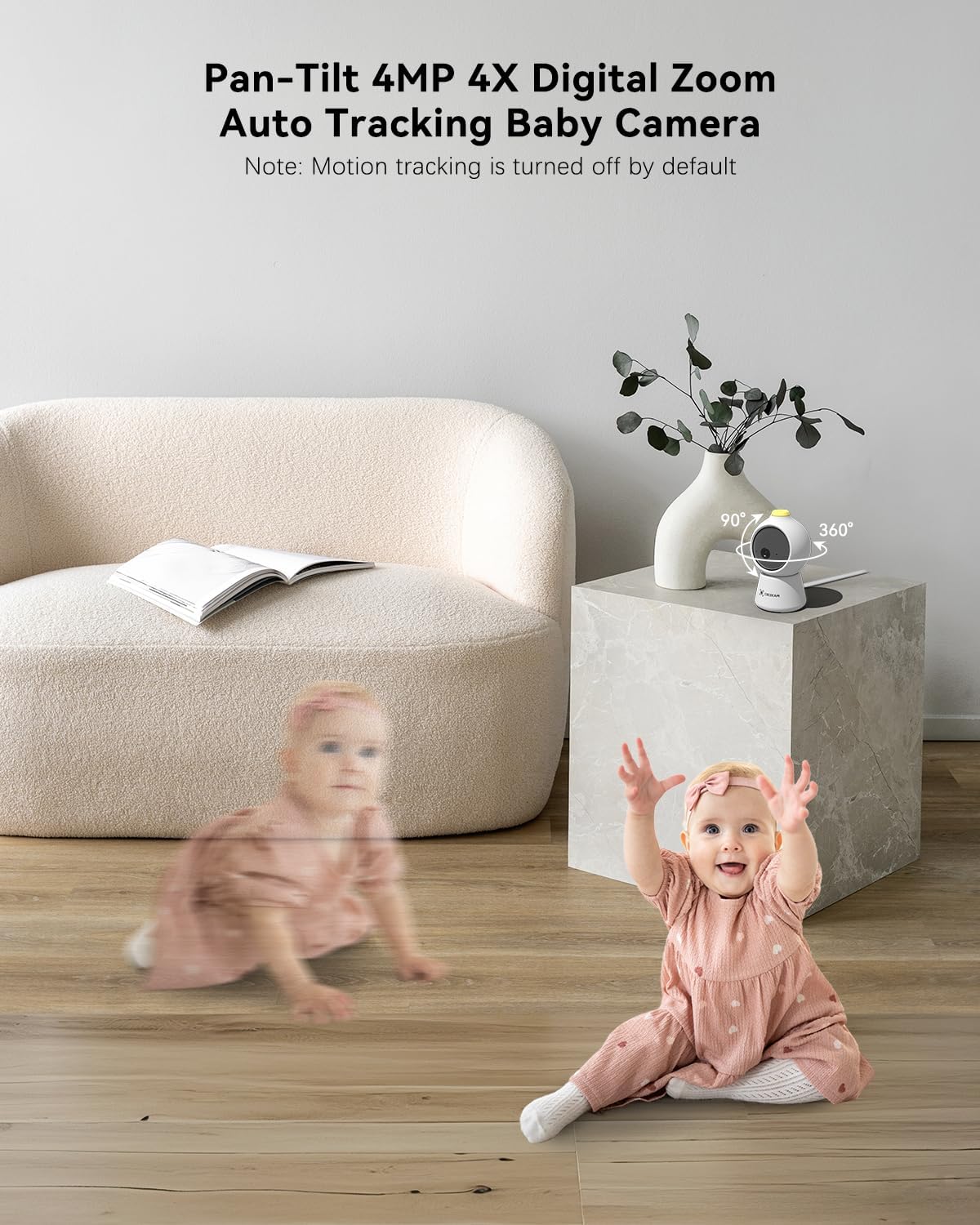

Image: The COCOCAM camera positioned in a room, demonstrating its pan-tilt and auto-tracking capabilities to follow a baby.
3.3 การเชื่อมต่อแอป (ทางเลือก)
For remote monitoring and advanced features, download the COCOCAM or CloudEdge app from your smartphone's app store. Follow the in-app instructions to connect your monitor to your home's 2.4G/5GHz Wi-Fi network. This enables features like multi-user sharing and remote access.
Image: Diagram illustrating the secure connection of the COCOCAM Baby Monitor via Wi-Fi, showing the monitor, camera, and smartphone app interface with privacy settings.
4. คู่มือการใช้งาน
4.1 Display Unit Functions
The 5-inch display unit provides real-time video and audio from the camera. Use the buttons on the side to navigate menus and control features:
- เมนู: Access settings, lullabies, feeding reminders, and other functions.
- ตกลง: ยืนยันการเลือก
- ปุ่มลูกศร: Navigate menus, pan/tilt the camera remotely.
- ไอคอนไมโครโฟน: Activate two-way audio to speak to your baby.
- โหมด VOX: The display unit features VOX voice activation. In this mode, the screen will sleep during silence and automatically wake up when it detects sounds like crying or noise, conserving battery life.
Image: The COCOCAM display unit showing various safety features and alerts, including crying detection, motion detection, face covering detection, temperature/humidity detection, and two-way audio.
4.2 AI Smart Features
The Baby 10Q monitor is equipped with an AI smart chip for enhanced monitoring:
- Covering Face/Sleeping on Stomach Detection: Alerts parents instantly if the baby's face is covered or if they are sleeping face-down, helping to prevent suffocation risks.
- Cry/Noise Detection: Provides instant warnings when your baby cries or makes significant noise.
- ติดตามอัตโนมัติ: The camera can automatically follow your crawling baby, keeping them in view.
- Smart Time Album (Fee Required): Automatically captures precious growth moments, accessible via the app.
- Person/Pet/Package Recognition (Fee Required): Advanced AI can recognize specific objects or beings, providing relevant alerts.
Image: The COCOCAM Baby Monitor demonstrating its ability to identify and alert for covering face and sleeping face-down positions in a baby.
4.3 Night Vision and Audio
The monitor features 940nm IR night vision, providing clear visibility up to 10 meters in darkness without disruptive red light. The two-way audio function allows you to hear your baby and speak back to them, offering comfort and reassurance.
Image: The COCOCAM Baby Monitor with its night light feature and playing lullabies, helping a baby fall asleep.
5. Advanced Features and Settings
- เซ็นเซอร์อุณหภูมิและความชื้น: Built-in sensors monitor the room's environment, ensuring optimal comfort for your baby.
- Customizable Feeding Reminders: Set reminders for feeding times directly from the display unit.
- Danger-Zone Alarms: กำหนดพื้นที่เฉพาะภายในกล้อง view to trigger alerts if your baby enters them.
- Built-in Lullabies and Adjustable Night Light: Soothe your baby with a selection of lullabies and a gentle night light (Fixed/Changing/Marquee modes).
- ตัวเลือกการจัดเก็บ: Supports SD cards (not included) for local recording and optional cloud storage (fee required).
- การบูรณาการผู้ช่วยเสียง: Works with Amazon Alexa and Google Assistant for convenient control.
Image: The COCOCAM display unit showing the personalized feeding schedule settings, allowing parents to adjust reminder intervals.
6. การบำรุงรักษา
- การทำความสะอาด: Use a soft, dry cloth to clean the camera lens and display screen. Do not use liquid cleaners or aerosols.
- พื้นที่จัดเก็บ: When not in use for extended periods, store the monitor and camera in a cool, dry place away from direct sunlight.
- การดูแลแบตเตอรี่ For the display unit's battery longevity, avoid extreme temperatures and fully discharge and recharge it periodically if not used regularly.
7 การแก้ไขปัญหา
| ปัญหา | วิธีแก้ปัญหาที่เป็นไปได้ |
|---|---|
| No image on display unit | Ensure both camera and display unit are powered on and within range. Check power connections. |
| Poor video quality or lag | Ensure strong Wi-Fi signal if using app. Reduce distance between camera and display unit. Check for obstructions. |
| ไม่มีเสียงหรือเสียงผิดเพี้ยน | Check volume settings on the display unit/app. Ensure no obstructions near the microphone/speaker. |
| ระบบตรวจจับ AI ไม่ทำงาน | Ensure camera has a clear view. Check app settings for AI feature activation. Some AI features may require a subscription. |
| Display unit battery drains quickly | Activate VOX mode to conserve power. Reduce screen brightness. |
8. ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| ชื่อรุ่น | Baby 10Q |
| ความละเอียดในการจับภาพวิดีโอ | 1440p (2K 4MP QHD) |
| ขนาดหน้าจอแสดงผล | 5 นิ้ว / 13 ซม. |
| โปรโตคอลการเชื่อมต่อ | Bluetooth, Wi-Fi (2.4G/5GHz Dual Band) |
| แหล่งพลังงาน | Display: Batteries (3000mAh); Camera: Wired (Power Supply Unit) |
| ช่วงการมองเห็นตอนกลางคืน | 10 Meters (940nm IR) |
| ช่วงแพน/เอียง | แนวนอน 355 องศา แนวตั้ง 90 องศา |
| อัตราเฟรม | 25 เฟรมต่อวินาที |
| ขนาด (กว้าง x ยาว x สูง) | 3.15 x 3.15 x 5.04 นิ้ว |
| น้ำหนักสินค้า | 0.2 กิโลกรัม / 7 ออนซ์ |
| วัสดุ | อะคริโลไนไตรล์ บิวทาไดอีน สไตรีน (ABS) |
| การเข้ารหัสความปลอดภัย | การเข้ารหัส AES 128 บิต |
9. การรับประกันและการสนับสนุน
COCOCAM is committed to providing high-quality products and excellent customer service. Your COCOCAM Baby Monitor comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.
For technical support, troubleshooting assistance, or any inquiries, please contact COCOCAM customer service. You can find contact information in the User Manual or on the official COCOCAM webเว็บไซต์.
- อีเมล: service@cococam.com
- Webเว็บไซต์: www.cococam.com
Your privacy protection is our priority. All data is saved on the local server or your own TF card. With advanced encryption technology, all data is transmitted securely to only you.
