AVID POWER T-Frame 85"x 22" Snowplow with Winch User Manual

1. สินค้าหมดview

The AVID POWER T-Frame Snowplow is designed for efficient snow removal from driveways and small parking lots. It attaches to most light trucks and SUVs equipped with a Class 3, 2-inch front mount receiver. The snowplow features an electric winch for blade control and a manual lever for adjusting the blade angle.

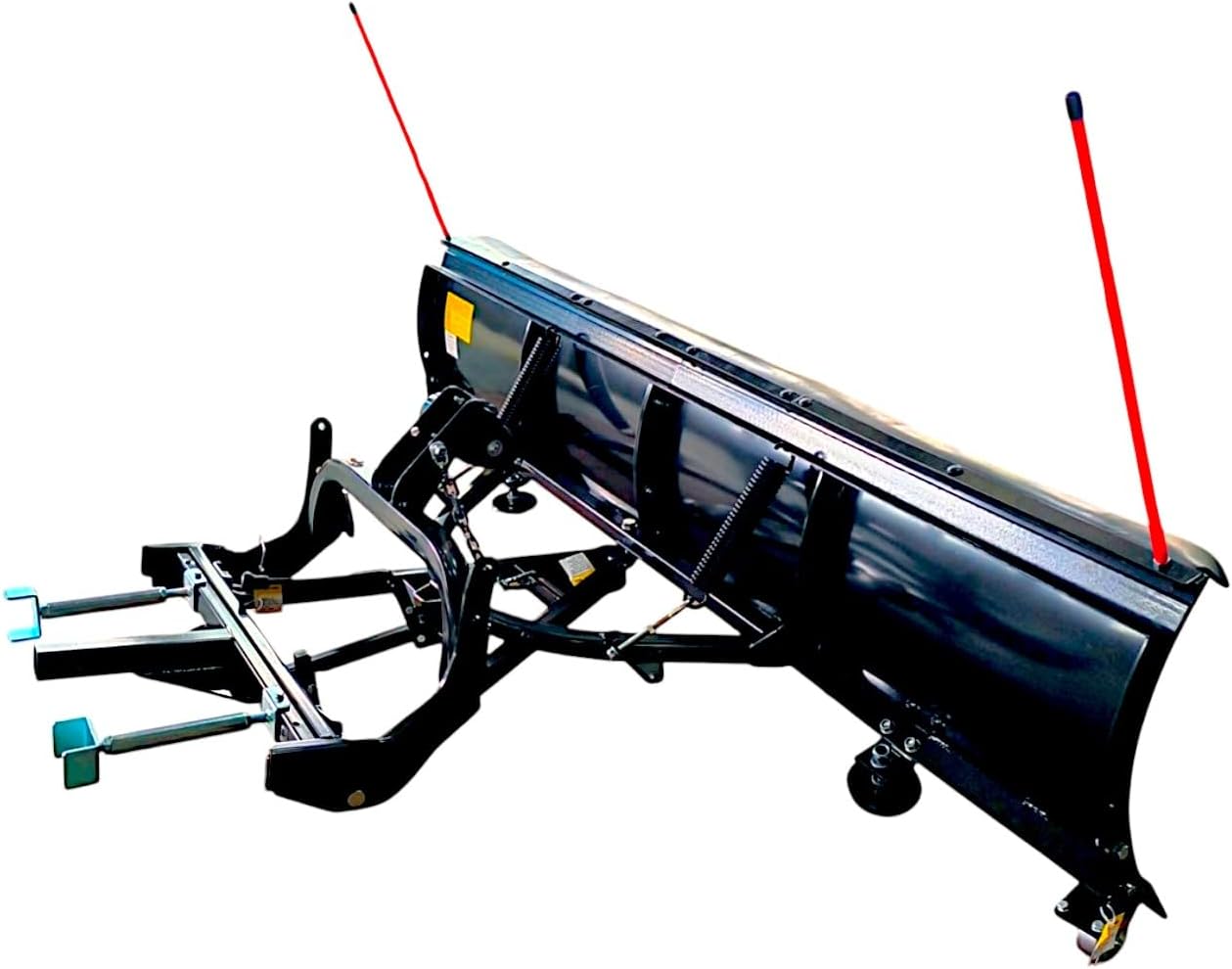

รูปที่ 1: มุม view of the AVID POWER T-Frame Snowplow, showcasing its robust construction and T-frame design.

รูปที่ 2: ด้านข้าง view of the snowplow, highlighting the T-frame structure and attachment points.

รูปที่ 3: ด้านหลัง view of the snowplow, showing the back of the blade, springs, and frame components.

2. ข้อมูลด้านความปลอดภัย

สำคัญ: Read the Safety Rules and instructions carefully before operating the equipment. Snowplows can be dangerous equipment. Read this manual completely prior to use and assembly to understand snowplow operations and safety recommendations. Failure to observe safety instructions could result in serious injury or death.

ข้อควรระวังด้านความปลอดภัยทั่วไป

• This snowplow is designed for residential snow removal only. Avoid misuse and overworking the snowplow.
• Always use caution when operating; different snow conditions can affect operation and performance.
• Do not use to clear snow piles created by large commercial plows, as this can damage the plow and vehicle.
• Use only original equipment parts and accessories.
• Keep children and pets at a distance from the plow during operation. Never stand between the vehicle and the blade, or within 3 meters (10 feet) of a snowplow in motion.
• Never sit or ride on the snowplow.
• Keep hands and feet clear of the blade, winch, and actuator, especially during mounting or removal.
• Lower the snowplow blade to the ground every time the vehicle is parked. A raised snowplow could drop unexpectedly.
• Wear a seat belt when operating the snowplow. Hidden obstacles can cause sudden stops.
• Put the vehicle in park, engage the parking brake, and remove keys from the ignition when installing or servicing the plow.
• Dress properly; avoid loose clothing, jewelry, or hair that could get caught in moving parts.
• Always wear protective gear such as eye protection and gloves when working under the hood.
• Ensure the vehicle is turned off and keys removed to prevent unexpected starting.
• Have a BC-rated fire extinguisher available for electrical or flammable liquid fires.
• Do not plow with any body parts outside the window.

ความปลอดภัยของยานพาหนะ

• Consult your vehicle owner’s manual or dealer regarding potential warranty implications of snowplow installation.
• Be cautious with larger vehicles; momentum can damage the plow.
• Do not attempt plowing at speeds above 15 km/h (10 mph). High speeds can reduce cool air intake and cause engine overheating.
• Be aware of the loaded vehicle weight (including plow, accessories, driver, passengers) and ensure it does not exceed Gross Axle Weight Rating (GAWR) and Gross Vehicle Weight Rating (GVWR). Rear ballast weight may be required.
• Sudden stops from hitting obstacles can trigger airbag deployment. Consult your vehicle manual.
• Remove the snowplow before towing or servicing the vehicle.
• Use the included breaker during electrical harness installation to prevent damage.
• Never operate the plow without good visibility or light. Extra lighting is recommended and may be required by local jurisdiction. Regular headlights may be obscured.
• Do not drive on public roads with the snowplow.
• Do not adjust blade position while traveling.
• Always connect the safety chain and pin when transporting the plow in the raised position.
• Consult local/provincial laws regarding vehicle restrictions when the snowplow is not attached.

3. การตั้งค่าและการติดตั้ง

The AVID POWER T-Frame Snowplow is designed for straightforward attachment and removal. It is compatible with most light trucks and SUVs equipped with a Class 3, 2-inch front mount receiver.

ขั้นตอนก่อนการติดตั้ง

1. Read the complete owner’s manual carefully before assembly.
2. Ensure the vehicle is parked on a level surface, in park, with the parking brake engaged, and the keys removed from the ignition.
3. Inspect all snowplow components and hardware for looseness, wear, or damage.

Attaching the Snowplow

1. The snowplow utilizes a standard 2-inch insert for attachment to receiver hitches. Adapters may be required for other receiver sizes (not included).
2. The plow works with hitch heights between 11 and 19 inches. A reversible 5-position drop hitch is included to accommodate various vehicle heights.
3. The snowplow can be attached to both front and back hitches.
4. Utilize the flip-down locking casters for easy maneuvering and alignment during attachment.
5. Connect the snowplow’s electrical harness, ensuring the included breaker is used to prevent electrical damage to the vehicle.
6. Once attached, always connect the safety chain and pin, especially when transporting the plow in the raised position.

4. คู่มือการใช้งาน

The AVID POWER T-Frame Snowplow is designed for user-friendly operation, allowing you to clear snow efficiently.

การควบคุมใบมีด

• การยกและการลดระดับ: Use the electric winch or actuator from inside your vehicle to raise and lower the blade. This provides hands-free snow control.
• การปรับมุม: Adjust the blade angle by lifting a lever to manually lock it into one of three positions: straight, angled right, or angled left. Do not attempt to adjust the blade position while the vehicle is moving.

Plowing Best Practices

• Clear driveways or small parking lots efficiently.
• Do not exceed plowing speeds of 15 km/h (10 mph). Higher speeds can lead to engine overheating and potential damage.
• Ensure good visibility and adequate lighting during operation. Supplemental lighting may be necessary as vehicle headlights can be obscured.
• Avoid driving on public roads with the snowplow attached.
• Be mindful of hidden obstacles like rocks or curbs that could cause sudden stops.

5. การบำรุงรักษา

Regular maintenance ensures optimal performance and extends the lifespan of your AVID POWER Snowplow.

1. การตรวจสอบก่อนใช้งาน: Before each use, carefully inspect the snowplow for any visible damage, loose components, or hardware.
2. การทำความสะอาดและการหล่อลื่น: Keep the plow clean and lubricated with waterproof grease. This prevents corrosion, even during storage.
3. การจัดเก็บนอกฤดูกาล: During the off-season, touch up any areas showing corrosion with weather-resistant paint. If stored outdoors, cover electrical components such as the winch, wires, and actuator.
4. การเชื่อมต่อไฟฟ้า: Lubricate all electrical connections with dielectric grease to prevent corrosion.
5. ส่วนประกอบสิ้นเปลือง: Regularly check for unusual signs of wear on consumable parts such as scraper blades, skid shoes, winch strap, and safety chains. Replace worn components as needed.

6 การแก้ไขปัญหา

This section addresses common issues you might encounter during the operation of your snowplow.

ประเด็นการดำเนินงานทั่วไป

• Plow not clearing snow effectively: Ensure the blade angle is set correctly for the snow conditions. Check for excessive wear on the hardened steel cutting edge scraper and skid shoes.
• Winch/Actuator not responding: Verify all electrical connections are secure and free of corrosion. Check the included breaker for any trips. Ensure the vehicle's power supply is adequate.
• Plow feels unstable or difficult to control: Confirm the plow is securely attached to the receiver hitch. Check that the safety chain and pin are properly engaged. Ensure vehicle tires have adequate traction for snow conditions.

If issues persist, refer to the customer support information provided in this manual.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

For any questions or assistance regarding your AVID POWER Snowplow, please contact our customer support team directly. Do not return the product to the retailer store.

• นโยบายการคืนสินค้า: Eligible for return or refund within 30 days of receipt.
• ติดต่อฝ่ายสนับสนุนลูกค้า:
  LCM Distribution Services
  3-2823 Bristol Circle, Oakville, Ontario, L6H 6X5 Canada
  อีเมล: contact@lcm-distribution.com
