This manual provides comprehensive instructions for the Womaqu 1:14 Scale RC Car Metal Gear Differential Upgrade Kit. This kit is designed to enhance the performance and durability of compatible RC vehicles by replacing standard components with high-quality metal parts. The main shaft metal gear with a metal differential ensures improved power transmission and longevity.

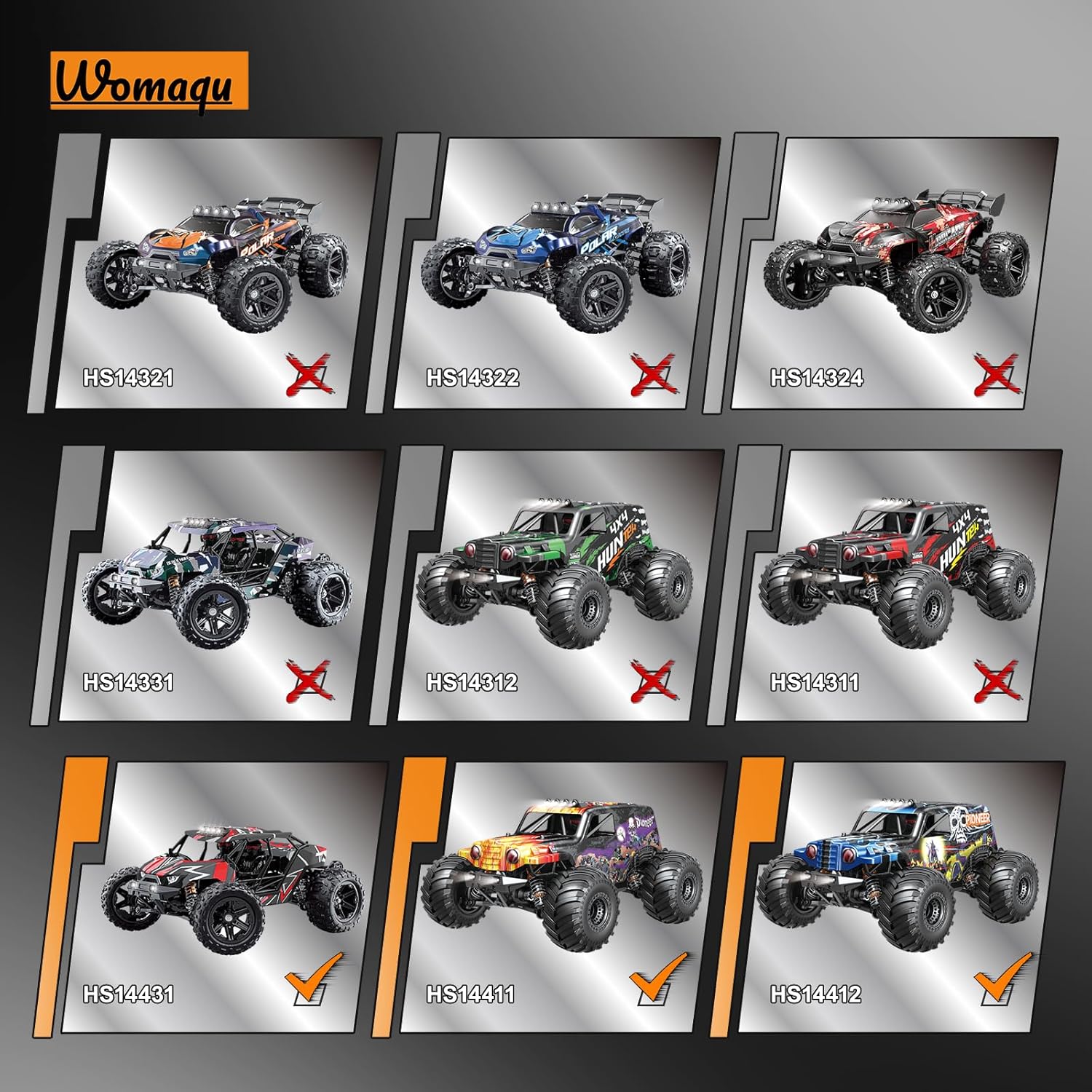

รุ่นที่รองรับ: 14431, 14412, 14413, 14322, 14331, 14411.
เนื้อหาแพ็คเกจ
The Womaqu Metal Gear Differential Upgrade Kit includes the following components:
- Large Gear: 1 piece (0.8 cm/0.31 inch inner diameter, 3.2 cm/1.25 inch outer diameter)
- Small Bevel Gear: 2 pieces (2.5 cm/0.96 in height, small bevel head diameter 0.8 cm/0.31 in, width 1.2 cm/0.47 in)
- ความแตกต่าง: 1 piece (5.3 cm/2.07 in length, gear diameter 3.7 cm/1.44 in, joint diameter 1.1 cm/0.43 in)
ข้อมูลด้านความปลอดภัย
WARNING: Choking Hazard - Small Parts. Not suitable for children under 14 years of age without adult supervision.
คู่มือการติดตั้ง
This section details the process of installing the metal gear differential upgrade kit into your compatible RC vehicle. It is recommended to consult your RC vehicle's original manual for specific disassembly instructions.
1. การเตรียมพร้อม
- Ensure your RC vehicle is powered off and the battery is disconnected.
- Gather necessary tools, typically a small Phillips head screwdriver and possibly a hex wrench (not included in this kit).
2. Accessing the Differential
Carefully remove the body shell of your RC vehicle. This usually involves detaching body clips or screws. Once the body is off, locate the existing differential assembly within the chassis.
3. Removing the Old Differential
- Following your RC vehicle's manual, carefully disassemble the components surrounding the differential to gain full access. This may include removing suspension arms, drive shafts, or gearbox covers.
- Extract the existing differential and associated gears.
4. Installing the New Metal Differential
The Womaqu metal differential is designed for easy installation, offering excellent performance and good stability.
- Insert the new large gear onto the differential shaft.
- Attach the small bevel gears to their respective positions on the differential.
- Carefully place the assembled metal differential into the gearbox housing.
- Ensure all gears mesh correctly and rotate smoothly without binding.
5. การประกอบกลับ
- Reverse the disassembly steps to reassemble your RC vehicle.
- ตรวจสอบให้แน่ใจว่าขันสกรูทุกตัวแน่นดีแล้ว แต่อย่าขันแน่นเกินไป
- ประกอบตัวถังรถกลับเข้าที่เดิม
เคล็ดลับการใช้งาน
With the new metal differential, your RC vehicle will experience improved performance. Always operate your RC car responsibly.
- การทดสอบเบื้องต้น: After installation, perform a low-speed test to ensure all components are functioning correctly.
- ภูมิประเทศ: The upgraded differential enhances durability across various terrains, including dirt, snow, water, and mud.
- การซ่อมบำรุง: Regularly inspect the differential and gears for wear and tear. Clean any debris to maintain optimal performance.
ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| ขนาดสินค้า | 2.54 x 2.15 x 3.31 นิ้ว |
| น้ำหนักสินค้า | 3.36 ออนซ์ |
| หมายเลขรุ่นสินค้า | Y14401-1-QHCA |
| อายุที่แนะนำโดยผู้ผลิต | 14 ปีขึ้นไป |
| ผู้ผลิต | Womaqu |
การรับประกันและการสนับสนุน
For any product-related inquiries, technical support, or warranty claims, please contact Womaqu customer service through the retailer where the product was purchased. Please retain your proof of purchase for warranty validation.
