1. สินค้าหมดview
The Irfora 330 Electronic Cash Drawer is a robust and reliable solution designed for efficient money handling in various retail and restaurant environments. It features a durable steel construction, multiple currency compartments, and flexible opening mechanisms to integrate seamlessly with Point of Sale (POS) systems.
คุณสมบัติที่สำคัญ ได้แก่:
- 4 adjustable bill trays and 5 fixed coin trays for organized currency storage.
- Three key positions: Electric Open, Manual Open, and Lock.
- RJ11 interface for connection to POS printers or cash registers.
- Emergency switch for manual opening.

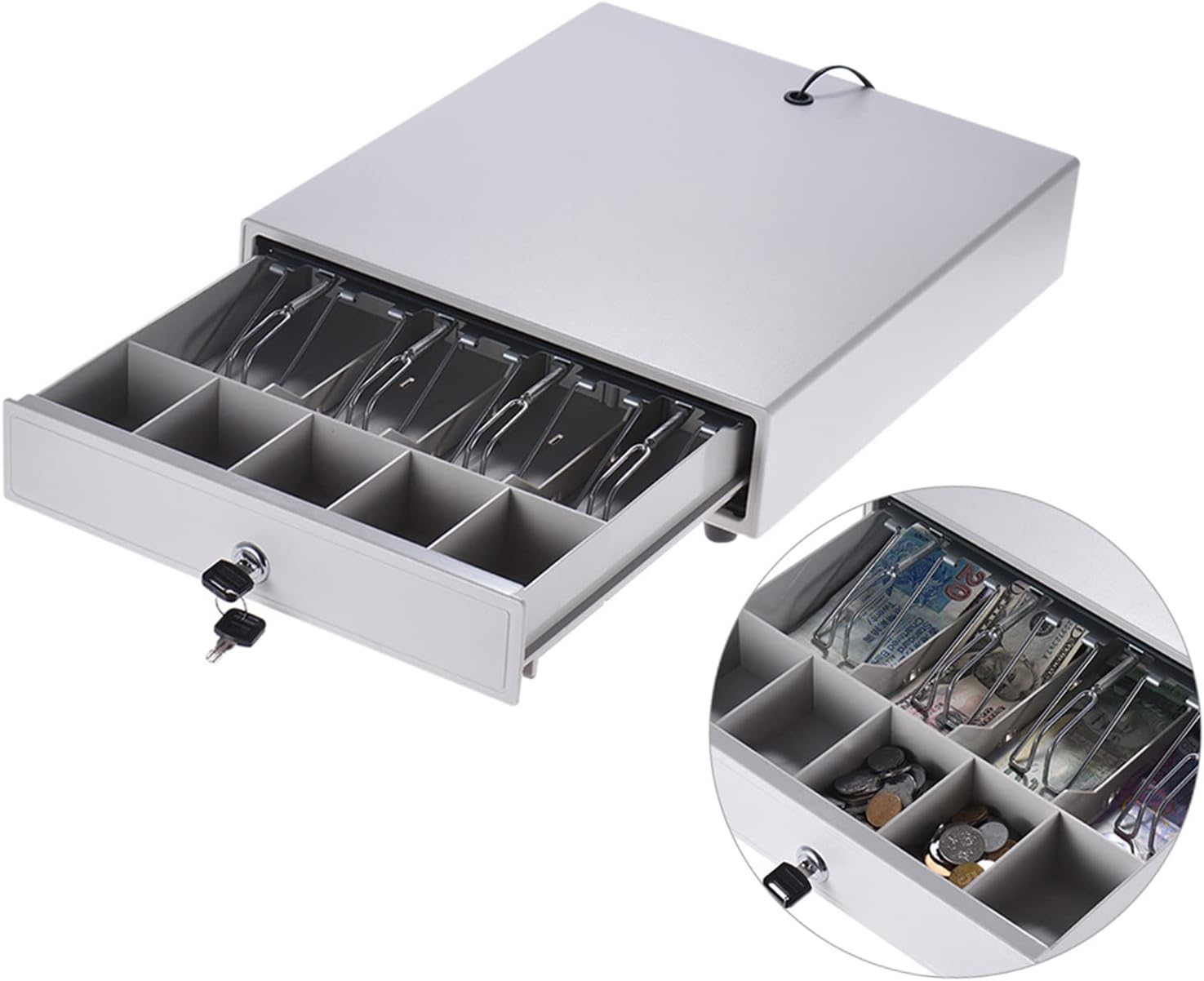

รูปที่ 1 : ด้านหน้า view of the Irfora 330 Electronic Cash Drawer.
2. คำแนะนำในการตั้งค่า
2.1 การแกะกล่อง
Carefully remove the cash drawer from its packaging. Ensure all components, including the cash drawer unit, keys, and user manual, are present. Inspect the unit for any signs of damage during transit.
2.2 Connecting to a POS System
The Irfora 330 Cash Drawer connects to a POS printer or cash register via an RJ11 cable. This cable allows the POS system to trigger the electronic opening mechanism of the drawer.
- Locate the RJ11 port on the back of the cash drawer.
- Connect one end of the RJ11 cable (not included) to the cash drawer's RJ11 port.
- Connect the other end of the RJ11 cable to the designated cash drawer port on your POS printer or cash register.
- Ensure the POS printer or cash register is powered on and configured to send the open signal to the cash drawer.
2.3 Software Configuration (if applicable)
For some POS systems, specific software commands may be required to enable cash drawer functionality. If prompted, use the command: 27.112.0.128.128.
Figure 2: Cash drawer with included keys and manual, ready for setup.
3. Operating the Cash Drawer
3.1 Key Positions
The cash drawer features a key-lock mechanism with three distinct positions:
- ล็อค: The drawer is securely locked and cannot be opened electronically or manually.
- คู่มือเปิด: The drawer can be opened by turning the key to this position and pushing the drawer. It will not open electronically.
- Electric Open: The drawer will open electronically when a signal is received from the connected POS system. The key can be removed in this position.
3.2 Organizing Currency
The cash drawer is equipped with 4 bill trays and 5 coin trays to help organize different denominations of currency. The bill clamps are made of heavy-duty steel with highly elastic springs for frequent use.
รูปที่ 3 : ภายใน view of the cash drawer with bill and coin trays.
3.3 การเปิดฉุกเฉิน
In case of power failure or system malfunction, an emergency switch is located on the back of the cash drawer. Pressing this switch will manually release the drawer lock, allowing it to be opened.
4. การบำรุงรักษา
The Irfora 330 Cash Drawer is designed for durability and requires minimal maintenance. Regular cleaning and proper handling will ensure its longevity.
- การทำความสะอาด: ใช้แบบนุ่มๆamp cloth to wipe the exterior of the cash drawer. Avoid abrasive cleaners or solvents that could damage the finish.
- ส่วนประกอบภายใน: Periodically check the bill clamps and coin trays for any debris that might hinder smooth operation. The pulley ball bearing shaft is designed for long-term use and generally does not require lubrication.
- การดูแลที่สำคัญ: Keep the keys in a safe place. Avoid forcing the key if it feels stiff; ensure it is fully inserted and aligned before turning.
5 การแก้ไขปัญหา
If you encounter issues with your cash drawer, refer to the following common problems and solutions:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ลิ้นชักไม่สามารถเปิดด้วยระบบอิเล็กทรอนิกส์ได้ |
|
|
| Drawer is stuck or difficult to open/close. |
|
|
| กุญแจหมุนไม่ออกหรือติดขัด |
|
|
Figure 4: Location of the emergency switch and non-slip support feet.
6. ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| แบบอย่าง | 330 |
| สี | สีขาว |
| วัสดุ | สแตนเลส |
| ระบบล็อค | Electric Open / Manual Open / Lock (3-position) |
| Bill Trays | 4 (Non-adjustable) |
| Coin Trays | 5 (Non-detachable, Non-adjustable) |
| ไดร์เวอร์ฉบับที่tage | กระแสตรง12โวลต์ |
| อินเทอร์เฟซ | RJ11 |
| ขนาดรายการ (ยาว x กว้าง x สูง) | 37.9 x 33.4 x 7.9 ซม. (14.9 x 13.1 x 3.1 นิ้ว) |
| น้ำหนักสินค้า | 3.5 กก. (7.7 ปอนด์) |
Figure 5: Detailed dimensions of the cash drawer and its internal compartments.
7. การรับประกันและการสนับสนุน
7.1 ข้อมูลการรับประกัน
For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the manufacturer directly. Warranty coverage typically includes defects in materials and workmanship under normal use.
7.2 การสนับสนุนลูกค้า
If you require further assistance, have questions, or encounter issues not covered in this manual, please contact your retailer or the manufacturer's customer support. Have your product model number (330) and purchase details ready when contacting support.
