1. สินค้าหมดview
The KADAMS Pomodoro Cube Timer is a versatile and intuitive productivity tool designed to help manage time effectively for various activities such as work, study, cooking, and workouts. Its unique cube design allows for quick and easy activation of preset countdowns by simply flipping it to the desired time. It also features a visual LED ring, customizable countdowns, silent mode, and a stopwatch function.
Image 1.1: KADAMS Pomodoro Cube Timer. This image displays the sleek black cube timer with its digital display showing '25 00' and a surrounding LED ring.
2. คุณสมบัติหลัก
- 4 Preset Countdown Options: Easily switch between 5, 10, 25, and 50 minutes by rotating the cube.
- Visual LED Ring: A clear LED ring gradually illuminates to indicate time progression, offering an intuitive visual countdown.
- Customizable Countdown Timer: Set any desired time to one of the timer’s sides for personalized routines.
- โหมดเงียบ: Enjoy a distraction-free experience with the mute function, suitable for quiet environments.
- โหมดนาฬิกาจับเวลา: Supports forward timing up to 99 minutes and 59 seconds for tracking elapsed time.
- Easy to Use & Versatile: Simply flip to start, ideal for Pomodoro technique, classroom activities, office meetings, and home routines.
3. การตั้งค่า
3.1 Charging the Timer
The KADAMS Pomodoro Cube Timer is rechargeable. Use the provided USB-C cable to charge the device. The charging port is located on the bottom of the timer, alongside the control buttons.
ภาพที่ 3.1: ด้านล่าง view of the timer, highlighting the ON/OFF switch and Type-C charging port. The image shows the physical switch and the USB-C input for charging.
3.2 เปิด/ปิดเครื่อง
Locate the ON/OFF switch on the bottom of the timer. Slide the switch to the 'ON' position to power on the device. To conserve battery, slide the switch to 'OFF' when not in use.
4. คู่มือการใช้งาน
4.1 Using Preset Countdown Timers
The timer features four preset countdowns: 5, 10, 25, and 50 minutes. To activate a preset timer, simply flip the cube so that the desired time (e.g., '25 MIN') is facing upwards. The timer will automatically begin counting down. To pause or reset, simply flip the cube to another side or to the side with the current time again.
Image 4.1: Flip to Start. This image illustrates a hand flipping the cube timer to initiate a countdown, showing the intuitive nature of its operation.
Image 4.2: Versatile Time Management. This image shows the timer being used in different scenarios like Pomodoro sessions, breaks, cooking, and meetings, demonstrating its adaptability.
4.2 Visual LED Ring
As the timer counts down, the LED ring around the digital display gradually fills up, providing a visual representation of the elapsed time. This visual feedback helps in monitoring progress at a glance without needing to constantly read the numbers.
Image 4.3: See Time Flow Visually. The image highlights the LED ring on the timer's display, which visually indicates the progress of the countdown.
4.3 Customizable Countdown Timer
To set a custom countdown time for any of the four sides (5, 10, 25, 50 MIN):
- Place the timer on the side you wish to customize (e.g., 25 MIN side).
- Press the 'SET' button on the bottom of the timer. The display will show '00 00'.
- Use the 'S' (seconds) and 'M' (minutes) buttons to adjust the desired time.
- Press 'SET' again to confirm and save the custom time. This custom time will now be associated with that specific side until changed again.
Image 4.4: Personalize Your Timer. This image shows the 'SET' button on the bottom of the timer, indicating the customization feature.
4.4 โหมดเงียบ
To activate or deactivate the silent mode (mute function):
- ตรวจสอบให้แน่ใจว่าตัวตั้งเวลาเปิดใช้งานอยู่
- Long press the 'UP' button on the bottom of the timer.
- The display will show a speaker icon with a cross through it when silent mode is active. Repeat the long press to re-enable sound.
Image 4.5: Choose Your Mode. This image displays the option to switch between audible and silent modes for the timer.
4.5 Stopwatch Mode (Count-Up)
The timer also functions as a stopwatch, allowing you to track elapsed time up to 99 minutes and 59 seconds. To activate stopwatch mode, ensure no side is actively counting down, then press the 'UP' button. The timer will begin counting upwards. Press 'UP' again to pause, and 'SET' to reset.

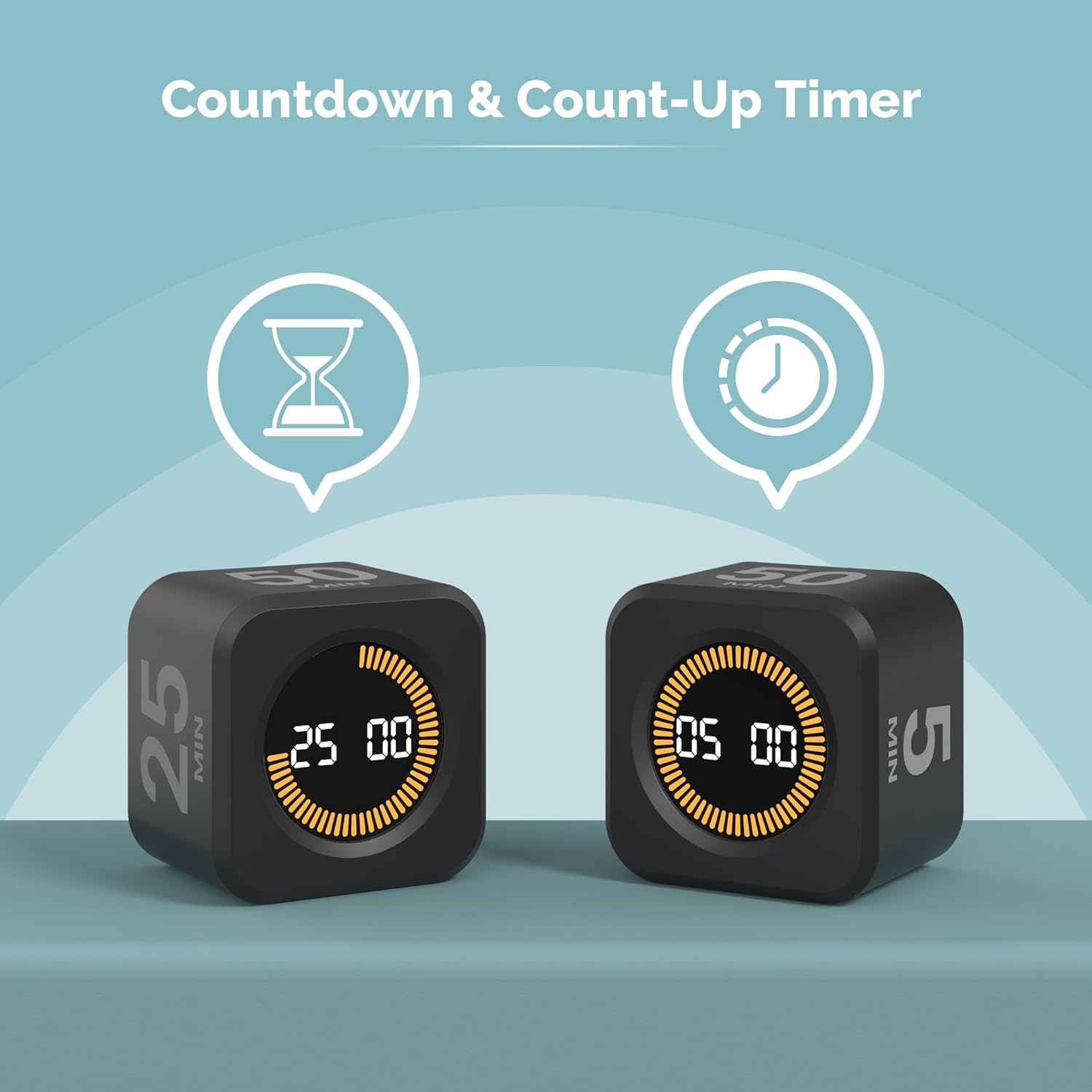

Image 4.6: Countdown & Count-Up Timer. This image shows two timers, one in countdown mode and another in count-up (stopwatch) mode.
4.6 วิดีโอสาธิตผลิตภัณฑ์
Video 4.1: KADAMS Pomodoro Timer Cube. This official seller video demonstrates the key functionalities of the KADAMS Pomodoro Cube Timer, including how to activate preset timers by flipping, setting custom times, and utilizing the silent mode.
5. การบำรุงรักษา
To ensure the longevity and optimal performance of your KADAMS Pomodoro Cube Timer, follow these simple maintenance guidelines:
- การทำความสะอาด: เช็ดตัวจับเวลาด้วยผ้าแห้งเนื้อนุ่ม ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อน หรือแช่อุปกรณ์ในน้ำ
- พื้นที่จัดเก็บ: เก็บนาฬิกาจับเวลาไว้ในที่แห้งและเย็น หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป
- การจัดการ: Avoid dropping the timer or subjecting it to strong impacts, as this may damage internal components.
6 การแก้ไขปัญหา
หากคุณพบปัญหาใดๆ กับตัวจับเวลา Pomodoro Cube ของ KADAMS โปรดดูวิธีแก้ไขปัญหาทั่วไปต่อไปนี้:
- ตัวจับเวลาไม่ตอบสนอง: Ensure the ON/OFF switch on the bottom is in the 'ON' position.
- Display is dim or off: The battery may be low. Connect the timer to a power source using the provided USB-C cable to charge it.
- Incorrect time displayed after flipping: Ensure the cube is placed firmly on a flat surface with the desired time facing directly upwards. If a custom time was set, it will override the default preset for that side.
- ไม่มีเสียง: Check if the silent mode is activated (speaker icon with a cross through it on the display). Long press the 'UP' button to toggle sound on/off.
If the issue persists after attempting these steps, please contact KADAMS customer support for further assistance.
7. ข้อมูลจำเพาะ
| ข้อมูลจำเพาะ | รายละเอียด |
|---|---|
| หมายเลขรุ่น | K5273-02 |
| สี | สีดำ |
| ยี่ห้อ | คาดัมส์ |
| วัสดุ | อะคริโลไนไตรล์บิวทาไดอีนสไตรีน |
| ขนาดสินค้า | ลึก 2 นิ้ว x กว้าง 2 นิ้ว x สูง 1.5 นิ้ว |
| จำนวนการตั้งค่า | 3 (referring to modes: countdown, count-up, custom) |
| น้ำหนักสินค้า | 2.46 ออนซ์ |
| ประเทศต้นกำเนิด | จีน |
Image 7.1: Product Dimensions. This image visually represents the compact size of the KADAMS Cube Timer with its measurements.
8. การรับประกันและการสนับสนุน
KADAMS is committed to providing high-quality products. For any warranty claims, technical support, or inquiries regarding your Pomodoro Cube Timer, please contact KADAMS customer service through the retailer's platform or the official KADAMS webไซต์ โปรดเก็บหลักฐานการซื้อไว้เพื่อยืนยันการรับประกัน
