คู่มือการใช้งานก้านกระจายน้ำหนัก Blue Ox BXW4088 TrackPro

1. บทนำ

This manual provides essential information for the proper installation, operation, and maintenance of your Blue Ox BXW4088 TrackPro Weight Distribution Shank. This component is designed to integrate with a 2-inch receiver and a weight distribution system, offering adjustable height for various trailer setups.

คุณสมบัติหลัก:

• Designed for 2-inch receivers.
• Features 7 adjustment holes over a 12-inch range for precise height setting.
• Can be used in both raised and dropped positions to accommodate different vehicle and trailer heights.
• Constructed from durable alloy steel with a powder-coated exterior for longevity.

2. การตั้งค่าและการติดตั้ง

The BXW4088 TrackPro shank is designed for straightforward installation into a standard 2-inch receiver hitch. Ensure your vehicle's receiver is clean and free of debris before installation.

1. Insert the Shank: Slide the square end of the BXW4088 shank into your vehicle's 2-inch receiver tube.
2. จัดตำแหน่งรูหมุด: Align the pin hole on the shank with the pin hole on your receiver.
3. ปลอดภัยด้วยรหัส PIN: Insert a suitable hitch pin (not included) through the aligned holes and secure it with a clip. Ensure the pin is fully seated and the clip is properly engaged to prevent accidental disengagement.

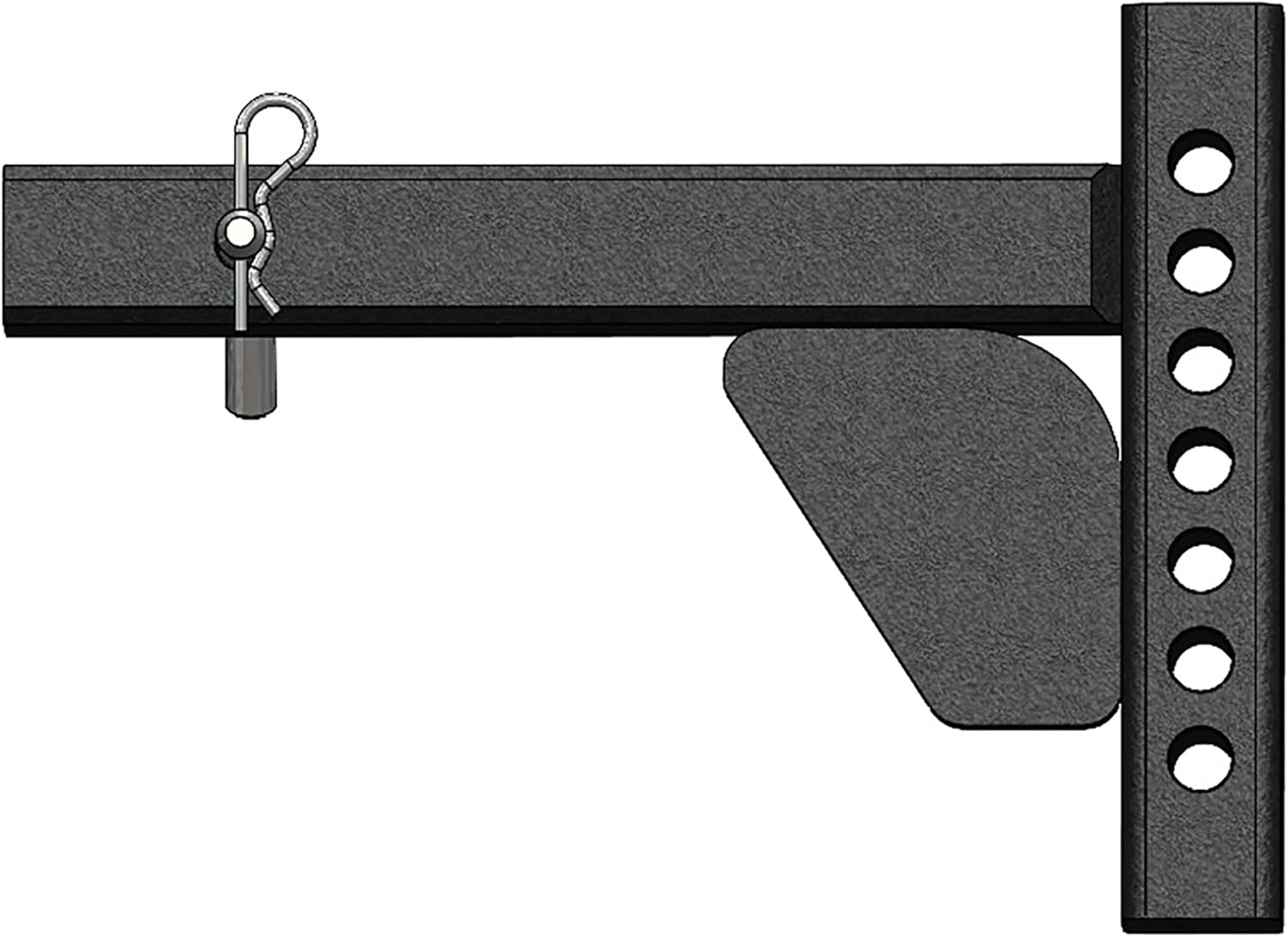

4. Attach Weight Distribution Head: The vertical plate of the shank provides seven adjustment holes. Select the appropriate hole for mounting your weight distribution head to achieve the desired trailer leveling. Secure the weight distribution head according to its specific instructions.

3. การดำเนินการ

Once the BXW4088 shank is securely installed in your vehicle's receiver and the weight distribution head is attached, ensure all connections are tight and properly secured before towing. The shank's primary function is to provide a robust connection point for your weight distribution system, allowing for proper weight transfer and trailer leveling. Always refer to your weight distribution system's manual for specific operating procedures and safety guidelines.

4. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your BXW4088 shank.

• การตรวจสอบ: Before each use, visually inspect the shank for any signs of wear, cracks, bends, or corrosion. Pay close attention to the pin holes and mounting surfaces.
• การทำความสะอาด: Keep the shank clean from dirt, mud, and road salt. A mild soap and water solution can be used, followed by thorough drying.
• การป้องกันการกัดกร่อน: The shank features a powder-coated exterior for corrosion resistance. If the coating is damaged, consider touching up the area with a rust-inhibiting paint to prevent further corrosion.
• พื้นที่จัดเก็บ: When not in use, store the shank in a dry, protected area to minimize exposure to elements.

5 การแก้ไขปัญหา

As a mechanical component, troubleshooting for the BXW4088 shank primarily involves ensuring proper fit and condition.

• Difficulty Inserting into Receiver: Ensure the receiver tube is clean and free of obstructions. Check for any deformation on the shank or receiver. A small amount of grease on the shank can aid insertion.
• ทรงหลวม: If the shank fits loosely in the receiver, ensure you are using the correct size hitch pin. Excessive play may indicate wear on the receiver or shank, which should be inspected by a qualified technician.
• ความเสียหายที่มองเห็นได้: Any visible cracks, severe bending, or significant corrosion on the shank indicates that the component should be replaced immediately. Do not attempt to repair damaged towing components.

6. ข้อมูลจำเพาะ

7. การรับประกันและการสนับสนุน

For specific warranty information regarding your Blue Ox BXW4088 TrackPro Weight Distribution Shank, please refer to the documentation included with your purchase or visit the official Blue Ox website. For technical support or further inquiries, please contact Blue Ox customer service directly.

You can find more information about Blue Ox products and support on their official store page: Blue Ox Store
