การแนะนำ
This manual provides comprehensive instructions for the safe and efficient use of your FLEXISPOT XL5 Dual OKIN Motor Power Lift Recliner Chair. This chair is designed to offer comfort and assistance with its independent backrest and footrest adjustments, massage, and heating functions. Please read this manual thoroughly before assembly and operation to ensure proper usage and longevity of your product.
ข้อมูลด้านความปลอดภัยที่สำคัญ
คำเตือน: การไม่ปฏิบัติตามคำแนะนำด้านความปลอดภัยเหล่านี้ อาจส่งผลให้เกิดการบาดเจ็บหรือความเสียหายต่อผลิตภัณฑ์ได้
- Always allow the chair to fully expand before use. The sofa is delivered in a compressed state; allow 48 hours after receiving for it to fully rebound.
- Unplug the chair from the power outlet when not in use or during assembly and maintenance.
- Keep the power cord away from heat sources, water, and sharp objects to prevent damage.
- Do not attempt to adjust the chair's position manually while it is in operation or powered on. Use the remote control for all adjustments.
- Ensure children and pets are kept clear of the chair's moving parts during operation.
- ห้ามเกินขีดจำกัดน้ำหนักสูงสุดที่สามารถรองรับได้ 350 ปอนด์
- Always follow the manufacturer's instructions for safe operation and maintenance.
เนื้อหาแพ็คเกจ
Your FLEXISPOT XL5 recliner is shipped in one box for convenience. Please verify all components are present before beginning assembly.
- Main Chair Body (with integrated motor and frame)
- พนักพิง
- ที่เท้าแขนซ้าย
- ที่เท้าแขนขวา
- อะแดปเตอร์แปลงไฟและสายเคเบิล
- รีโมทคอนโทรล
- คู่มือการใช้งาน (เอกสารนี้)

Image: The FLEXISPOT XL5 recliner is conveniently packaged in a single box for delivery.
การติดตั้งและการประกอบ
Assembly of your FLEXISPOT XL5 recliner is designed to be straightforward. It arrives in one box, simplifying the unboxing process.
- แกะส่วนประกอบ: Carefully remove all parts from the single shipping box. Place them on a clean, flat surface.
- ติดพนักพิง: Align the metal brackets on the backrest with the corresponding slots on the main chair body. Slide the backrest down firmly until it clicks into place. Ensure it is securely fastened.
- ติดที่วางแขน: Slide each armrest onto the side rails of the main chair body. Push down until they are fully seated and locked.
- เชื่อมต่อพลังงาน: Locate the power cable from the chair and connect it to the power adapter. Plug the adapter into a standard wall outlet.
- Allow Rebound: As the chair is delivered in a compressed state, allow approximately 48 hours for the cushions and fabric to fully rebound to their intended shape and firmness.

Image: The fully assembled FLEXISPOT XL5 recliner, ready for use.
คำแนะนำการใช้งาน
Your FLEXISPOT XL5 recliner offers multiple functions for enhanced comfort, all controlled via the included remote.
Power Lift and Recline Function
The chair features German OKIN dual motors, allowing independent adjustment of the backrest and footrest. This enables a wide range of positions, from an upright sitting position to a nearly flat recline (approximately 180°), and a gentle lift function to assist in standing.
- Recline Backrest: Use the designated button on the remote to smoothly recline the backrest.
- Raise Backrest: Use the designated button to bring the backrest to a more upright position.
- Lower Footrest / Lift to Stand: Use the designated button to lower the footrest. Continue holding to activate the lift mechanism, gently raising the chair to assist you in standing.
- ยกที่วางเท้า: Use the designated button to elevate the footrest for leg support.

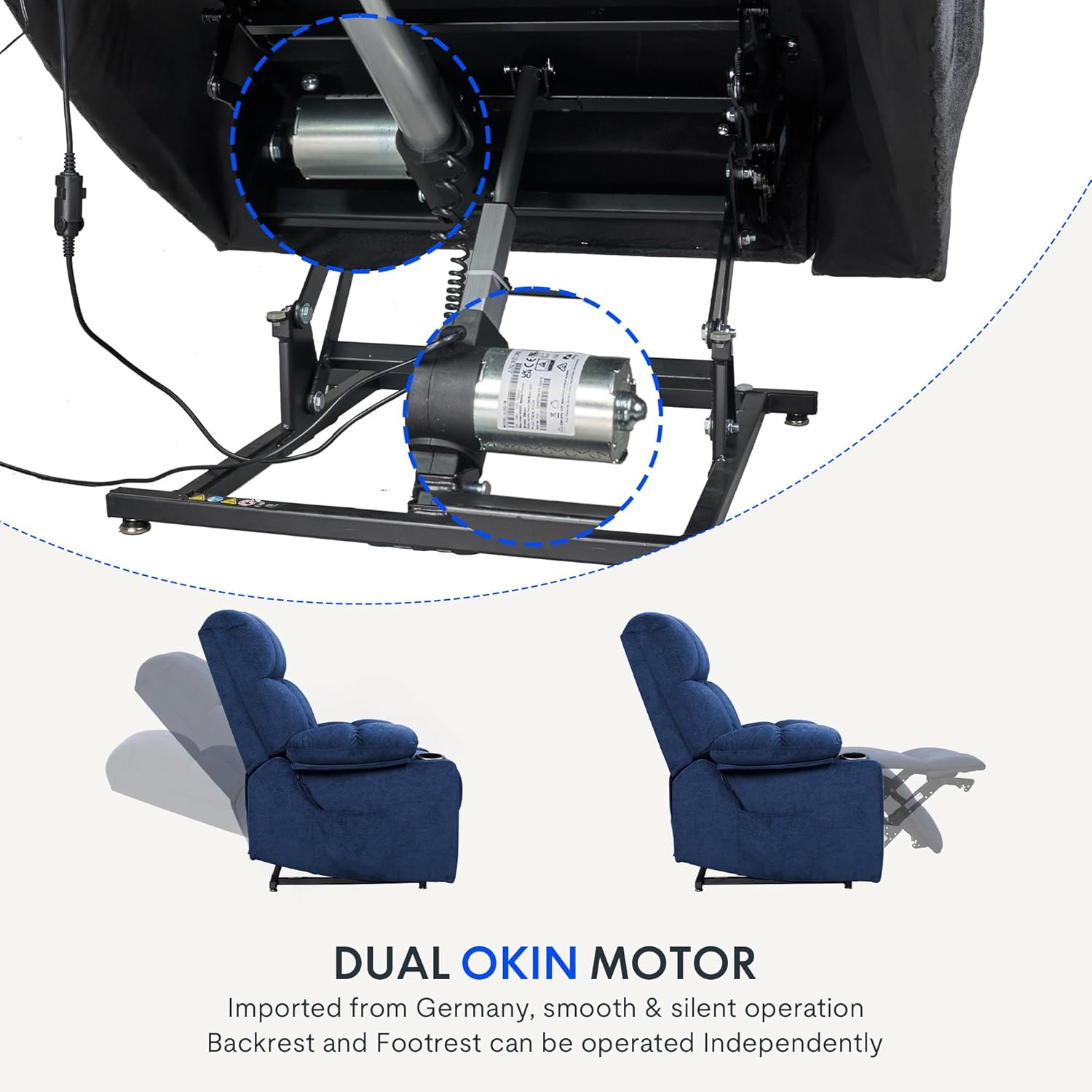

Image: Detail of the German OKIN dual motor system, ensuring smooth and independent movement of the backrest and footrest.

Image: The power lift function of the recliner, designed to assist users in standing up easily.

Image: The remote control for the FLEXISPOT XL5, illustrating buttons for backrest recline, raise, footrest raise, and lift-to-standing functions.
ฟังก์ชั่นการนวดและการให้ความร้อน
Enhance your relaxation with the integrated massage and lumbar heating features.
- 8 Massage Points: The chair includes 8 massage points targeting the back, lumbar, thighs, and legs.
- 3 โหมดการนวด: Select from various massage modes and intensities using the remote control.
- ระบบทำความร้อนบริเวณเอว: Activate the lumbar heating function for soothing warmth.
- การควบคุมเวลา: Set a timer for your massage and heating sessions.

Image: The recliner showcasing the locations of the 8 massage points and the lumbar heating element.
พอร์ตชาร์จ USB
Conveniently located USB charging ports allow you to charge your devices while relaxing in the chair.
- Locate the USB port on the side of the chair or integrated into the remote control.
- Connect your device's charging cable to the USB port.

Image: Product details including built-in cup holders, side storage pockets, and a USB charging port for convenience.
การดูแลรักษา
Proper care will ensure the longevity and appearance of your recliner.
- การทำความสะอาด: เช็ดทำความสะอาดด้วย d . ที่อ่อนนุ่มamp cloth. Avoid harsh chemicals or abrasive cleaners, which may damage the fabric.
- การรั่วไหล: เช็ดคราบที่หกทันทีด้วยผ้าสะอาดและแห้ง ห้ามถู
- สายไฟ: ตรวจสอบสายไฟอย่างสม่ำเสมอเพื่อดูว่ามีร่องรอยความเสียหายหรือไม่ หากพบความเสียหาย ให้หยุดใช้งานและติดต่อฝ่ายบริการลูกค้า
- การเคลื่อนย้ายเก้าอี้: When moving the chair, lift it rather than dragging to prevent damage to the base and flooring.
การแก้ไขปัญหา
หากคุณพบปัญหาเกี่ยวกับเก้าอี้ปรับเอนได้ โปรดดูปัญหาและวิธีแก้ไขทั่วไปต่อไปนี้:
- Chair Not Moving/Responding:
- ตรวจสอบให้แน่ใจว่าเสียบสายไฟเข้ากับเก้าอี้และเต้ารับไฟฟ้าที่ใช้งานได้สนิทแล้ว
- ตรวจสอบว่าอะแดปเตอร์จ่ายไฟเชื่อมต่อถูกต้องหรือไม่
- ตรวจสอบให้แน่ใจว่าสายรีโมทคอนโทรลเชื่อมต่อกับเก้าอี้แน่นดีแล้ว
- If the chair was recently assembled, ensure all connections (backrest, armrests) are fully engaged.
- Grinding or Clicking Noise:
- Unplug the chair immediately.
- Inspect the motor and frame area for any obstructions.
- If the noise persists after checking for obstructions, contact customer support.
- Remote Control Lost/Malfunctioning:
- Ensure the remote's cable is not damaged or disconnected.
- If the remote is lost, contact customer support for replacement options.
- เบาะรองนั่งยังไม่ขยายตัวเต็มที่:
- Allow the recommended 48 hours for the compressed foam to fully rebound after unboxing.
- Gentle fluffing of cushions may assist in the process.
For any issues not listed here or if troubleshooting steps do not resolve the problem, please contact FLEXISPOT customer support.
ข้อมูลจำเพาะผลิตภัณฑ์

Image: Detailed product dimensions for the FLEXISPOT XL5 recliner, including width, depth, and height.

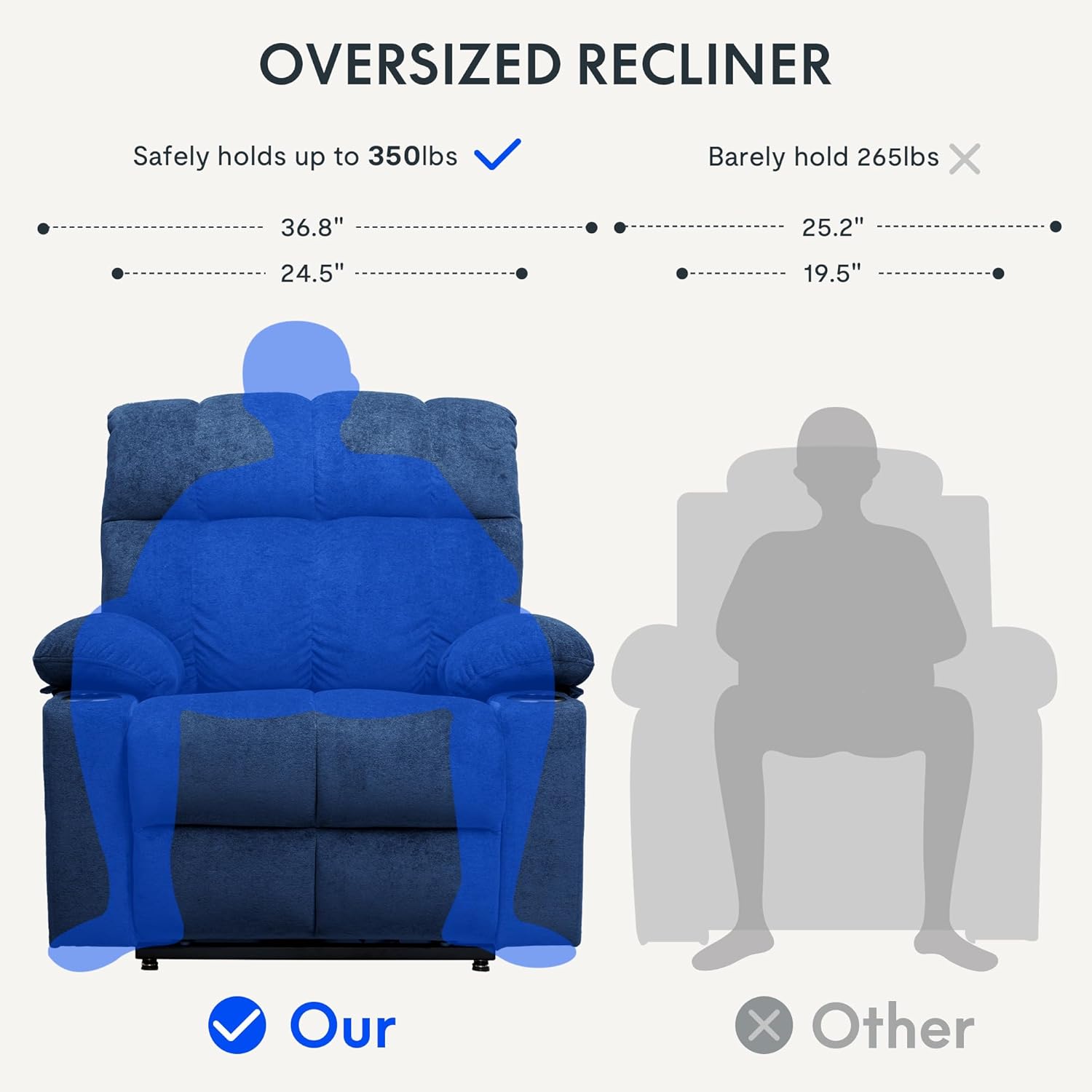

Image: Visual comparison highlighting the spacious, oversized design of the FLEXISPOT XL5 recliner.
| คุณสมบัติ | รายละเอียด |
|---|---|
| ยี่ห้อ | เฟล็กซิสพอท |
| ชื่อรุ่น | ขนาด XL5 |
| ขนาดสินค้า | ลึก 29 นิ้ว x กว้าง 36.8 นิ้ว x สูง 41.5 นิ้ว |
| ขนาดที่นั่ง | 24.5" wide, 21" deep |
| คำแนะนำน้ำหนักสูงสุด | 350 ปอนด์ |
| ประเภทมอเตอร์ | Dual OKIN Motor |
| ตำแหน่งเอนหลัง | Infinite (nearly 180° lay flat) |
| คุณสมบัติพิเศษ | Power Lift, Massage (8 points, 3 modes), Lumbar Heat, USB Ports |
| วัสดุ | Fabric (Blue), Foam Fill |
| น้ำหนักสินค้า | 144.5 ปอนด์ |
| ยูพีซี | 840460423830 |
การรับประกันและการสนับสนุนลูกค้า
FLEXISPOT มุ่งมั่นที่จะนำเสนอผลิตภัณฑ์คุณภาพสูงและบริการลูกค้าที่เป็นเลิศ
- นโยบายการคืนสินค้า: You are allowed to return or exchange the furniture within 30 days of receipt. Please refer to your purchase platform's return policy for detailed instructions.
- การสนับสนุนลูกค้า: For any questions, issues, or warranty claims, please contact FLEXISPOT customer support.
ข้อมูลติดต่อ:
- อีเมล: contact@flexispot.com
- Call: +1(855)585-5618
You can also visit the official FLEXISPOT store for more information: FLEXISPOT Official Store
