SmallRig Cage Kit for Sony BURANO Instruction Manual

1. บทนำ

This instruction manual provides detailed guidance for the assembly, operation, maintenance, and troubleshooting of the SmallRig Cage Kit for Sony BURANO (Model 4571). This kit is specifically designed to protect your Sony BURANO camera and enhance its functionality by providing multiple accessory attachment points. Its modular design offers flexibility for various shooting scenarios.

Important Note: This kit is not compatible with the Sony BURANO's original top handle.

Figure 1: Fully assembled SmallRig Cage Kit on a Sony BURANO camera, showcasing its protective and accessory-mounting capabilities.

2. สิ่งที่รวมอยู่

ก่อนที่จะเริ่มการประกอบ โปรดตรวจสอบว่าส่วนประกอบทั้งหมดที่ระบุไว้ด้านล่างนี้มีอยู่ในแพ็คเกจของคุณแล้ว:

• Monitor Mount × 1
• NATO Rail to 15mm Rod Clamp × 1
• 15mm Rod × 1
• ที่จับด้านบน × 1
• ก้านคู่ 15 มม. Clamp × 1
• แผ่นด้านบน × 1
• Left Side Plate × 1
• Right Side Plate × 1
• Right Rear Side Plate × 1
• Bottom Plate × 1
• Wireless Video Transmission Mounting Bracket × 1
• สายเคเบิล Clamp for HDMI × 1
• 15mm LWS Baseplate × 1
• 1/4"-20 screw (long) × 13
• 1/4"-20 screw (short) × 2

รูปที่ 2: เกินview of all components included in the SmallRig Cage Kit (ID 4571) and key product dimensions.

3. การติดตั้งและการประกอบ

The SmallRig Cage Kit features a modular design for flexible and easy assembly. Follow these steps to set up your cage kit:

3.1. Attaching the Cage Components

The cage consists of multiple plates (top, bottom, left, right, right rear) that form a full-wrap protective frame around the Sony BURANO camera. Secure these plates using the provided 1/4"-20 screws.

รูปที่ 3: ระเบิด view demonstrating the modular assembly of the cage components around the Sony BURANO camera body.

3.2. Installing the Top Handle

The ergonomic wooden top handle provides a comfortable grip and supports quick installation and adjustment. Attach it to the top plate of the cage. It can be adjusted forward or backward for optimal balance.

Figure 4: Detail of the wooden top handle, designed for comfortable and adjustable grip.

3.3. การติดตั้งจอภาพ

The included monitor mount allows for fast switching between LCD mode and viewfinder mode by replacing the camera's original monitor mount. Secure the monitor mount to the cage as shown.

Figure 5: The monitor mount allows seamless transitions between viewfinder and LCD screen modes, featuring adjustable rotation dampการไอเอ็นจี

3.4. Attaching the 15mm LWS Baseplate

The 15mm LWS baseplate features a quick-release design, allowing it to be quickly mounted to the bottom of the cage. This baseplate is essential for expanding accessories like follow focus systems and for multi-scene switching between handheld and tripod setups.

Figure 6: The 15mm LWS system enhances stability for both handheld and tripod shooting, reducing strain and improving balance.

4. Operating the Cage Kit

The SmallRig Cage Kit provides numerous mounting points and features to optimize your shooting experience.

4.1. Utilizing Multiple Mounting Points

The cage kit is equipped with various mounting interfaces for expanding your professional setup:

• 3/8"-16 Threaded Holes for ARRI: For secure attachment of ARRI-standard accessories.
• 1/4"-20 Locating Holes: Prevents accessories from twisting.
• QD Sockets: Quick-detach points for straps or other QD accessories.
• H21 NATO Rails: For quick attachment and release of NATO-compatible accessories.
• H18 Cold Shoes: Standard cold shoe mounts for microphones, lights, etc.
• Dovetail Clamp for ARRI: For mounting the cage onto ARRI standard dovetail plates.

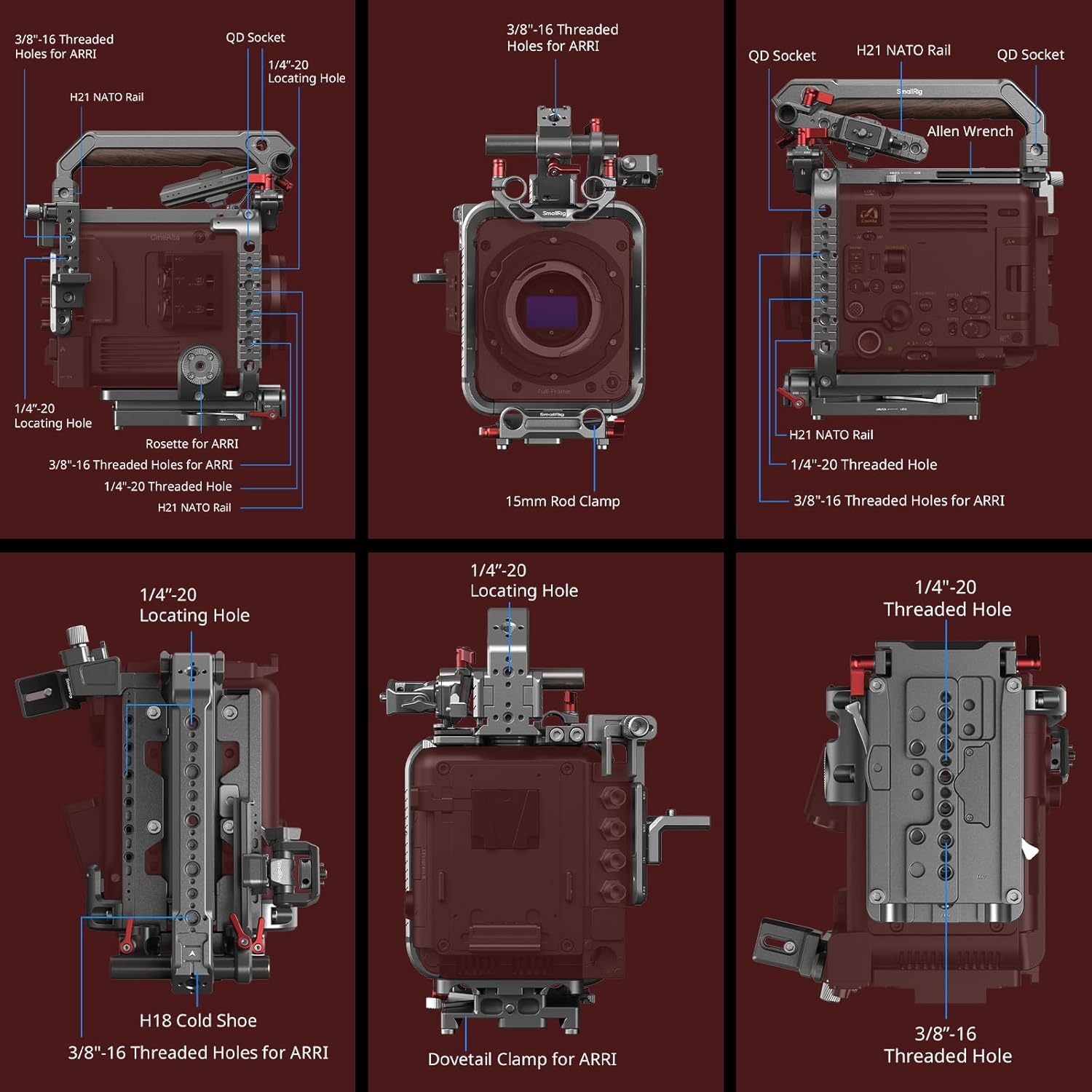

รูปที่ 7: ภาพรวม view of the diverse mounting points available on the cage kit, facilitating extensive accessory integration.

4.2. Quick Disassembly and Storage

The top handle and 15mm LWS baseplate can be quickly disassembled without tools, facilitating convenient storage and transfer of the kit.

4.3. HDMI Cable Clamp

The included HDMI cable clamp helps secure your HDMI cable, preventing accidental disconnections and ensuring stable performance during shooting.

Figure 8: The HDMI cable clamp ensures stable cable connection, while the video transmission bracket allows for compact mounting of wireless video systems.

4.4. HawkLock Quick Release System

Certain components may feature the HawkLock Quick Release Self-Locking System, allowing for rapid and secure attachment and detachment of accessories.

Figure 9: The HawkLock Quick Release system provides a secure and efficient method for attaching and detaching accessories.

5. การบำรุงรักษา

To ensure the longevity and optimal performance of your SmallRig Cage Kit, follow these maintenance guidelines:

• การทำความสะอาด: Wipe down the metal and wooden surfaces with a soft, dry cloth after each use to remove dust and fingerprints. For stubborn dirt, a slightly damp สามารถใช้ผ้าเช็ดทำความสะอาดได้ แล้วเช็ดให้แห้งทันที หลีกเลี่ยงการใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย
• พื้นที่จัดเก็บ: Store the kit in a dry, cool place away from direct sunlight and extreme temperatures. When disassembled, keep all components organized to prevent loss.
• การตรวจสอบ: Periodically check all screws and connections to ensure they are tight. Re-tighten any loose screws to maintain stability and safety.
• การหล่อลื่น: Moving parts, such as the monitor mount's rotation mechanism, generally do not require lubrication. If movement becomes stiff, contact SmallRig support for guidance.

6 การแก้ไขปัญหา

This section addresses common issues you might encounter with your SmallRig Cage Kit.

If you encounter issues not listed here, please refer to the support section for further assistance.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

SmallRig products are designed for durability and performance. For warranty information and customer support, please refer to the official SmallRig webหรือติดต่อฝ่ายบริการลูกค้าโดยตรง

ผู้ผลิต: แท่นขุดเจาะขนาดเล็ก

ประเทศต้นกำเนิด: จีน

For the most up-to-date support resources, including FAQs and contact details, please visit the Official SmallRig Store on Amazon หรือองค์กรของพวกเขา webเว็บไซต์.
