SmallRig Focus Control Dual Grip User Manual (Model 4327)

1. บทนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your SmallRig Focus Control Dual Grip, Model 4327. This accessory is designed to enhance the functionality and handling of DJI RS 2, RS 3 Pro, and RS 4 Pro gimbal stabilizers, offering improved control and versatility for professional video production.

Note: This dual grip is not compatible with the DJI RS 4.

2. อะไรอยู่ในกล่อง

• Dual Handles with Focus Control (1 unit)
• คู่มือผู้ใช้ (1 หน่วย)

Image: The package contents, including the two dual handles and the instruction manual.

3. การตั้งค่าและการติดตั้ง

The SmallRig Focus Control Dual Grip is designed for quick and efficient attachment to your DJI RS series gimbal. Follow these steps for proper installation:

1. Attach the Central Mounting Clamp: Secure the central mounting clamp of the dual grip to the NATO rail on your DJI RS 2, RS 3 Pro, or RS 4 Pro gimbal. Ensure the clamp is fully engaged and tightened to prevent movement.
2. Connect the Handles: Slide each handle onto the NATO rails extending from the central clamp. The handles can be adjusted along these rails to achieve your preferred width and balance.
3. Secure the Handles: Tighten the locking mechanisms on each handle to firmly secure them in place. Verify that both handles are stable and do not wobble.
4. Cable Connection (if applicable): If using the focus control features, connect the necessary control cables from the grip to your gimbal and camera as per your gimbal's instructions.

Image: Detail of the quick-release clamp mechanism for attaching the dual grip to the gimbal's NATO rail.

Image: The SmallRig Focus Control Dual Grip mounted on a DJI RS series gimbal, ready for operation.

4. คู่มือการใช้งาน

The dual grip provides enhanced control over your gimbal and camera functions. Familiarize yourself with the controls for optimal use.

4.1. ระบบควบคุมแบบบูรณาการ

The right handle integrates several key controls for efficient operation:

• การควบคุมชัตเตอร์: Initiate photo capture or video recording.
• การบันทึก: เริ่มและหยุดการบันทึกวิดีโอ
• การทำงานของจอยสติ๊ก: Control gimbal pan and tilt movements.
• การสลับโหมด: Cycle through different gimbal operating modes (e.g., Pan Follow, Tilt Lock).
• Centering/Locking: Quickly re-center the gimbal or lock its orientation.
• Power/Sleep Mode: Manage the gimbal's power state.

ภาพ: รายละเอียด view of the integrated controls on the right handle, including joystick, mode button, power button, and focus scroll wheel.

4.2. Focus Control Dial

The ergonomic focus dial allows for precise adjustment of the gimbal's 3-axis system, focus, and various camera parameters. Rotate the dial to achieve desired focus or camera settings.

4.3. Inverted Use and Flexible Angles

The dual grip supports inverted operation, enabling low-angle shots and diverse camera perspectives. The handles can be adjusted to various angles for comfortable and stable shooting in different scenarios.

Image: Demonstrating the inverted use capability of the dual grip for flexible shooting angles.

5. Multiple Mounting Points

The dual grip features a variety of mounting options for attaching additional accessories, expanding your rigging possibilities:

• รูเกลียวขนาด 1/4"-20: Standard mounting points for small accessories like monitors, microphones, or lights.
• 3/8"-16 Locating Holes: Anti-twist mounting points for more secure attachment of heavier accessories.
• ที่ยึดรองเท้าเย็น: For attaching shoe-mount accessories.
• NATO Rail: Provides quick-release and adjustable mounting for compatible accessories.
• ซ็อกเก็ต QD: Quick Detach socket for attaching QD sling swivels or straps.
• ช่องสำหรับสายรัด: For securing wrist or neck straps.

These mounting points allow for integration with accessories such as V-mount battery plates (e.g., SmallRig ID 2801B, 2988) to provide extended power for both the stabilizer and camera.

Image: Illustration detailing the multiple accessory mounting points available on the dual grip.

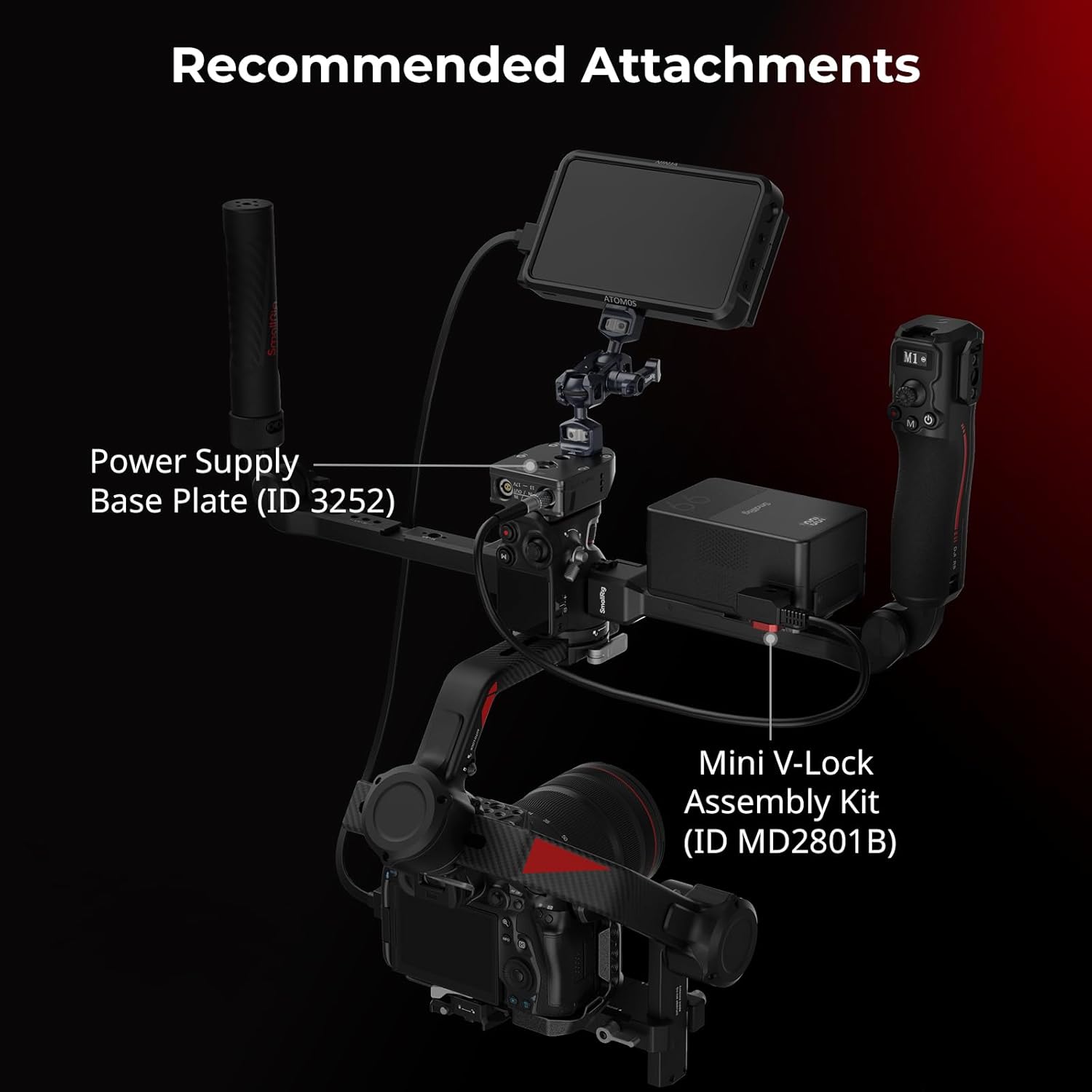

ภาพ: อดีตample of recommended attachments, demonstrating how accessories like a power supply base plate and V-lock assembly kit can be integrated.

6. Quick Setup and Storage

The SmallRig Focus Control Dual Grip is designed for rapid assembly and disassembly, facilitating efficient shooting workflows and convenient storage. The modular design allows for quick attachment and detachment from the gimbal, and the handles can be folded or separated for compact transport.

Image: Demonstrating the compact storage of the handles and their quick attachment to the gimbal.

7. ข้อมูลจำเพาะ

8. การบำรุงรักษา

To ensure the longevity and optimal performance of your SmallRig Focus Control Dual Grip, follow these maintenance guidelines:

• การทำความสะอาด: Wipe the grip with a soft, dry cloth after each use to remove dust and debris. For stubborn dirt, use a slightly damp เช็ดด้วยผ้าและสบู่อ่อนๆ แล้วเช็ดให้แห้งสนิท หลีกเลี่ยงสารเคมีรุนแรงหรือสารกัดกร่อน
• พื้นที่จัดเก็บ: Store the dual grip in a clean, dry environment, away from extreme temperatures and direct sunlight. Utilize the quick disassembly feature for compact and protected storage in a gear bag.
• การตรวจสอบ: Periodically inspect all screws, clamps, and moving parts for tightness and wear. Tighten any loose screws and replace worn components as necessary.
• การหล่อลื่น: Moving joints and locking mechanisms may benefit from a small amount of silicone-based lubricant if they become stiff. Apply sparingly and wipe off any excess.

9 การแก้ไขปัญหา

If you encounter issues with your SmallRig Focus Control Dual Grip, consider the following common solutions:

• รู้สึกจับไม่แน่น: Ensure all NATO clamps and locking screws are fully tightened. Re-check the connection to the gimbal's NATO rail.
• การควบคุมไม่ตอบสนอง: Verify that all control cables are securely connected between the grip, gimbal, and camera. Check the gimbal's power status and ensure it is properly paired with any control accessories.
• ปัญหาในการติดตั้งอุปกรณ์เสริม: Confirm that the accessory's mounting interface (e.g., 1/4"-20 screw, cold shoe) matches the corresponding mounting point on the dual grip. Ensure no debris is obstructing the threads or slots.
• Ergonomic discomfort: Adjust the position of the handles along the NATO rails to find a more comfortable and balanced grip for your shooting style.

For further assistance, please refer to the official SmallRig support channels.

10. การรับประกันและการสนับสนุน

SmallRig products are designed for durability and performance. For information regarding warranty coverage, product registration, or technical support, please visit the official SmallRig webเว็บไซต์หรือติดต่อฝ่ายบริการลูกค้าของพวกเขา

SmallRig อย่างเป็นทางการ Webเว็บไซต์: www.smallrig.com

โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ในกรณีเรียกร้องการรับประกัน
