คู่มือผู้ใช้ CINETREAK Stream-1 HDMI Super Source Camera Video Switcher Mixer

1. สินค้าหมดview

The CINETREAK Stream-1 is a versatile HDMI Super Source Camera Video Switcher Mixer designed for professional live streaming and video production. It integrates multiple video inputs, advanced mixing capabilities, and direct streaming functionalities, making it an ideal solution for creators and broadcasters.

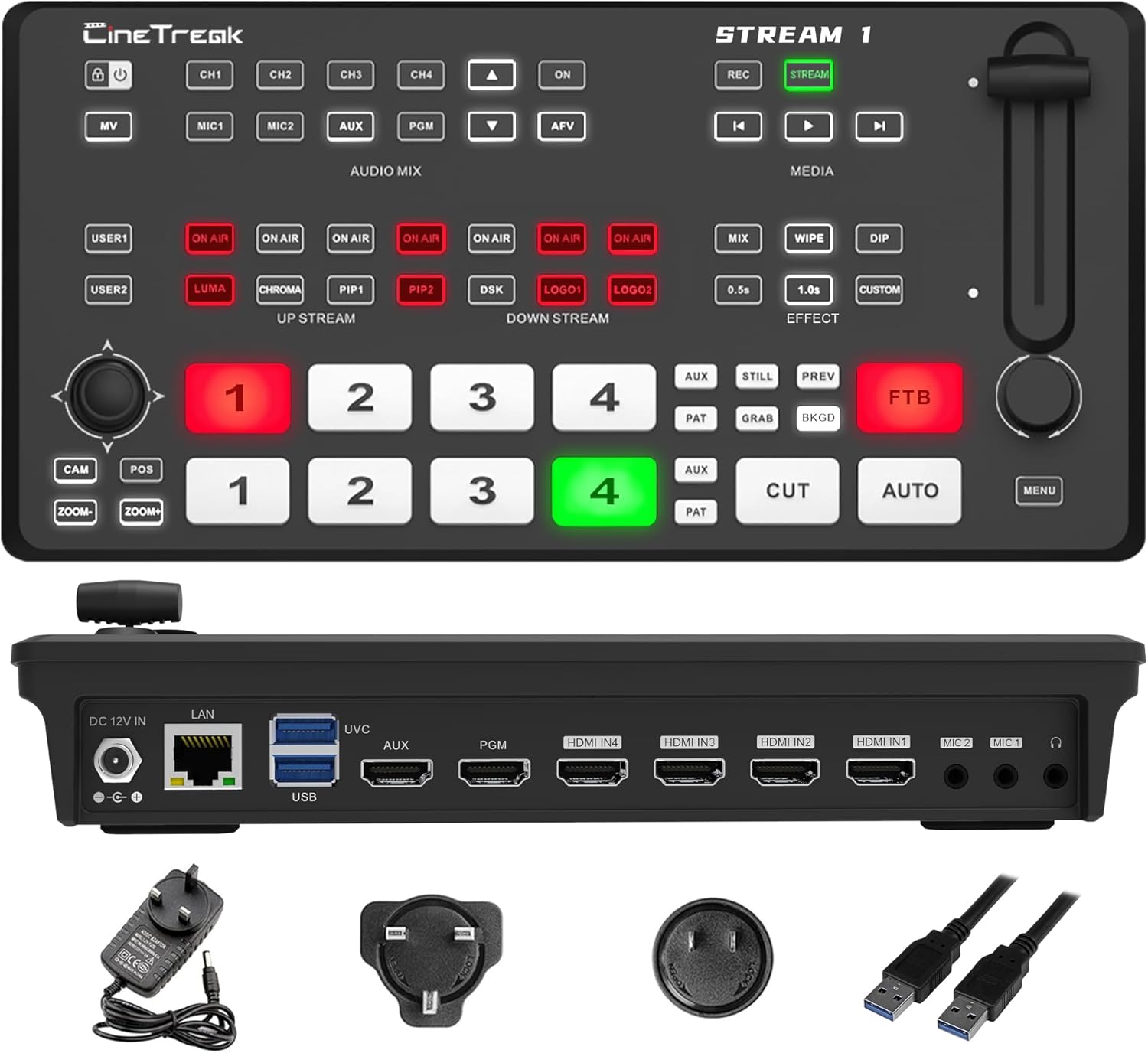

Figure 1: CINETREAK Stream-1 Video Switcher with power adapter and USB cables.

2. คุณสมบัติหลัก

• Rich Connection Ports: Features 4 HDMI inputs and one AUX channel for media library access. Includes one PGM output and one AUX output, both configurable to output any video channel or a clean PGM source. Equipped with 2 USB ports, a UVC 3.0 port, an RJ45 port, and HDMI 1 and HDMI 2 supporting 4K input for superior visual quality.
• Down & Pull Stream: Seamlessly integrate unencrypted video sources into the stream switcher for real-time output. The RTMPS protocol enables simultaneous live broadcasting to two destinations, ensuring efficient and versatile streaming.
• PTZ Camera Control & Advanced Host System: Built-in PTZ control for up to 4 cameras via the VISCA protocol, with support for wireless IP control from a PC or smartphone. Access the host system through the device's IP address to remotely manage the mixer in real time, including enabling the tally function for streamlined production control.
• REC, Playback & Customizable PIP: Enables recording of high-bitrate Full HD video files with instant playback functionality. Supports two Picture-in-Picture (PIP) layouts, featuring adjustable cropping and resizing options to accommodate diverse creative and production requirements.
• Professional Studio Features: Equipped with chroma and luma keying for advanced virtual studio effects, over 30 transition effects, and seamless switching between landscape and 9:16 portrait orientations. Supports live streaming in both formats for versatile broadcasting.

3. คู่มือการติดตั้ง

3.1 เนื้อหาบรรจุภัณฑ์

ก่อนเริ่มต้น โปรดตรวจสอบให้แน่ใจว่ามีอุปกรณ์ครบถ้วน:

• CINETREAK Stream-1 Video Switcher
• อะแดปเตอร์แปลงไฟ
• สาย USB
• คู่มือการใช้งาน (เอกสารนี้)

3.2 การเชื่อมต่ออุปกรณ์

Figure 2: Rear panel connections of the Stream-1, showing DC 12V IN, LAN, USB/UVC, AUX, PGM, HDMI IN (1-4), MIC (1-2), and Headphone ports.

1. การเชื่อมต่อไฟฟ้า: Connect the provided power adapter to the DC 12V IN port on the rear panel and plug it into a power outlet.
2. อินพุต HDMI: Connect your video sources (cameras, computers, gaming consoles) to the HDMI IN 1-4 ports. HDMI 1 and HDMI 2 support 4K resolution.
3. เอาต์พุต HDMI: Connect your program monitor to the PGM HDMI output and your auxiliary monitor to the AUX HDMI output.
4. การเชื่อมต่อ USB:
   • เชื่อมต่อ webcam to the UVC USB port for direct webcam input.
   • Connect a USB storage device to the USB port for recording or media playback.
5. การเชื่อมต่อเครือข่าย: Connect an Ethernet cable to the LAN port for IP control and network streaming.
6. อินพุตเสียง: Connect microphones to the MIC 1 and MIC 2 ports. Connect headphones to the headphone jack for audio monitoring.

4. คู่มือการใช้งาน

4.1 การสลับพื้นฐาน

The Stream-1 features a clear control panel for intuitive operation. The top row of buttons (1-4) represents the Preview (PVW) inputs, and the bottom row (1-4) represents the Program (PGM) outputs. To switch sources:

• Press a button in the พี.วี.ดับบลิว row to select the next source for preview.
• Press a button in the PGM row to immediately switch that source to the live output (Cut transition).
• ใช้ ออโต้ button for a smooth transition between PVW and PGM, or the ตัด button for an instant switch.
• Adjust the T-bar fader for manual transitions.

4.2 การผสมเสียง

The AUDIO MIX section allows control over audio inputs. Use the dedicated buttons for MIC1, MIC2, AUX, and PGM to enable or disable audio sources. Adjust audio levels using the on-screen menu and rotary knob.

4.3 Media Playback and Management

The Stream-1 supports media playback from connected USB storage devices or internal memory. Access the MEDIA menu to manage and play video files, images, and logos.

Figure 3: Illustration of the Stream-1's down-stream and up-stream capabilities, including IP control for professional and easy operation.

4.4 Picture-in-Picture (PIP) and Picture-on-Picture (POP)

Create dynamic layouts with PIP and POP functions. The Stream-1 supports two customizable PIP layouts with adjustable cropping and resizing. Access these features via the PIP1 and PIP2 buttons in the UP STREAM section.

รูปที่ 4: ภาพตัวอย่างamples of Picture-on-Picture (POP) and Picture-in-Picture (PIP) configurations.

4.5 Keying Effects (Chroma & Luma)

Utilize chroma key (green screen) and luma key for advanced virtual studio effects. Select the desired keying type using the CHROMA and LUMA buttons in the UP STREAM section and configure settings via the menu.

รูปที่ 5: อดีตamples of Downstream Key (DSK) functionality, showing chroma keying and graphic overlays.

4.6 เอฟเฟกต์การเปลี่ยนผ่าน

Choose from over 30 transition effects to enhance your production. Use the MIX, WIPE, and DIP buttons in the EFFECT section, and adjust parameters like transition speed (e.g., 0.5s) or select custom effects.

4.7 PTZ Camera Control

Control up to 4 PTZ cameras directly from the Stream-1 using the VISCA protocol. Use the CAM, POS, and ZOOM buttons along with the joystick to pan, tilt, and zoom your cameras. Wireless IP control is also available via PC or smartphone.

4.8 การบันทึกและการเล่น

Record your live program in Full HD to a connected USB storage device. Use the REC button to start/stop recording. Recorded files can be instantly played back through the device.

4.9 การสตรีมสด

The Stream-1 supports RTMPS protocol for direct live streaming to platforms like YouTube, Facebook, Twitch, and OBS. You can stream to two destinations simultaneously. Configure streaming settings via the menu.

Figure 6: The Stream-1 supports simultaneous RTMPS live streaming to two destinations, including popular platforms.

4.10 Landscape and Portrait Livestreaming

The Stream-1 allows seamless switching between traditional landscape (16:9) and vertical (9:16) orientations, catering to various social media platforms and content formats.

รูปที่ 7: อดีตamples of video layouts optimized for Portrait Mode livestreaming.

รูปที่ 8: อดีตamples of video layouts optimized for Landscape Mode livestreaming.

4.11 Webcam Input Operation

The Stream-1 can accept a webcam as an input source via its UVC USB port. This video demonstrates connecting a DJI Pocket 3 as a webที่มาของแคม

5. การบำรุงรักษา

To ensure the longevity and optimal performance of your CINETREAK Stream-1, follow these maintenance guidelines:

• การทำความสะอาด: Use a soft, dry cloth to clean the exterior of the device. Avoid using liquid cleaners or aerosols directly on the unit.
• การระบายอากาศ : ตรวจสอบให้แน่ใจว่ามีการระบายอากาศที่เหมาะสมรอบๆ อุปกรณ์ อย่าปิดกั้นช่องระบายอากาศ
• อัพเดตเฟิร์มแวร์: Periodically check the official CINETREAK website for firmware updates to access new features and improvements. Follow the provided instructions carefully for any update process.
• พื้นที่จัดเก็บ: เมื่อไม่ได้ใช้งานเป็นเวลานาน ควรเก็บอุปกรณ์ไว้ในที่แห้งและเย็น หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป

6 การแก้ไขปัญหา

If you encounter issues with your Stream-1, refer to the common problems and solutions below:

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

CINETREAK products are designed for reliability and performance. This product comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official CINETREAK webเว็บไซต์.

For technical support, troubleshooting assistance, or any inquiries regarding your Stream-1, please contact CINETREAK customer service. Contact information can typically be found on the official product webดูรายละเอียดได้จากเว็บไซต์หรือในเอกสารการสั่งซื้อของคุณ

Please note that only products purchased from the official CINETREAK store or authorized resellers are eligible for warranty service.
