1. คำแนะนำด้านความปลอดภัยที่สำคัญ
Please read all instructions carefully before using the FLEXISPOT XL5 Power Lift Recliner Chair. Retain this manual for future reference.
- Ensure all components are securely assembled before connecting to power.
- ควรกันเด็กและสัตว์เลี้ยงให้ห่างจากส่วนที่เคลื่อนไหวของเก้าอี้
- Do not allow children to operate the chair without adult supervision.
- Avoid placing hands or feet near the lifting mechanism during operation.
- Do not expose the chair to excessive moisture or liquids.
- ถอดปลั๊กเก้าอี้ออกจากเต้ารับไฟฟ้าก่อนทำความสะอาดหรือบำรุงรักษา
- หากสายไฟชำรุดเสียหาย จะต้องเปลี่ยนโดยผู้ผลิตหรือตัวแทนบริการที่มีคุณสมบัติเหมาะสมเพื่อหลีกเลี่ยงอันตราย
- Do not sit on the footrest when it is extended.
- เก้าอี้ตัวนี้ออกแบบมาสำหรับใช้ภายในอาคารเท่านั้น
2. เนื้อหาบรรจุภัณฑ์
The FLEXISPOT XL5 recliner is shipped in one box. Carefully unpack all components and verify against the list below. If any parts are missing or damaged, contact customer support immediately.
- ฐานรองเก้าอี้ปรับเอน
- พนักพิง
- Side Wings (2)
- อะแดปเตอร์แปลงไฟ
- Remote Control (2) - one for lift/recline, one for massage/heat
- คู่มือการใช้งาน

Image: The FLEXISPOT XL5 recliner shown next to a shipping box, illustrating the 'All in One Box' delivery.
3. คำแนะนำในการประกอบ
Assembly of the FLEXISPOT XL5 recliner is designed to be straightforward. Please follow these steps:
- แกะส่วนประกอบ: Carefully remove all parts from the shipping box. Place the recliner base on a flat, stable surface.
- ติดพนักพิง: Slide the backrest onto the metal posts on the recliner base until it clicks securely into place. Ensure both sides are fully engaged.
- Connect Side Wings: Attach the side wings to the designated slots on the backrest.
- เชื่อมต่อพลังงาน: Locate the power cable from the chair and connect it to the power adapter. Plug the power adapter into a standard electrical outlet.
- Allow for Rebound: After assembly, allow the cushions approximately 48 hours to fully rebound to their intended plushness.
4. คู่มือการใช้งาน
The FLEXISPOT XL5 features dual OKIN motors for independent control of the backrest and footrest, along with massage and heating functions.
4.1 Lift and Recline Functions
Use the dedicated lift and recline remote control to adjust the chair's position.

Image: Diagram illustrating the buttons on the lift and recline remote control and their corresponding chair movements.
- Recline Backrest: Press the 'Recline the Backrest' button (down arrow for backrest) to lean the backrest backward.
- Raise Backrest: Press the 'Raise the Backrest' button (up arrow for backrest) to bring the backrest upright.
- ยกที่วางเท้า: Press the 'Raise the Footrest' button (up arrow for footrest) to elevate the footrest.
- Lower Footrest & Lift to Standing: Press the 'Lower the Footrest, then Lift to Standing Position' button (down arrow for footrest) to retract the footrest and then gently lift the chair to assist in standing.
- Lay Flat Position: The dual motors allow for a nearly 180° lay-flat recline by independently adjusting the backrest and footrest to your desired comfort.

Image: The recliner demonstrating its lay-flat capability and the lift-assist function for easy standing.
4.2 Massage and Heating Functions
Utilize the separate massage and heat remote control to activate these features.

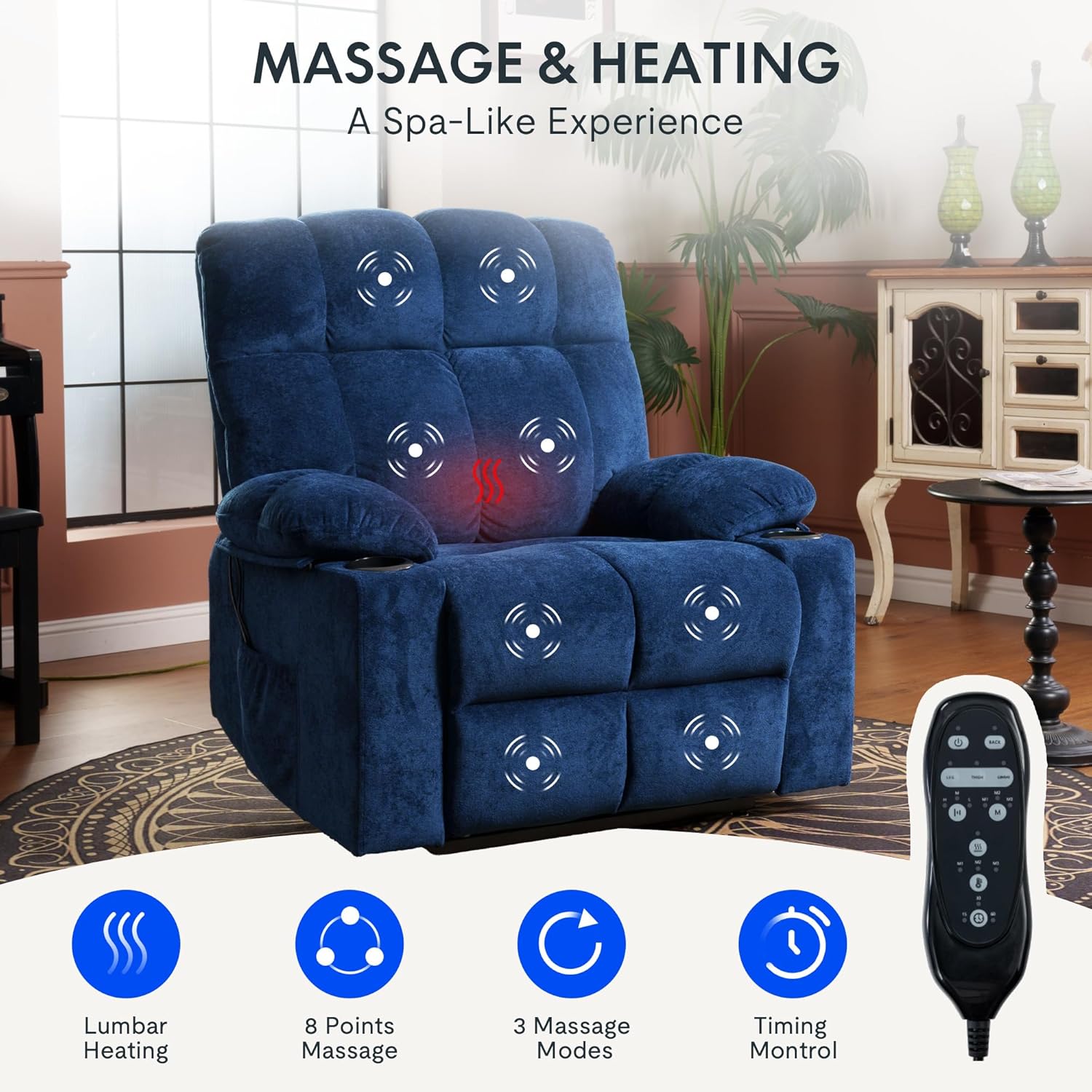

Image: The recliner highlighting the lumbar heating area and the 8 massage points across the back, seat, and leg rest.
- จุดนวด: The chair features 8 vibrating massage points located in the back, lumbar, seat, and leg areas.
- โหมดการนวด: Select from 3 adjustable massage modes to suit your preference.
- ระบบทำความร้อนบริเวณเอว: Activate the lumbar heating function for soothing warmth.
- Intensity and Timer: Adjust massage intensity and set a timer for your massage sessions using the remote.
4.3 USB Charging Ports and Storage
The recliner is equipped with convenient features for your comfort.

ภาพ: รายละเอียด view of the built-in cup holders, side storage pockets, and the USB charging port located on the lift/recline remote.
- พอร์ตชาร์จ USB: A USB port is integrated into the lift/recline remote control, allowing you to charge your electronic devices while relaxing.
- ที่วางแก้ว: Two built-in cup holders are provided for beverages.
- กระเป๋าด้านข้าง: Dual side pockets offer convenient storage for remotes, magazines, or other small items.
5. การดูแลรักษา
การดูแลรักษาอย่างถูกวิธีจะช่วยยืดอายุการใช้งานและรักษาสภาพของเก้าอี้ปรับเอนของคุณได้
- ผ้าทำความสะอาด: For general cleaning, use a soft cloth and a mild, non-abrasive fabric cleaner. Test on an inconspicuous area first.
- การรั่วไหล: เช็ดคราบที่หกทันทีด้วยผ้าสะอาดและแห้ง ห้ามถู
- การดูดฝุ่น: Regularly vacuum the fabric to remove dust and debris.
- ชิ้นส่วนที่เคลื่อนไหว: Periodically check all bolts and connections to ensure they are tight. Do not lubricate moving parts unless specifically instructed by the manufacturer.
- สายไฟ: ตรวจสอบสายไฟว่ามีรอยชำรุดหรือไม่ หากพบรอยชำรุด ให้หยุดใช้งานและติดต่อฝ่ายบริการลูกค้า
6. คำแนะนำการแก้ไขปัญหา
If you encounter issues with your recliner, refer to the following common problems and solutions.
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Chair does not operate (no power) | Power cord unplugged, outlet not working, power adapter faulty. | Ensure power cord is securely plugged into the chair and a working wall outlet. Test the outlet with another device. Check for damage to the power adapter. |
| มอเตอร์ส่งเสียงผิดปกติ | Loose connection, obstruction in mechanism. | Check for any obstructions under the chair. Ensure all connections are secure. If noise persists, contact customer support. |
| ระบบนวด/ความร้อนไม่ทำงาน | Massage/heat remote not connected, power issue. | Ensure the massage/heat remote is properly connected to the chair's power system. Verify the main power supply to the chair. |
| Chair does not lift or recline smoothly | Obstruction, weight exceeding capacity, motor issue. | Check for obstructions. Ensure user weight does not exceed 350 lbs. If issues persist, contact customer support. |
If the problem persists after attempting these solutions, please contact FLEXISPOT customer support.
7. ข้อมูลจำเพาะผลิตภัณฑ์
Detailed specifications for the FLEXISPOT XL5 Dual OKIN Motor Power Lift Recliner Chair.

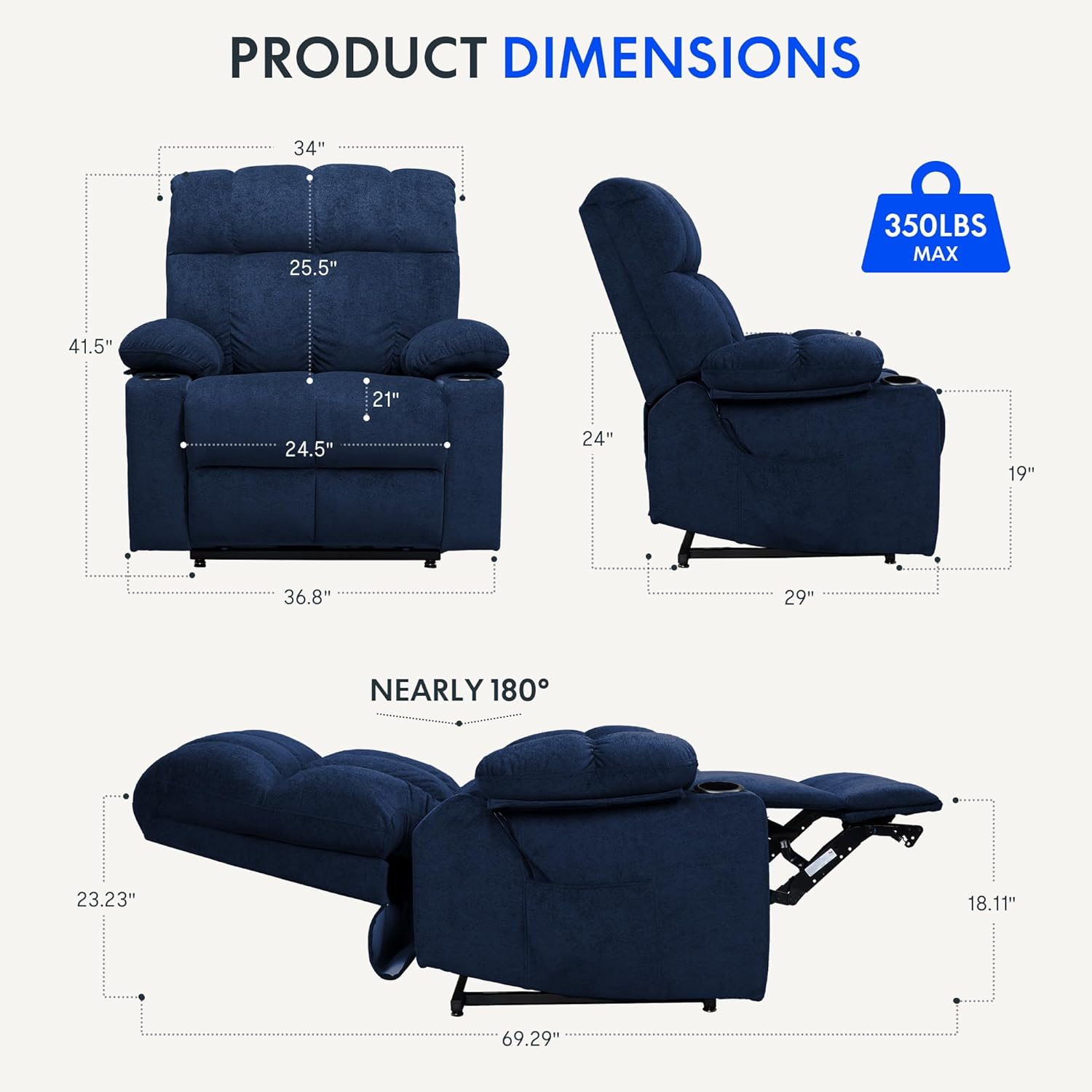

Image: Technical drawing displaying the width, depth, height, seat depth, and seat width of the recliner.
- ยี่ห้อ: เฟล็กซิสพอท
- แบบอย่าง: ขนาด XL5
- สี: สีฟ้า
- วัสดุ: สิ่งทอ
- ขนาดสินค้า : ลึก 29 นิ้ว x กว้าง 36.8 นิ้ว x สูง 41.5 นิ้ว
- ความลึกของที่นั่ง: 21 นิ้ว
- คุณสมบัติพิเศษ: Dual OKIN Motor, Lay Flat, Massage, Heat, USB Ports, Cup Holders
- ความจุน้ำหนัก: Up to 350 lbs (as indicated in product images)
- พลัง: Electric (Power Adapter included)
8. การรับประกันและการสนับสนุนลูกค้า
FLEXISPOT is committed to providing quality products and excellent customer service.
- การรับประกัน: For detailed warranty information regarding your FLEXISPOT XL5 recliner, please refer to the warranty card included with your purchase or contact FLEXISPOT customer support directly.
- การสนับสนุนลูกค้า: If you have any questions, require assistance with assembly, operation, or troubleshooting, FLEXISPOT's customer service team is available to provide prompt support.
ข้อมูลติดต่อ: Please visit the official FLEXISPOT website or refer to your purchase documentation for the most current customer support contact details.
