VIOMI® RO Water Filtration System User Manual

สินค้าเกินview

The VIOMI RO Water Filtration System is a state-of-the-art, tankless reverse osmosis system designed to provide clean, purified water directly from your tap. Featuring a 9-stage filtration process and NSF/ANSI certifications, it effectively reduces various contaminants, ensuring high-quality drinking water for your household.

Image: The main unit of the VIOMI RO Water Filtration System, showing its compact design and the accompanying faucet with water flowing into a glass.

คุณสมบัติหลัก

• NSF/ANSI Certified Filtration: Certified against NSF/ANSI 372, 53, and 42 standards, effectively reducing TDS, hexavalent chromium, fluoride, lead, iron, cadmium, mercury, copper, selenium, barium, chloride, arsenic, chlorate, cyanide, sulfate, PFOS, PFOA, and particulates. Achieves up to 94.75% TDS removal and 99.60% PFOS&PFOA reduction.

• 9-สtage ระบบการกรอง: Utilizes advanced 0.0001μm reverse osmosis membrane technology for superior filtration precision, removing scale, heavy metals, residual chlorine, unpleasant odor, heterochrome, and organic matters.

• 600 GPD High Capacity & Fast Flow: Produces 600 gallons of filtered water daily with a fast and stable flow rate, filling a 7 oz cup in just 6 seconds. Features a 3:1 pure to drain ratio for efficient water usage.

• ไส้กรองใช้งานได้ยาวนาน: The RO filter lasts up to 48 months, and the PCB filter lasts up to 24 months, minimizing replacement frequency. Filters are pre-installed for convenience.

• Tankless & Compact Design: Measures 16.3"L x 5"W x 12.8"H, saving approximately 65% under-sink space compared to traditional tank systems.

• Smart LED Faucet: Provides timely filter replacement reminders with an orange light indicator, making maintenance simple and tool-free.

• การติดตั้ง DIY ง่ายๆ: Designed for quick installation, typically within 30 minutes. Requires an electrical outlet and drilling for the faucet and wastewater line.

การตั้งค่า

การแกะกล่องและส่วนประกอบ

Carefully unpack all components from the box. Ensure all parts listed in the manual are present before beginning installation.

ภาพ: ระเบิด view showing the various components of the VIOMI RO Water Filtration System, including the main unit, filters, faucet, and tubing.

ขั้นตอนการติดตั้ง

The VIOMI RO Water Filtration System is designed for easy DIY installation. Follow these steps for a smooth setup:

1. เตรียมพื้นที่ติดตั้ง: Clear the under-sink cabinet space. Ensure you have access to a cold water supply line, a drain pipe, and an electrical outlet. Measure your cabinet dimensions to ensure adequate space for the unit (16.3"L x 5"W x 12.8"H).

2. ติดตั้ง Faucet: Drill a 1"-1.5" hole in your countertop for the faucet. Insert the faucet and secure it from underneath the sink. Connect the purified water pipe to the faucet.

3. เชื่อมต่อกับแหล่งจ่ายน้ำเย็น: Turn off the cold water supply. Install the feed water adapter to the cold water supply valve. Connect the blue pipe from the main unit to this adapter.

4. Connect to Drain Pipe: Install the drain saddle to the sewer pipe. Connect the gray pipe from the main unit to this saddle.

5. เชื่อมต่อพลังงาน: Plug the power adapter into the main unit and then into a nearby electrical outlet.

6. ล้างระบบ: Turn on the cold water supply. Open the purified water faucet and let the water run for approximately 20 minutes to flush the system and activate the filters. This ensures optimal performance and taste.

Video: "Installed and Using Viomi Water Filter System" - This video provides a comprehensive guide to installing and setting up the VIOMI RO Water Filtration System, demonstrating each step from unboxing to initial use.

Video: "Viomi Vortex Reverse Osmosis Water Filter" - This video showcases the compact design and installation process of the Viomi Vortex filter, highlighting its space-saving benefits under the sink.

Video: "Viomi 9-Stage RO Water Filtration System" - A short overview video demonstrating the sleek design and key features of the Viomi 9-Stage RO Water Filtration System.

การดำเนินงาน

Once installed and flushed, operating your VIOMI RO Water Filtration System is straightforward. Simply turn the faucet handle to dispense purified water.

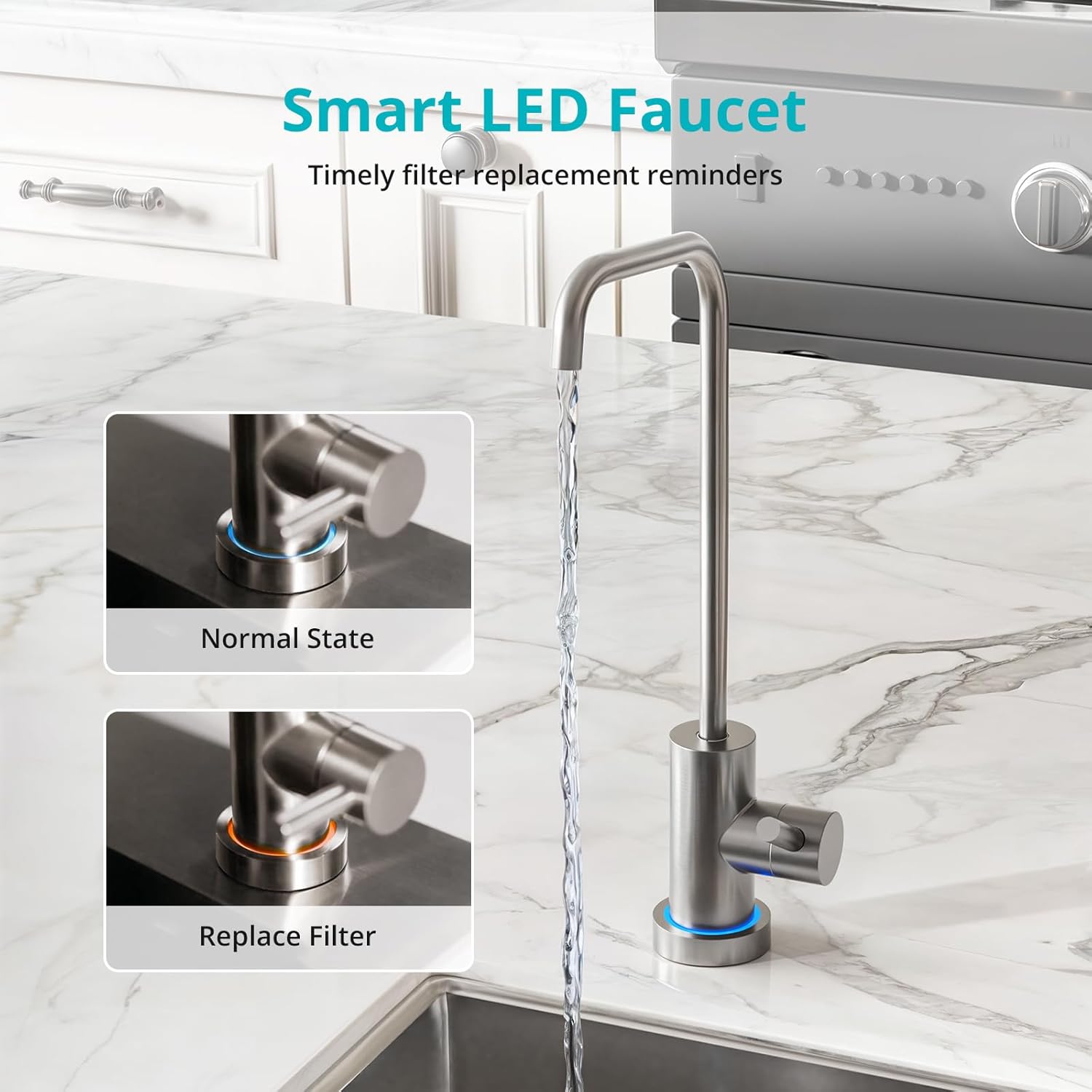

Image: Close-up of the smart LED faucet, showing a blue light for normal operation and an orange light indicating filter replacement is needed.

The smart LED faucet provides real-time feedback on your filter status:

• แสงสีฟ้า: Indicates normal operation and that the water is potable.

• ไฟสีส้ม: Signals that a filter replacement is due or approaching expiry.

Image: Visual comparison of water flow rates, showing how quickly the system can fill a 6 oz cup (6s), a 24 oz glass bowl (22s), and a 50 oz glass carafe (45s).

การซ่อมบำรุง

การเปลี่ยนตัวกรอง

The VIOMI RO Water Filtration System features long-lasting filters that are easy to replace without tools.

• PCB Filter: เปลี่ยนทุกๆ 24 เดือน

• RO Filter: เปลี่ยนทุกๆ 48 เดือน

The smart LED faucet will indicate when it's time for a replacement by glowing orange.

Image: A hand demonstrating the simple twist, pull, and replace method for changing filters on the VIOMI unit.

1. Twist the old filter counter-clockwise to unlock it.

2. Pull the old filter out.

3. Insert the new filter and twist clockwise to lock it into place.

4. Reset the filter reminder by pressing the "Reset" button on the main unit.

การแก้ไขปัญหา

If you encounter any issues with your VIOMI RO Water Filtration System, refer to the following common troubleshooting tips:

• การไหลของน้ำช้า: Check if the filters need replacement (orange light on faucet). Ensure the cold water supply valve is fully open. Verify there are no kinks in the water lines.

• รสชาติหรือกลิ่นผิดปกติ: This typically indicates that filters need replacement. Flush the system thoroughly after replacing filters.

• ไม่มีน้ำจ่าย: Check if the unit is properly plugged into a working electrical outlet. Ensure the cold water supply is turned on. Verify that the filter cartridges are correctly installed and locked.

• การรั่วไหล: Check all connections and ensure they are tightened properly. Inspect O-rings for any damage. If leakage persists, contact customer support.

For more detailed troubleshooting or technical support, please contact VIOMI customer service.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

The VIOMI RO Water Filtration System is backed by a 30-day money-back guarantee and a 365-day manufacturer warranty. For any inquiries or assistance, please contact the VIOMI after-sales team and technical support.

For more information and certifications, visit the official VIOMI webเว็บไซต์: https://water.viomi.com/pages/certificate
