Nilight 144LED Traffic Advisor Strobe Light Bar

1. บทนำ

The Nilight 144LED Traffic Advisor Strobe Light Bar (Model 144-101AB) is designed to provide high visibility and warning signals for various vehicles. Featuring 144 high-power LED chips, this light bar ensures maximum illumination and is visible in diverse weather conditions, including daylight, night, rain, fog, or snow.

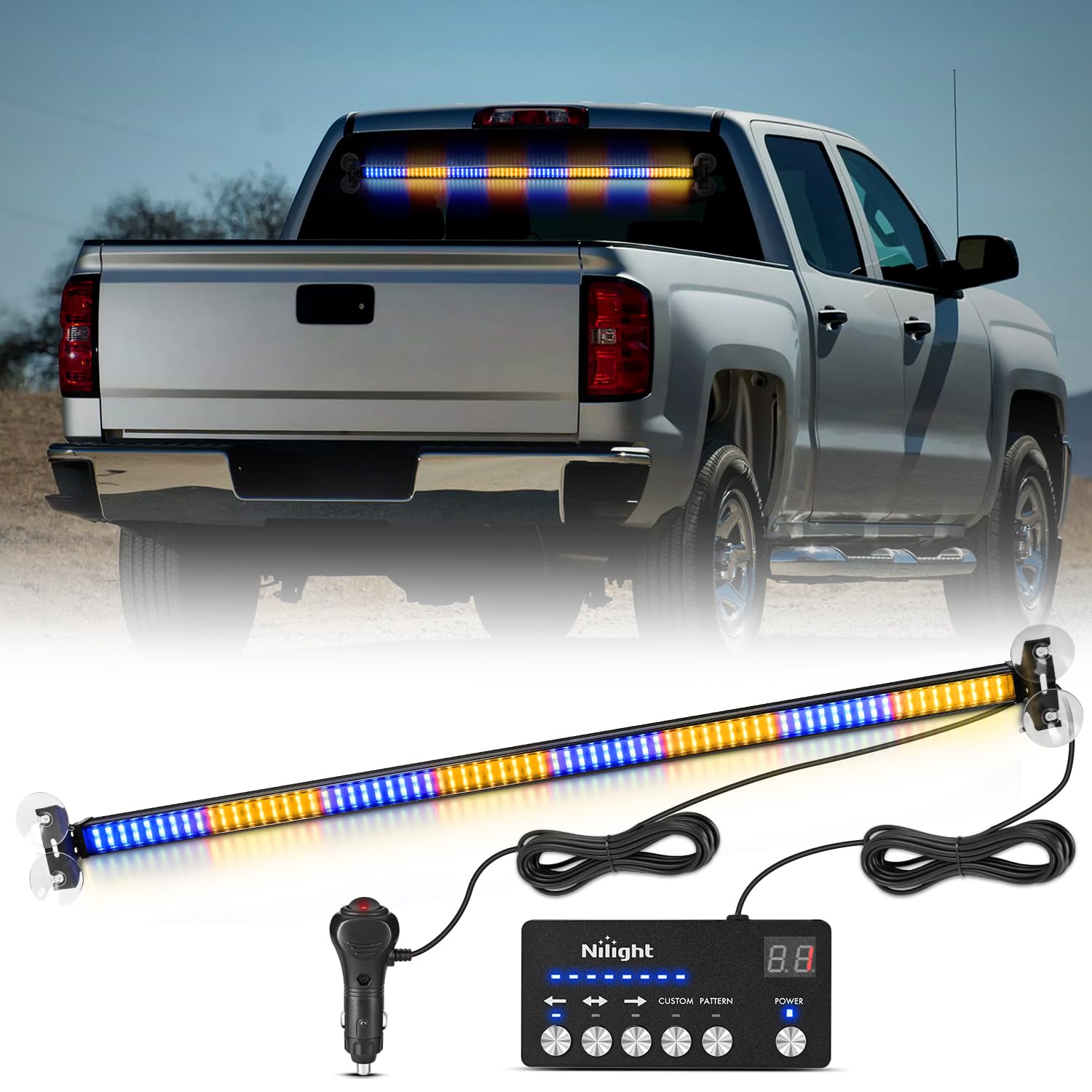

Image: The Nilight 144LED Traffic Advisor Strobe Light Bar, featuring amber and blue LEDs.

2. คุณสมบัติของผลิตภัณฑ์

• High Visibility LEDs: Equipped with 144 high-power LED chips for bright and effective warning signals.
• โครงสร้างทนทาน: Features aluminum housing and a PC lens for enhanced durability and resistance to high temperatures.
• Multiple Flash Patterns: Offers 36 distinct flicker modes, including steady on, alternating blinking, and fast blinking.
• ฟังก์ชั่นหน่วยความจำ: Retains the last selected flash pattern even after power cycling.
• Digital Display Controller: Allows easy selection and control of flash patterns with a clear display.
• อายุการใช้งานยาวนาน: Designed for a service life of up to 50,000 hours.
• ทนทานต่อสภาพอากาศ: Integrated heat sink, dust, and corrosion prevention for reliable performance in various environments.
• การติดตั้งที่ยืดหยุ่น: Includes an adjustable bracket and four strong suction cups for secure mounting on front/rear windshields or dashboards without drilling.
• ความยาวสายเคเบิลเพิ่มเติม: Comes with a 16.4 ft (5m) power wire with a cigarette lighter plug and a 12.4 ft (3.78m) wire connecting the light bar to the controller.
• เข้ากันได้สากล: Operates with 12V-24V DC vehicle systems.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ามีรายการทั้งหมดอยู่ในแพ็คเกจ:

• 1 x Nilight 144LED Traffic Advisor Strobe Light Bar
• 1 x Digital Display Controller
• 1 x Cigarette Lighter Power Plug with 10A Fuse
• 1 x ขายึดแบบปรับได้
• 4 x ถ้วยดูด
• สกรูยึด 4 ตัว
• 4 x Red Stickers
• 1 x White Sticker

Image: A diagram illustrating the product dimensions and all included accessories.

4. การตั้งค่า

The Nilight 144LED Traffic Advisor Strobe Light Bar is designed for straightforward installation.

1. เตรียมพื้นผิวการติดตั้ง: Ensure the chosen mounting location (front windshield, rear windshield, or instrument panel) is clean and dry for optimal suction cup adhesion.
2. Attach Brackets to Light Bar: Secure the adjustable mounting brackets to the light bar using the provided screws.
3. ขันสกรูให้แน่น: Ensure the screws are tightened to firmly secure the brackets to the light bar.
4. ติดถ้วยดูด: Press the suction cups firmly onto the brackets.

Image: A visual guide demonstrating the steps to attach the bracket and suction cups to the light bar.

5. ติดตั้งแถบไฟ: Position the light bar on your desired surface (windshield or dashboard) and press the suction cups firmly to secure it. The adjustable bracket allows for angle customization.

Image: The light bar shown mounted on the rear window of a pickup truck, demonstrating its placement and visibility.

6. เชื่อมต่อพลังงาน: Plug the cigarette lighter power plug into your vehicle's 12V-24V DC power outlet. The power wire length is 16.4 ft (5m).

Image: A close-up of the cigarette lighter plug, which includes a built-in 10A fuse for electrical protection.

7. ตัวควบคุมการเชื่อมต่อ: Ensure the controller is securely connected to the light bar. The wire between the light bar and controller is 12.4 ft (3.78m).

5. คู่มือการใช้งาน

The digital display controller provides intuitive control over the light bar's functions.

1. เปิด/ปิดเครื่อง: กดปุ่ม พลัง button on the controller to turn the light bar on or off.
2. Select Flash Pattern: Use the pattern selection buttons to cycle through the 36 available flash patterns. The current mode number will be displayed on the controller's screen.

Image: The digital display controller, highlighting the power button and pattern selection controls.

3. การควบคุมทิศทาง: Utilize the quick-select directional buttons to activate left, right, or center-out directional warning patterns.

Image: Visual representation of the light bar displaying left, right, and both-way directional signals for traffic advising.

4. โหมดโปรด:
   • To switch to your saved favorite pattern, press the CUSTOM PATTERN ปุ่ม.
   • To save the current pattern as your favorite, press and hold the CUSTOM PATTERN ปุ่ม.
5. ฟังก์ชั่นหน่วยความจำ: The light bar will automatically recall the last used flash pattern when powered on again.

6. การบำรุงรักษา

The Nilight 144LED Traffic Advisor Strobe Light Bar is designed for durability and minimal maintenance.

• การทำความสะอาด: Periodically clean the light bar and lens with a soft, damp cloth to remove dirt and debris. Avoid abrasive cleaners that could scratch the lens.
• การตรวจสอบ: Regularly check the mounting brackets and suction cups for secure attachment. Ensure all cable connections are tight and free from damage.
• การเปลี่ยนฟิวส์: The cigarette lighter plug contains a 10A fuse. If the light bar stops working, check and replace the fuse if necessary. Use only a 10A fuse for replacement.

7 การแก้ไขปัญหา

• แถบไฟไม่ติด:
  • Ensure the cigarette lighter plug is fully inserted into the vehicle's power outlet.
  • Check the vehicle's 12V-24V DC power outlet for functionality.
  • Inspect the 10A fuse within the cigarette lighter plug and replace if blown.
  • Verify all cable connections between the light bar and controller are secure.
• Patterns are not changing:
  • ตรวจสอบให้แน่ใจว่าตัวควบคุมเชื่อมต่อและจ่ายไฟอย่างถูกต้องแล้ว
  • Press the pattern selection buttons firmly.
• Suction cups are not holding:
  • Clean the mounting surface and suction cups thoroughly to remove any dust, grease, or moisture.
  • ตรวจสอบให้แน่ใจว่าพื้นผิวเรียบและไม่มีรูพรุน
  • Apply slight pressure when attaching the suction cups to expel air.
  • Consider repositioning the light bar if the surface is uneven.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

Nilight products are designed for quality and reliability. For any questions, technical assistance, or warranty claims, please contact Nilight customer support directly. Refer to the official Nilight webไซต์หรือบรรจุภัณฑ์ผลิตภัณฑ์เพื่อให้มีข้อมูลติดต่อล่าสุด
