1. บทนำ
The PROZOR 2-Way Amplifier Speaker Selector Switch is a passive audio device designed to manage connections between amplifiers and speakers. It allows users to connect two amplifiers to a single pair of speakers, or one amplifier to two pairs of speakers, providing flexibility in audio system configurations. This device operates without external power and is engineered to maintain sound quality.
2. คุณสมบัติของผลิตภัณฑ์
- การเชื่อมต่อที่หลากหลาย: Supports 2-in-1-out (two amplifiers to one pair of speakers) or 1-in-2-out (one amplifier to two pairs of speakers) configurations. Only one input or output can be active at a time.
- High-Quality Terminals: Equipped with gold-plated banana plug input/output ports, compatible with up to 12-gauge speaker wire.
- Robust Internal Wiring: Utilizes UL1007 18 AWG wire for high current handling.
- การจัดการพลังงาน: Rated for 100W RMS per channel, with a peak power of 200W.
- การออกแบบเชิงรับ: Requires no external power, ensuring plug-and-play operation and no impact on audio fidelity.
- การดำเนินการที่เรียบง่าย: Features an A/B switch for easy selection between different audio inputs or outputs.
- ความเข้ากันได้กว้าง: ใช้งานได้หลากหลาย amplifiers and passive speakers.
3. เนื้อหาบรรจุภัณฑ์
- โปรซอร์ 2 ทาง Amplifier Speaker Selector Switch (Model LNKVC654)
- คู่มือการใช้งาน
4. การตั้งค่าและการเชื่อมต่อ
Before making any connections, ensure all audio equipment is powered off to prevent damage.
Figure 1: Front and Rear Panels of the PROZOR Speaker Selector Switch. The front panel features a toggle switch for selection, while the rear panel displays clearly labeled banana plug terminals for speaker and ampการเชื่อมต่อตัวดึงข้อมูล
4.1. Connecting Two Amplifiers to One Pair of Speakers (2-in-1-out)
- Connect the speaker cables from your first amplifier to the 'AMP 1 L' and 'AMP 1 R' terminals on the selector switch. Ensure correct polarity (+ to + and - to -).
- Connect the speaker cables from your second amplifier to the 'AMP 2 L' and 'AMP 2 R' terminals on the selector switch. Maintain correct polarity.
- Connect your single pair of speakers to the 'Speaker L' and 'Speaker R' terminals on the selector switch. Observe correct polarity.
Figure 2: Diagram for connecting two amplifiers to one pair of speakers. This setup allows you to switch between Ampลิฟายเออร์ 1 และ Amplifier 2 to power the same set of speakers.
4.2. Connecting One Amplifier to Two Pairs of Speakers (1-in-2-out)
- Connect the speaker cables from your single amplifier to the 'Speaker L' and 'Speaker R' terminals on the selector switch. Ensure correct polarity.
- Connect your first pair of speakers to the 'AMP 1 L' and 'AMP 1 R' terminals on the selector switch. Maintain correct polarity.
- Connect your second pair of speakers to the 'AMP 2 L' and 'AMP 2 R' terminals on the selector switch. Observe correct polarity.

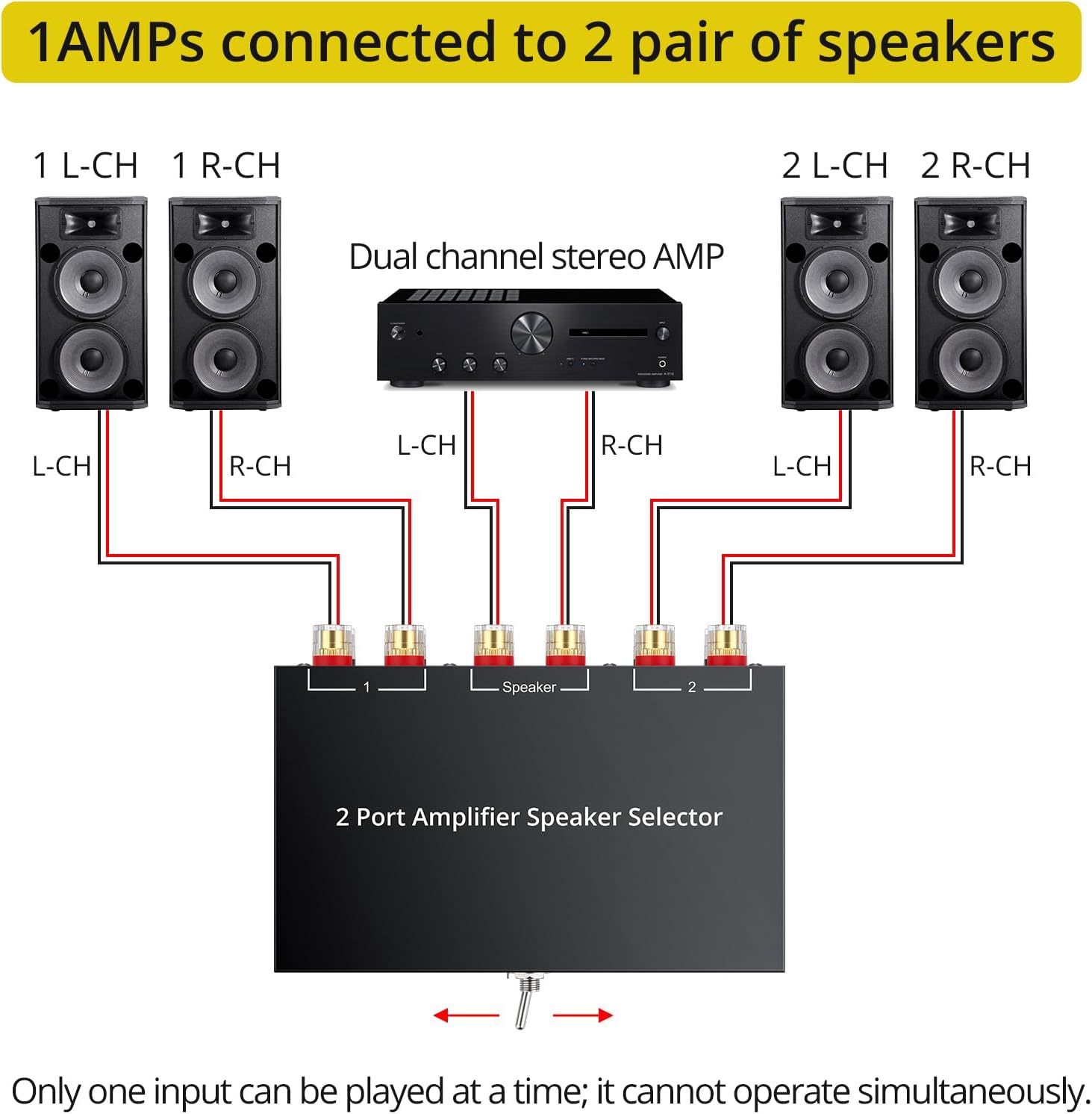

Figure 3: Diagram for connecting one amplifier to two pairs of speakers. This configuration enables you to switch between Speaker Pair 1 and Speaker Pair 2 using a single ampชีวิต.
4.3. Visual Connection Guide
Video 1: Official video demonstrating the setup and operation of the PROZOR 2-Way Amplifier Speaker Selector Switch, showing both 1-in-2-out and 2-in-1-out configurations. This video provides a visual guide for connecting your audio components.
5. คู่มือการใช้งาน
Once all connections are securely made and verified, you can begin operating the PROZOR Speaker Selector Switch.
- เปิดเครื่อง amplifier(s) and audio source(s).
- Use the toggle switch on the front panel of the PROZOR selector to choose between '1' or '2'.
- In a 2-in-1-out setup, selecting '1' will route audio from Amplifier 1 to your speakers, while selecting '2' will route audio from Ampตัวช่วย 2.
- In a 1-in-2-out setup, selecting '1' will send audio from your amplifier to Speaker Pair 1, and selecting '2' will send audio to Speaker Pair 2.
- Only one position can be selected at a time; simultaneous operation of both inputs/outputs is not supported.
Figure 4: The PROZOR selector switch in an active audio setup, demonstrating its compact size and ease of integration into a home audio system.

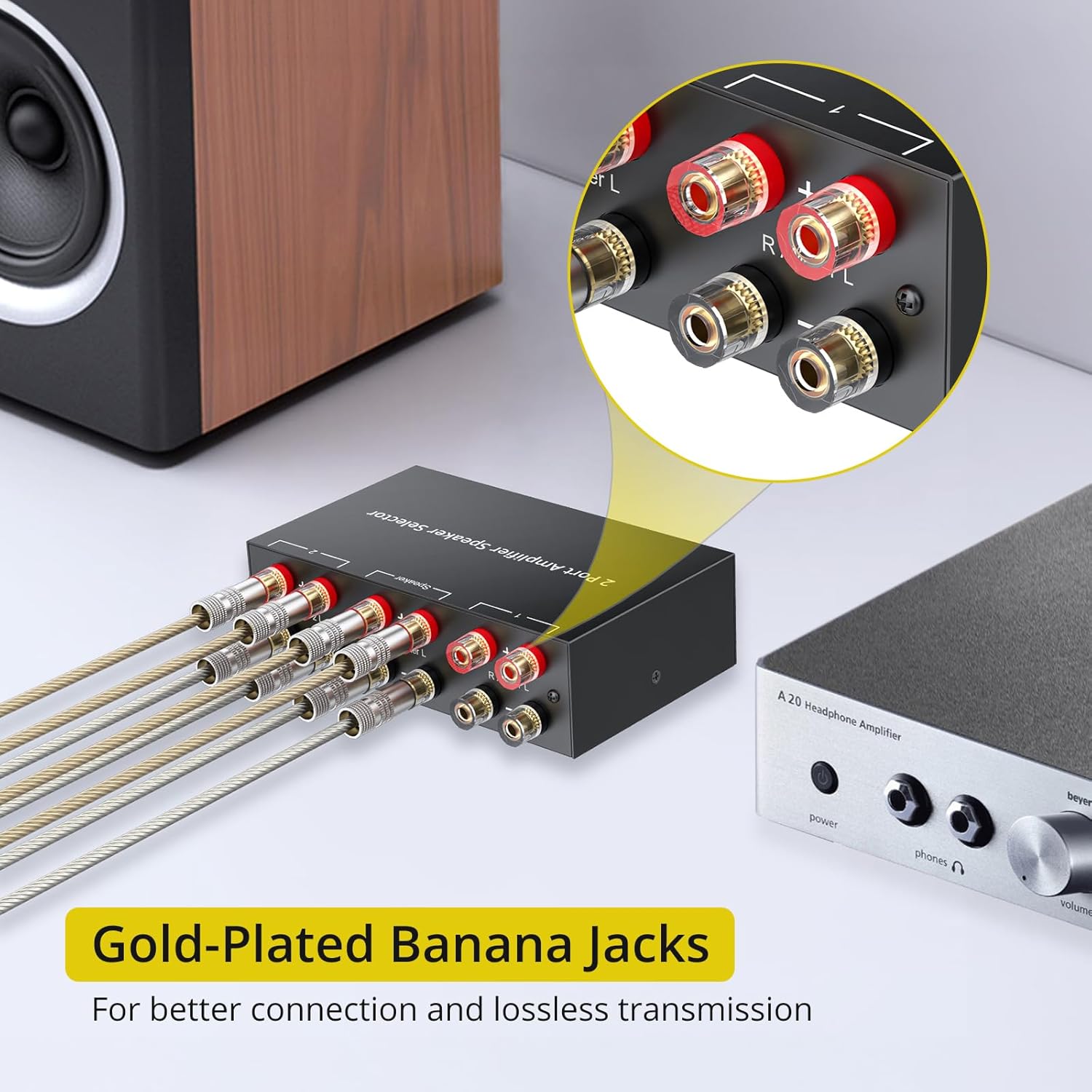

Figure 5: A close-up of the gold-plated banana jacks, which ensure stable signal transmission, anti-interference, and corrosion resistance for long-term performance.
6. ข้อมูลจำเพาะ
| คุณสมบัติ | คำอธิบาย |
|---|---|
| หมายเลขรุ่น | LNKVC654 |
| ขนาด | 6.34 x 5.67 x 1.81 นิ้ว |
| น้ำหนักสินค้า | 1.06 ปอนด์ |
| กำลังไฟที่กำหนด | 100W RMS per channel, 200W peak |
| ประเภทขั้วต่อ | ปลั๊กกล้วย |
| การเดินสายภายใน | UL1007 18 AWG wire |
| ความเข้ากันได้ | Amplifiers, Passive Speakers, Turntables, Laptops, CD/DVD Players, Desktops, TVs, Active Monitor Speakers, Audio Interfaces |
7 การแก้ไขปัญหา
- ไม่มีเสียง:
- Ensure all speaker wires are securely connected to the correct terminals on both the selector switch and your audio equipment.
- Verify that the toggle switch on the selector is set to the desired input/output (1 or 2).
- ตรวจสอบว่าของคุณ amplifier(s) and audio source(s) are powered on and functioning correctly.
- Confirm correct polarity (+ to + and - to -) for all speaker wire connections.
- เสียงผิดเพี้ยน:
- Ensure speaker wire gauge is appropriate for your system and connections are tight.
- Verify that the power rating of your amplifier and speakers is within the limits of the selector switch (100W RMS / 200W Peak per channel).
- ตรวจสอบว่ามีการเชื่อมต่อที่หลวมหรือสายไฟชำรุดหรือไม่
- Switch Not Functioning:
- The switch is mechanical; ensure it clicks firmly into position 1 or 2.
- As a passive device, no power is required for the switch itself. If issues persist, inspect for physical damage.
8. การรับประกันและการสนับสนุน
PROZOR products are designed for reliability and performance. For any technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact PROZOR customer support through the retailer where the product was purchased or visit the official PROZOR website for contact information. Please retain your proof of purchase for warranty claims.
