คู่มือผู้ใช้ไฟ LED RGB สำหรับวิดีโอ SmallRig RC 60C

1. Introduction and Key Features

The SmallRig RC 60C RGB LED Video Light is a compact and powerful lighting solution designed for professional photography and video production. Its portable design and versatile features make it suitable for various mobile content creation scenarios.

คุณสมบัติหลัก:

• Custom RGBCW Light Source: High brightness and color rendering index with a wide color temperature range of 2500K to 10000K.
• แบตเตอรี่แบบบูรณาการ: Features a 3400mAh (48.96 Wh) built-in battery supporting PD fast charging (with ≥65W charger), allowing a full charge in 2 hours and providing 45 minutes of full power output.
• ตัวเลือกพลังงานที่หลากหลาย: Can be powered by the built-in battery, external adapters, power banks, or battery handles (accessories may be sold separately).
• Professional Lighting Controls: Includes G/M adjustment, built-in color filters (ROSCO, LEE), HSI mode, RGBCW mode, and color selection for precise lighting control.
• ความเข้ากันได้ของอุปกรณ์เสริม: Compatible with a wide range of lighting accessories, including mini reflectors and parabolic softboxes. Note: A special adapter ring (ID: 4476) is required for Bowens mount accessories.
• วิธีการควบคุมแบบคู่: Control the light directly via on-body controls with a 1.3-inch color screen or remotely using the SmallGoGo application.
• 12 Built-in Light Effects: Offers various creative lighting effects for diverse shooting needs.

Figure 1.1: SmallRig RC 60C RGB LED Video Light with its mini reflector and handle attached. This image showcases the compact design of the light, ready for use.

2. เนื้อหาบรรจุภัณฑ์

Please check the contents of your package upon receipt to ensure all items are present and undamaged. The contents vary depending on the edition purchased:

Lite Edition:

• 1 x SmallRig RC 60C RGB LED Video Light
• 1 x Mini Reflector
• 1 x 3m USB-C to USB-C PD Charging Cable
• 1 x คู่มือผู้ใช้

พาวเวอร์แบงค์ ซีแอลamp ฉบับ:

• 1 x SmallRig RC 60C RGB LED Video Light
• 1 x Mini Reflector
• 1 x วงเล็บยึด
• 1 x ด้ามจับ
• 1 x 3m USB-C to USB-C PD Charging Cable
• 1 x 0.2m USB-C to USB-C PD Charging Cable
• 1 x PowerBank Clamp
• 1 x กระเป๋าเก็บของ
• 1 x คู่มือผู้ใช้

Figure 2.1: Visual representation of the main components included in the Lite Edition package: the RC 60C light, mini reflector, charging cable, and user manual.

3. การตั้งค่า

3.1 การชาร์จเริ่มต้น

Before first use, fully charge the built-in battery. Connect the provided USB-C to USB-C PD charging cable to the light's USB-C port and to a PD fast charger (65W or higher recommended). A full charge typically takes approximately 2 hours.

3.2 Attaching the Mini Reflector

To attach the mini reflector, align the reflector with the front of the light. Push it gently onto the light's mount and rotate it clockwise until it locks securely into place. To remove, locate the release slider on the top of the light, slide it to unlock, and rotate the reflector counter-clockwise before pulling it off.

3.3 การติดตั้งไฟ

The RC 60C features a 1/4-inch thread on the bottom for tripod or stand installation. Securely screw the light onto a compatible tripod, light stand, or the included handle (if applicable for your edition).

Figure 3.1: The SmallRig RC 60C can be used in various shooting environments, either mounted on a stand with a softbox or held handheld for mobile content creation.

4. คู่มือการใช้งาน

4.1 การเปิด/ปิดเครื่อง

Locate the power slide switch on the back of the light. Slide it to the 'ON' position to power on the device. Slide it to the 'OFF' position to power off.

4.2 Control Options: On-Body and App Control

The RC 60C offers two primary control methods:

• On-Body Control: Use the rotary knobs and buttons on the light's body to adjust settings. The 1.3-inch color screen displays current parameters. One rotary knob controls intensity (clickable for 20% increments), and the other is used for other parameters (clickable to switch between settings). A small button is used to change modes or reset settings.
• SmallGoGo App Control: Download the SmallGoGo application on your smartphone. Connect the light via Bluetooth to remotely manage various parameters, save presets, and access advanced features like color picking from images.

Figure 4.1: The RC 60C can be controlled directly using its physical knobs and screen, or remotely via the SmallGoGo mobile application for enhanced flexibility.

4.3 Adjusting Color Temperature and Brightness

Use the rotary knobs to adjust the color temperature (CCT) between 2500K and 10000K and the brightness intensity. The screen will display the current values.

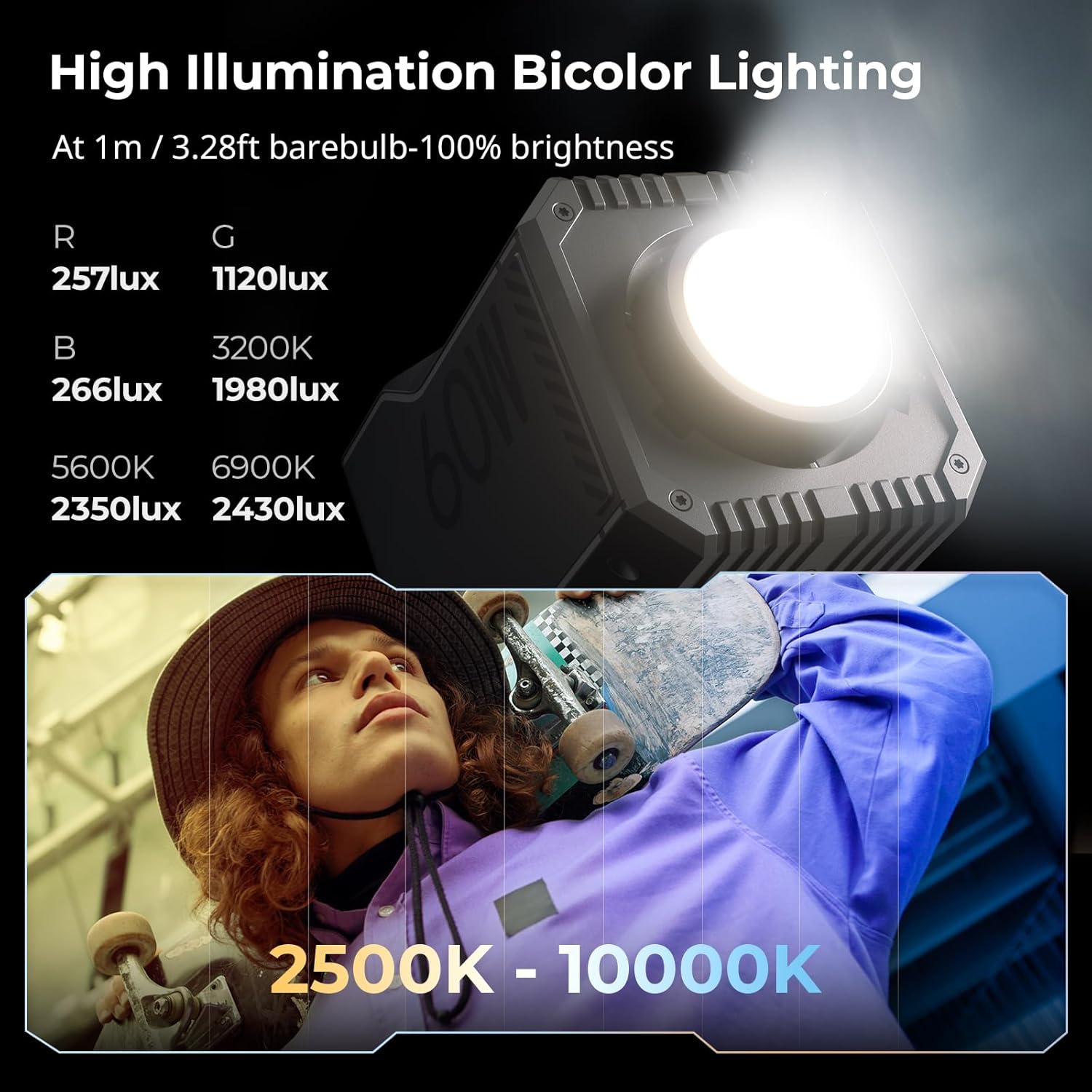

Figure 4.2: The light's high illumination capabilities are demonstrated with various lux readings at 1 meter for different color temperatures, ranging from 2500K to 10000K.

4.4 Professional Dimming and Color Features

The RC 60C offers advanced color control options:

• G/M Adjustment: Fine-tune green/magenta balance.
• โหมด HSI: Adjust Hue, Saturation, and Intensity.
• โหมด RGBCW: Direct control over Red, Green, Blue, Cold White, and Warm White LEDs.
• ฟิลเตอร์สี: Access built-in ROSCO and LEE color filters for instant color changes.
• Customize Color (App Only): Upload an image to the SmallGoGo App and pick a color to replicate with the light.

รูปที่ 4.3: โอเวอร์view of the professional dimming and color features, including the ability to customize colors via the app, use instant color filters, and access advanced G/M, HSI, and RGBCW modes.

4.5 เอฟเฟกต์แสง

The light includes 12 pre-programmed light effects for creative scenarios. These effects can be selected and adjusted via the on-body controls or the SmallGoGo app. Examples include Flash, Paparazzi, Lightning, Party, Faulty Bulb, TV, Flame, Fireworks, Breath, CCT Cycle, Color Cycle, and Police.

Figure 4.4: The light's excellent color performance is highlighted by high SSI, CRI, and TLCI values, alongside a visual representation of the 12 available light effects for diverse creative applications.

4.6 Multiple Power Options

In addition to the built-in battery, the RC 60C supports various external power sources:

• External Power Bank: Connect a compatible USB-C PD power bank for extended runtime.
• ที่จับไฟฟ้า: Use a SmallRig power handle (sold separately) for comfortable grip and additional battery life.
• External Adapter: For stable, continuous power, connect an external power adapter (sold separately).

Figure 4.5: This image illustrates the various ways to power the RC 60C, including its built-in battery, and options for external power banks, power handles, and AC adapters.

5. การบำรุงรักษา

• การทำความสะอาด: Use a soft, dry cloth to clean the light's body. Do not use abrasive cleaners or solvents.
• พื้นที่จัดเก็บ: เก็บไฟไว้ในที่แห้งและเย็น หลีกเลี่ยงแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป
• การดูแลแบตเตอรี่ For optimal battery life, avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to approximately 50-70% every three months.
• การกระจายความร้อน: Ensure the light's ventilation openings are not obstructed during operation to prevent overheating. The internal fan will activate as needed to maintain optimal temperature.

6 การแก้ไขปัญหา

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

SmallRig products typically come with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official SmallRig webเว็บไซต์สำหรับข้อกำหนดและเงื่อนไขการรับประกันโดยละเอียดที่เฉพาะเจาะจงกับภูมิภาคของคุณ

For technical support, troubleshooting assistance, or inquiries about accessories, please contact SmallRig customer service through their official webคุณสามารถดูรายละเอียดเพิ่มเติมได้ที่เว็บไซต์หรือข้อมูลติดต่อที่ระบุไว้ในเอกสารผลิตภัณฑ์ของคุณ นอกจากนี้ คุณยังสามารถเยี่ยมชมเว็บไซต์ได้อีกด้วย ร้านค้าแบรนด์ SmallRig บน Amazon สำหรับข้อมูลเพิ่มเติมและการอัพเดตผลิตภัณฑ์
