Boartechs 400W 15A DC-DC Step-Up Boost Converter Module User Manual

1. บทนำ

This manual provides detailed instructions for the safe and effective use of the Boartechs 400W 15A DC-DC Step-Up Boost Converter Module. This module is designed to convert a lower DC input voltage to a higher DC output voltage, offering constant current and constant voltage regulation. It is suitable for various applications, including battery charging and driving high-power LEDs.

2. ข้อมูลด้านความปลอดภัย

• Always ensure proper insulation and ventilation to prevent overheating.
• ไม่เกินปริมาณอินพุตสูงสุด voltage (50V) หรือกระแสเอาต์พุต (15A)
• Observe correct polarity for input and output connections. Incorrect polarity can damage the module and connected devices.
• Handle with care to avoid electrostatic discharge (ESD) damage.
• Keep away from moisture and conductive materials.
• Installation and adjustments should only be performed by qualified personnel.

3. สินค้าหมดview

The Boartechs 400W 15A DC-DC Step-Up Boost Converter Module is a high-efficiency power conversion unit. It features robust heat sinks for thermal management, an inductor coil, capacitors, and potentiometers for voltagและการปรับกระแสไฟฟ้า

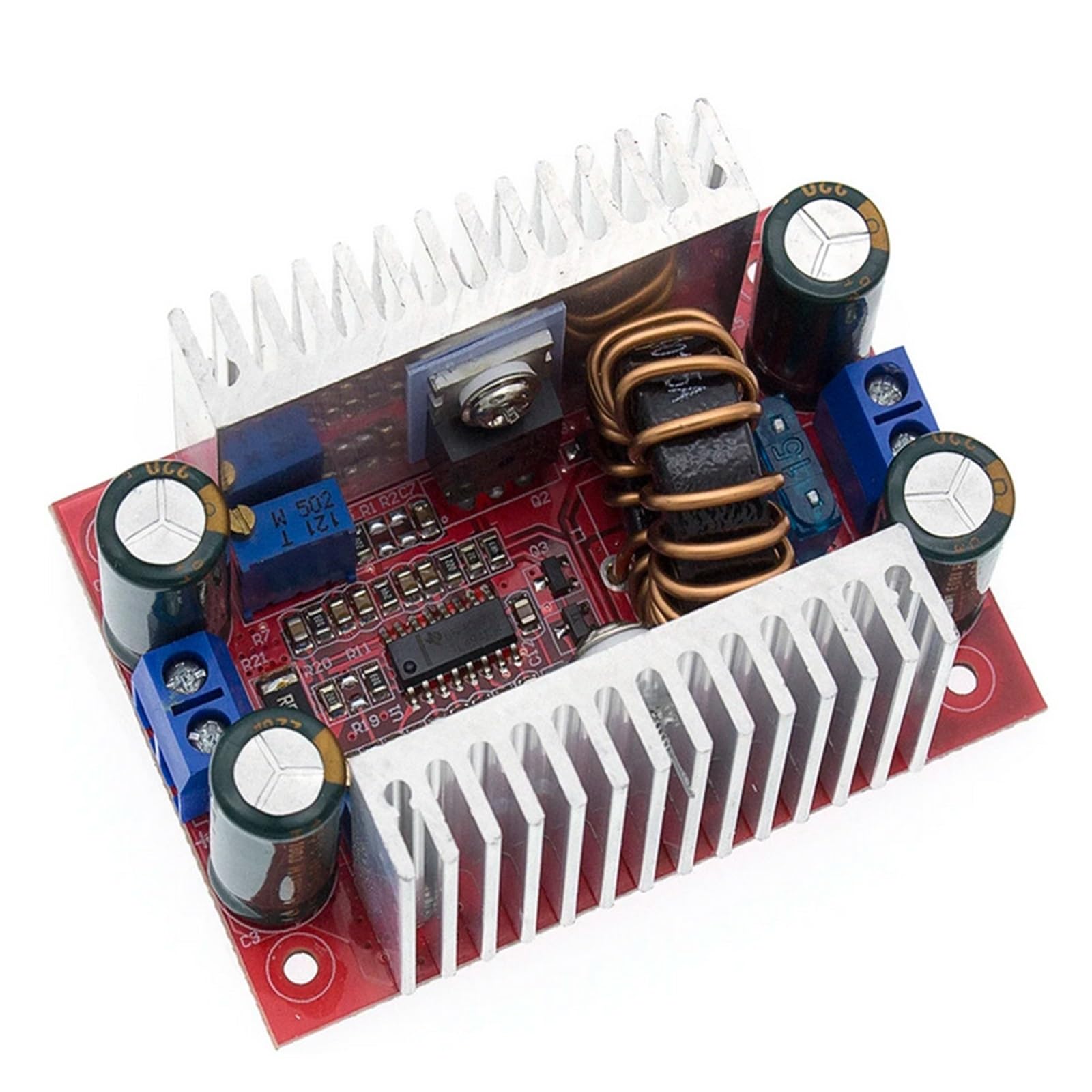

ค่าใช้จ่ายทางอ้อม view of the Boartechs 400W 15A DC-DC Step-Up Boost Converter Module, showing the red PCB, large inductor coil, heat sinks on both sides, input/output terminals, and adjustment potentiometers.

4. ข้อมูลจำเพาะ

5. การตั้งค่า

1. การเชื่อมต่ออินพุต: เชื่อมต่ออินพุต DC ปริมาตรtage source (8.5V to 50V) to the "IN+" (positive) and "IN-" (negative) terminals. Ensure correct polarity.
2. การเชื่อมต่อเอาท์พุต: Connect your load or battery to the "OUT+" (positive) and "OUT-" (negative) terminals. Ensure correct polarity.
3. เล่มที่tage การปรับ: Use the "V-ADJ" potentiometer (usually marked with a 'V' or 'CV') to set the desired output voltage. Turn clockwise to increase voltage, หมุนทวนเข็มนาฬิกาเพื่อลดขนาด
4. การปรับปัจจุบัน: Use the "I-ADJ" potentiometer (usually marked with an 'I' or 'CC') to set the desired output current limit. Turn clockwise to increase current, counter-clockwise to decrease. This is crucial for constant current applications like battery charging.
5. การกระจายความร้อน: For continuous high-power operation (above 250W or high ambient temperatures), ensure adequate airflow or additional cooling measures are in place. The integrated heat sinks help, but external cooling may be necessary.

บันทึก: When adjusting voltage or current, it is recommended to use a multimeter to accurately measure the output values.

6. คู่มือการใช้งาน

6.1. As a Step-Up Voltage Converter (Constant Voltagอี โหมด)

• Connect the input and output as described in the Setup section.
• Adjust the "V-ADJ" potentiometer to achieve the desired output voltage.
• Ensure the "I-ADJ" potentiometer is set to its maximum (fully clockwise) if you do not require current limiting, or set it to a value higher than your expected load current.
• The module will maintain the set output voltage as long as the input voltage is within range and the output current does not exceed the set limit or the module's maximum capacity.

6.2. As a Battery Charger (Constant Current/Constant Voltagอี โหมด)

• Connect the input power supply to the module and the battery to be charged to the output terminals.
• ตั้งโฟลตฉบับtagอี (ประวัติย่อ): Without connecting the battery, adjust the "V-ADJ" potentiometer to the desired float voltage for your battery type (e.g., 4.2V for a single Li-ion cell, 14.4V for a 12V lead-acid battery).
• Set Charge Current (CC): Connect an ammeter in series with the output, or short the output terminals (briefly and carefully, ensuring the current limit is set low initially). Adjust the "I-ADJ" potentiometer to the desired charging current. For safety, start with a low current and increase gradually.
• Once both voltage and current limits are set, connect the battery. The module will charge the battery at the set constant current until the battery voltage reaches the set float voltage, then it will switch to constant voltagโหมดอี

6.3. As a High Power Constant Current Regulator Drive Module

• This mode is ideal for driving high-power LEDs or other loads that require a stable current.
• Connect the input and the LED load to the output.
• Adjust the "V-ADJ" potentiometer to a voltage slightly higher than the forward voltage of your LED string.
• Adjust the "I-ADJ" potentiometer to the desired operating current for your LEDs. The module will then supply a constant current to the LEDs.

7. การบำรุงรักษา

• รักษาโมดูลให้สะอาด ปราศจากฝุ่นและสิ่งสกปรก
• Periodically inspect all connections to ensure they are secure.
• Ensure adequate ventilation, especially during prolonged high-power operation.
• Do not attempt to modify the module, as this may void any implied warranty and could lead to damage or injury.

8 การแก้ไขปัญหา

• ไม่มีเอาท์พุทVoltage:
  • ตรวจสอบอินพุต voltage และขั้ว
  • Ensure the "V-ADJ" potentiometer is not set to its minimum.
  • Verify connections to the load.
• ปริมาณการส่งออกtage Too Low/Unstable:
  • ปริมาณอินพุตtage may be too low or unstable.
  • Load current may exceed the set current limit or module's capacity.
  • Check for overheating; reduce load or improve cooling.
• Output Current Not Reaching Desired Level:
  • Adjust the "I-ADJ" potentiometer clockwise to increase the current limit.
  • Ensure the load resistance is not too high for the set voltage.
  • Input power supply may not be able to provide sufficient current.
• โมดูลร้อนเกินไป:
  • Reduce the output power (voltage หรือปัจจุบัน)
  • Improve ventilation or add active cooling (fan).
  • Ensure the input/output voltage difference is not excessively large at high currents, as this increases heat generation.

9. การรับประกันและการสนับสนุน

ผลิตภัณฑ์นี้อยู่ภายใต้การรับประกันมาตรฐานของผู้ผลิตสำหรับข้อบกพร่องในวัสดุและฝีมือการผลิต สำหรับการเรียกร้องการรับประกันหรือการสนับสนุนทางเทคนิค โปรดติดต่อผู้ค้าปลีกหรือผู้ผลิตโดยตรง โปรดเก็บหลักฐานการซื้อของคุณไว้
