Boartechs Wall Mounted Outdoor Socket with Breaker

1. บทนำและข้อมูลด้านความปลอดภัย

This manual provides essential instructions for the safe installation, operation, and maintenance of your Boartechs Wall Mounted Multi-Function Outdoor Socket. Please read this manual thoroughly before installation and use, and retain it for future reference.

คำเตือนด้านความปลอดภัยที่สำคัญ:

• อันตรายจากไฟฟ้า: Installation and wiring must be performed by a qualified electrician in accordance with all local and national electrical codes. Incorrect installation can lead to electric shock, fire, or serious injury.
• การตัดการเชื่อมต่อไฟฟ้า: Always ensure the main power supply is disconnected before performing any installation, wiring, or maintenance on the unit.
• ระดับการกันน้ำ: The unit is designed with an IP67 protection class, indicating high resistance to dust and water ingress. However, ensure all covers are securely closed and seals are intact to maintain this protection. Do not submerge the unit.
• ระบบป้องกันการโอเวอร์โหลด: The integrated circuit breaker provides overload protection. Do not bypass or tamper with the circuit breaker. If the breaker trips frequently, investigate the cause of the overload.
• การตรวจสอบความเสียหาย: Before each use, inspect the unit for any signs of damage, cracks, or loose components. Do not use a damaged unit.
• วัตถุประสงค์การใช้: This product is designed for outdoor electrical power distribution within its specified voltage and current ratings. Do not use it for purposes other than its intended use.

2. สินค้าหมดview

The Boartechs Wall Mounted Multi-Function Outdoor Socket is a durable and waterproof solution for outdoor power needs. This model features four E.U-type outlets and an integrated circuit breaker for enhanced safety.

คุณสมบัติหลัก:

• Constructed from quality materials for long-lasting durability in outdoor environments.
• Equipped with a waterproof cover for protection against elements.
• Features an integrated circuit breaker (2P 16A) for leakage protection and electrical safety.
• ON push button is self-locking, and the OFF push button is automatic reset for convenient operation.
• Suitable for various applications including mechanical equipment, textile machinery, industrial settings, and general outdoor electrical needs.

ส่วนประกอบ:

The unit consists of a robust housing, multiple E.U-type outlets, a main power switch (ON/OFF buttons), and a circuit breaker with a clear protective cover.

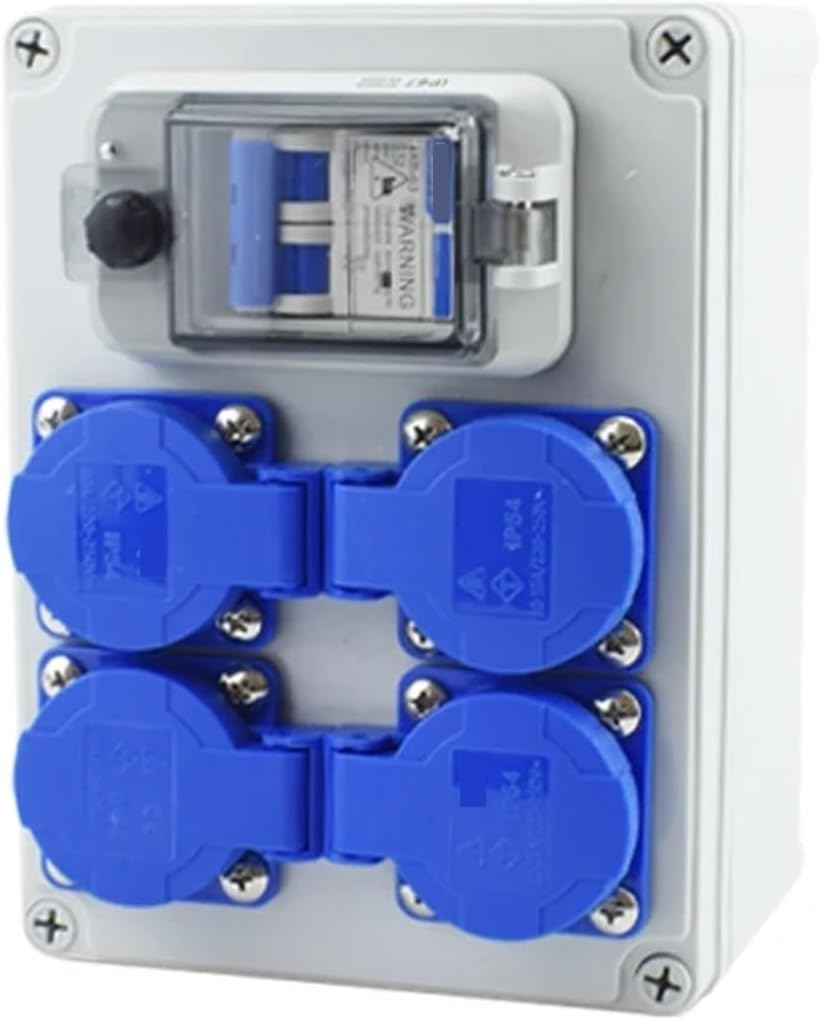

รูปที่ 2.1 : ด้านหน้า view of the Boartechs E.U-outlet 4-outlet-1-breaker outdoor socket, showing four blue outlets and the integrated circuit breaker.

รูปที่ 2.2: รายละเอียด view of an outdoor socket unit, highlighting the circuit breaker and waterproof outlet covers.

3. การตั้งค่าและการติดตั้ง

คำเตือน: Installation must be carried out by a qualified electrician. Ensure all power is disconnected at the main circuit breaker before beginning installation.

1. เลือกสถานที่: Select a suitable outdoor location for mounting the socket box. Ensure the surface is flat and sturdy enough to support the unit. Consider accessibility for operation and maintenance.
2. ทำเครื่องหมายจุดยึด: Use the socket box as a template to mark the drilling points on the wall.
3. เจาะรู: Drill appropriate holes for mounting screws. Insert wall plugs if necessary.
4. การรักษาความปลอดภัยหน่วย: Mount the socket box securely to the wall using appropriate screws. Ensure the unit is level and firmly attached.
5. การเดินสายไฟ:
   • Open the unit's cover carefully.
   • Connect the incoming power supply cables (Live, Neutral, Earth) to the designated terminals inside the unit. Follow the wiring diagram provided by your electrician or local electrical codes.
   • ตรวจสอบให้แน่ใจว่าการเชื่อมต่อทั้งหมดแน่นหนาและปลอดภัย
   • Verify that the cable glands are properly sealed to maintain the IP67 rating.
6. ปิดและผนึก: Carefully close the unit's cover, ensuring all seals are correctly seated and the cover is latched or screwed shut to maintain its waterproof integrity.
7. ทดสอบ: Once installation is complete and verified by a qualified electrician, restore power at the main circuit breaker and test the unit's functionality.

รูปที่ 3.1: อดีตample of various Boartechs outdoor socket configurations, illustrating potential mounting options.

4. คู่มือการใช้งาน

This section describes the basic operation of your outdoor socket unit.

การเปิด/ปิดเครื่อง:

• To turn the power ON, press the green "ON" push button. This button is self-locking, meaning it will remain depressed until the "OFF" button is pressed.
• To turn the power OFF, press the red "OFF" push button. This button is automatic reset, meaning it will return to its original position after being pressed.

Using the Outlets:

• Ensure the unit is powered ON.
• Lift the protective cover of the desired E.U-type outlet.
• Insert the plug of your electrical appliance firmly into the outlet.
• After use, remove the plug and securely close the protective cover to maintain the unit's waterproof rating.

Circuit Breaker Operation:

The integrated circuit breaker protects against overloads and short circuits. If the breaker trips, power to the outlets will be cut off.

• If the circuit breaker trips (the switch lever will be in the "OFF" or middle position), first disconnect all appliances from the outlets.
• Investigate the cause of the trip (e.g., faulty appliance, overloaded circuit).
• Once the issue is resolved, reset the circuit breaker by pushing its lever fully to the "ON" position.
• If the breaker trips immediately after resetting, do not attempt to reset it again. Consult a qualified electrician.

5. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your outdoor socket.

• การทำความสะอาด: ทำความสะอาดภายนอกเครื่องเป็นระยะด้วยโฆษณาamp cloth. Do not use abrasive cleaners or solvents. Ensure the unit is powered OFF before cleaning.
• การตรวจสอบ: Regularly inspect the unit for any signs of physical damage, such as cracks in the housing, damaged outlet covers, or frayed cables. Check that all mounting screws are tight.
• ซีล: Ensure all waterproof seals around the cover and cable entries are intact and free from debris. Damaged seals can compromise the IP67 rating.
• การตรวจสอบอย่างมืออาชีพ: It is recommended to have a qualified electrician inspect the unit and its wiring periodically, especially after severe weather conditions.

6 การแก้ไขปัญหา

หัวข้อนี้จะกล่าวถึงปัญหาทั่วไปที่คุณอาจพบเจอ

If you encounter problems not listed here or if solutions do not resolve the issue, contact a qualified electrician or the product manufacturer for assistance.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Specific warranty terms may vary by region and seller.

If you require technical support or have questions regarding your Boartechs outdoor socket, please contact the manufacturer or your point of purchase.

ผู้ผลิต: Boartechs

ASIN: B0DG219P8M
