VITCOCO Portable Travel Bidet User Manual

1. บทนำ

Thank you for choosing the VITCOCO Portable Travel Bidet. This device is designed to provide convenient and hygienic personal cleaning on the go. Its compact, rechargeable, and waterproof design makes it ideal for travel, postpartum care, and daily hygiene needs. Please read this manual thoroughly before use to ensure proper operation and maintenance.

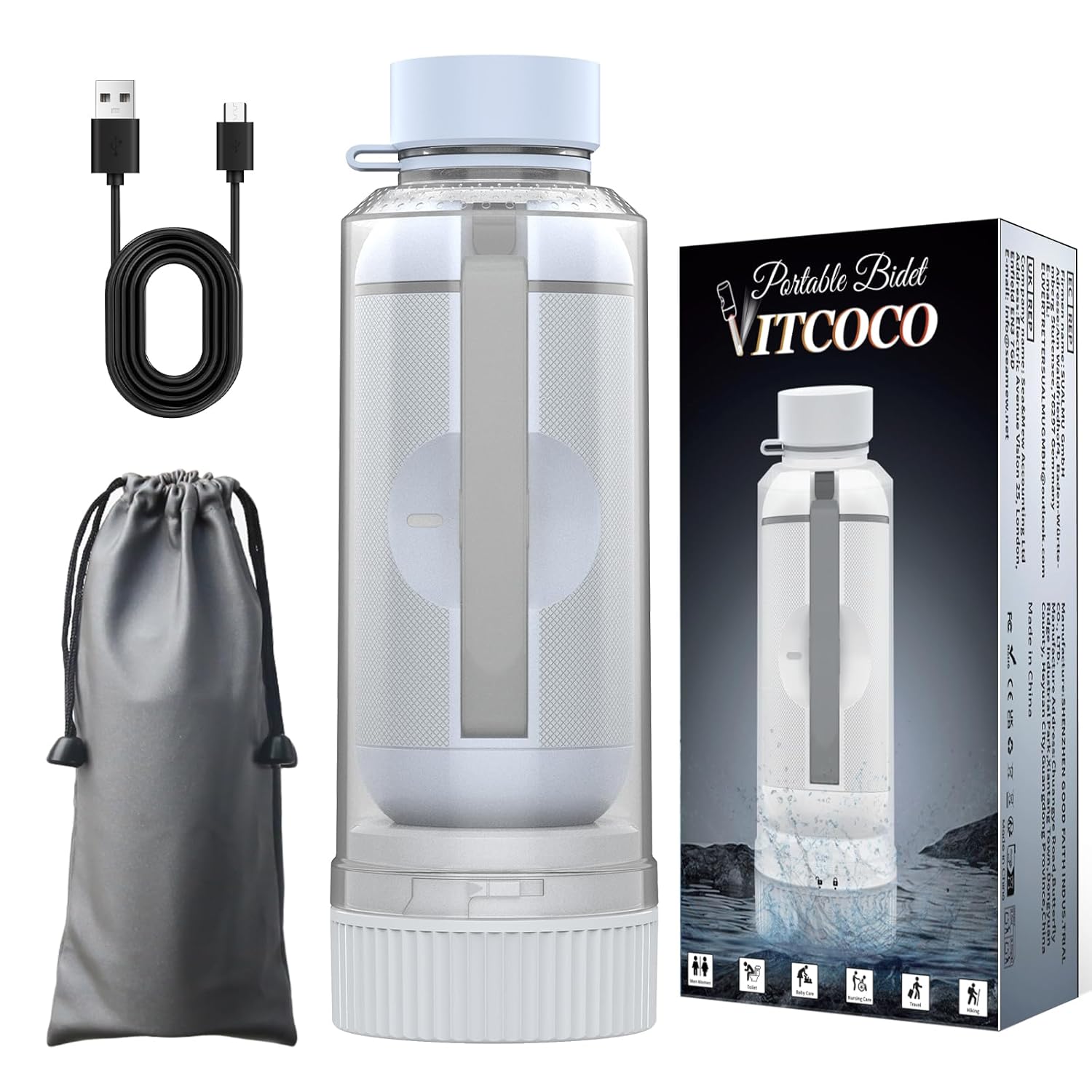

Image: The VITCOCO Portable Travel Bidet, shown with its retail packaging, USB charging cable, and a grey carrying pouch. The bidet itself is white and transparent, demonstrating its compact design.

2. ข้อมูลด้านความปลอดภัย

• Do not immerse the charging port in water. Ensure the rubber stopper is tightly sealed before cleaning the device.
• Before storing the main device inside the water bottle, ensure the bottle is completely dry to prevent damage from residual water.
• Use only clean water for operation. For cleaning, warm water between 40-60 degrees Celsius (104-140 degrees Fahrenheit) can be used.
• เก็บให้พ้นจากมือเด็ก
• อย่าพยายามถอดประกอบหรือซ่อมแซมอุปกรณ์ด้วยตนเอง หากมีปัญหาเกิดขึ้น โปรดติดต่อฝ่ายสนับสนุนลูกค้า

3. ส่วนประกอบผลิตภัณฑ์

The VITCOCO Portable Travel Bidet consists of the following main components:

• Main Bidet Unit (with retractable nozzle and control buttons)
• 200ML Water Bottle/Reservoir
• สายชาร์จ USB (Type-C)
• กระเป๋าใส่อุปกรณ์

ภาพ: รายละเอียด view of the VITCOCO Portable Travel Bidet, showcasing the main unit, the transparent water bottle, the USB charging cable, and the soft carrying pouch. This illustrates all items included in the package.

4. การตั้งค่า

4.1 การชาร์จเริ่มต้น

1. Locate the USB charging port on the main bidet unit.
2. Connect the provided USB charging cable to the bidet unit and to a compatible USB power source (e.g., mobile phone charger, power bank, car USB charger, laptop USB port).
3. Charge the device for approximately 1.5 hours for a full charge. A full charge provides up to 60 uses.

Image: An illustration showing the USB charging cable and various compatible charging sources, including a mobile phone charger, a USB power bank, a car USB charger, and a laptop USB charging port. This highlights the versatility of charging options.

4.2 Assembling the Bidet

1. Ensure the main bidet unit is fully charged.
2. Fill the 200ML water bottle with clean water.
3. Attach the main bidet unit securely to the top of the filled water bottle by screwing it on.

5. คู่มือการใช้งาน

5.1 Using the Bidet

1. Once assembled and filled with water, extend the nozzle by rotating it up to 180 degrees.
2. Position the bidet as needed for personal cleaning.
3. Press the power button (switch) once for the first gear (gentle spray).
4. Press the power button a second time for the second gear (stronger spray).
5. Press the power button a third time to turn off the device.
6. After use, retract the nozzle and empty any remaining water from the bottle.

Image: The bidet unit demonstrating its 180-degree adjustable nozzle. Insets show the two different spray strengths (weak and strong) available by pressing the switch.

5.2 การสมัคร

The VITCOCO Portable Travel Bidet is suitable for various personal hygiene needs:

• General personal hygiene, especially when traveling or outdoors.
• Postpartum care for new mothers.
• Hemorrhoid cleaning.
• Wound cleaning (use with caution and consult medical advice if necessary).
• Baby care.
• Elderly care.

Image: A visual representation of the bidet's various applications, including pregnancy care, postpartum care, daily care, and use during travel, emphasizing its versatility for personal hygiene.

6. การบำรุงรักษา

6.1 การทำความสะอาดเครื่อง

• The entire body of the bidet is IPX7 waterproof and can be washed.
• Before washing, ensure the rubber stopper for the charging port is tightly sealed to prevent water ingress.
• For thorough cleaning, the device can be placed in warm water (40-60 degrees Celsius / 104-140 degrees Fahrenheit).
• Do not use harsh chemicals or abrasive cleaners. Use mild soap and water if necessary.
• Rinse thoroughly and allow to air dry completely before storage.

Image: The VITCOCO Portable Travel Bidet partially submerged in water, illustrating its IPX7 waterproof rating, which allows for easy cleaning.

6.2 พื้นที่จัดเก็บ

• Before storing the main device inside the water bottle, ensure the bottle is completely dry to avoid damage to the device caused by residual water.
• Store the bidet in its carrying pouch in a cool, dry place away from direct sunlight.
• The compact design allows for space-saving storage in backpacks or suitcases.

Image: The portable bidet shown with its dimensions (16cm/6.in height, 5.3cm/2.0in diameter) and examples of how it can be stored compactly in a backpack or carried with a stroller, highlighting its space-saving design.

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะ

• หมายเลขรุ่น: JP-500ML
• ยี่ห้อ: วิทโคโค่
• ขนาด (กxยxส) : 6.7 x 6.2 x 16.8 เซนติเมตร
• น้ำหนักสินค้า: 320 กรัม
• ความจุขวดน้ำ: 200มล.
• เวลาในการชาร์จ: ประมาณ 1.5 ชั่วโมง
• Usage per Charge: สูงสุดถึง 60 เท่า
• ระดับการกันน้ำ: IPX7

9. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the product packaging or contact VITCOCO customer service directly. Contact details are typically provided on the official VITCOCO webไซต์หรือผ่านจุดซื้อของคุณ
