การแนะนำ
This manual provides detailed instructions for the setup, operation, and maintenance of your RAINPOINT Wireless Plastic Rain Gauge. Designed for accurate outdoor rainfall monitoring, this device integrates with the HomGar app to provide real-time and historical precipitation data. Please read this manual thoroughly before use to ensure optimal performance and longevity of your rain gauge.

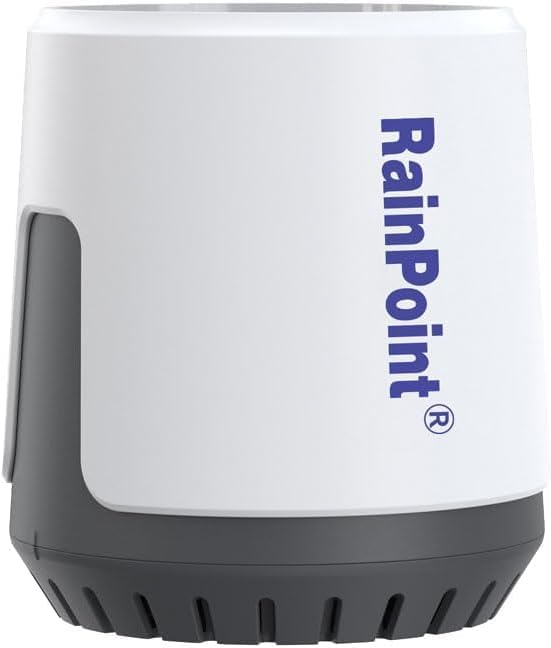

Image: The RAINPOINT Wireless Plastic Rain Gauge, a compact white and grey device.
คุณสมบัติผลิตภัณฑ์
- Accurate Wireless Rain Monitoring: Delivers precise rainfall measurements with real-time updates via the HomGar app.
- Self-Emptying Design: Prevents overflow and ensures hassle-free use.
- ระบบที่ขยายได้: Integrates seamlessly with the RAINPOINT Wi-Fi gateway hub (sold separately) for multi-zone tracking.
- Long-Range Wireless Coverage: Transmits data up to 100 meters for continuous monitoring.
- ทนทานต่อสภาพอากาศ: Built to withstand various weather conditions, including freeze-proof design.
- Real-Time & Historical Data: Provides current and past rainfall data for trend analysis and optimized garden care.
Image: Visual representation of key features: Waterproof, Accurate Measuring, APP Control, Easier Installation.
มีอะไรอยู่ในกล่อง
The RAINPOINT Wireless Plastic Rain Gauge package typically includes:
- RAINPOINT Wireless Rain Gauge (Model: WG012RF2)
- คู่มือการใช้งาน (เอกสารนี้)
- Note: A RAINPOINT Wi-Fi gateway hub is required for app functionality and is sold separately. Batteries (3*AA) are also not included.
คำแนะนำการตั้งค่า
- Prepare the Rain Gauge:
- Open the battery cover located at the bottom of the rain gauge.
- ใส่แบตเตอรี่ AA 3 ก้อน (ไม่รวม) ลงในช่องใส่แบตเตอรี่เพื่อให้แน่ใจว่ามีขั้วที่ถูกต้อง
- ปิดฝาครอบแบตเตอรี่อย่างแน่นหนา
- สำคัญ: Before first use, locate and carefully tear off the clear sticker or tape that secures the balancing instrument (tipping bucket mechanism) inside the rain gauge. This sticker is for shipping protection and must be removed for accurate operation.
- Prepare the RAINPOINT Wi-Fi Gateway Hub (Sold Separately):
- Ensure your RAINPOINT Wi-Fi gateway hub is powered on and connected to your home Wi-Fi network (2.4GHz band only).
- Download and install the HomGar app on your smartphone or tablet.
- ลงทะเบียนหรือเข้าสู่ระบบบัญชี HomGar ของคุณ
- Pairing the Rain Gauge with the App:
- Open the HomGar app.
- On the app's home page, select the "+" symbol to add a new device. Alternatively, navigate to the hub's home page and use the "Sub-devices" option to add devices.
- Find and select the "Rain Sensor" icon (or the specific icon for HCS012 Rain Sensor) from the list of available devices.
- Follow the on-screen prompts to initiate the pairing process. Keep the rain gauge close to the hub during pairing.
- The app will search for the device. Once discovered, it will confirm successful addition.
- Placement of the Rain Gauge:
- Choose an outdoor location that is open and unobstructed by trees, buildings, or other objects that could block rainfall or cause splash-back.
- Ensure the rain gauge is placed on a flat, horizontal surface to ensure accurate readings. Inclined placement will lead to inaccurate data.
- The device is weather-resistant and freeze-proof, suitable for year-round outdoor use.
Video: Official setup guide for the RAINPOINT High Precision Rain Gauge (Model HCS012), demonstrating battery installation and app pairing steps.
Image: Proper horizontal placement of the rain gauge for accurate readings (left) versus incorrect inclined placement (right).
คำแนะนำการใช้งาน
Once successfully set up and paired, your RAINPOINT Wireless Rain Gauge will automatically begin monitoring rainfall. Data is transmitted to your HomGar app via the Wi-Fi gateway hub.
- การตรวจสอบแบบเรียลไทม์: View current rainfall data directly on the HomGar app. The device updates data every 3 minutes.
- ข้อมูลทางประวัติศาสตร์: Access past rainfall records (24 hours, 7 days, 30 days, 12 months) within the app to track trends and patterns.
- การแจ้งเตือนแอป: Configure notifications within the HomGar app to receive alerts for specific rainfall events or thresholds.
- Self-Emptying Mechanism: The rain gauge features a tipping bucket mechanism that automatically empties collected water, ensuring continuous operation without manual intervention.
Image: Screenshots of the HomGar app displaying real-time and historical rainfall data, and a comparison of app and hub views.
การซ่อมบำรุง
Regular maintenance ensures the accuracy and longevity of your rain gauge.
- การทำความสะอาด: Periodically clean the rain gauge, especially the collection funnel and the tipping bucket mechanism, to remove dirt, leaves, insects, or debris that could obstruct water flow or affect accuracy. Use a soft cloth and mild soapy water. Rinse thoroughly with clean water.
- การเปลี่ยนแบตเตอรี่: When the battery level is low (indicated in the app), replace the 3 AA batteries promptly to ensure continuous operation.
- ตรวจสอบตำแหน่ง: Occasionally verify that the rain gauge remains level and free from obstructions.
- การดูแลในฤดูหนาว: The device is freeze-proof, but ensuring it is clear of heavy snow or ice buildup can prevent physical damage.
การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| No data or inaccurate readings in app. |
|
|
| Device not pairing with app. |
|
|
| แอปแสดงสถานะ "ออฟไลน์" |
|
|
ข้อมูลจำเพาะ
- แบบอย่าง: WG012RF2
- ขนาดสินค้า : 4 x 4 x 5 นิ้ว (ประมาณ 10.16 x 10.16 x 12.7 ซม.)
- น้ำหนักสินค้า: 8 ออนซ์ (ประมาณ 226.8 กรัม)
- ปริมาณน้ำฝน: 0-9999มม.
- ความแม่นยำ: ±0.1มม.
- การรายงานข้อมูล: ทุก ๆ 3 นาที
- ระยะสัญญาณไร้สาย: สูงถึง 100 เมตร (328 ฟุต)
- แหล่งพลังงาน: 3 * แบตเตอรี่ AA (ไม่รวม)
- ผู้ผลิต: เรนพอยท์
- ประเทศต้นกำเนิด: จีน
Image: Visual summary of rain gauge specifications and detailed dimensions.
ข้อมูลด้านความปลอดภัย
- Do not attempt to disassemble or modify the device. This will void the warranty and could cause damage.
- Keep batteries out of reach of children. Dispose of used batteries responsibly according to local regulations.
- Ensure the device is placed securely to prevent it from falling or being knocked over, which could cause injury or damage.
- While the device is weather-resistant, avoid submerging it in water.
การรับประกันและการสนับสนุน
RAINPOINT products are designed for reliability and performance. For warranty information, technical support, or assistance with your device, please refer to the contact information provided on the product packaging or visit the official RAINPOINT website. Please have your model number (WG012RF2) and purchase details ready when contacting support.
