XIBANY I-Walk KS1 Series Electric Scooter Left Brake Lever Instruction Manual

1. บทนำ

This manual provides detailed instructions for the installation, operation, and maintenance of the XIBANY Left Brake Lever for I-Walk KS1 Series Electric Scooters. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. ข้อมูลด้านความปลอดภัย

• Always ensure the scooter is powered off before performing any installation or maintenance.
• สวมอุปกรณ์ป้องกันความปลอดภัยที่เหมาะสม เช่น ถุงมือและอุปกรณ์ป้องกันดวงตาในระหว่างการติดตั้ง
• หากคุณไม่แน่ใจเกี่ยวกับขั้นตอนใด ๆ โปรดปรึกษาช่างเทคนิคที่มีคุณสมบัติ
• Regularly inspect the brake lever and cable for wear and damage. Replace immediately if any issues are found.
• Ensure all connections are secure after installation.

3. สินค้าหมดview

The XIBANY Left Brake Lever is a replacement component designed for the I-Walk KS1 Series Electric Scooter. It provides reliable braking control for the left side of the handlebar.

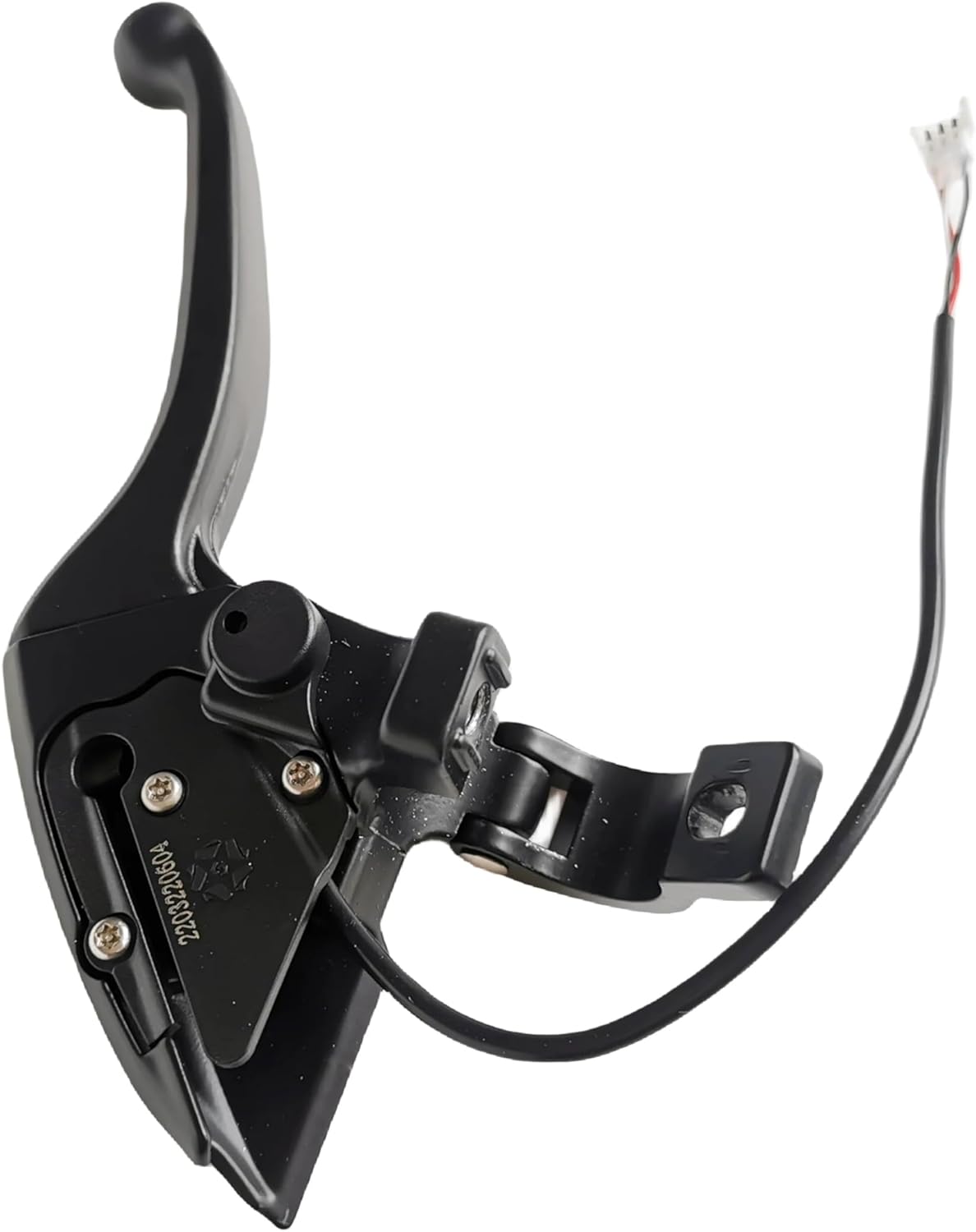

รูปที่ 1: โดยรวม view of the XIBANY Left Brake Lever. This image shows the complete brake lever assembly, including the handle, mounting clamp, and electrical wiring with its connector.

ส่วนประกอบ:

• มือเบรค: The primary control for engaging the brake.
• การติดตั้งClamp: Secures the lever to the scooter's handlebar.
• ขั้วต่อไฟฟ้า: For integrating with the scooter's electronic braking system.
• Brake Cable Attachment Point: (If mechanical brake) Point for connecting the brake cable.

4. คำแนะนำในการติดตั้ง

Follow these steps to properly install the left brake lever on your I-Walk KS1 Series Electric Scooter.

1. เตรียมสกูตเตอร์ให้พร้อม: Ensure the scooter is turned off and the battery is disconnected for safety. If replacing an existing lever, carefully remove the old lever by loosening its mounting screws and disconnecting any electrical or mechanical connections.
2. Position the New Lever: Place the new XIBANY Left Brake Lever onto the left side of the handlebar. Ensure it is positioned comfortably for operation and does not interfere with other controls.
3. ยึดอุปกรณ์ยึดให้แน่นamp: Tighten the screws on the mounting clamp to firmly secure the brake lever to the handlebar. Do not overtighten, as this can damage the handlebar or the clamp.


รูปที่ 2: ด้านข้าง view of the brake lever, highlighting the mounting clamp and screw points. This image illustrates how the lever attaches to the handlebar.

4. การเชื่อมต่อสายไฟ: Locate the corresponding electrical connector on your scooter's wiring harness. Carefully align and connect the brake lever's electrical plug. Ensure a snug and secure connection.

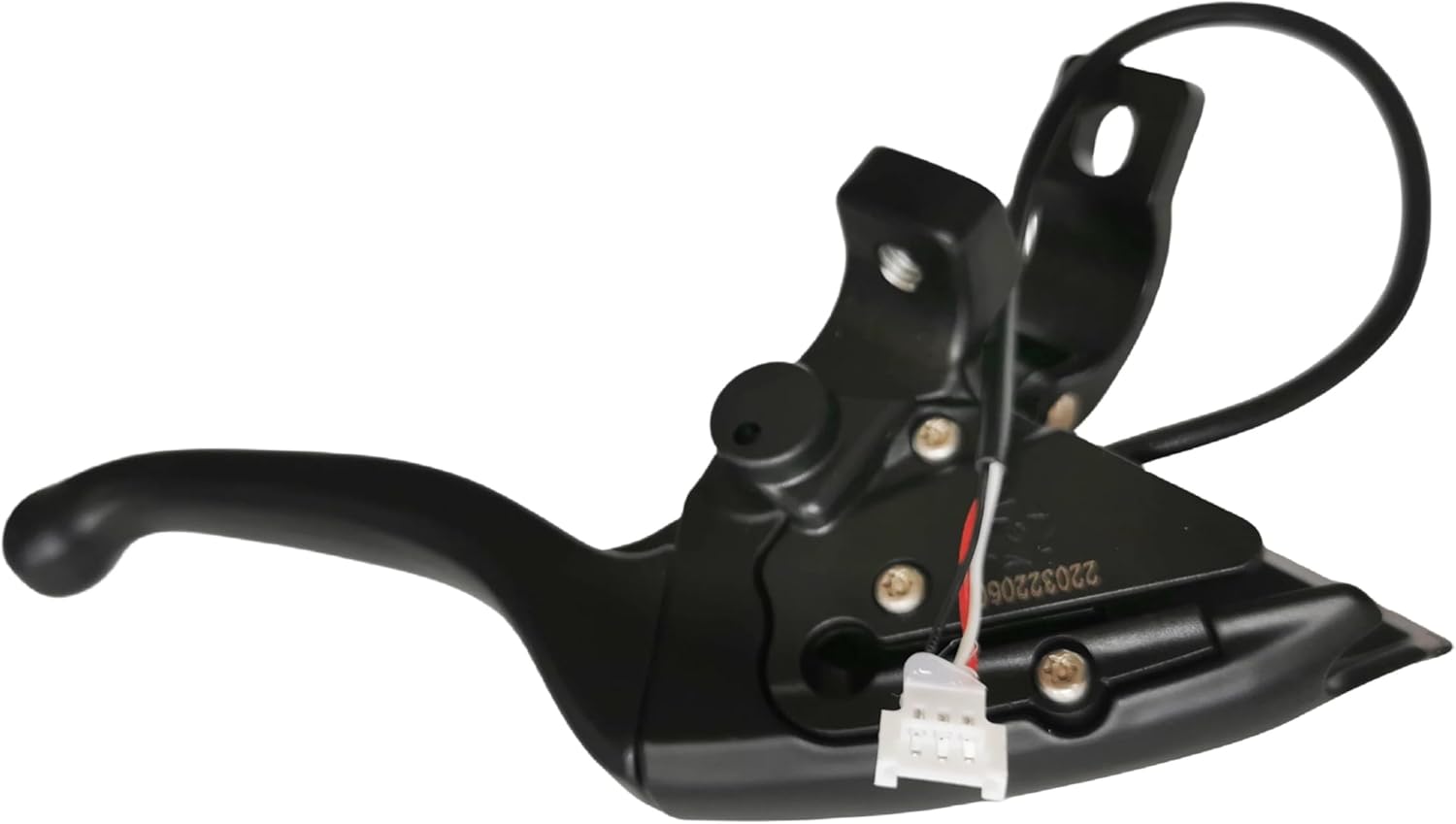

รูปที่ 3: ภาพระยะใกล้ view of the electrical connector on the brake lever. This image details the wiring and plug for electronic integration.

5. ทดสอบฟังก์ชันการทำงาน: Reconnect the scooter's battery and power it on. Squeeze the brake lever to ensure the electronic brake engages correctly. Verify that the brake light (if applicable) illuminates. Adjust the lever position if necessary for optimal comfort and response.

5. คู่มือการใช้งาน

To operate the left brake lever:

• Grip the handlebar firmly with your left hand.
• Gently squeeze the left brake lever towards the handlebar to engage the front brake (or the designated brake system it controls).
• Apply pressure gradually to control braking force. Avoid sudden, hard braking, especially at high speeds, to prevent loss of control.
• Release the lever to disengage the brake.

รูปที่ 4: มุม view of the brake lever, showing its ergonomic design for user interaction. This image provides a perspective of the lever's shape and how it would be gripped.

6. การบำรุงรักษา

Regular maintenance ensures the longevity and optimal performance of your brake lever.

• การทำความสะอาด: Wipe the brake lever with a damp cloth to remove dirt and grime. Avoid using harsh chemicals that may damage the material.
• การตรวจสอบ: Periodically check the lever for any signs of damage, cracks, or excessive wear. Ensure the mounting screws are tight.
• Cable Check (if applicable): If your scooter uses a mechanical brake cable, inspect the cable for fraying or corrosion. Ensure it moves freely within its housing.
• การเชื่อมต่อไฟฟ้า: Verify that the electrical connector remains securely attached and free from corrosion.

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the original purchase documentation or contact XIBANY customer service. Keep your purchase receipt for warranty claims.
