Tonton 3-in-1 USB Charger Kit Instruction Manual

1. บทนำ

This manual provides comprehensive instructions for the Tonton 3-in-1 USB Charger Kit. This versatile charging solution is designed to power various dog training and bark collars, including models from Jugbow, Delupet, Yawpet, NVK, UKE, and JSCLYAN. Please read this manual thoroughly to ensure proper and safe use of your charger kit.

2. สินค้าหมดview และสิ่งที่รวมอยู่ด้วย

The Tonton 3-in-1 USB Charger Kit includes a power adapter and a multi-connector charging cable, offering compatibility with a wide range of devices. The cable features three distinct charging plugs: USB Type-C, Micro USB, and a magnetic connector.

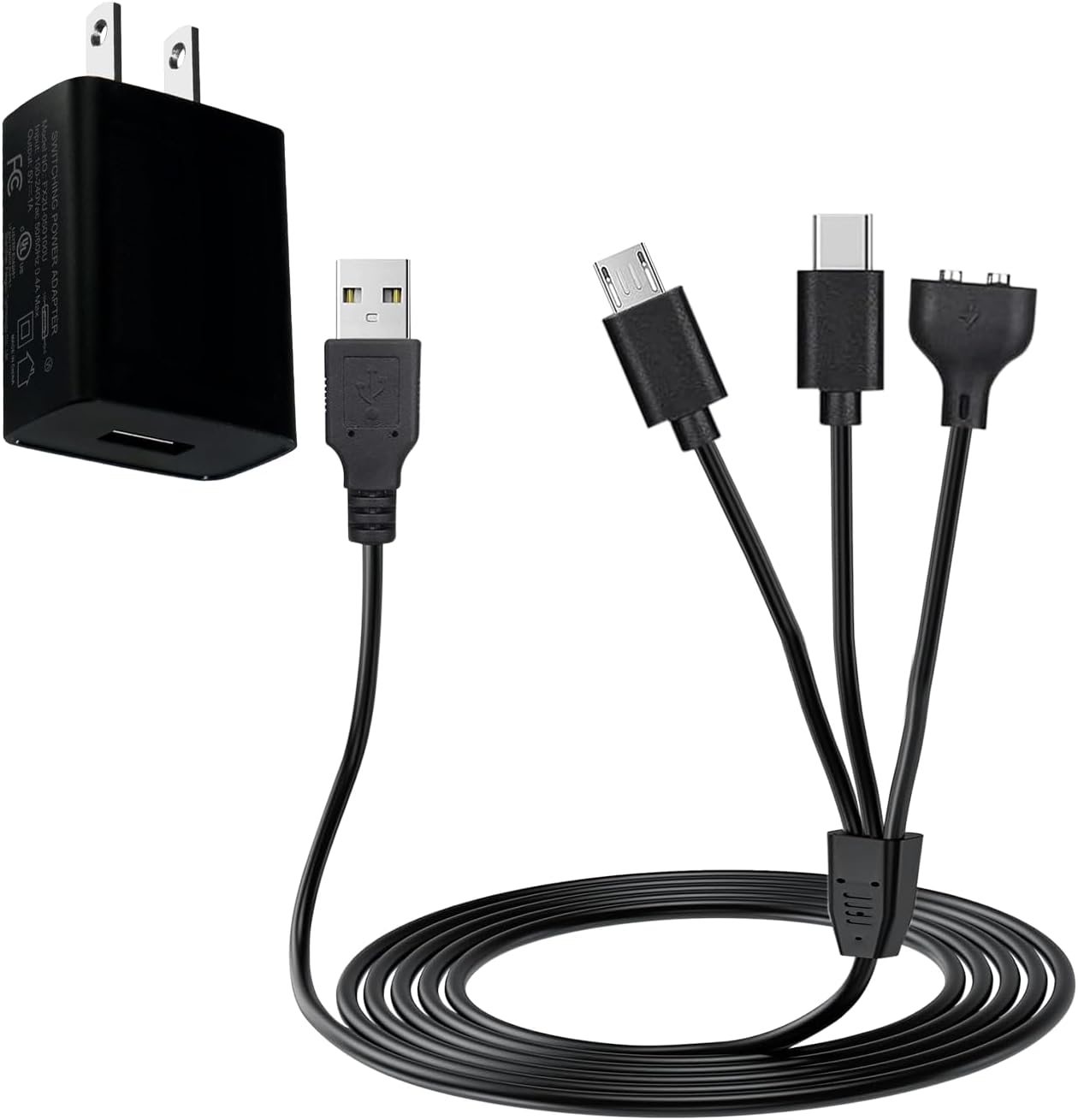

This image displays the complete Tonton 3-in-1 USB Charger Kit, including the black wall adapter and the black Y-splitter charging cable featuring USB-C, Micro USB, and magnetic connectors.

เนื้อหาแพ็คเกจ:

• 1 x 3-in-1 USB Charging Cable (USB Type-C, Micro USB, Magnetic)
• อะแดปเตอร์ไฟ 1V 5A 1 ตัว

3. ข้อมูลจำเพาะ

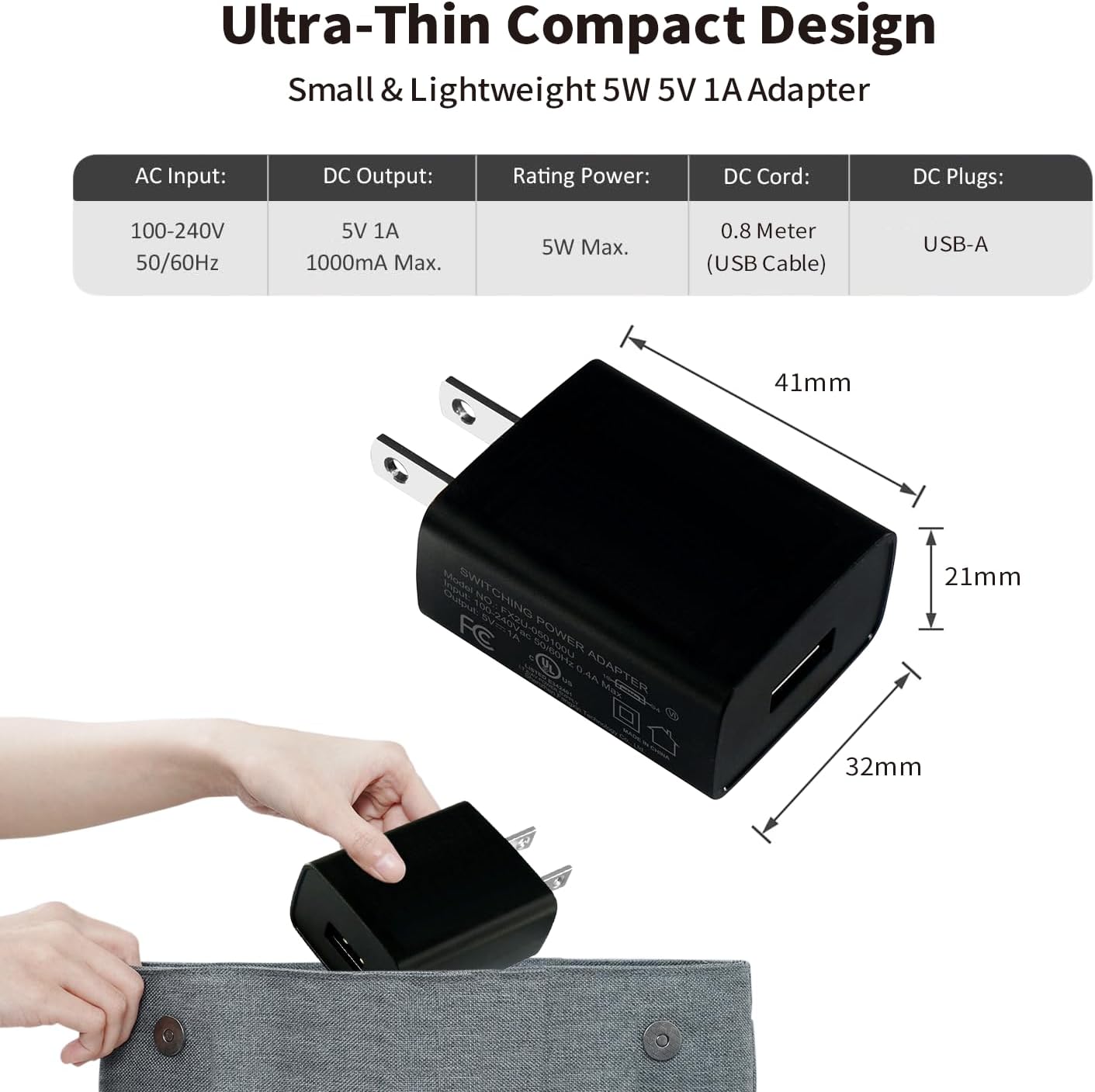

ภาพนี้ให้รายละเอียด view of the compact 5V 1A USB wall adapter, showcasing its small and lightweight design with precise dimensions for portability.

4. Setup & Charging Instructions

The Tonton 3-in-1 USB Charger Kit offers flexible charging options for your dog training and bark collars. You can charge your devices simultaneously using the multi-connector cable.

ขั้นตอนการชาร์จ:

1. เชื่อมต่ออะแดปเตอร์ไฟฟ้า: Plug the provided 5V 1A power adapter into a standard AC wall socket. Alternatively, you can connect the USB-A end of the charging cable to any compatible USB 2.0 port, such as a power bank, car charger, laptop, or PC.
2. Identify the Correct Connector: The Y-splitter cable includes USB Type-C, Micro USB, and magnetic charging connectors. Select the appropriate connector for your specific dog collar or remote control.
3. Connect to Device(s):
   • For devices with a Micro USB port (e.g., some remote controls), use the Micro USB plug.
   • For devices with a USB Type-C port (e.g., newer remote controls), use the USB Type-C plug.
   • For devices with magnetic charging contacts (e.g., many dog collars), align the magnetic connector with the charging pins on your device until it snaps into place.
4. ตรวจสอบการชาร์จ: Once connected, your device(s) should indicate that they are charging (e.g., a red light indicator, battery icon on screen). The Y-splitter cable supports charging multiple compatible devices simultaneously.

This image illustrates the versatility of the 3-in-1 cable, showing it connected to a laptop's USB port, simultaneously charging a dog training remote via USB-C and a dog collar via its magnetic connector.

A visual guide highlighting the cable's length and the three distinct charging connectors: USB Type-C, Micro USB, and a magnetic charging head, designed for various compatible dog collars.

An illustration demonstrating the ease of charging, with the multi-connector cable connected to a wall adapter, simultaneously powering a dog training remote and its corresponding collar.

วิดีโอผลิตภัณฑ์อย่างเป็นทางการ:

5. ความเข้ากันได้

The Tonton 3-in-1 USB Charger Kit is designed for broad compatibility with various dog training and bark collars. Please refer to the list below for confirmed compatible models:

อุปกรณ์ที่รองรับ:

• NVK Dog Training Collars: TC-16, TC-20
• UKE Dog Training and Bark Collars: TC-20A, Shock Collar/Remote (2-in-1 Magnetic Charging Cable)
• JSCLYAN Dog Training Collars
• Delupet Dog Training Collars: DT-66, DT-67, DT-68
• Yawpet Dog Shock and Bark Collars: DT-61, DT-72, DT-73
• Jugbow Dog Shock Collars: DT-61, DT-61DBU, DT-61NBU, DT-612

This graphic displays a range of compatible dog training and bark collar models, including DT-67, DT-73, DT-72, DT-66, and DT-68, illustrating the wide application of the charger kit.

6. คุณสมบัติด้านความปลอดภัย

The Tonton 3-in-1 USB Charger Kit is built with multiple safety protections to ensure reliable and secure charging for your devices. It has been tested and verified to meet industry safety standards.

ระบบป้องกันแบบบูรณาการ:

• โอเวอร์โวลtagการป้องกันอี: มาตรการป้องกันปริมาณที่มากเกินไปtagอีอินพุต
• การป้องกันกระแสเกิน: ป้องกันความเสียหายจากกระแสไฟเกิน
• การป้องกันไฟฟ้าลัดวงจร: ตัดไฟอัตโนมัติเมื่อเกิดไฟฟ้าลัดวงจร
• การป้องกันการชาร์จไฟเกิน: Protects batteries from being overcharged.
• การป้องกันอุณหภูมิเกิน: ตรวจสอบและควบคุมอุณหภูมิเพื่อป้องกันความร้อนสูงเกินไป
• ระบบป้องกันการโอเวอร์โหลด: Ensures the charger operates within safe load limits.

An infographic detailing the safety features and certifications of the charger kit, such as UL, FCC, and RoHS, along with multiple protection mechanisms for secure charging.

7. การบำรุงรักษา

To ensure the longevity and optimal performance of your Tonton 3-in-1 USB Charger Kit, follow these simple maintenance guidelines:

• รักษาความสะอาด: Regularly wipe the cable and adapter with a dry, soft cloth to remove dust and debris. Avoid using harsh chemicals or abrasive materials.
• จัดเก็บอย่างถูกต้อง: When not in use, store the charger kit in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling the cable to prevent damage.
• จัดการด้วยความระมัดระวัง: Do not pull the cable by the cord when unplugging. Always grasp the plug head firmly. Avoid bending the cable excessively, especially near the connectors.
• ตรวจสอบเป็นประจำ: Periodically check the cable and adapter for any signs of wear, fraying, or damage. Discontinue use if any damage is observed and contact customer support for assistance.

8 การแก้ไขปัญหา

If you encounter any issues with your Tonton 3-in-1 USB Charger Kit, please refer to the following troubleshooting tips:

• อุปกรณ์ไม่ชาร์จ:
  • Ensure the power adapter is securely plugged into a working wall outlet or the USB-A end is firmly connected to a powered USB port.
  • Verify that the correct connector (USB Type-C, Micro USB, or Magnetic) is properly attached to your device. For magnetic connectors, ensure proper alignment with the charging pins.
  • Try using a different power source (e.g., another wall outlet, a different USB port) to rule out issues with the power supply.
  • Check the charging cable for any visible damage. If damaged, discontinue use.
• การชาร์จช้า:
  • Ensure your power source provides sufficient output (e.g., a 5V 1A wall adapter is recommended). Lower power USB ports (like some older computer ports) may charge slower.
  • Avoid charging too many devices simultaneously if the power source is limited.
• Magnetic Connector Not Attaching Firmly:
  • Ensure there is no debris or obstruction on the magnetic contacts of either the cable or your device.
  • Verify that the device is compatible with the magnetic connector.

If these steps do not resolve the issue, please contact Tonton customer support for further assistance.

9. การรับประกันและการสนับสนุน

Tonton is committed to providing high-quality products and excellent customer service. Your Tonton 3-in-1 USB Charger Kit comes with a standard warranty. For specific warranty details, please refer to the product packaging or contact our support team.

Should you require any assistance, have questions, or need to report an issue, our customer support team is ready to help. Please feel free to contact us at any time.

Scan this QR code for quick access to Tonton customer support.
