คำแนะนำด้านความปลอดภัยที่สำคัญ
Please read all instructions carefully before using your washing machine to ensure safe and efficient operation. Keep this manual for future reference.
- ควรดึงปลั๊กเครื่องใช้ไฟฟ้าออกจากแหล่งจ่ายไฟทุกครั้งก่อนทำความสะอาดหรือบำรุงรักษา
- Do not operate the washing machine if it has a damaged power cord or plug, or if it is not working properly.
- เครื่องใช้ไฟฟ้าตัวนี้ไม่ได้มีวัตถุประสงค์เพื่อให้บุคคล (รวมทั้งเด็ก) ที่มีความบกพร่องทางร่างกาย ทางประสาทสัมผัส หรือทางจิตใจ หรือขาดประสบการณ์และความรู้ ใช้งาน เว้นแต่จะมีการดูแลหรือคำแนะนำเกี่ยวกับการใช้เครื่องใช้ไฟฟ้าโดยบุคคลที่รับผิดชอบด้านความปลอดภัยของบุคคลดังกล่าว
- ควรมีผู้ดูแลเด็กเพื่อให้แน่ใจว่าไม่ได้เล่นกับเครื่องใช้ไฟฟ้าดังกล่าว
- ตรวจสอบให้แน่ใจว่าเครื่องซักผ้ามีการต่อสายดินอย่างถูกต้อง
- ห้ามซักสิ่งของที่เปื้อนน้ำมันเบนซิน น้ำยาซักแห้ง หรือสารไวไฟหรือวัตถุระเบิดอื่นๆ
- Do not reach into the washing machine while the tub is moving.
- ควรเว้นระยะห่างระหว่างบริเวณรอบเครื่องซักผ้ากับวัสดุที่ติดไฟได้ง่าย
สินค้าเกินview
The Hisense 18Kg Smart Top Loader Washing Machine WT5T1825DT is designed for efficient and convenient laundry care. Featuring an Inverter motor for quiet operation and energy efficiency, this model offers a large capacity suitable for family use. The smart controls and LED display provide an intuitive user experience.
รูปที่ 1: ด้านหน้า view of the Hisense 18Kg Smart Top Loader Washing Machine WT5T1825DT.
รูปที่ 2: ด้านข้าง view ของเครื่องซักผ้า แสดงให้เห็นถึงดีไซน์ที่กะทัดรัด
การติดตั้งและการตั้งค่า
1. การแกะกล่อง
- Carefully remove all packaging materials, including the base packaging and any protective films.
- Inspect the machine for any damage during transit. Contact your retailer immediately if damage is found.
2 การวาง
- Place the washing machine on a firm, level surface. Avoid placing it on carpets or soft flooring that could obstruct ventilation.
- ตรวจสอบให้แน่ใจว่ามีพื้นที่ว่างรอบเครื่องจักรเพียงพอสำหรับการระบายอากาศและการบำรุงรักษา
3. การปรับระดับ
- ปรับขาปรับระดับที่ด้านล่างของเครื่องจนกระทั่งเครื่องตั้งได้อย่างมั่นคงและได้ระดับ ใช้ระดับน้ำตรวจสอบความถูกต้อง
- เครื่องจักรที่ไม่ตั้งระดับอาจทำให้เกิดการสั่นสะเทือนและเสียงดังมากเกินไปขณะใช้งาน
4. การเชื่อมต่อแหล่งจ่ายน้ำ
- Connect the inlet hose to the cold water tap and the corresponding inlet valve on the back of the washing machine.
- ตรวจสอบให้แน่ใจว่าการเชื่อมต่อทั้งหมดแน่นหนาเพื่อป้องกันการรั่วไหล
5. การติดตั้งท่อระบายน้ำ
- Position the drain hose into a standpipe or laundry tub. Ensure the hose is securely fixed to prevent it from dislodging during drainage.
- ท่อระบายน้ำควรอยู่สูงจากพื้นประมาณ 60 ถึง 100 เซนติเมตร
6. การเชื่อมต่อไฟฟ้า
- เสียบสายไฟเข้ากับเต้ารับไฟฟ้าที่มีสายดิน
- ห้ามใช้สายไฟต่อพ่วงหรือตัวแปลงไฟ
คำแนะนำการใช้งาน
1. การโหลดผ้า
- เปิดฝาด้านบนของเครื่องซักผ้า
- Distribute laundry evenly around the agitator/impeller to prevent imbalance. Do not overload the machine beyond its 18Kg capacity.
- Close the lid securely before starting a wash cycle.
รูปที่ 3: ด้านบน view of the washing machine with the lid open, revealing the spacious drum.

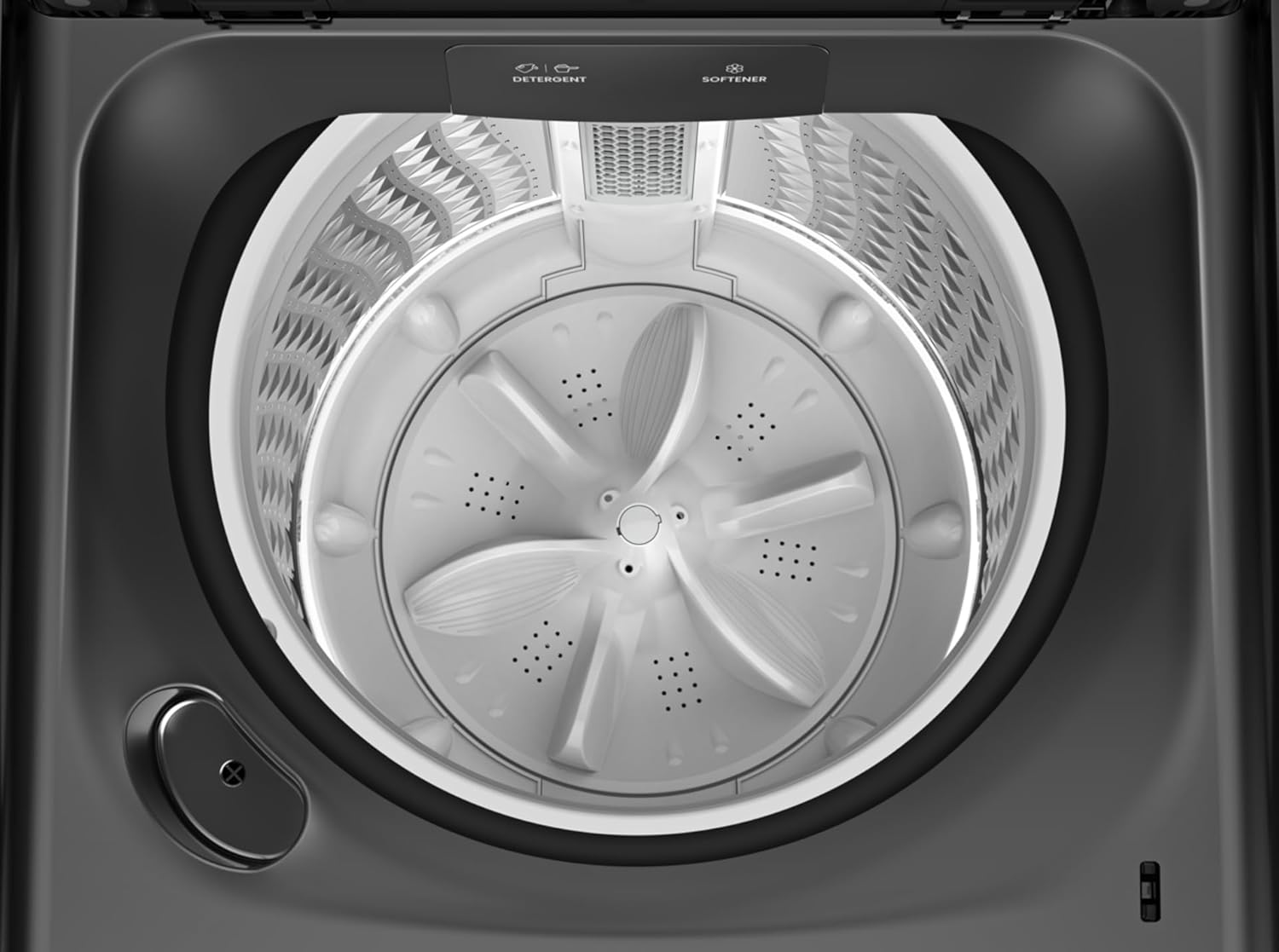

รูปที่ 4: ระยะใกล้ view of the washing machine's agitator/impeller inside the drum.
2. การเติมผงซักฟอกและน้ำยาปรับผ้านุ่ม
- Pull out the detergent dispenser drawer located on the top panel.
- Add the recommended amount of detergent to the compartment labeled "DETERGENT".
- Add fabric softener to the compartment labeled "SOFTENER". Do not exceed the maximum fill line.
- Gently push the dispenser drawer back into place.
Figure 5: Close-up of the detergent and softener dispenser area on the control panel.
Figure 6: The detergent and softener dispenser drawer pulled out for filling.
3. การเลือกรอบการซัก
- Turn the program selector knob on the control panel to choose the desired wash cycle (e.g., Normal, Cotton, Delicates, Quick, Super Clean, Jeans, Baby Care, etc.).
- The LED display will show the estimated time and other relevant settings for the selected cycle.
- Adjust additional settings such as Water Level, Wash, Rinse, Spin, and Air Dry using the touch controls if needed.
รูปที่ 7: ระยะใกล้ view of the control panel with program selector knob and LED display.
4. การเริ่มการซัก
- กดปุ่ม "เริ่ม/หยุดชั่วคราว" เพื่อเริ่มรอบการซัก
- หากต้องการหยุดรอบการทำงานชั่วคราว ให้กดปุ่ม "เริ่ม/หยุดชั่วคราว" อีกครั้ง กดอีกครั้งเพื่อดำเนินการต่อ
- The machine features a Childproof function. Refer to the control panel for activation instructions to prevent accidental operation.
การบำรุงรักษาและการดูแล
1. การทำความสะอาดถังซัก
- Regularly use the "Tub Clean" cycle to remove detergent residue and prevent odors.
- For manual cleaning, wipe the inside of the drum with a soft cloth and mild detergent, then rinse thoroughly.
2. การทำความสะอาดช่องใส่ผงซักฟอก
- ดึงลิ้นชักจ่ายออกมาทั้งหมด
- Rinse the compartments under running water to remove any residue. Use a small brush if necessary.
- Dry the drawer and reinsert it.
3. การทำความสะอาดภายนอก
- เช็ดพื้นผิวภายนอกด้วยผ้านุ่ม damp ผ้า.
- หลีกเลี่ยงการใช้น้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลายที่อาจทำให้พื้นผิวเสียหายได้
4. Water Inlet Filter Cleaning
- Periodically check and clean the filter at the water inlet valve to prevent blockages.
- Turn off the water supply and disconnect the inlet hose before cleaning.
การแก้ไขปัญหา
ก่อนที่จะติดต่อฝ่ายบริการ โปรดดูปัญหาทั่วไปต่อไปนี้และวิธีแก้ไข:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| เครื่องไม่เริ่มทำงาน | ไม่ได้เสียบสายไฟ; ปิดฝาไม่สนิท; ไฟดับtage. | ตรวจสอบให้แน่ใจว่าเสียบสายไฟแน่นสนิท ปิดฝาให้สนิท ตรวจสอบเบรกเกอร์ไฟฟ้าในบ้าน |
| ไม่เติมน้ำ | Water tap closed; Water inlet hose kinked; Water inlet filter blocked. | Open the water tap; Straighten the hose; Clean the water inlet filter. |
| การสั่นสะเทือน/เสียงรบกวนมากเกินไป | Machine not level; Laundry unevenly distributed; Transit bolts not removed (if applicable). | Adjust leveling feet; Redistribute laundry; Ensure all transit bolts are removed during installation. |
| การรั่วซึมของน้ำ | Hose connections loose; Drain hose improperly positioned. | Tighten all hose connections; Secure the drain hose at the correct height. |
| คราบผงซักฟอกตกค้างบนเสื้อผ้า | Too much detergent used; Dispenser blocked. | Use appropriate amount of detergent; Clean the detergent dispenser. |
หากปัญหายังคงมีอยู่หลังจากพยายามแก้ไขปัญหาเหล่านี้แล้ว โปรดติดต่อฝ่ายสนับสนุนลูกค้า
ข้อมูลจำเพาะ
| แบบอย่าง | WT5T1825DT |
| ยี่ห้อ | ไฮเซนส์ |
| พิมพ์ | เครื่องซักผ้าฝาบน |
| ความจุ | 18.0 กก. |
| ความเร็วในการหมุน | 700 รอบ/นาที |
| การใช้น้ำ | 61.0 L (per cycle, approximate) |
| ขนาดเมื่อประกอบเสร็จ (กว้าง x ลึก x สูง) | 68.5 x 70.0 x 114.5 ซม. |
| สี | สีเทา |
| คุณสมบัติพิเศษ | Inverter Technology, Smart Functionality, LED Display / Touch Control, Childproof, Timer |
การรับประกันและการสนับสนุน
ข้อมูลการรับประกัน
This Hisense washing machine comes with a Limited Warranty of 48 months (4 years) from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal household use. It does not cover damage caused by improper installation, misuse, neglect, or unauthorized repairs.
For detailed terms and conditions, please refer to the warranty card included with your product or visit the official Hisense webเว็บไซต์สำหรับภูมิภาคของคุณ
การสนับสนุนลูกค้า
For technical assistance, service requests, or spare parts, please contact Hisense customer support. Contact details can typically be found on the Hisense official webเว็บไซต์หรือบนบัตรรับประกัน
When contacting support, please have your model number (WT5T1825DT) and serial number ready.
