คู่มือผู้ใช้ระบบกล้องดิจิทัลไร้สายสำหรับรถยก VEKOOTO

1. บทนำ

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your VEKOOTO Digital Wireless Forklift Camera System. This system is designed to enhance safety and visibility during forklift operations by providing a clear, real-time view of the surrounding environment, particularly in blind spots. The kit includes a 7-inch IPS screen monitor, a waterproof night vision camera, and a magnetic 9600mA battery bank, all connected wirelessly for ease of installation and use.

2. สินค้าหมดview

2.1 คุณสมบัติหลัก

• Magnetic Base Camera: Equipped with strong magnets for secure attachment to the forklift arm, allowing for flexible positioning.
• High-Capacity Battery Bank: A 9600mAh magnetic base rechargeable battery bank powers the camera, providing approximately 15-17 hours of continuous operation.
• 7-inch Monitor: The monitor features a 7-inch IPS screen for clear and vivid display, powered via a 12V DC cigarette lighter adapter.
• Digital Wireless Connection: Ensures a stable and interference-free connection between the monitor and camera, eliminating the need for complex wiring.
• กล้องกันน้ำ IP69K: Designed to withstand harsh outdoor conditions, including heavy rain and dust.
• ความสามารถในการมองเห็นตอนกลางคืน: Provides clear visibility in low-light conditions.
• การแสดงผลแบบแบ่งหน้าจอ: Supports multiple display modes, including full-screen and dual split-screen views, for enhanced situational awareness.

2.2 Components (What's in the Box)

The VEKOOTO Digital Wireless Forklift Camera System package includes the following items:

• จอภาพขนาด 7 นิ้ว 1 จอ
• 1x Forklift Camera with Magnetic Base
• 1x Power Bank 9600 mAh with Magnetic Base
• 1x Antenna (for monitor)
• 1x Mounting Bracket (for monitor)
• 1x Cigarette Lighter Charger with Dual USB Ports
• 1x Power Cable for Monitor
• 1x USB Charging Cable (for battery bank)

Image: All components included in the product package, laid out clearly.

3. การตั้งค่าและการติดตั้ง

The VEKOOTO Digital Wireless Forklift Camera System is designed for easy installation, often achievable by a single person within approximately 15 minutes, thanks to its wireless design and magnetic components.

3.1 การติดตั้งกล้อง

1. Attach Battery Bank: Connect the forklift camera to the 9600mAh battery bank. Ensure a secure connection.
2. ขาตั้งกล้อง: Utilize the magnetic base of the camera and battery bank to firmly attach them to the iron arm of the forklift. Position the camera to provide the desired front view, ensuring no obstructions.

Image: Illustration of the camera and battery bank setup, highlighting the magnetic attachment and power options for the monitor.

3.2 การติดตั้งจอภาพ

1. ติดตั้งขายึด: Secure the provided mounting bracket to a suitable location within the forklift cab, ensuring it does not obstruct the operator's view หรือการควบคุม
2. ติดตั้งจอภาพ: Attach the 7-inch monitor to the mounting bracket. Adjust the angle for optimal viewการไอเอ็นจี
3. การเชื่อมต่อไฟฟ้า: Connect the monitor's power cable to the cigarette lighter charger. Insert the charger into the forklift's 12V DC cigarette lighter socket. Alternatively, the monitor can be hardwired if preferred (professional installation recommended for hardwiring).

Image: A visual representation of the camera system components installed on a forklift, illustrating the wireless connection and placement.

Once both the camera and monitor are powered on, they will automatically pair via the digital wireless signal. No manual pairing is typically required.

4. คู่มือการใช้งาน

4.1 การเปิด/ปิดเครื่อง

• เฝ้าสังเกต: The monitor powers on automatically when connected to a powered cigarette lighter socket. Press the power button on the monitor to manually turn it off or on.
• กล้อง: The camera is powered by the magnetic battery bank. Ensure the battery bank is charged and connected to the camera. The camera will power on when the battery bank is active.

4.2 โหมดการแสดงผล

The 7-inch IPS monitor supports various display modes to suit operational needs:

• เต็มจอ View: Displays the feed from a single camera across the entire screen.
• Dual Split Screen View: Divides the screen to show feeds from two cameras simultaneously (if a second camera is connected).

Use the "MODE" button on the monitor to cycle through available display modes. The "CAM" button can be used to switch between individual camera views in full-screen mode.

Image: The monitor screen showing a split view, demonstrating its capability to display multiple camera feeds simultaneously.

4.3 Charging the Battery Bank

The 9600mAh battery bank can be recharged using the provided USB charging cable. Connect the USB cable to a standard USB power adapter (not included) or a USB port on the cigarette lighter charger. A full charge provides approximately 15-17 hours of camera operation.

ภาพ: รายละเอียด view of the portable battery source, highlighting its lithium electronic battery and charging specifications.

5. การบำรุงรักษา

Proper maintenance ensures the longevity and optimal performance of your VEKOOTO camera system.

• การทำความสะอาด: ทำความสะอาดเลนส์กล้องและหน้าจอมอนิเตอร์เป็นประจำด้วยผ้าเนื้อนุ่มและแห้งamp cloth. Avoid abrasive cleaners or solvents that could damage surfaces.
• Camera Waterproofing: The camera is IP69K rated for waterproofing. While designed for harsh conditions, avoid submerging it in water for extended periods. Ensure the charging port cover is securely closed when not charging.
• การดูแลแบตเตอรี่ Recharge the battery bank regularly, even if not in constant use, to maintain battery health. Store in a cool, dry place.
• การตรวจสอบสายเคเบิล: Periodically inspect all cables and connections for signs of wear, fraying, or damage. Replace any damaged components immediately.

Image: The stainless steel camera demonstrating its IP69K waterproof rating, suitable for outdoor and challenging environments.

6 การแก้ไขปัญหา

If you encounter issues with your VEKOOTO Digital Wireless Forklift Camera System, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact VEKOOTO customer support for further assistance.

7. ข้อมูลจำเพาะ

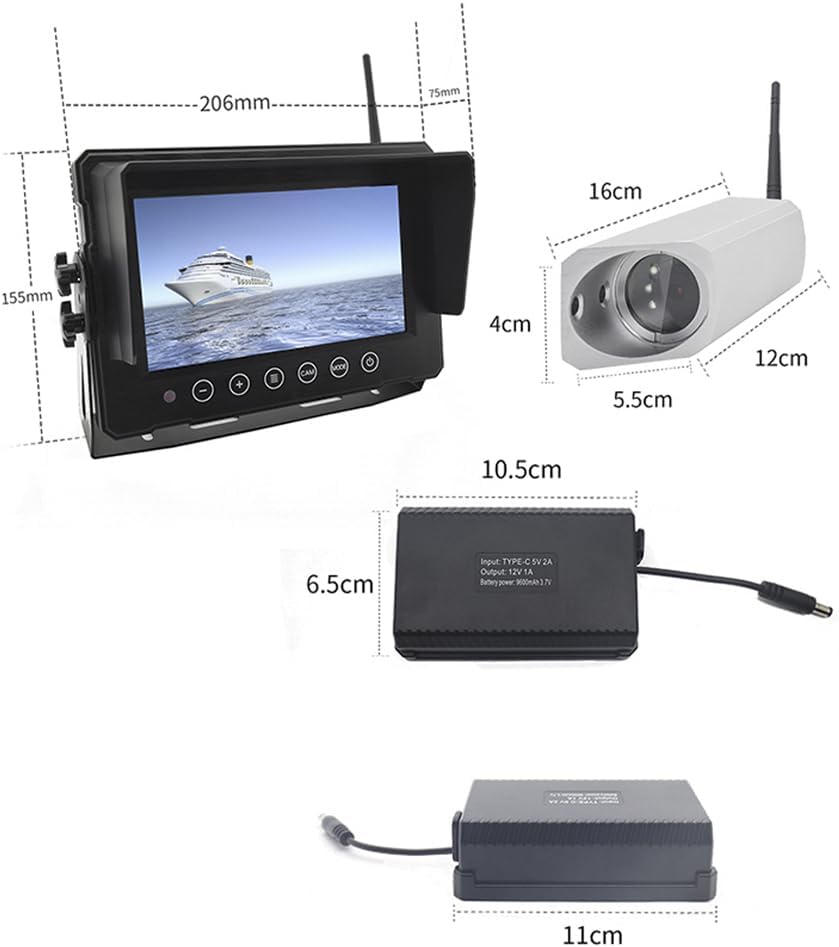

Image: Detailed dimensions of the monitor, camera, and battery bank for reference.

8. การรับประกันและการสนับสนุน

VEKOOTO is committed to providing high-quality products and customer satisfaction. For specific warranty details, please refer to the warranty card included with your product or visit the official VEKOOTO website. For technical support, troubleshooting assistance, or any inquiries regarding your product, please contact VEKOOTO customer service through the contact information provided on the product packaging or the official brand store.

You can visit the VEKOOTO Store for more information: VEKOOTO Official Store
