คู่มือการใช้งานโดรน HYTOBP S179

1. บทนำ

This manual provides essential information for the safe and effective operation of your HYTOBP S179 Brushless Motor Drone. Please read this manual thoroughly before using the drone to ensure proper setup, flight, and maintenance. This drone is designed for adults and features a 1080P HD camera, brushless motors for stable flight, and various intelligent flight modes.

2. อะไรอยู่ในกล่อง

Carefully unpack your HYTOBP S179 Drone package and verify that all components are present and in good condition. The standard package includes:

1 x HYTOBP S179 Drone
1 x รีโมทคอนโทรล
1 x Battery (2000mAh Lithium Ion)
สายชาร์จ USB 1 เส้น
4 x Spare Main Blades
ไขควง 1 อัน
1 x Obstacle Avoidance Head (if included in your specific package)

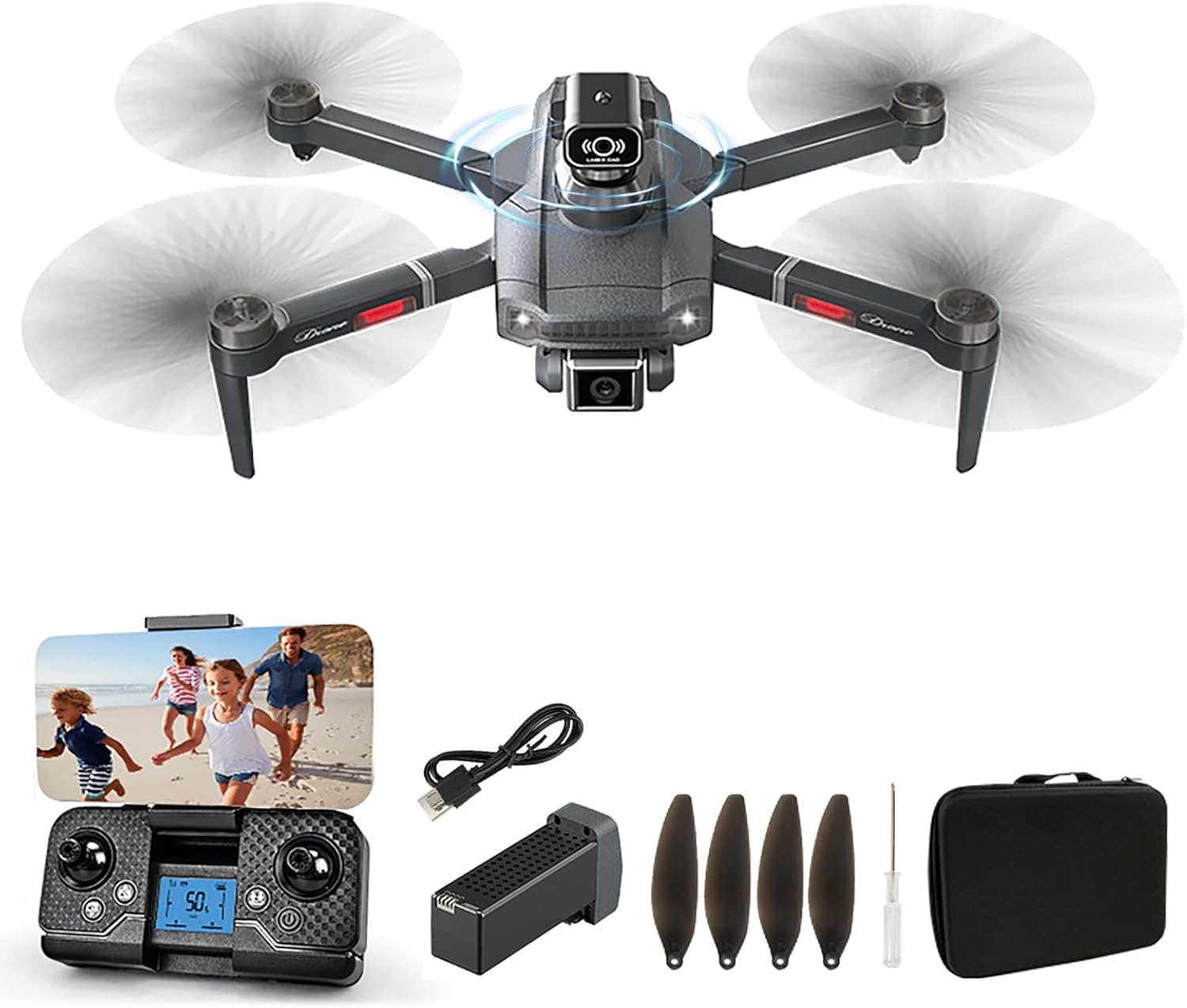

HYTOBP S179 Drone and included accessories — Image: The HYTOBP S179 drone, remote control, battery, charging cable, spare blades, and screwdriver, as typically included in the package.

Diagram showing all components included with the HYTOBP S179 drone — Image: A visual representation of all items you will receive with your HYTOBP S179 drone, including the drone, remote, battery, charging cable, spare blades, instructions, and screwdriver.

3. คู่มือการติดตั้ง

3.1 การชาร์จแบตเตอรี่โดรน

Before the first flight, ensure the drone battery is fully charged. Use the provided USB charging cable. Connect the battery to the charging cable, and then connect the cable to a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator will show the charging status and turn off when fully charged. A full charge typically provides 12-15 minutes of flight time.

Diagram illustrating the brushless motor and battery of the HYTOBP S179 drone — Image: This image highlights the drone's brushless motor and the 3.7V, 2000mAh Lithium Ion battery, emphasizing the importance of a fully charged battery for optimal flight time.

3.2 การติดตั้งแบตเตอรี่โดรน

Once charged, insert the battery into the designated compartment on the drone. Ensure it clicks securely into place to prevent dislodgement during flight.

3.3 ตั้งค่าการควบคุมระยะไกล

Insert the required batteries (not specified in input, assume standard AA/AAA) into the remote control. Power on the remote control.

3.4 การติดตั้งและการเชื่อมต่อแอป

Download the official HYTOBP drone application on your smartphone. Allow the app to access your phone's Wi-Fi and photo albums for full functionality. Turn on the drone, then connect your phone to the drone's Wi-Fi network (usually named something like 'Drone_XXXXXX'). Open the app to establish a connection with the drone.

3.5 การตรวจสอบก่อนบิน

ตรวจสอบให้แน่ใจว่าใบพัดทั้งหมดติดแน่นและไม่มีความเสียหาย
Verify both drone and remote control batteries are fully charged.
Choose an open, clear area for flight, away from obstacles, people, and animals.
For indoor flights, consider activating the 360° obstacle avoidance system.

4. คู่มือการใช้งาน

4.1 การควบคุมการบินขั้นพื้นฐาน

After successful pairing, place the drone on a flat, level surface. Use the joysticks on the remote control to operate the drone. Familiarize yourself with the controls in a safe environment before attempting complex maneuvers.

4.2 One-Key Take-Off/Landing

Press the dedicated One-Key Take-Off button on the remote control or in the app to automatically launch the drone to a stable hovering altitude. Press the One-Key Landing button to initiate an automatic descent and landing.

4.3 3D Flip Function

To perform a 3D flip, ensure the drone is at a sufficient altitude (at least 3 meters). Press the 3D Flip button on the remote control, then quickly move the right joystick in the desired flip direction (forward, backward, left, or right). The drone will perform a 360° flip.

4.4 โหมด Headless

Activate Headless Mode to simplify flight control. In this mode, the drone's orientation is irrelevant; it will always move relative to the pilot's position. This is particularly useful for beginners.

4.5 เส้นทางบิน

Utilize the app to set a custom flight path. Mark specific waypoints on the map within the app, and the drone will automatically follow the planned route. This allows for hands-free flight and precise aerial photography.

Waypoint Flight feature of the HYTOBP S179 drone — Image: A visual representation of the Waypoint Flight feature, where a drone follows a pre-set route over a mountainous landscape, indicated by red pins.

Diagram showing Waypoint Flight and 360 degree orbital flight features — Image: This diagram illustrates both the Waypoint Flight, where you set a route on your phone, and the 360° Orbital Flight, allowing for multi-directional shooting around a central point.

4.6 การควบคุมด้วยท่าทาง

The drone supports gesture control for taking photos and videos. With Gesture Photo enabled in the app, specific hand gestures can trigger the camera to capture images or start/stop video recording.

Diverse flight experiences including Gesture Control, Trajectory Flight, and Three Speed Modes — Image: This composite image showcases various flight features: Gesture Control for hands-free photo/video, Trajectory Flight for pre-programmed routes, and the availability of Three Speed Modes for different skill levels.

Woman performing gesture control for the drone camera — Image: A woman uses hand gestures to control the drone's camera, demonstrating the gesture control feature for capturing photos or videos.

4.7 Adjustable Camera Operation

The S179 drone features a 90° adjustable motorized lens. You can switch between shooting angles directly via the app and remote control, allowing for diverse visual perspectives during flight.

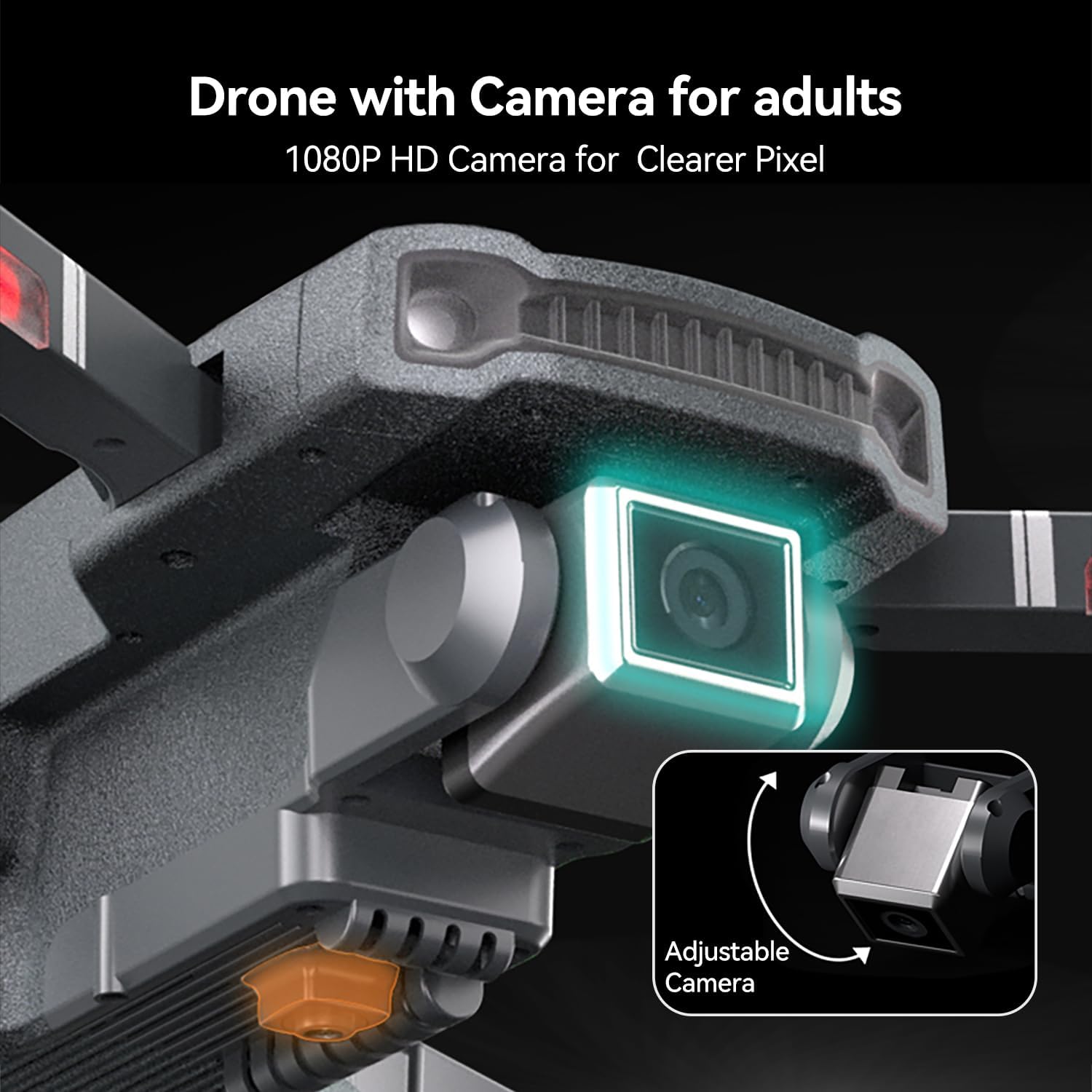

Close-up of the HYTOBP S179 drone's 1080P HD adjustable camera — ภาพ: รายละเอียด view of the drone's 1080P HD camera, highlighting its 90° adjustable lens for capturing clearer pixels and various angles.

Comparison of drone camera angles with 90 degree adjustable camera — Image: This image demonstrates the benefit of the 90° adjustable camera, showing how it can switch angles to provide different visual perspectives, enhancing photo and video capture.

โหมดความเร็ว 4.8 ระดับ

The S179 drone offers multiple speed modes (e.g., 3-speed mode) to accommodate different skill levels, from beginners to more experienced pilots. Adjust the speed via the remote control to suit your flying environment and comfort level.

4.9 Obstacle Avoidance System

The drone is equipped with a 360° obstacle avoidance system. When activated (recommended for indoor flights), the drone will detect obstacles, slow down, and return if it senses an inability to proceed, enhancing flight safety.

4.10 Safe Return & Low Battery Warning

The drone features a safe return function and a low battery warning system. When the battery is low, the drone will alert you, prompting you to land it safely. The safe return feature can guide the drone back towards its take-off point.

Drone features for safe return including Headfree Mode, Low Battery Warning, and One-touch Take-off and Landing — Image: This image illustrates the drone's safety features: Headfree Mode for simplified control, Low Battery Warning to ensure timely landing, and One-touch Take-off and Landing for ease of use.

5. การบำรุงรักษา

5.1 การทำความสะอาด

Regularly clean the drone's body, propellers, and camera lens with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the drone's surface or components.

5.2 การเปลี่ยนใบพัด

If a propeller is damaged or bent, replace it immediately using the spare blades provided and the screwdriver. Ensure the new propeller is installed correctly according to its rotation direction (indicated on the propeller or drone arm).

5.3 การดูแลและจัดเก็บแบตเตอรี่

ควรใช้สายชาร์จและอะแดปเตอร์ของแท้เสมอ
อย่าชาร์จมากเกินไปหรือคายประจุแบตเตอรี่มากเกินไป
เก็บแบตเตอรี่ไว้ในที่เย็นและแห้ง ห่างจากแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป
หากจัดเก็บเป็นเวลานาน ควรชาร์จแบตเตอรี่ให้เหลือประมาณ 50%

5.4 การจัดเก็บข้อมูลทั่วไป

When not in use, store the drone in its original packaging or a protective case to prevent dust accumulation and physical damage. Fold the drone arms if applicable to save space and protect components.

6 การแก้ไขปัญหา

This section addresses common issues you might encounter with your HYTOBP S179 Drone.

ปัญหา	สาเหตุที่เป็นไปได้	สารละลาย
Drone crashes with obstacle avoidance on.	Obstacle avoidance is primarily for indoor use; outdoor conditions (wind, speed) can affect its performance.	Ensure you are flying indoors when relying on obstacle avoidance. If flying outdoors, be mindful of environmental factors.
Short flight time / Battery not working.	Battery not fully charged; non-original charging cable; environmental factors (wind, temperature).	Ensure the battery is fully charged using the original charging cable. Flight time varies based on conditions.
Cannot connect drone to mobile phone.	App/Wi-Fi permissions not granted; incorrect Wi-Fi network selected.	Allow the drone app to access your phone's Wi-Fi and photo albums. Connect to the correct drone Wi-Fi network.
Drone take-off is slow or difficult.	Improper calibration; insufficient thrust.	Ensure the drone is placed on a flat surface for calibration. Use the one-key take-off button for quick launch.
Shaky landing.	Manual landing technique; environmental factors.	For smoother landings, push the right joystick to the bottom or use the one-touch landing button.

คำแนะนำทั่วไป: Always fly the drone in an open area, especially for your first flights. Children operating the drone should always be accompanied and supervised by an adult.

7. ข้อมูลจำเพาะ

Key technical specifications for the HYTOBP S179 Drone:

คุณสมบัติ	ข้อมูลจำเพาะ
ยี่ห้อ	ไฮโตบีพี
หมายเลขรุ่น	S179
ขนาด (กว้าง x ยาว x สูง)	13.39" x 9.84" x 3.54"
น้ำหนักสินค้า	198 กรัม (ประมาณ 7 ออนซ์)
ความละเอียดของกล้อง	1080P HD (Video Capture Resolution: 4K)
กล้องปรับได้	90° Motorized Adjustable Lens
ประเภทมอเตอร์	มอเตอร์แบบไม่มีแปรงถ่าน
ความจุของแบตเตอรี่	2000 mAh ลิเธียมไอออน
เวลาบินโดยประมาณ	12-15 นาที (ต่อแบตเตอรี่)
ประเภทการควบคุม	การควบคุมระยะไกล, การควบคุมแอพ
เทคโนโลยีการเชื่อมต่อ	ยูเอสบี (สำหรับชาร์จ)
คุณสมบัติพิเศษ	360° Obstacle Avoidance, One-Key Take-Off/Landing, 3D Flip, Headless Mode, Waypoint Flight, Gesture Control, 3-Speed Mode, Low Battery Warning, Safe Return
ระดับทักษะ	ทั้งหมด

8. การรับประกันและการสนับสนุน

HYTOBP is committed to providing high-quality products and satisfactory after-sales service. If you encounter any problems with your HYTOBP S179 drone, remote control, or the accompanying app, please do not hesitate to contact our technical support team for assistance.

You can reach us via:

โทรศัพท์: +1(617)259-4732
อีเมล: hytobp@htwlkj.net

HYTOBP customer support contact information — Image: Contact details for HYTOBP customer support, including phone number and email address, for any technical assistance or inquiries.
