Scheppach C-BL700-X 20V Cordless Axial Leaf Blower

1. บทนำ

Thank you for choosing the Scheppach C-BL700-X 20V Cordless Axial Leaf Blower. This powerful and lightweight tool is designed for efficient clearing of leaves, grass clippings, and other debris from various surfaces. Please read this manual carefully before operating the device to ensure safe and optimal performance. Keep this manual for future reference.

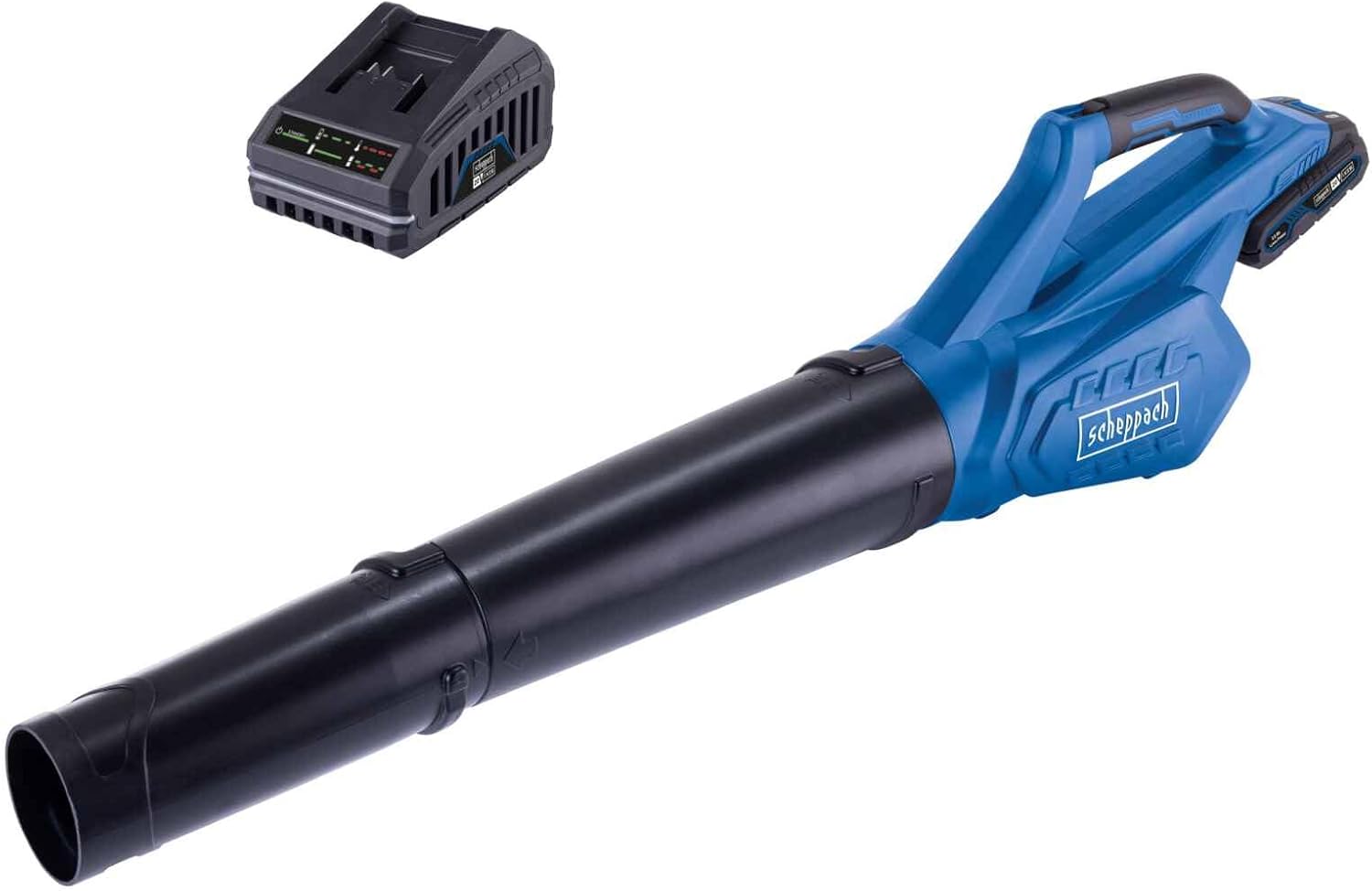

Image 1.1: The Scheppach C-BL700-X 20V Cordless Axial Leaf Blower, shown with its compatible battery and charger.

2. คำแนะนำด้านความปลอดภัย

ปฏิบัติตามข้อควรระวังด้านความปลอดภัยต่อไปนี้เสมอเพื่อป้องกันการบาดเจ็บและความเสียหายต่ออุปกรณ์:

• อ่านคำแนะนำทั้งหมดก่อนใช้งาน
• Wear appropriate personal protective equipment (PPE) such as safety glasses, hearing protection, and sturdy footwear.
• Keep bystanders, children, and pets at a safe distance (at least 15 meters) from the operating area.
• Do not operate the leaf blower in wet conditions or rain.
• Ensure the battery is fully charged before use and only use batteries and chargers from the Scheppach IXES 20V series.
• ห้ามหันหัวเป่าลมไปที่คนหรือสัตว์
• ตรวจสอบพัดลมว่ามีรอยชำรุดเสียหายหรือไม่ก่อนใช้งานทุกครั้ง หากพบว่าชำรุดเสียหาย ห้ามใช้งาน
• Disconnect the battery before cleaning, maintenance, or storage.
• Store the device in a dry, secure place out of reach of children.

3. ส่วนประกอบและชิ้นส่วน

The Scheppach C-BL700-X leaf blower typically includes the following components:

• Main Blower Unit
• Blower Tube (detachable)
• 20V Battery (2Ah or 4Ah, depending on package)
• เครื่องชาร์จแบตเตอรี่
• คู่มือการใช้งาน

ภาพที่ 3.1: จบแล้วview of the main components included with the leaf blower.

Image 3.2: The Scheppach IXES 20V series, highlighting the compatibility of batteries and chargers across multiple tools.

4. การตั้งค่า

Follow these steps to prepare your leaf blower for first use:

1. ชาร์จแบตเตอรี่: Insert the 20V battery into the charger and plug the charger into a power outlet. Allow the battery to fully charge before first use. Refer to the battery and charger manual for specific charging indicators.
2. ติดตั้งท่อเป่าลม: Align the blower tube with the main unit's outlet. Push and twist until it clicks securely into place. The quick-release mechanism ensures easy attachment and detachment for storage.

Image 4.1: Attaching the blower tube using the quick-release fastener for easy assembly and compact storage.
3. ใส่แบตเตอรี่: Once charged, slide the battery into the battery slot on the main blower unit until it locks securely.

5. คู่มือการใช้งาน

Operating your Scheppach C-BL700-X leaf blower is straightforward:

1. การสตาร์ทพัดลม: Ensure the battery is securely inserted. Press the power trigger to start the blower.
2. การปรับความเร็วลม: The blower features two air speed settings for versatile use:
   • ระดับ 1: Approximately 115 km/h (32 m/s) – Suitable for lighter debris and general clearing.
   • ระดับ 2: Approximately 155 km/h (43 m/s) – Provides maximum power for stubborn debris and larger areas.
   Use the speed selector switch (if present) or the pressure-sensitive trigger to switch between these modes.


Image 5.1: The two air speed levels (115 km/h and 155 km/h) ensure clean results, controlled via the trigger.

3. เทคนิคการเป่า: Sweep the blower from side to side, directing debris into piles. For optimal results, work with the wind direction.


Image 5.2: The axial fan design ensures a higher air volume flow for effective clearing.

4. การใช้งาน: The C-BL700-X is ideal for various outdoor cleaning tasks, including:
   • Clearing leaves from gardens and lawns.
   • Removing grass clippings from paths and driveways.
   • Blowing away light debris like sand or small litter from patios and yards.


Image 5.3: Application examples for the leaf blower, suitable for gardens, yards, and terraces.



Image 5.4: Benefits of the axial blower include higher air volume, simple and durable construction, and compact design.

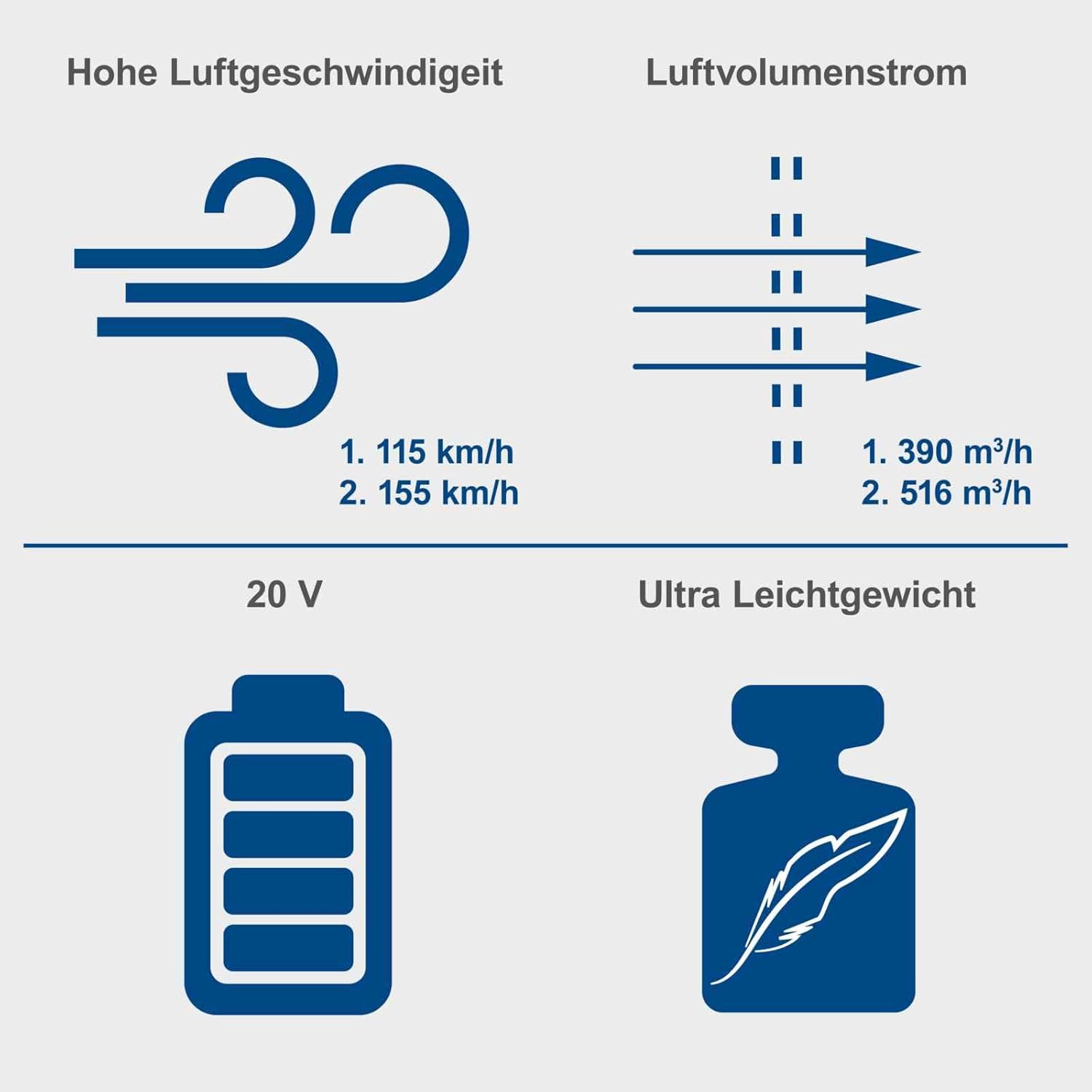

Image 5.5: Key performance indicators: High air speed (115 km/h and 155 km/h) and air volume flow (up to 516 m³/h).
5. วิธีหยุดพัดลม: Release the power trigger to turn off the blower. Remove the battery when finished or before performing any maintenance.

6. การบำรุงรักษา

Regular maintenance ensures the longevity and performance of your leaf blower:

• การทำความสะอาด: หลังการใช้งานทุกครั้ง ให้เช็ดทำความสะอาดภายนอกของเครื่องเป่าลมด้วยผ้าสะอาดamp cloth. Remove any debris from the air intake vents and blower tube. Do not use harsh chemicals or abrasive cleaners.
• พื้นที่จัดเก็บ: Store the leaf blower in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Detach the blower tube for more compact storage. Ensure the battery is removed before storing for extended periods.
• การดูแลแบตเตอรี่ Store batteries in a cool, dry place. Do not store fully discharged batteries for long periods. Recharge them periodically if not in use.

7 การแก้ไขปัญหา

If you encounter issues with your leaf blower, refer to the table below for common problems and solutions:

8. ข้อมูลจำเพาะ

Key technical specifications for the Scheppach C-BL700-X 20V Cordless Axial Leaf Blower:

9. การรับประกันและการสนับสนุน

Scheppach products are manufactured with high quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Scheppach webเว็บไซต์.

For technical support, spare parts, or service inquiries, please contact Scheppach customer service. You can find more information and contact details on the official Scheppach store page:
