The RAINPOINT Irrigation Computer WLAN is designed to automate and optimize your garden watering. With two independent outputs, it allows for tailored irrigation across different garden zones. Control is made easy through a dedicated mobile application and voice commands via Alexa or Google Assistant, providing flexibility whether you are at home or away.
This device features a durable brass inlet to prevent leaks and a built-in metal filter for longevity. It supports various watering modes, including scheduled irrigation and interval watering, along with a rain delay function to conserve water during rainy periods.
Image: The RAINPOINT Irrigation Computer WLAN, showing its two output zones, the accompanying smart hub, and a smartphone displaying the control application.
การตั้งค่า
Before initial use, please read these instructions carefully. The product requires 4 AA 1.5V alkaline batteries (not included).
Initial Activation and Valve Test
- Install 4 AA 1.5V alkaline batteries into the timer.
- Screw the timer onto your garden faucet by hand, ensuring a secure fit. Keep the faucet turned off.
- Press the left timer button. You will hear a "click" as the left valve opens for manual watering. After a few seconds, press the left timer button again; another "click" will sound, and the left timer valve will close.
- Repeat step 3 for the right timer button to open and close the right valve.
- Perform steps 3 and 4 for 3 to 5 times for each valve.
- Test: Turn on the faucet slightly, then repeat steps 3 and 4 to confirm water flows out and shuts off as expected. If the valves activate successfully, the timer is ready for use. If not, repeat steps 3-4 several times or contact support.
Image: A warning label detailing the initial valve activation and testing procedure for the irrigation computer.
App and Smart Hub Setup
- ดาวน์โหลด เรนพอยท์ สมาร์ทพลัส แอปจากร้านแอปของอุปกรณ์ของคุณ
- สร้างบัญชีหรือเข้าสู่ระบบหากคุณมีบัญชีอยู่แล้ว
- Plug the Smart Hub into an electrical outlet.
- In the app, follow the prompts to associate the Smart Hub via 2.4 GHz WiFi.
- Once the Smart Hub is connected, the app will guide you to connect the irrigation timer to the hub.
- Physically install the timer to your garden faucet and connect your irrigation hoses to the two outputs.
Image: A diagram illustrating the connection flow from the garden faucet to the irrigation timer, then wirelessly to the Smart Hub, and finally to the cloud for app control.

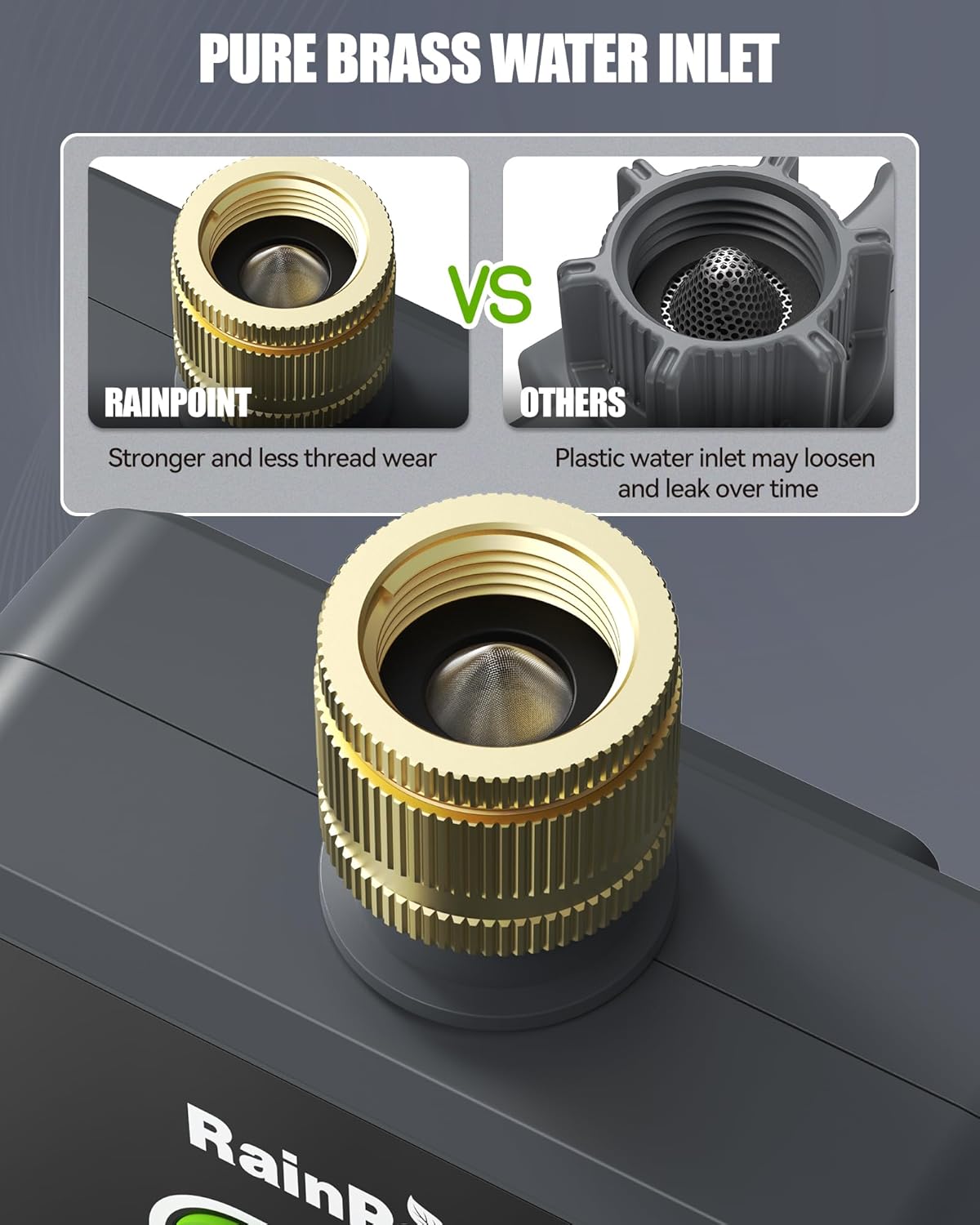

ภาพ: ภาพระยะใกล้ view highlighting the pure brass water inlet of the RAINPOINT timer, emphasizing its durability compared to typical plastic inlets.
คำแนะนำการใช้งาน
Programming Watering Schedules
The irrigation computer offers 2 outputs and supports up to 12 individual programs. Each valve can be programmed separately with up to six different watering schedules.
- Watering Mode: The timer automatically waters according to your set schedule.
- โหมดช่วงเวลา: The timer performs watering with specified intervals between cycles.
These modes allow for flexible watering times and frequencies to suit various plant needs.
Image: A smartphone screen displaying the RainPoint app interface, showing options for setting up to 6 watering plans per zone with different irrigation modes.
Image: Screenshots from the app demonstrating highly flexible watering frequency settings, including options for daily, every 2-30 days, or specific days of the week.
ฟังก์ชั่นหน่วงเวลาฝน
Stay informed about local weather conditions via the app. Activate the rain delay mode to pause your watering schedule for 24, 48, or 72 hours, conserving water during rainy periods.
Image: The RainPoint app interface displaying the rain delay feature, allowing users to skip watering schedules for 24, 48, or 72 hours to prevent overwatering.
การรดน้ำด้วยมือ
For immediate watering needs, you can activate manual mode via the app or directly on the valve unit. Manual watering can be set from 1 minute to 12 hours without affecting your pre-set schedules.
Image: Instructions showing how to initiate manual watering directly from the timer's buttons or through the RainPoint app, with a timer countdown displayed on the phone.
รีโมทและการควบคุมด้วยเสียง
Manage your watering plan from anywhere using the RainPoint Smart+ app. The system is also compatible with Alexa and Google Assistant for convenient voice control.
Image: A visual representation of the smart voice control feature, showing interaction with an Alexa device and the irrigation timer, indicating compatibility with both Alexa and Google Assistant.
Scalable Irrigation System
To expand your watering coverage, you can add multiple watering controls to a single Smart Hub. For optimal system stability, it is recommended not to connect more than 4 irrigation computers per Smart Hub. The app also allows you to add family members for shared control.
ภาพ: ภาพทางอากาศ view of a property demonstrating a scalable irrigation system, with multiple watering timers connected wirelessly to a central Smart Hub, all managed via the mobile app.
การซ่อมบำรุง
- การเปลี่ยนแบตเตอรี่: The app and the hose timer will provide warnings when the batteries are low, reminding you to replace them. Ensure to use 4 new AA 1.5V alkaline batteries.
- การทำความสะอาดตัวกรอง: The irrigation computer features a built-in metal filter to prevent blockages. Periodically inspect and clean this filter to ensure optimal water flow and prevent debris from entering the system.
การแก้ไขปัญหา
If you encounter issues with the timer valves not activating correctly after following the initial setup steps, please repeat the valve activation procedure (steps 3-4 in the Setup section) several times. If the problem persists, contact customer support for assistance.
ข้อมูลจำเพาะ
Image: The back of the product packaging, displaying a table of technical specifications for the irrigation computer.
| คุณสมบัติ | ข้อมูลจำเพาะ |
|---|---|
| ยี่ห้อ | เรนพอยท์ |
| หมายเลขรุ่น | เอชทีวี210 |
| ขนาดสินค้า | 19 x 8 x 16 ซม. |
| น้ำหนักสินค้า | 780 กรัม |
| วัสดุ | Plastic, Brass |
| แรงดันการทำงาน | 0.5 - 8 bar (7-116 psi) |
| อุณหภูมิในการทำงาน | 30C - 500C (370F - 1220F) |
| ระดับการกันน้ำ | IP54 |
| แหล่งพลังงาน | 4*AA 1.5V alkaline batteries (not included) |
| ช่องรับน้ำ | NH (US) for 3/4" faucet; BSP (EU) for 3/4" or 1" faucet |
| ทางออกน้ำ | For 3/4" standard garden hose |
| จำนวนการตั้งค่า | 12 |
การสนับสนุนและการรับประกัน
RAINPOINT offers lifetime support for this product. If you require further assistance, please contact us through the following channels:
- สหรัฐโทรฟรี: +1 833-381-5659 (จันทร์-ศุกร์: 9.30-17.30 น. PST)
- หมายเลขโทรฟรีของเยอรมนี: +49 800-182-0576 (จันทร์-ศุกร์: 9.00-17.00 น. CET)
- หมายเลขโทรฟรีในสหราชอาณาจักร: +44 800-808-5337 (จันทร์-ศุกร์: 9.00-17.00 น. CET)
- อีเมล: service@rainpointonline.com
- วอทส์แอป: +1 626-780-5952
