1. บทนำ
This manual provides comprehensive instructions for the installation, operation, and maintenance of your XIBANY 3PIN Female E-Bike Motor Extension Cable. This 100cm cable is specifically designed for use with BaFang G060 and G062 series motors, featuring a HIGO-style 3PIN female connector for reliable and secure connections. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Image 1.1: The XIBANY 3PIN Female E-Bike Motor Cable, coiled, displaying its full length and both connector types.
2. ข้อมูลด้านความปลอดภัย
Always observe the following safety precautions to prevent injury or damage to the product and your e-bike system:
- Ensure the e-bike's power is completely off before attempting any installation or maintenance.
- Do not modify the cable or connectors. Unauthorized modifications can lead to electrical hazards or system malfunction.
- Keep the cable away from sharp objects, moving parts, and excessive heat sources.
- Verify that all connections are secure and properly seated to prevent intermittent power or short circuits.
- If you are unsure about any installation step, consult a qualified e-bike technician.
3. เนื้อหาบรรจุภัณฑ์
กรุณาตรวจสอบแพ็คเกจเพื่อให้แน่ใจว่ามีสินค้าทั้งหมดอยู่ครบถ้วนและไม่ได้รับความเสียหาย:
- 1 x XIBANY 3PIN Female E-Bike Motor Extension Cable (100cm)
4. การตั้งค่าและการติดตั้ง
This extension cable is designed to extend the reach of your BaFang G060 or G062 motor's power connection. Follow these steps for proper installation:
- การตระเตรียม: Ensure your e-bike's battery is disconnected and the system is powered off. Identify the existing motor cable connection point on your e-bike controller or wiring harness.
- Connect to Motor Cable: Take the 3PIN female connector end of the XIBANY extension cable. Align it carefully with the corresponding male connector from your BaFang G060 or G062 motor cable. Push firmly until it clicks into place, ensuring a secure and waterproof connection.
- Connect to Controller/Harness: The other end of the XIBANY extension cable features exposed wires. These wires must be correctly connected to your e-bike's controller or wiring harness according to the wiring diagram provided by your e-bike manufacturer or motor kit. Typically, this involves matching wire colors for power, ground, and signal.
- การเชื่อมต่อที่ปลอดภัย: Once all connections are made, ensure they are properly insulated and secured to prevent accidental disconnection or damage from vibrations. Use cable ties or appropriate fasteners to route the cable safely along the e-bike frame, away from moving parts and pinch points.
- ทดสอบ: Reconnect the e-bike battery and power on the system. Verify that the motor functions correctly and there are no error codes.

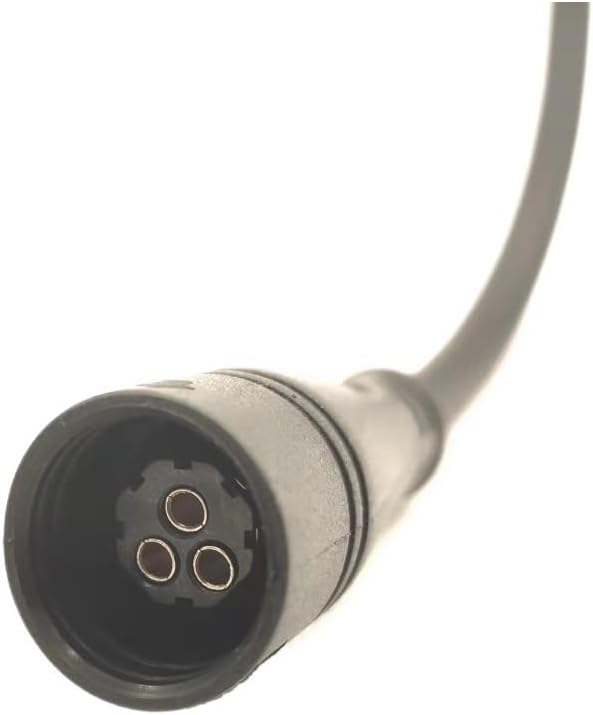

Image 4.1: Detail of the 3PIN female connector.
Image 4.2: Exposed wires for connection to the e-bike system.

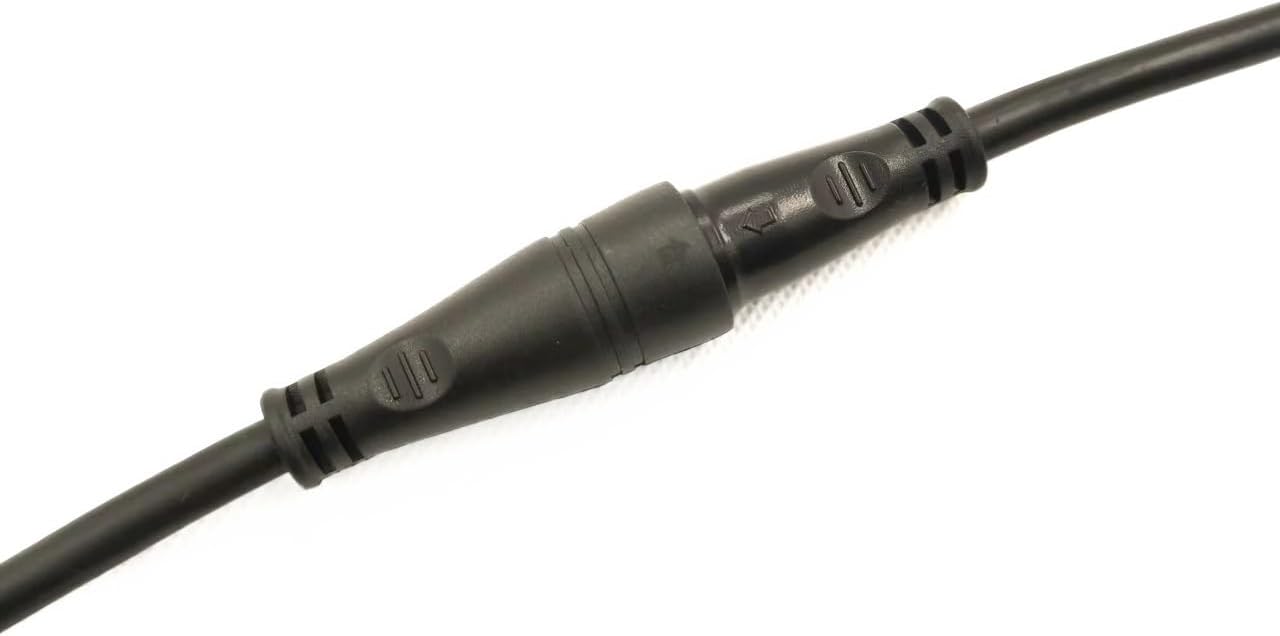

ภาพที่ 4.3: อดีตample of a secure, connected cable joint.
5. คู่มือการใช้งาน
The XIBANY 3PIN Female E-Bike Motor Cable is a passive component designed to extend the reach of your motor's electrical connection. Once correctly installed, its operation is integrated with your e-bike's motor system. No specific operational steps are required for the cable itself beyond ensuring a secure and stable connection.
- Ensure the cable is not under tension or stretched excessively during e-bike operation.
- Periodically inspect the cable for any signs of wear or damage, especially at connection points and areas exposed to movement.
6. การบำรุงรักษา
Proper maintenance ensures the longevity and reliability of your extension cable:
- การทำความสะอาด: เช็ดสายเคเบิลและขั้วต่อด้วยผ้าสะอาดamp ผ้าเพื่อขจัดสิ่งสกปรกและเศษขยะ หลีกเลี่ยงการใช้สารเคมีที่รุนแรงหรือน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อน
- การตรวจสอบ: Regularly inspect the cable for any cuts, abrasions, or signs of insulation damage. Check the connectors for corrosion or bent pins.
- ความสมบูรณ์ของการเชื่อมต่อ: Periodically verify that the connections remain tight and secure. Loose connections can lead to intermittent power or electrical issues.
- พื้นที่จัดเก็บ: If the cable is removed for storage, coil it loosely and store it in a dry, cool place away from direct sunlight and extreme temperatures.
7 การแก้ไขปัญหา
If you encounter issues with your e-bike motor system after installing the extension cable, consider the following:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Motor not receiving power | Loose connection; Damaged cable; Incorrect wiring | Check all connections for tightness. Inspect the cable for visible damage. Verify wiring against your e-bike's diagram. |
| Intermittent motor function | Loose connection; Partial cable damage | Ensure connections are fully seated. Flex the cable gently while testing to identify potential internal breaks. |
| Error codes related to motor connection | Incorrect wiring; Faulty connection | Refer to your e-bike controller's manual for specific error code meanings. Double-check all wiring. |
8. ข้อมูลจำเพาะ
- ชื่อรุ่น : XIBANY001
- ประเภทตัวเชื่อมต่อ: 3PIN Female (HIGO-style)
- ความเข้ากันได้: BaFang G060, G062 Series Motors
- ความยาวสายเคเบิล: 100 ซม. (ประมาณ 39.4 นิ้ว)
- สี: สีดำ
- วัสดุ: ยาง (ชั้นนอก)
- น้ำหนักสินค้า: ประมาณ 50 กรัม (1.76 ออนซ์)
- จำเป็นต้องประกอบ: เลขที่
- จำนวนชิ้น: 1
Image 8.1: The XIBANY 3PIN Female E-Bike Motor Cable, coiled for storage or display.
9. การรับประกันและการสนับสนุน
XIBANY products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you require technical assistance or have questions regarding this product, please reach out to XIBANY customer support through your purchase platform or the official brand webเว็บไซต์.
Please have your product model number (XIBANY001) and purchase details ready when contacting support.
