XIBANY 36T Electric Bicycle Wheel Hub Planetary Gears Instruction Manual

การแนะนำ

This manual provides detailed instructions for the installation, operation, and maintenance of the XIBANY 36T Electric Bicycle Wheel Hub Planetary Gears (Model: XIBANY001). This component is designed for use with Bafang Mid Motors in electric bicycles, ensuring efficient power transmission. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

1. คู่มือการติดตั้ง

The XIBANY 36T Planetary Gears are designed for straightforward installation into compatible Bafang Mid Motors. Ensure you have the necessary tools and follow the motor manufacturer's specific instructions for disassembly and reassembly.

1. การตระเตรียม: Ensure the electric bicycle is powered off and the battery is disconnected. Secure the bicycle in a stable position.
2. การถอดประกอบมอเตอร์: Carefully remove the motor casing of your Bafang Mid Motor according to its service manual. This will expose the internal gear mechanism.
3. Old Gear Removal: Identify the existing planetary gears. These are typically held in place by circlips and bearings. Use appropriate tools (e.g., circlip pliers) to remove the circlips, then carefully extract the old gears and bearings.
4. New Gear Installation: Insert the new XIBANY 36T Planetary Gears into their respective positions. Ensure the bearings are correctly seated within the gears and the motor housing.
5. Secure with Circlips: Reinstall the circlips to firmly hold the gears and bearings in place. Verify that all components are secure and move freely without excessive play.
6. Motor Reassembly: Reattach the motor casing, ensuring all seals are properly seated to prevent dust and moisture ingress. Tighten all screws to the manufacturer's specified torque.
7. การตรวจสอบการทำงาน: Reconnect the battery and power on the electric bicycle. Perform a low-speed test to ensure the motor operates smoothly and quietly.

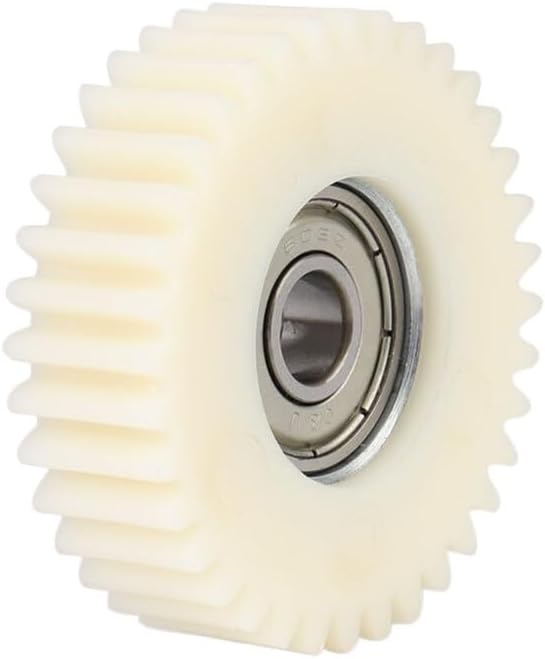

Figure 1: Individual XIBANY 36T Planetary Gear with Bearing.

Figure 2: Two XIBANY 36T Planetary Gears, illustrating their design.

2. การดำเนินการ

Once correctly installed, the XIBANY 36T Planetary Gears function as an integral part of your Bafang Mid Motor's power transmission system. They are designed to convert the motor's rotational energy into the appropriate speed and torque for the bicycle's wheel hub.

• ฟังก์ชั่นอัตโนมัติ: The gears operate automatically as part of the motor's internal mechanism. No direct user interaction is required for their function during riding.
• Smooth Power Delivery: Properly installed gears contribute to smooth and efficient power delivery from the motor to the drivetrain.
• ระดับเสียง: During operation, the gears should produce minimal noise. Any unusual sounds may indicate an installation issue or wear.

3. การบำรุงรักษา

Regular maintenance ensures the longevity and optimal performance of your XIBANY 36T Planetary Gears. While the gears themselves are durable, the bearings and lubrication require periodic inspection.

• การหล่อลื่น: Periodically inspect the gears and bearings for adequate lubrication. If necessary, apply a high-quality, heat-resistant grease suitable for electric motor gears. Consult your Bafang motor manual for recommended lubricant types and application frequency.
• ตรวจสอบการสึกหรอ: During motor servicing, visually inspect the gear teeth for signs of wear, chipping, or cracking. Inspect the bearings for smooth rotation and absence of play. Replace any damaged components immediately.
• ความสะอาด : Keep the motor's internal components, including the gears, free from dirt, dust, and debris. Ensure the motor casing is properly sealed after any maintenance.

Figure 3: Set of three XIBANY 36T Planetary Gears.

4 การแก้ไขปัญหา

If you experience issues with your Bafang Mid Motor after installing the XIBANY 36T Planetary Gears, consider the following common problems and solutions:

If problems persist, it is recommended to consult a qualified electric bicycle technician or refer to the comprehensive service manual for your Bafang Mid Motor.

5. ข้อมูลจำเพาะ

• ยี่ห้อ: ซีบานี
• แบบอย่าง: XIBANY001
• ประเภทเกียร์ : เกียร์ดาวเคราะห์
• จำนวนฟัน: 36T
• ความเข้ากันได้: Bafang Mid Motors (specific models may vary, refer to motor manual)
• ส่วนประกอบ: Gear, Bearing, Circlip
• วัสดุ: วัสดุคุณภาพสูงทนทาน
• น้ำหนักสินค้า: ประมาณ 50 กรัม (1.76 ออนซ์)
• ขนาดแพ็คเกจ: ประมาณ 1.18 x 0.79 x 0.39 นิ้ว

6. การรับประกันและการสนับสนุน

For information regarding warranty coverage and technical support for your XIBANY 36T Planetary Gears, please refer to the documentation provided at the time of purchase or contact your retailer. As this component is an accessory for Bafang Mid Motors, also consult the Bafang motor manufacturer's warranty and support guidelines for comprehensive assistance.

For general inquiries, you may attempt to contact the manufacturer, XIBANY, through their official channels if available.
