1. สินค้าหมดview
This manual provides detailed instructions for the assembly, operation, and maintenance of your HOMEIJU Laundry Sorter, Model 8003LW. This unit is designed to organize and sort laundry efficiently with its six removable bags and integrated desktop.
Image 1.1: The HOMEIJU Laundry Sorter, Model 8003LW, featuring six laundry bags and a rustic brown desktop.
2. การติดตั้งและการประกอบ
The HOMEIJU Laundry Sorter is designed for straightforward assembly. Please follow these steps carefully. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.
- แกะส่วนประกอบ: Carefully remove all parts from the packaging and verify against the included parts list (not provided in this manual, refer to your product packaging).
- ประกอบโครงโลหะ: Connect the vertical and horizontal metal bars using the provided screws and tools. Ensure all connections are secure.
- ติดล้อ: Secure the four rolling wheels to the bottom of the metal frame. Ensure two of the wheels with locking mechanisms are positioned for easy access.
- Install Desktop: Place the MDF wood desktop onto the top of the assembled metal frame and secure it with the designated fasteners.
- Insert Laundry Bags: Place the six removable Oxford Fabric laundry bags into their respective compartments within the frame. Ensure the bottom panels are inserted for support.
ภาพที่ 2.1: รายละเอียด view of the desktop, pull-out bags, and lockable wheels, illustrating key features for assembly and use.
หากคุณพบปัญหาใดๆ ระหว่างการประกอบ โปรดดูส่วนการแก้ไขปัญหาหรือติดต่อฝ่ายสนับสนุนลูกค้า
3. คู่มือการใช้งาน
The HOMEIJU Laundry Sorter is designed for ease of use in managing your laundry.
- คัดแยกซักรีด: Utilize the six individual compartments to sort laundry by color, fabric type, or washing requirements.
- Using Pull-Out Bags: Each laundry bag is designed to be easily pulled out from its compartment. Simply grasp the handle and slide the bag forward.
- Transporting Laundry: To move the sorter, unlock the two lockable wheels by flipping their levers. Push the sorter to your desired location. Once positioned, engage the wheel locks to ensure stability.
- Utilizing the Desktop: The top shelf provides additional space for detergents, fabric softeners, folded clothes, or other laundry essentials.
Image 3.1: Demonstrates the pull-out design of the laundry bags for easy access and removal.
Image 3.2: A close-up of a lockable caster wheel, highlighting its mechanism for securing the sorter in place.
4. การบำรุงรักษา
Proper maintenance will ensure the longevity and optimal performance of your laundry sorter.
- การทำความสะอาดกรอบ: เช็ดกรอบโลหะด้วยผ้าเนื้อนุ่มและแห้งamp cloth. Avoid abrasive cleaners to protect the anti-rust surface.
- การทำความสะอาดถุง: The Oxford Fabric bags can be spot cleaned with a mild detergent and water. Allow them to air dry completely before reinserting. The waterproof coating provides added protection.
- Desktop Care: Clean the MDF wood desktop with a dry or slightly damp ผ้า ควรหลีกเลี่ยงความชื้นสูงและสารเคมีรุนแรง
- Bottom Panel Support: Ensure the bottom panels remain correctly positioned within each bag to prevent sagging and maintain the bag's shape.

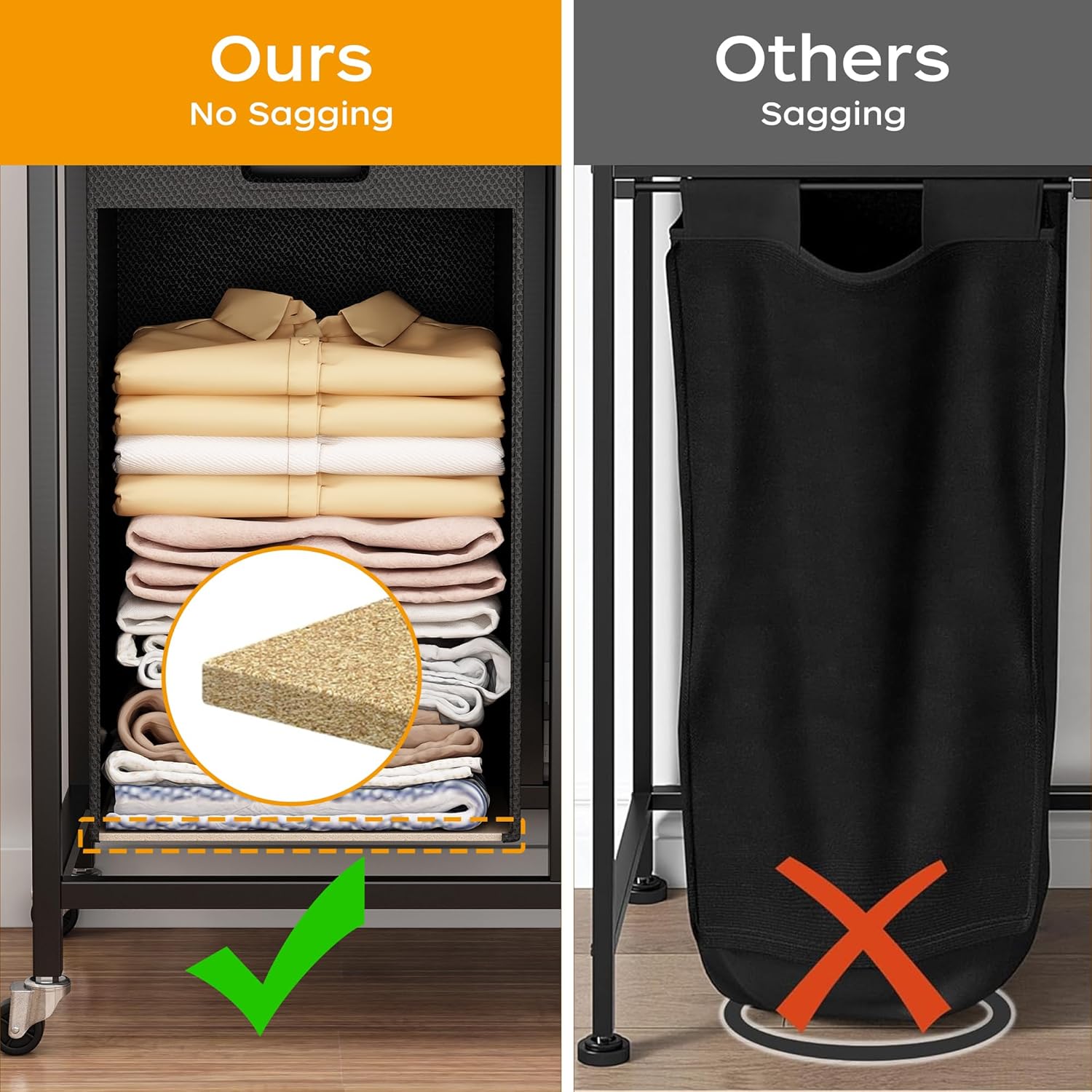

Image 4.1: Illustrates the effectiveness of the bottom panel in preventing laundry bag sagging, ensuring structural integrity.
5 การแก้ไขปัญหา
If you encounter any issues with your HOMEIJU Laundry Sorter, please consult the following common problems and solutions:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Difficulty assembling the frame or desktop. | Metal brackets or stoppers may be slightly bent. | Gently adjust bent components to align screw holes. Ensure all parts are oriented correctly as per diagrams (if available). |
| Laundry bags do not fit or slide smoothly. | Bag not inserted correctly or frame slightly misaligned. | Ensure the bag's support frame is fully seated. Check the metal frame for any slight bends that might obstruct movement. |
| Wheels do not lock or roll properly. | Locking mechanism obstructed or wheels not fully attached. | Clear any debris from the wheel mechanism. Ensure wheels are securely fastened to the frame. |
| Bags sag when filled. | Bottom support panel is missing or incorrectly placed. | Verify that the rigid bottom panel is correctly inserted and fully extended at the base of each laundry bag. |
If the issue persists after attempting these solutions, please contact HOMEIJU customer support.
6. ข้อมูลจำเพาะ
Key specifications for the HOMEIJU Laundry Sorter, Model 8003LW:
- ขนาดสินค้า : ยาว 39.37 นิ้ว x กว้าง 12.99 นิ้ว x สูง 38.18 นิ้ว
- วัสดุ: Engineered Wood (MDF), Metal (Steel), Oxford Fabric
- สี: Rustic Brown and Black
- จำนวนช่อง : 6
- ความจุรวม: 216 ลิตร
- คุณสมบัติพิเศษ: Desktop Shelf, 360° Rolling Wheels (2 lockable), Pull-Out Removable Bags, Anti-rust Metal Frame
- น้ำหนักสินค้า: ประมาณ 26.1 ปอนด์
Image 6.1: Visual representation of the laundry sorter's dimensions and individual bag capacities.
7. การรับประกันและการสนับสนุน
HOMEIJU is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, if you encounter any issues with your product, particularly regarding installation or missing components, please contact our support team directly via email. Our team is available to assist you with any concerns.
For support, please refer to the contact information provided with your purchase or on the official HOMEIJU webเว็บไซต์.
