ซีโก้ เอสจี-2603

คู่มือการใช้งานแปรงสีฟันไฟฟ้าแบบหมุน SEAGO SG-2603

รุ่น: SG-2603

1. บทนำ

This manual provides detailed instructions for the safe and effective use of your SEAGO SG-2603 Rotating Electric Toothbrush. Please read this manual thoroughly before first use and retain it for future reference. This electric toothbrush is designed to provide a superior cleaning experience compared to a manual toothbrush, featuring multiple cleaning modes and a long-lasting battery.

2. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ามีรายการทั้งหมดอยู่ในแพ็คเกจของคุณ:

SEAGO SG-2603 Rotating Electric Toothbrush package contents
Image: The SEAGO SG-2603 Rotating Electric Toothbrush, including the handle, various brush heads, and charging cable, displayed in its packaging.

3. การตั้งค่า

3.1 การติดตั้งหัวแปรง

  1. วางหัวแปรงให้ตรงกับแกนโลหะบนด้ามแปรงสีฟัน
  2. กดหัวแปรงลงไปให้แน่นจนกระทั่งได้ยินเสียงคลิก ตรวจสอบให้แน่ใจว่าติดแน่นดีแล้ว

3.2 การชาร์จเริ่มต้น

Before first use, fully charge the toothbrush. A full charge takes approximately 4 hours and provides up to 30 days of use.

  1. Locate the charging port cover at the bottom of the toothbrush handle.
  2. Open the cover and insert the USB charging cable.
  3. ต่อปลายอีกด้านของสาย USB เข้ากับอะแดปเตอร์แปลงไฟ USB ที่ใช้งานร่วมกันได้ (ไม่ได้รวมอยู่ในชุด) หรือพอร์ต USB
  4. The battery indicator lights will illuminate to show charging progress. Once fully charged, all lights will remain solid or turn off, depending on the model.
  5. After charging, ensure the charging port cover is securely closed to maintain the IPX7 waterproof rating.

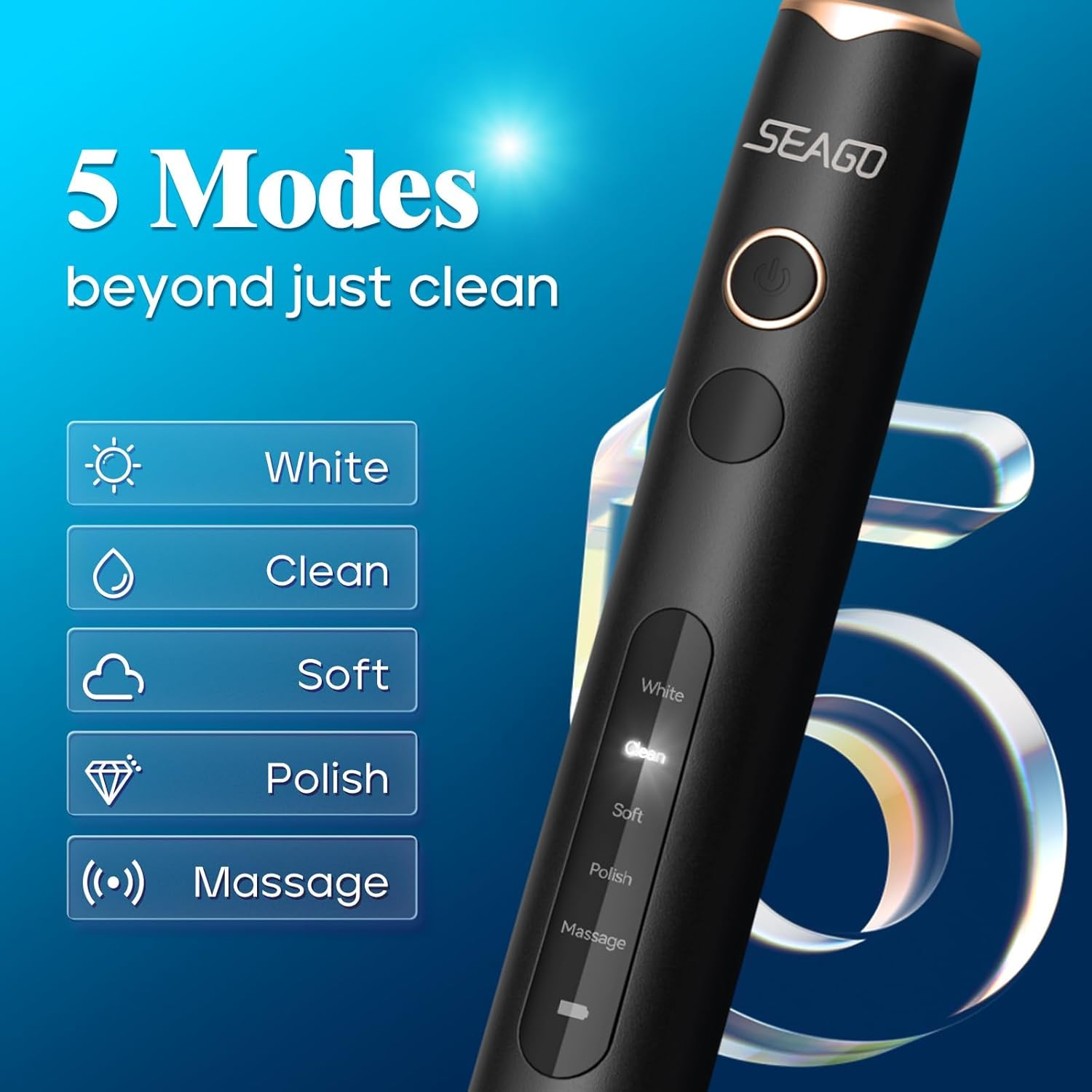

SEAGO SG-2603 Electric Toothbrush with 5 modes displayed
Image: Close-up of the SEAGO electric toothbrush handle, showing the power button, mode button, and indicators for the five cleaning modes: White, Clean, Soft, Polish, and Massage.

4. คู่มือการใช้งาน

4.1 เปิด/ปิดเครื่อง

กดปุ่ม ปุ่มเปิดปิด (usually the top button with a power symbol) to turn the toothbrush on or off.

4.2 Selecting a Cleaning Mode

With the toothbrush powered on, press the ปุ่มโหมด (usually the button below the power button) to cycle through the 5 available cleaning modes:

4.3 ตัวจับเวลาอัจฉริยะและตัวนับก้าว

The toothbrush features a built-in 2-minute smart timer and a 30-second quadpacer. The quadpacer will briefly pause or pulse every 30 seconds to remind you to move to a different quadrant of your mouth, ensuring an even and thorough cleaning. The toothbrush will automatically shut off after 2 minutes of continuous operation.

SEAGO SG-2603 Electric Toothbrush demonstrating 2-minute smart timer and 30-second reminder
Image: The SEAGO electric toothbrush in action, highlighting the 2-minute smart timer and 30-second reminder features for optimal brushing.

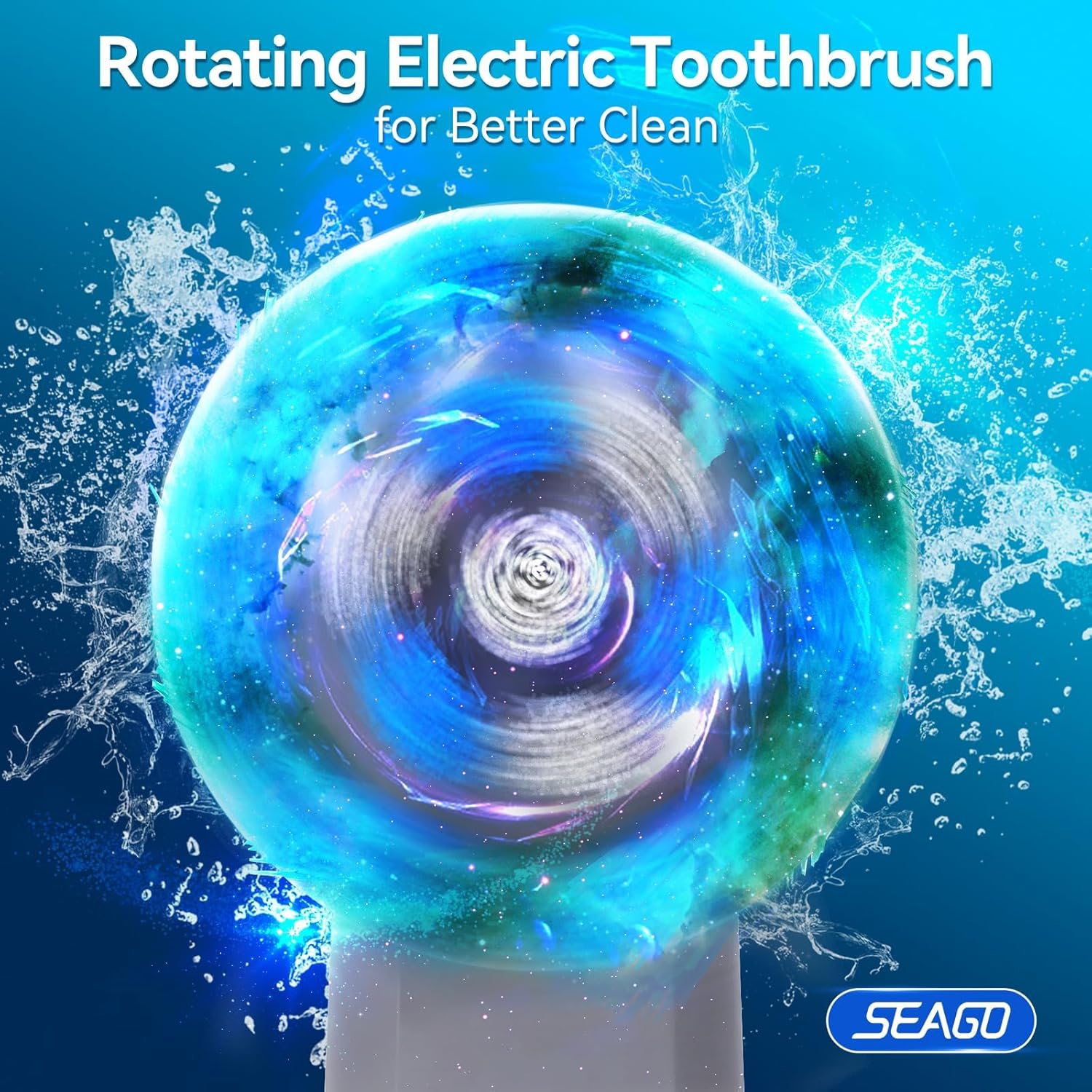

SEAGO SG-2603 Rotating Electric Toothbrush head with water splash
Image: A close-up of the SEAGO electric toothbrush head rotating with water splashing, illustrating its cleaning action.
Comparison of plaque removal between manual and SEAGO electric toothbrush
Image: A visual comparison showing the effectiveness of the SEAGO electric toothbrush in removing plaque compared to a traditional manual toothbrush.

5. การบำรุงรักษา

5.1 การเปลี่ยนหัวแปรง

It is recommended to replace your brush head every 3 months, or sooner if the bristles become frayed. The SEAGO SG-2603 comes with two types of brush heads:

To replace, simply pull the old brush head straight off the handle and push a new one on until it clicks.

Eight SEAGO SG-2603 brush heads with detail on 16-degree angled bristles
Image: A display of eight SEAGO SG-2603 brush heads, highlighting the 16-degree angled bristle design for enhanced cleaning.
Two types of SEAGO SG-2603 brush heads: deep-cleaning and gentle
Image: A close-up showing the two distinct types of brush heads included with the SEAGO SG-2603: one with 16-degree angled bristles for deep cleaning and another with soft, high-density bristles for gentle care.

5.2 การทำความสะอาดแปรงสีฟัน

After each use, rinse the brush head thoroughly under running water. Wipe the handle with a damp cloth. Do not immerse the handle in water for extended periods, despite its IPX7 rating, to prolong its lifespan.

5.3 การชาร์จ

Recharge the toothbrush when the battery indicator lights show low power. Use the provided USB charging cable. The toothbrush is designed for convenience, offering up to 30 days of use on a single 4-hour charge.

6. ข้อมูลด้านความปลอดภัย

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะ

คุณสมบัติรายละเอียด
หมายเลขรุ่นเอสจี-2603
แหล่งพลังงานใช้พลังงานจากแบตเตอรี่ (รวมแบตเตอรี่ลิเธียมไอออน 1 ก้อน)
โหมดการทำความสะอาด5 (White, Clean, Soft, Polish, Massage)
อายุการใช้งานแบตเตอรี่ใช้งานได้นานสูงสุด 30 วัน ด้วยการชาร์จเพียง 4 ชั่วโมง
ระดับการกันน้ำIPX7
คุณสมบัติพิเศษBrushing Timer (2-minute auto-shutoff, 30-second quadpacer)
คำอธิบายความแน่นของสินค้านุ่มพิเศษ
ผู้ผลิตseago electric co.,ltd

9. วิดีโอผลิตภัณฑ์

วิดีโอ: จบแล้วview of the SEAGO rotating electric toothbrush for adults, demonstrating its features and design.

Video: A demonstration of the SG2603 product functions, showcasing its various operational capabilities.

10. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official SEAGO webไซต์ โปรดเก็บใบเสร็จรับเงินของคุณไว้เป็นหลักฐานการซื้อสำหรับการเรียกร้องการรับประกันใดๆ
