คู่มือผู้ใช้ Linkvil (Fanvil) W712 RoIP Gateway

1. บทนำ

The Linkvil (Fanvil) W712 is a Radio over IP (RoIP) gateway designed to bridge analog/digital two-way radio systems with SIP communication devices. This device integrates a 400-470MHz radio module and a SIP module, facilitating interconnected communication across various platforms.

The W712 is compact, portable, and compatible with mainstream analog and DMR II digital two-way radios, including Motorola and Hytera. It supports easy deployment and management, enabling the creation of a unified communication system without requiring extensive changes to existing infrastructure. This gateway is suitable for internal communication in diverse environments such as community security, industrial parks, supermarkets, hospitality, and campus security.

คุณสมบัติหลัก:

• Integrated 400-470 MHz radio module for connecting analog/DMR II digital radios.
• SIP protocol compatibility for connecting SIP communication devices.
• High compatibility with Motorola, Hytera, and other mainstream analog/digital radios.
• Supports HD audio with G.722 and Opus codecs.
• Includes USB 2.0 and TF card interfaces for data storage or offline firmware upgrades.
• Supports call recording and call logs for both two-way radios and SIP phones.
• Dual Megabit Ethernet ports for network transmission.
• Power supply via DC 12V PSU and Power over Ethernet (PoE+).
• Web-based management interface for device configuration.
• Supports both desktop and wall-mounted installation.

2. เนื้อหาบรรจุภัณฑ์

โปรดตรวจสอบว่าสินค้าทั้งหมดมีอยู่ในแพ็คเกจ:

• Linkvil (Fanvil) W712 RoIP Gateway Unit
• อะแดปเตอร์ไฟ (DC 12V)
• เสาอากาศ
• สายเคเบิลอีเทอร์เน็ต
• คู่มือการติดตั้งแบบด่วน

Note: The "Included Components" specification states "not apply", which is likely an error or refers to additional accessories not bundled. The above list is based on typical gateway packages.

3. ทางกายภาพมากกว่าview

Familiarize yourself with the ports and indicators on the W712 gateway.

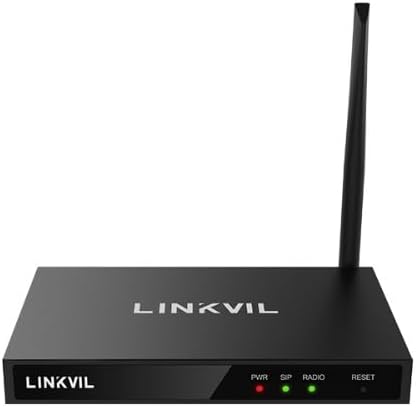

รูปที่ 1: ด้านหน้า view of the Linkvil W712 RoIP Gateway. Shows the device with its antenna attached, displaying the "LINKVIL" logo and indicator lights for PWR (Power), SIP, RADIO, and a RESET button.

รูปที่ 2: มุม view of the Linkvil W712 RoIP Gateway. This perspective highlights the compact design and the side ventilation, along with the front panel indicators.

รูปที่ 3: อีกมุมหนึ่ง view of the Linkvil W712 RoIP Gateway, providing a slightly different perspective of the device's form factor and antenna placement.

ไฟแสดงสถานะแผงด้านหน้า:

• PWR (กำลัง): บ่งชี้สถานะพลังงาน
• จิบ: Indicates SIP module status and activity.
• วิทยุ: Indicates radio module status and activity.
• รีเซ็ต: Button to reset the device to factory defaults (press and hold).

Rear Panel Ports (Typical):

• กำลังไฟเข้า DC 12V: สำหรับการเชื่อมต่ออะแดปเตอร์ไฟฟ้า
• พอร์ตอีเธอร์เน็ต (LAN/WAN): Dual Megabit Ethernet ports for network connection.
• พอร์ต USB 2.0: For data storage or other peripherals.
• ช่องเสียบการ์ด TF: For TF card insertion, used for data storage or offline firmware upgrades.
• ขั้วต่อเสาอากาศ: For attaching the external antenna.

4. การตั้งค่าและการติดตั้ง

4.1. การติดตั้งทางกายภาพ

1. การติดตั้ง: The W712 supports both desktop and wall-mounted installation. Choose a stable location with good ventilation and away from direct heat sources or moisture. For wall mounting, use appropriate screws and anchors (not included) to secure the device.
2. ติดเสาอากาศ: Carefully screw the provided antenna onto the antenna connector on the rear panel of the W712. Ensure it is securely fastened but do not overtighten.
3. การเชื่อมต่อไฟฟ้า:
   • การใช้ตัวแปลงไฟ: Connect the DC 12V power adapter to the power input port on the W712, then plug the adapter into a standard electrical outlet.
   • Using PoE+: If your network switch supports PoE+, connect an Ethernet cable from the PoE+ enabled port on your switch to one of the Ethernet ports on the W712. The device will power on automatically.
4. การเชื่อมต่อเครือข่าย: Connect an Ethernet cable from your network router or switch to one of the Ethernet ports on the W712. The device features dual Megabit Ethernet ports.
5. ใส่การ์ด TF (ไม่จำเป็น): If you plan to use a TF card for data storage or offline firmware upgrades, insert it into the TF card slot.
6. Connect USB Device (Optional): If needed, connect a USB device to the USB 2.0 port.

4.2. การเข้าถึงการกำหนดค่าเริ่มต้น

Once powered on and connected to the network, the W712 can be configured via its web อินเทอร์เฟซการจัดการ

1. รับที่อยู่ IP: The W712 will typically obtain an IP address automatically via DHCP. You may need to check your router's DHCP client list to find the assigned IP address of the device. Alternatively, use a network scanning tool.
2. เข้าถึง Web อินเทอร์เฟซ: เปิด web browser on a computer connected to the same network as the W712. Enter the device's IP address into the browser's address bar and press Enter.
3. เข้าสู่ระบบ: You will be prompted for a username and password. Refer to the Quick Installation Guide for default login credentials. It is highly recommended to change the default password immediately after the first login for security purposes.

5. คู่มือการใช้งาน

The W712 gateway functions by integrating radio communication with SIP-based communication. Configuration is primarily done through the web อินเทอร์เฟซการจัดการ

5.1. Radio Module Configuration

ภายใน web interface, navigate to the radio settings to configure the 400-470MHz radio module. This includes:

• การตั้งค่าความถี่: Set the operating frequencies for communication with two-way radios.
• การกำหนดค่าช่อง: Define radio channels and associated parameters.
• Compatibility Settings: Adjust settings for compatibility with specific analog or DMR II digital radio models (e.g., Motorola, Hytera).
• การตั้งค่าเสียง: Configure audio input/output levels for the radio interface.

5.2. SIP Module Configuration

Access the SIP settings in the web interface to integrate the W712 with your SIP communication system:

• SIP Account Registration: Register the W712 with your SIP server by entering SIP account details (username, password, server address).
• Codec Preferences: Select preferred audio codecs, including G.722 and Opus for HD audio.
• การตั้งค่าเครือข่าย: Configure network parameters relevant to SIP communication (e.g., NAT traversal).

5.3. RoIP Link Configuration

This section defines how radio channels are mapped to SIP extensions or groups, enabling cross-platform communication.

• Mapping Rules: Create rules to link specific radio channels to SIP endpoints or vice versa.
• การโทรแบบกลุ่ม: Configure group call functionalities between radio users and SIP users.
• การตั้งค่าลำดับความสำคัญ: Assign priorities for different communication paths if necessary.

5.4. Call Recording and Logs

The W712 supports recording calls and maintaining call logs for both two-way radios and SIP phones. These features can be configured and accessed via the web interface. Ensure sufficient storage is available on the TF card or connected USB device if local storage is used for recordings.

6. การบำรุงรักษา

6.1. การอัปเดตเฟิร์มแวร์

ตรวจสอบผู้ผลิตเป็นประจำ website for firmware updates. Firmware updates can provide new features, performance improvements, and security enhancements. The W712 supports offline firmware upgrades via the TF card interface.

6.2. การทำความสะอาด

Keep the device clean by wiping it with a soft, dry cloth. Do not use liquid cleaners or aerosols, as they may damage the device.

6.3 การรีเซ็ตเป็นการตั้งค่าเริ่มต้นจากโรงงาน

If the device is not functioning correctly or you need to clear all configurations, you can perform a factory reset. Locate the รีเซ็ต button on the front panel. With the device powered on, press and hold the RESET button for approximately 5-10 seconds until the indicator lights change, then release. The device will restart with factory default settings.

7 การแก้ไขปัญหา

This section addresses common issues you might encounter with the W712 RoIP Gateway.

7.1. No Power Indicator

• ตรวจสอบการเชื่อมต่อพลังงาน: Ensure the DC 12V power adapter is securely connected to the device and a working power outlet.
• Check PoE+ (if applicable): Verify that the Ethernet cable is connected to a PoE+ enabled port on your switch and that the switch is providing power.
• Test Power Adapter: If possible, test the power adapter with another compatible device or use a multimeter to check its output.

7.2. ไม่สามารถเข้าถึงได้ Web อินเทอร์เฟซ

• การเชื่อมต่อเครือข่าย: Ensure the Ethernet cable is properly connected to both the W712 and your network. Check the network status indicators on the device and your switch.
• ที่อยู่ IP: Verify that you are using the correct IP address for the W712. Check your router's DHCP client list.
• การกำหนดค่าเครือข่าย: Ensure your computer is on the same network segment as the W712. Temporarily disable any firewalls on your computer that might be blocking access.
• รีเซ็ตเป็นค่าเริ่มต้นจากโรงงาน: If all else fails, perform a factory reset to revert to default network settings, then try accessing again.

7.3. Radio Communication Issues

• เสาอากาศ: Ensure the antenna is securely attached and positioned correctly.
• การตั้งค่าความถี่: Double-check that the radio module's frequency and channel settings in the web interface match those of your two-way radios.
• ความเข้ากันได้: Verify that the W712's settings are configured for compatibility with your specific radio models (analog/DMR II).
• RADIO Indicator: Observe the RADIO indicator light for activity.

7.4. SIP Communication Issues

• การลงทะเบียน SIP: Confirm that the SIP account is successfully registered with your SIP server. Check the SIP status in the web อินเทอร์เฟซ
• การเชื่อมต่อเครือข่าย: Ensure stable network connectivity to the SIP server.
• การตั้งค่าจิบ: Verify all SIP account details, server addresses, and codec preferences are correctly configured.
• SIP Indicator: Observe the SIP indicator light for activity.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

For warranty information and technical support, please refer to the official Fanvil (Linkvil) website or contact your authorized reseller. Keep your purchase receipt as proof of purchase for warranty claims.

Online resources, including FAQs, updated manuals, and firmware downloads, may be available on the manufacturer's support portal.
