คู่มือการใช้งานเครื่องตัดหญ้าอัตโนมัติ Scheppach Robocut XXL900

การแนะนำ

This manual provides comprehensive instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Scheppach Robocut XXL900 Robotic Lawnmower. Please read this manual thoroughly before operating the device to ensure proper use and longevity.

Figure 1: Scheppach Robocut XXL900 Robotic Lawnmower with included boundary wire, pegs, and spare blade.

ข้อมูลด้านความปลอดภัย

โปรดปฏิบัติตามคำแนะนำด้านความปลอดภัยต่อไปนี้เสมอ เพื่อป้องกันการบาดเจ็บและความเสียหายต่อผลิตภัณฑ์:

• อ่านคำแนะนำทั้งหมดอย่างละเอียดก่อนใช้งาน
• โปรดระวังอย่าให้มือและเท้าอยู่ใกล้ใบมีด
• Do not operate the mower in wet conditions or during rain. The mower is equipped with a rain sensor, but manual intervention may be required.
• Ensure the boundary wire is correctly installed to prevent the mower from leaving the designated area.
• เก็บเด็กและสัตว์เลี้ยงให้ห่างจากพื้นที่ปฏิบัติงาน
• Turn off the mower and remove the safety key before performing any maintenance or cleaning.
• Use only original replacement parts and accessories.
• Do not attempt to modify the mower.

เนื้อหาแพ็คเกจ

ตรวจสอบว่ามีรายการทั้งหมดอยู่ในแพ็คเกจ:

• Scheppach Robocut XXL900 Robotic Lawnmower
• สถานีชาร์จ
• อะแดปเตอร์แปลงไฟ
• Boundary Wire (approx. 170 meters)
• Fixing Pegs (approx. 230 pieces)
• Replacement Blades (9 pieces)
• คู่มือการใช้งาน

Figure 2: Illustration of included components and their quantities.

การตั้งค่า

1. การจัดวางตำแหน่งสถานีชาร์จ

Place the charging station on a flat, level surface in an area with access to a power outlet. Ensure there is sufficient clear space around the station for the mower to dock easily.

2. การติดตั้งสายกราวด์

The boundary wire defines the mowing area. Lay the wire around the perimeter of your lawn, securing it with the provided pegs. Ensure the wire is taut and buried or securely pegged to prevent tripping hazards and damage. Maintain recommended distances from obstacles and edges as per the full manual.

3. การชาร์จครั้งแรก

Connect the charging station to power. Place the robotic lawnmower onto the charging station. The mower will begin charging automatically. Allow approximately 110 minutes for a full charge before first use.

4. App Pairing and PIN Code Setup

Download the official Scheppach app to your smartphone. Use the app to pair your mower via Wi-Fi or Bluetooth. During the initial setup, you will be prompted to set a personal PIN code for anti-theft protection. This PIN is required to operate the mower and change settings.

Figure 3: Connectivity features including Wi-Fi, Bluetooth, App control, and anti-theft PIN security.

Figure 4: Key features controllable via the smart app.

การดำเนินงาน

1. การเริ่มต้นและการหยุด

To start the mower, ensure it is within the boundary wire and press the 'Start' button on the control panel or via the app. To stop, press the 'Stop' button on the mower or in the app. The mower will automatically return to its charging station when the battery is low or its schedule is complete.

2. Mowing Schedule and Zones

Utilize the mobile app to set up a customized mowing schedule. You can define specific mowing times and days. For complex lawns, the app allows you to set up multiple mowing zones, ensuring complete coverage.

3. การปรับความสูงในการตัด

The cutting height can be adjusted steplessly from 20 mm to 60 mm using the dial located on top of the mower. Rotate the dial to your desired cutting height setting.

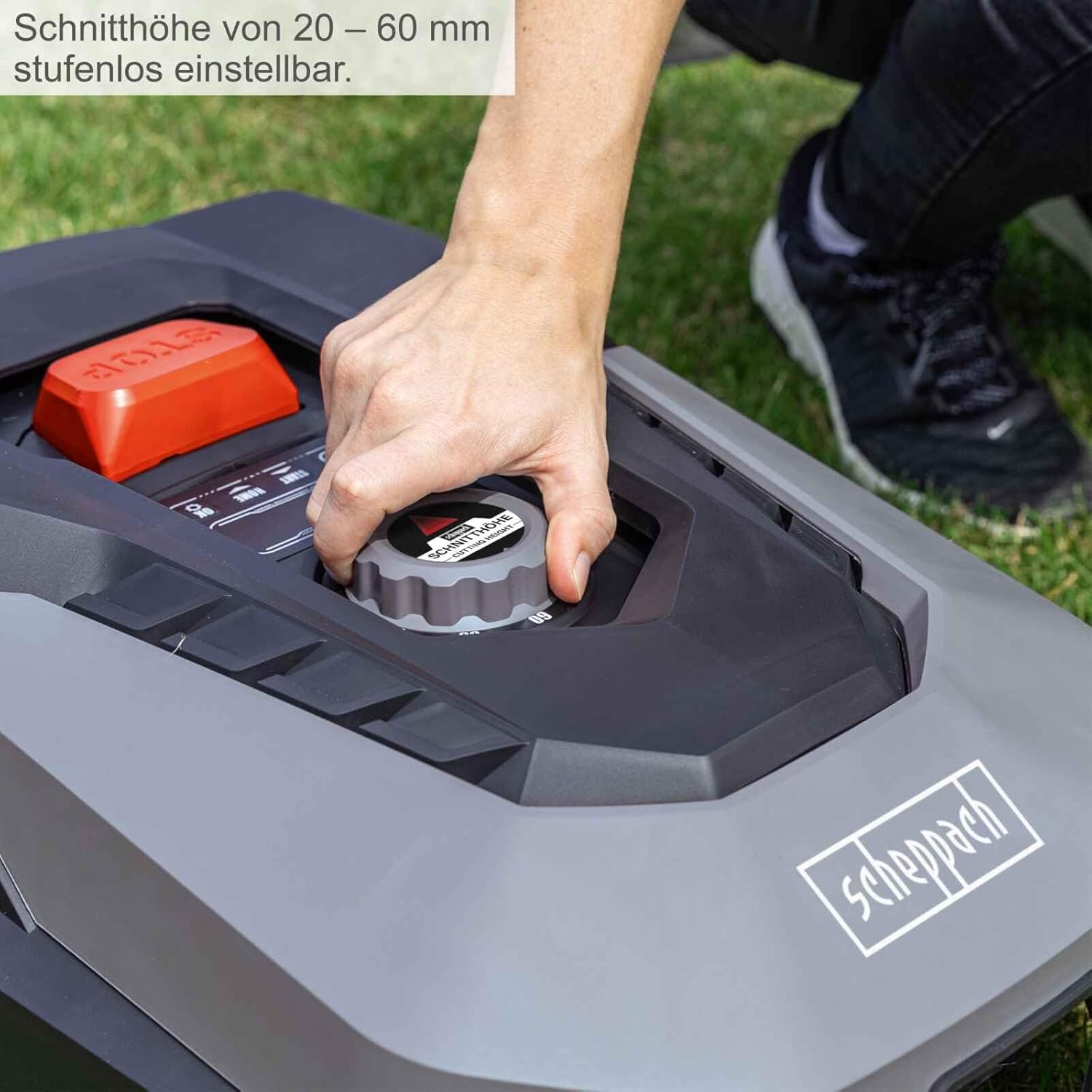

Figure 5: Adjusting the cutting height from 20-60 mm using the integrated dial.

4. Edge Cutting Function

The Robocut XXL900 features an edge cutting function to ensure a neat finish along the perimeter of your lawn. This function can be activated via the app.

5. เซ็นเซอร์วัดปริมาณน้ำฝน

The integrated rain sensor detects precipitation and automatically pauses mowing operations, returning the mower to its charging station. Mowing will resume once the rain stops and the lawn is dry.

Figure 6: Operational capabilities including maximum area, incline, cutting dimensions, and rain sensing.

Figure 7: The robotic lawnmower actively mowing a lawn.

การซ่อมบำรุง

1. การเปลี่ยนใบมีด

For optimal cutting performance, inspect the blades regularly and replace them when they show signs of wear or damage. Always turn off the mower and remove the safety key before handling the blades. Use only genuine Scheppach replacement blades.

2. การทำความสะอาดเครื่องตัดหญ้า

Regularly clean the underside of the mower, especially the cutting deck, to remove grass clippings and debris. A floating cutting head design assists in maintaining consistent contact with uneven terrain and simplifies cleaning. Use a brush or damp cloth; avoid using high-pressure water jets directly on electrical components.

Figure 8: Maintenance aspects including cleaning the cutting mechanism.

Figure 9: The floating cutting head adapts to uneven ground for consistent cutting.

3. การดูแลแบตเตอรี่

To prolong battery life, store the mower in a dry, frost-free environment during winter months. Ensure the battery is fully charged before long-term storage. The mower uses a 20V / 4Ah battery.

การแก้ไขปัญหา

This section addresses common issues you might encounter. For more detailed troubleshooting, refer to the complete manual or contact customer support.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

Scheppach provides a manufacturer's warranty for this product. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact Scheppach customer service.

ผู้ผลิต: เชปปาเช่

อีเมล: service@scheppach.com

Figure 10: Manufacturer contact details for support.
