Singer C5650 / C5655 Sewing Machine Instruction Manual

1. บทนำ

This manual provides detailed instructions for the safe and effective operation, maintenance, and care of your Singer C5650 and C5655 sewing machines. Please read this guide thoroughly before using your machine to ensure proper function and to prevent injury or damage.

Image: Front cover of the Singer C5650 / C5655 Instruction Manual, displaying the machine outline and Singer logo.

คำแนะนำด้านความปลอดภัยที่สำคัญ

When using an electrical appliance, basic safety precautions should always be followed, including:

• Always unplug the machine from the electrical outlet immediately after use and before cleaning, removing covers, lubricating, or when making any other user servicing adjustments mentioned in this instruction manual.
• Do not operate the machine with a damaged cord or plug. If it is not working properly, if it has been dropped or damaged, or dropped into water, return the machine to the nearest authorized service dealer for examination, repair, electrical or mechanical adjustment.
• Keep ventilation openings of the sewing machine clear.
• Use only attachments specified by the manufacturer in this manual.
• ห้ามทำตกหรือเสียบวัตถุใดๆ ลงในช่องเปิดใดๆ
• Do not use aerosol (spray) products where oxygen is being administered.

Image: A page from the instruction manual detailing important safety instructions for the sewing machine.

2. การตั้งค่า

เครื่องโอเวอร์view

Familiarize yourself with the main components of your sewing machine. Understanding each part's function is crucial for efficient operation.

Image: A diagram illustrating the main components of the Singer C5650/C5655 sewing machine, with numbered callouts for identification.

พื้นที่เข็มเหนือview และอุปกรณ์เสริม

The needle area is where most of the sewing action occurs. Proper understanding of its parts and the available accessories will enhance your sewing experience.

ภาพ: รายละเอียด view of the needle area components, including the needle plate, feed teeth, and presser foot, along with illustrations of various included accessories like bobbins, spool pins, and screwdrivers.

การคดเคี้ยวของ Bobbin

Before you begin sewing, the bobbin must be properly wound with thread.

1. วางม้วนด้ายลงบนแกนม้วนด้าย
2. Guide the thread through the thread guide and around the bobbin winding tension disc.
3. Place the bobbin on the bobbin winding spindle.
4. ดันแกนพันด้ายไปทางขวา
5. Start winding by gently pressing the foot controller. Stop when the bobbin is full.

การใส่ Bobbin

Once wound, the bobbin needs to be correctly inserted into the bobbin case and then into the shuttle.

1. เปิดฝาครอบกระสวย
2. Insert the bobbin into the bobbin case, ensuring the thread unwinds in the correct direction.
3. Pull the thread through the tension spring.
4. Insert the bobbin case into the shuttle.

Picking Up Bobbin Thread

After inserting the bobbin, you need to bring the bobbin thread up through the needle plate.

1. ยกตีนผีขึ้น
2. Hold the needle thread loosely with your left hand.
3. Turn the hand wheel towards you, lowering and then raising the needle. This will catch the bobbin thread.
4. Pull both threads to the back under the presser foot.

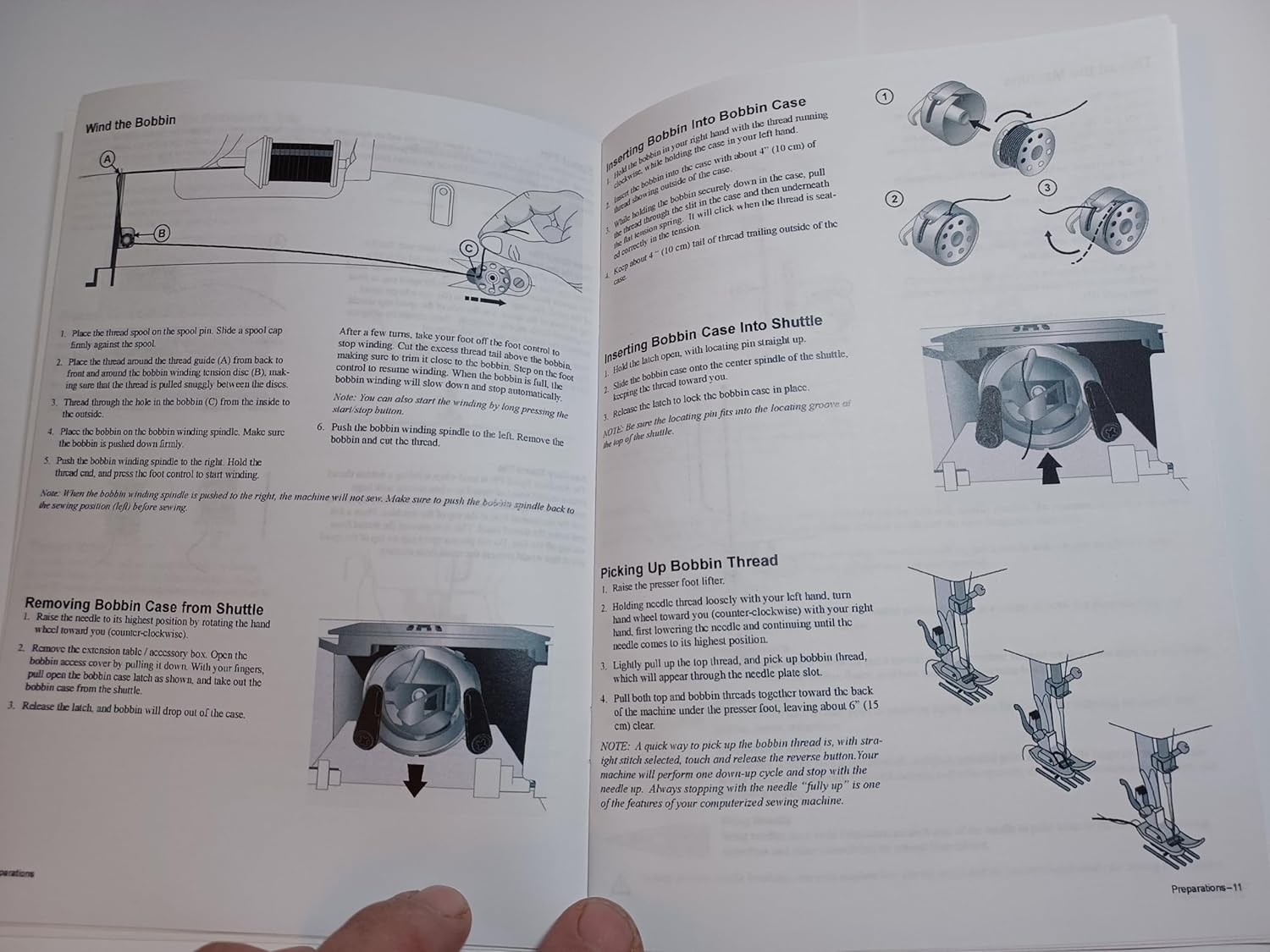

Image: Step-by-step diagrams illustrating how to wind the bobbin, insert the bobbin into the shuttle, and pick up the bobbin thread for the Singer C5650/C5655 sewing machine.

3. การใช้งานเครื่องของคุณ

การควบคุมการทำงานของเครื่องจักร

Your Singer C5650/C5655 machine features an intuitive control panel for selecting stitches and adjusting settings.

• ปุ่มย้อนกลับ: Used to sew in reverse, typically for securing stitches at the beginning and end of a seam.
• Tie-Off Button: Automatically ties off stitches for a neat finish.
• ปุ่มเลือกตะเข็บ: Use the arrow buttons to navigate and select your desired stitch pattern from the available options.
• การปรับความยาวและความกว้างของตะเข็บ: Buttons to modify the length and width of selected stitches, allowing for customization.
• ตำแหน่งเข็ม: Adjusts the needle position for specific sewing tasks.

Image: A close-up of the Singer C5650/C5655 control panel, showing the display, stitch selection buttons, and other operational controls.

4. การเย็บผ้า

Basic Stitch Functions

Your machine offers a variety of stitches for different sewing needs.

• ตะเข็บตรง: The most common stitch, used for basic seams and topstitching. Adjust length as needed.
• ตะเข็บซิกแซก: Ideal for finishing raw edges, appliqué, and decorative stitching. Adjust width and length for desired effect.
• ตะเข็บโอเวอร์ล็อก: Provides a professional finish to seams, preventing fraying.
• รังดุม: The machine can create various buttonhole styles automatically. Follow the specific instructions in the manual for precise buttonhole creation.

5. การบำรุงรักษา

ทำความสะอาดเครื่องของคุณ

Regular cleaning is essential to keep your sewing machine running smoothly and extend its lifespan.

• การกำจัดขุยผ้า: Use a small brush to remove lint and dust from the bobbin area, feed teeth, and needle plate.
• การหล่อลื่นด้วยน้ำมัน: Refer to your manual for specific oiling points and frequency. Use only recommended sewing machine oil.

การเปลี่ยนเข็ม

Replace the needle regularly, especially when it becomes dull or bent, to prevent skipped stitches and fabric damage.

1. ปิดและถอดปลั๊กเครื่อง
2. คลายเข็ม clamp สกรู
3. ถอดเข็มเก่าออก
4. Insert a new needle with the flat side facing the back, pushing it up as far as it will go.
5. ขันเข็มให้แน่นamp สกรู

6 การแก้ไขปัญหา

If you encounter issues with your sewing machine, consult this section for common problems and solutions.

7. ข้อมูลจำเพาะ

Key technical specifications for the Singer C5650/C5655 sewing machine:

• ขนาดสินค้า : 0.1 x 5.5 x 8.5 นิ้ว
• น้ำหนักสินค้า: 3.2 ออนซ์
• วัสดุ: Paper (for the manual)
• สี: สีขาว
• แหล่งพลังงาน: AC
• เป็นไฟฟ้า: ใช่
• หมายเลขรุ่นสินค้า: ซี5650

8. การรับประกันและการสนับสนุน

Specific warranty information for the Singer C5650 and C5655 sewing machines is typically provided with the original product purchase. This instruction manual is a reprint and does not contain warranty details. For warranty claims or technical support, please refer to the official Singer website or contact Singer customer service directly.
