GLAMCOR Galileo Ultimate Lighting Bundle User Manual

1. บทนำ

This user manual provides comprehensive instructions for the GLAMCOR Galileo Ultimate Lighting Bundle. This innovative 18-inch portable foldable LED ring light kit is designed to provide versatile and high-quality illumination for content creation, photography, and videography. It features adjustable color temperature from 2,700K to 5,600K, remote control functionality, Bluetooth smartphone compatibility, and a flexible arm for optimal positioning. Please read this manual thoroughly before using the product to ensure proper operation and longevity.

2. ข้อมูลด้านความปลอดภัย

To ensure safe operation and prevent damage to the product or injury to yourself, please observe the following safety precautions:

• อย่าให้เครื่องโดนน้ำหรือความชื้นมากเกินไป
• Use only the provided 24V 2A power supply. Using an incorrect power supply may damage the unit and void the warranty.
• เก็บอุปกรณ์ให้ห่างจากแหล่งความร้อน แสงแดดโดยตรง และวัสดุไวไฟ
• Do not attempt to disassemble or modify the product. Repairs should only be performed by authorized service personnel.
• Ensure the telescopic stand is stable and securely locked before mounting the ring light or any accessories.
• Avoid looking directly into the LED lights for extended periods, as this may cause eye strain.
• เก็บให้พ้นจากมือเด็ก

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ารายการทั้งหมดที่ระบุไว้ด้านล่างนี้รวมอยู่ในแพ็คเกจของคุณ:

• GLAMCOR Galileo 18-inch Foldable Ring Light
• Flexible Gooseneck Extension Arm
• แขนยึดอุปกรณ์เสริม
• คลิปโทรศัพท์อเนกประสงค์
• ขาตั้งแบบยืดไสลด์
• Travel-friendly Carry Bag
• 24V 2A พาวเวอร์ซัพพลาย
• รีโมทคอนโทรล
• คู่มือการใช้งาน (คู่มือนี้)

Figure 3.1: All components of the GLAMCOR Galileo Ultimate Lighting Bundle.

This image displays the complete set of items included in the GLAMCOR Galileo Ultimate Lighting Bundle, neatly arranged to show the ring light, stand, various arms, phone clip, power supply, remote control, and carry bag.

4. การตั้งค่า

4.1 Assembling the Stand and Ring Light

1. Unfold the legs of the telescopic stand until they are fully extended and stable.
2. Extend the telescopic sections of the stand to your desired height and secure them by tightening the locking clamps.
3. Carefully unfold the GLAMCOR Galileo ring light from its compact, folded position. Ensure the hinge mechanisms lock into place, forming a complete 18-inch ring.
4. Mount the unfolded ring light onto the top of the telescopic stand. Secure it firmly using the integrated mounting mechanism.

Figure 4.1: Fully assembled GLAMCOR Galileo ring light and stand.

This image shows the GLAMCOR Galileo ring light fully assembled on its telescopic stand, ready for use, with a smartphone positioned in the center.

Figure 4.2: Folding and unfolding the Galileo ring light.

This diagram illustrates the unique folding design of the Galileo ring light, demonstrating how it transforms from a compact, folded state to its full 18-inch diameter, alongside its maximum height on the stand.

4.2 การติดอุปกรณ์เสริม

• Universal Phone Clip: Attach the universal phone clip to the accessory mounting arm. Insert the accessory mounting arm into the designated slot in the center of the ring light. Secure your smartphone firmly within the clip.
• Flexible Gooseneck Extension Arm: For additional positioning flexibility, attach the gooseneck arm to the ring light's accessory port. This allows for precise adjustment of the light's angle or the mounting of other compatible accessories.

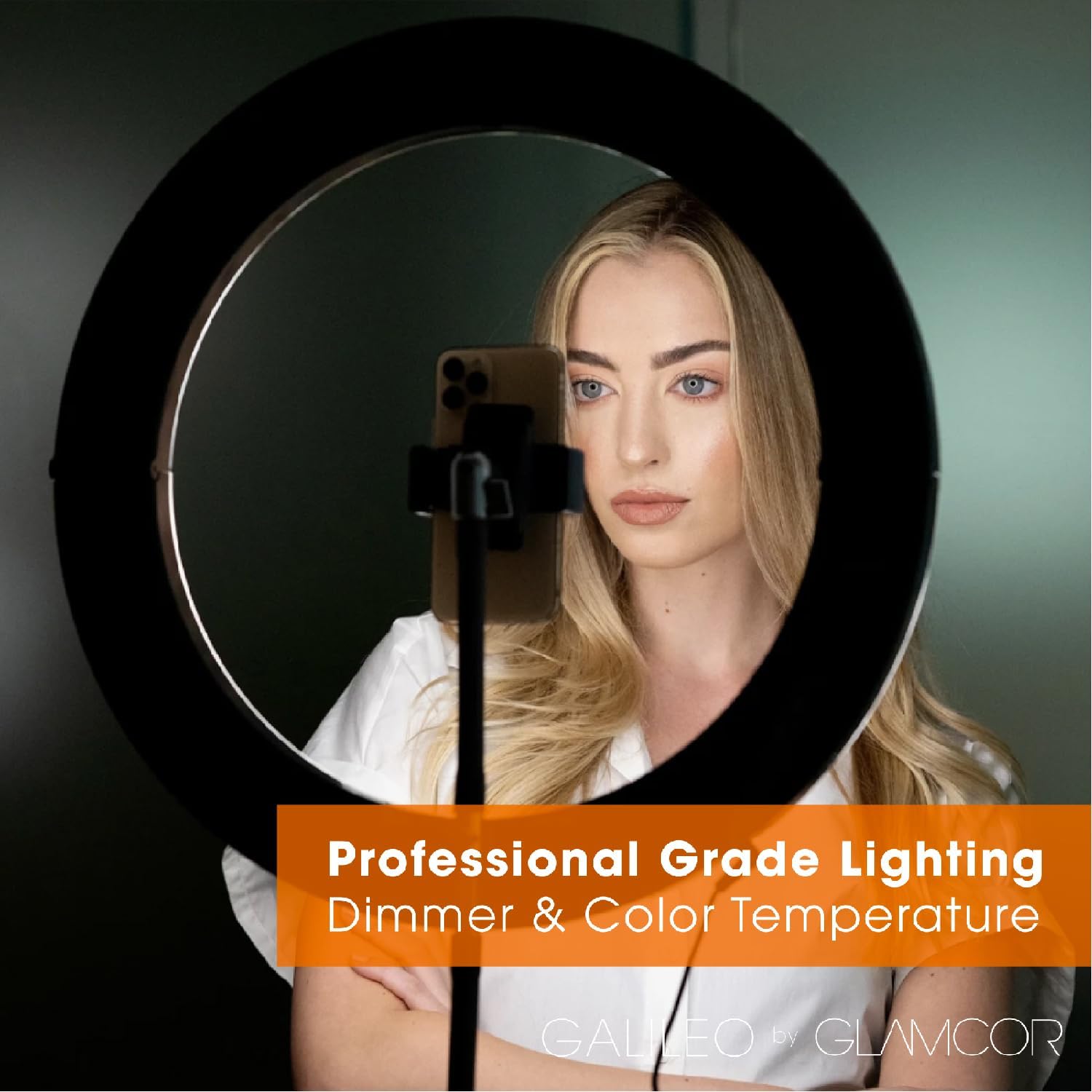

Figure 4.3: Smartphone mounted within the ring light.

This image demonstrates a user with a smartphone securely mounted in the center of the GLAMCOR Galileo ring light, highlighting its use for content creation.

4.3 การเชื่อมต่อสายไฟ

Connect the provided 24V 2A power supply to the power input port on the ring light. Plug the power adapter into a standard electrical outlet.

5. คู่มือการใช้งาน

5.1 การเปิด/ปิดเครื่องและการควบคุมพื้นฐาน

• พลัง: Press the power button on the remote control or the control panel on the ring light to turn the unit on or off.
• การปรับความสว่าง: ใช้ฟังก์ชันเพิ่มความสว่าง (+) และลง (-) buttons on the remote or control panel to adjust the light intensity.
• การปรับอุณหภูมิสี: Use the color temperature buttons (e.g., เย็น, อบอุ่น) or the dedicated up/down arrows to cycle through color temperatures from 2,700K (warm) to 5,600K (cool).

Figure 5.1: GLAMCOR Galileo Remote Control functions.

ภาพนี้ให้รายละเอียด view of the GLAMCOR Galileo remote control, with labels indicating the functions of each button, including power, color temperature, brightness adjustment, saved light settings, Bluetooth, and selfie trigger.

5.2 Bluetooth Connectivity and Selfie Function

1. ตรวจสอบให้แน่ใจว่าได้เปิดใช้งาน Bluetooth บนสมาร์ทโฟนของคุณแล้ว
2. On the GLAMCOR Galileo remote control, press the บลูทูธ button. The light will enter pairing mode.
3. On your smartphone, search for "GLAMCOR Galileo" in the Bluetooth settings and select it to pair.
4. Once paired, you can use the ถ่ายเซลฟี่ button on the remote control to remotely trigger your smartphone's camera shutter.

Figure 5.2: Remote photo capture with Galileo.

This image illustrates the convenience of using the GLAMCOR Galileo ring light to capture photos and videos remotely, without needing to touch the smartphone, thanks to its Bluetooth selfie function.

5.3 USB Fast-Charging Port

The GLAMCOR Galileo ring light features a built-in USB fast-charging port. You can use this port to charge your smartphone or other USB-powered devices while using the light, ensuring your devices remain powered during extended sessions.

6. การบำรุงรักษา

• การทำความสะอาด: Disconnect the power supply before cleaning. Use a soft, dry, lint-free cloth to wipe the surfaces of the ring light and stand. Do not use abrasive cleaners, solvents, or harsh chemicals.
• พื้นที่จัดเก็บ: When not in use, fold the ring light and collapse the stand. Store all components in the provided travel-friendly carry bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• การจัดการ: Always handle the ring light and its components with care to avoid damage to the LED array or mechanical parts.

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

GLAMCOR products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official GLAMCOR website. If you encounter any issues or require technical assistance, please contact GLAMCOR customer support through their official channels. Please have your product model and ASIN (B0CTR7GTV7) ready when contacting support.

หากต้องการข้อมูลเพิ่มเติม โปรดเยี่ยมชม Glamcor Store on Amazon.
