คู่มือการใช้งานกล้องจุลทรรศน์แบบตาเดียว BEBANG WX-C03-652 พร้อมไฟ LED คู่

1. บทนำ

This manual provides detailed instructions for the proper setup, operation, and maintenance of your BEBANG WX-C03-652 Monocular Dual LED Microscope. Designed for educational and laboratory use, this microscope offers a wide range of magnifications and features to explore the microscopic world. Please read this manual thoroughly before using the microscope to ensure optimal performance and longevity.

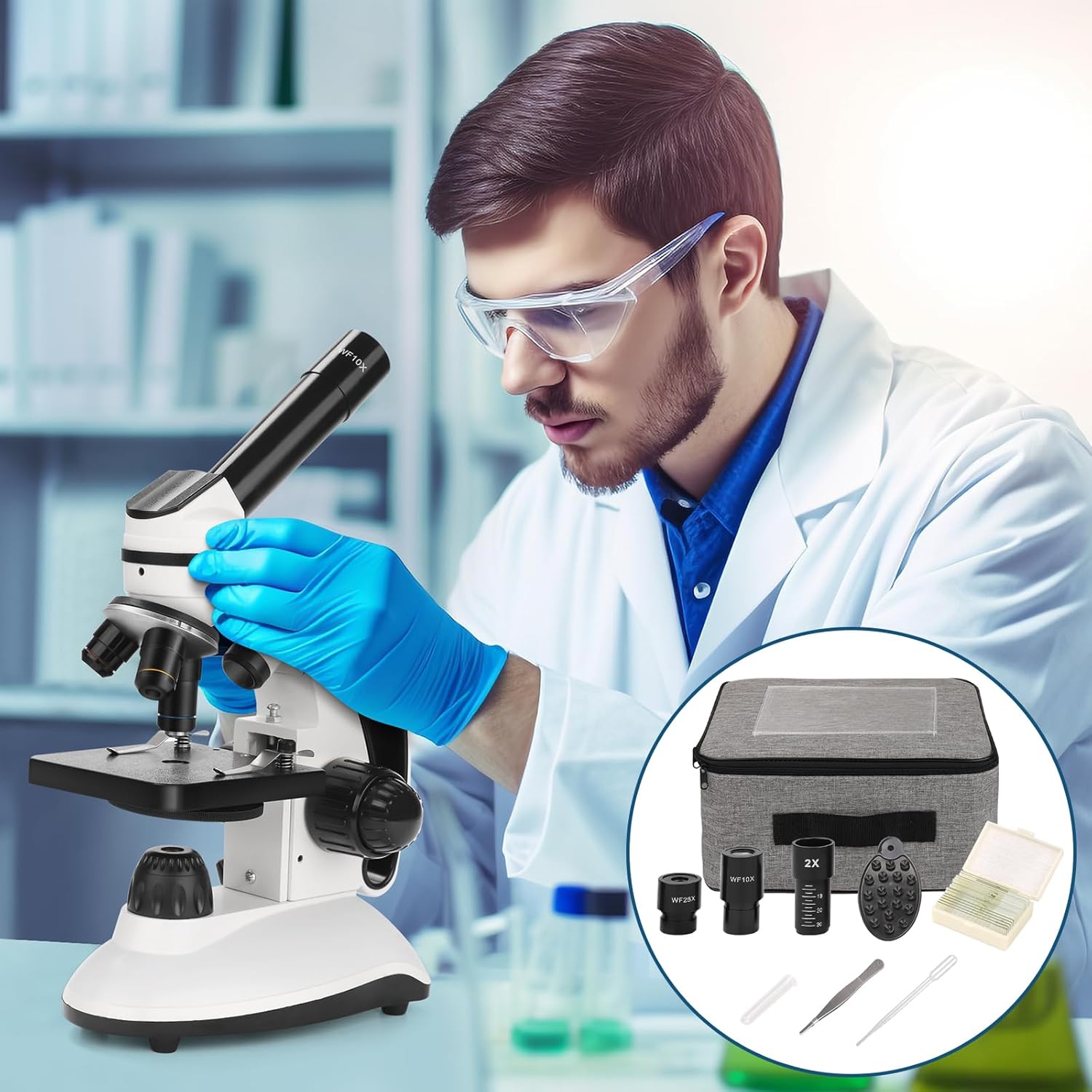

The BEBANG WX-C03-652 Monocular Dual LED Microscope, shown with its various accessories including eyepieces, Barlow lens, and slide kits.

2. สินค้าหมดview และส่วนประกอบ

Familiarize yourself with the main parts of your microscope before operation.

Diagram illustrating the main components of the BEBANG microscope.

1. เลนส์สายตา
2. หัวตาข้างเดียว
3. Stage
4. Top LED Illuminator
5. เลนส์วัตถุ
6. Filter Circle
7. Bottom LED Illuminator
8. LED Brightness Switch
9. ปุ่มปรับโฟกัสแบบหยาบและละเอียด
10. ช่องใส่แบตเตอรี่
11. อินเทอร์เฟซไฟฟ้ากระแสสลับ

3. คำแนะนำในการตั้งค่า

3.1 การแกะกล่อง

Carefully remove all components from the packaging. Inspect for any damage. Keep all packaging materials for future storage or transport.

3.2 การเชื่อมต่อสายไฟ

The microscope can be powered via the included AC adapter or by batteries (not included). Connect the AC adapter to the AC Power Interface (11) and a suitable power outlet. Alternatively, open the Battery Compartment (10) and insert the required batteries, ensuring correct polarity.

3.3 การติดตั้งเลนส์ใกล้ตา

Insert the desired eyepiece (WF10X or WF25X) into the Monocular Head (2). If using the 2x Barlow lens, insert it into the monocular head first, then insert the eyepiece into the Barlow lens.

3.4 Objective Lens Selection

Rotate the revolving nosepiece to select the 4X objective lens (5) for initial viewing. The objective lenses are 4X, 10X, and 40X.

4. คู่มือการใช้งาน

4.1 การปรับกำลังขยาย

The total magnification is calculated by multiplying the eyepiece magnification by the objective lens magnification, and then by the Barlow lens magnification if used. The microscope offers 10 levels of magnification from 40x to 2000x.

• เลนส์สายตา: WF10X, WF25X
• เลนส์วัตถุ: 4X, 10X, 40X
• เลนส์บาร์โลว์: 2X (ตัวเลือก)

เช่นampเลอ:

• WF10X Eyepiece + 4X Objective = 40X
• WF10X Eyepiece + 40X Objective + 2X Barlow Lens = 800X
• WF25X Eyepiece + 40X Objective + 2X Barlow Lens = 2000X

Visual guide to calculating total magnification with different eyepiece and objective lens combinations.

4.2 Illumination Control

The microscope features a dual LED illumination system with adjustable brightness.

• Top LED Illuminator (4): Suitable for opaque objects (e.g., hair, fabric, leaves).
• Bottom LED Illuminator (7): Suitable for translucent specimens on slides.

Use the LED Brightness Switch (8) to adjust the intensity of the light source. Select the appropriate illuminator based on your specimen type for clear viewการไอเอ็นจี

Illustration of the dual LED illumination system, showing top and bottom light sources and brightness control.

4.3 การโฟกัส

Place your prepared slide on the Stage (3). Use the Coarse Focus Knob (9) to bring the specimen into approximate focus. Then, use the Fine Focus Knob (9) for precise adjustments to achieve a sharp, clear image.

4.4 การใช้งานอะแดปเตอร์โทรศัพท์

The included phone adapter allows you to attach your smartphone to the eyepiece for viewing, capturing photos, or recording videos of your observations. Securely attach your phone to the adapter, then place the adapter over the eyepiece. Adjust your phone's camera to align with the eyepiece for the best view.

The BEBANG microscope with a smartphone attached via the phone adapter, demonstrating its use for digital viewการไอเอ็นจี

4.5 Slide Preparation

The microscope comes with 10 prepared specimen slides and 5 blank slides. For blank slides, place a thin, transparent specimen in the center, add a drop of water or mounting medium, and cover with a coverslip. Ensure there are no air bubbles for optimal viewการไอเอ็นจี

Included accessories: a set of prepared specimen slides and blank slides for observation.

5. การบำรุงรักษา

• การทำความสะอาดเลนส์: Use a soft, lint-free lens tissue and a specialized lens cleaning solution to clean objective lenses and eyepieces. Avoid touching optical surfaces with bare hands.
• การทำความสะอาดร่างกาย: เช็ดตัวกล้องจุลทรรศน์ด้วยผ้าเนื้อนุ่มและแห้งamp ผ้า. อย่าใช้สารเคมีที่รุนแรงหรือน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อน
• พื้นที่จัดเก็บ: When not in use, cover the microscope with a dust cover (if available) and store it in a dry, dust-free environment. Remove batteries if storing for extended periods.
• การจัดการ: Always carry the microscope by its arm and base to ensure stability.

6 การแก้ไขปัญหา

• ไม่มีแสงสว่าง: Check power connection or battery installation. Ensure the LED Brightness Switch is turned on and adjusted.
• ภาพไม่ชัด: Adjust the Coarse and Fine Focus Knobs. Ensure the specimen is properly prepared and positioned on the stage. Check if the correct objective lens is selected and fully clicked into place.
• Dark Field of View: Ensure the illuminator is on and adjusted. Check if the diaphragm (Filter Circle) is open sufficiently.
• ฝุ่นบนเลนส์: Use a blower brush or lens tissue to gently remove dust from eyepieces and objective lenses.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

BEBANG provides quality warranty service for this product. For specific warranty details, including duration and coverage, please refer to the documentation included with your purchase or contact BEBANG customer support directly. For technical assistance or inquiries, please visit the official BEBANG webเว็บไซต์หรือติดต่อฝ่ายบริการลูกค้าของพวกเขา
