คู่มือการใช้งานเครื่องชาร์จแบตเตอรี่อัจฉริยะ Baseus 240W USB C

1. สินค้าหมดview

The Baseus 240W Smart USB C Charger is a versatile 5-port desktop charging station designed for efficient power delivery to multiple devices simultaneously. It features PD 3.1 and GAN technology, an LED display, and smart app control, making it suitable for charging laptops, smartphones, tablets, and other USB-C compatible devices.

Figure 1: Baseus 240W Smart USB C Charger and its accompanying cables.

คุณสมบัติหลัก:

• Compact 5-Port 240W Desktop Charger: Combines AC adapters with USB-C adapters in a compact design.
• Simultaneous Laptop Fast-Charging: Supports 140W PD3.1 for one laptop and 100W PD3.0 for another simultaneously.
• Unique One-Touch Display and App Control: Features an edge-to-edge display and remote control via the Baseus smart app.
• Intelligent Core with Extensive Safety: Utilizes an upgraded Baseus chip with advanced cooling technology (glue-fill and Graphene) and 9 protective charging protocols.

2. อะไรอยู่ในกล่อง

ตรวจสอบว่ารายการทั้งหมดที่ระบุไว้ด้านล่างนี้รวมอยู่ในแพ็คเกจของคุณ:

• 1 x 240W 5-Port GaN Charger
• 1 x 240W USB-C Charging Cable
• 1 x Square Tip DC Adapter
• 2 x Round Tip DC Adaptors

Figure 2: The 5-port layout of the charger, including DC, USB-C, and USB-A ports.

3. คู่มือการติดตั้ง

1. เชื่อมต่อกับพลังงาน: Plug the charger's power cable into a standard AC wall outlet. The LED display on the charger should illuminate.
2. ระบุพอร์ต: The charger features 3 USB-C ports, 1 USB-A port, and 1 DC port. Identify the appropriate port for your device.
3. เชื่อมต่ออุปกรณ์:
   • For USB-C devices (laptops, phones, tablets): Use the provided 240W USB-C to USB-C cable or another compatible USB-C cable.
   • For DC-powered laptops: Select the appropriate round tip or square tip DC adapter and connect it to the charger's DC port, then to your laptop. Refer to Figure 8 for connector compatibility.
   • For USB-A devices: Use a standard USB-A cable.
4. การตรวจสอบการแสดงผลเบื้องต้น: Upon connecting a device, the LED display will show the real-time wattage output for each active port and a total wattage.
5. Smart App Setup (Optional):
   • Download the Baseus smart app from your device's app store.
   • เปิดใช้งานบลูทูธบนสมาร์ทโฟนของคุณ
   • Open the app and follow the on-screen instructions to pair with your charger. This allows for remote control, temperature monitoring, and custom charging profiles.

Figure 3: Illustrates simultaneous fast charging of two laptops.

Figure 4: The Baseus smart app interface for customizing charging settings.

4. คู่มือการใช้งาน

4.1 ทำความเข้าใจเกี่ยวกับจอแสดงผล LED

The integrated LED display provides real-time information about the charging status:

• Individual Port Wattage: Shows the power output (in Watts) for each connected device.
• รวมวัดtage: Displays the combined power output of all active ports.
• ปุ่มสัมผัส: A touch-sensitive area on the display allows for interaction, such as cycling through display modes or activating certain functions (refer to app for full control).

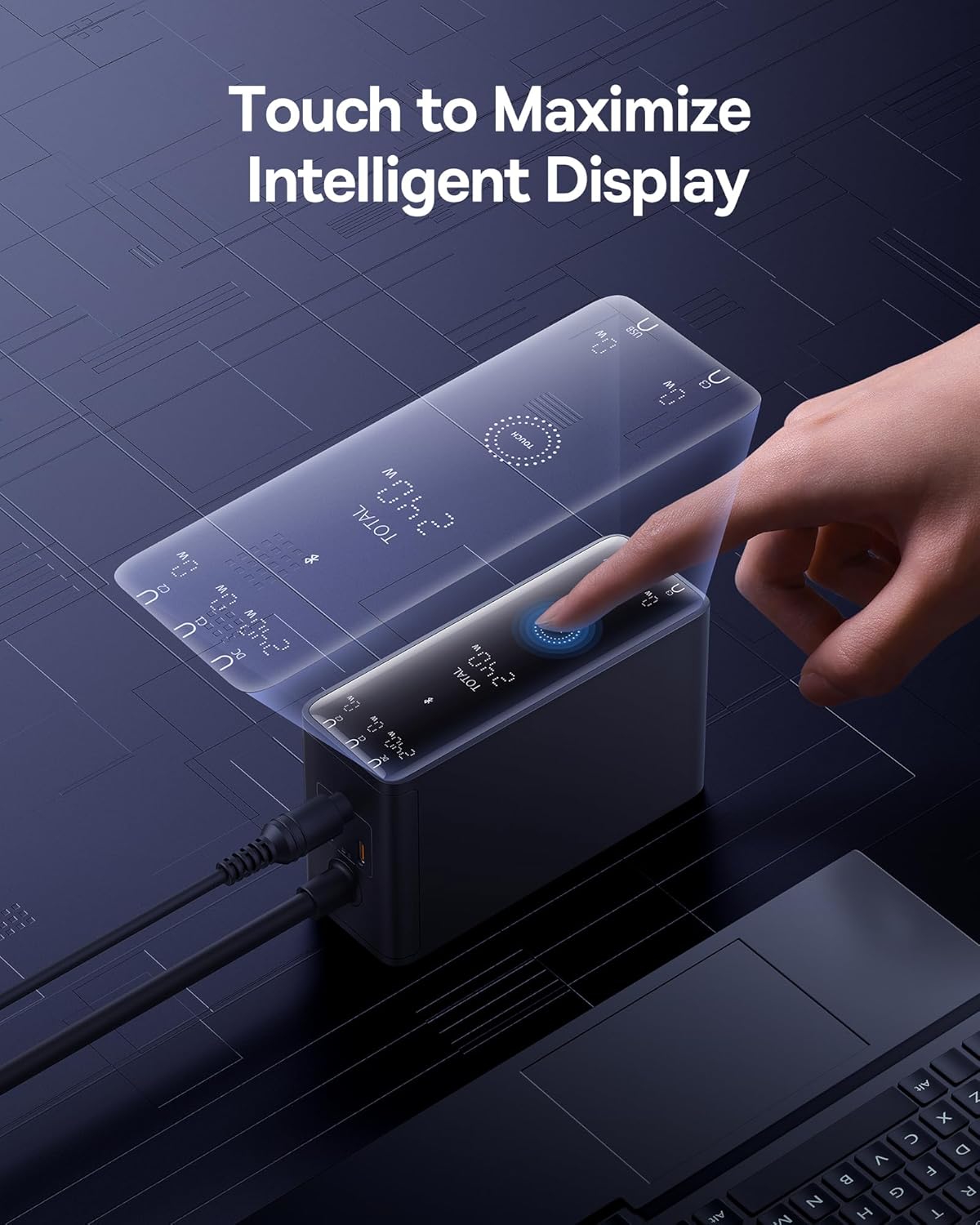

Figure 5: Interacting with the charger's intelligent touch display.

4.2 การชาร์จอุปกรณ์หลายเครื่อง

The charger is designed to intelligently distribute power across its 5 ports. When multiple devices are connected, the power output to each port may adjust based on the device's power requirements and the charger's total available wattagอี(240วัตต์)

• การชาร์จแล็ปท็อป: The charger can fast-charge two laptops simultaneously, with one USB-C port supporting up to 140W (PD3.1) and another up to 100W (PD3.0).
• Mixed Device Charging: You can charge a combination of laptops, tablets, smartphones, and other USB-powered devices. The charger's intelligent chip will optimize power delivery.

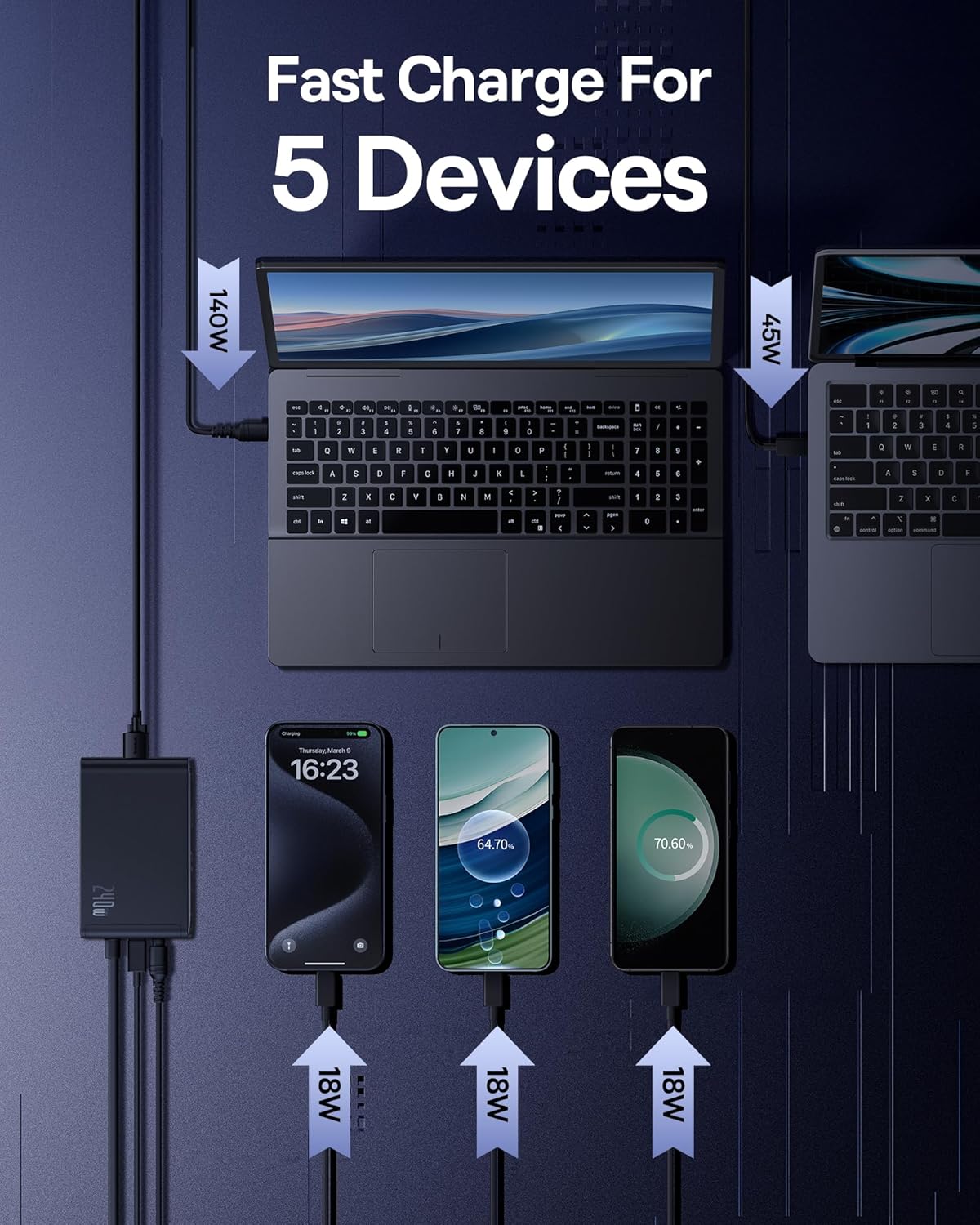

รูปที่ 6: อดีตample of charging five devices simultaneously with optimized power distribution.

4.3 Connector Compatibility

The charger includes various DC adapters to ensure compatibility with a wide range of laptops. Always verify the shape and dimensions of your device's charging port before connecting.

Figure 7: Guide to different DC and USB-C connector types for compatibility.

5. ข้อมูลจำเพาะ

6. การบำรุงรักษา

To ensure the longevity and optimal performance of your Baseus 240W Smart USB C Charger, follow these maintenance guidelines:

• การทำความสะอาด: Disconnect the charger from the power outlet and all devices before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or abrasive materials.
• พื้นที่จัดเก็บ: เก็บที่ชาร์จไว้ในที่เย็นและแห้ง ห่างจากแสงแดดโดยตรงและอุณหภูมิที่สูงหรือต่ำเกินไป
• การดูแลสายเคเบิล: Avoid bending or crimping cables excessively, especially near the connectors, to prevent damage.
• การระบายอากาศ : Ensure the charger is placed in an area with adequate ventilation to prevent overheating. Do not cover the charger during operation.

Figure 8: Internal cooling technologies designed for efficient heat dissipation.

7 การแก้ไขปัญหา

8. การรับประกันและการสนับสนุน

Baseus products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Baseus webเว็บไซต์.

โปรดเก็บหลักฐานการซื้อของคุณไว้เพื่อเรียกร้องการรับประกัน
