คู่มือผู้ใช้เครื่องมือสำรวจ GNSS RTK รุ่น SingularXYZ Sfaira ONE Plus

1. บทนำ

The SingularXYZ Sfaira ONE Plus is a compact and highly efficient RTK GNSS survey equipment designed for professional surveying applications. It features a built-in IMU (Inertial Measurement Unit) allowing for up to 60° tilt surveying, significantly increasing operational efficiency. This device tracks multiple satellite constellations including GPS, BDS, GLONASS, Galileo, and QZSS, ensuring accurate and reliable positioning data.

Its pocket-size portability and long 16-hour battery life make it suitable for extensive fieldwork. The Sfaira ONE Plus integrates seamlessly with Android-based field surveying software, providing a comprehensive solution for various surveying tasks.

Image: The SingularXYZ Sfaira ONE Plus RTK GNSS receiver, shown with its packaging, USB-C cable, power adapter, and a smartphone displaying the SingularPad software interface.

2. อะไรอยู่ในกล่อง

เมื่อเปิดบรรจุภัณฑ์ ตรวจสอบว่ามีส่วนประกอบทั้งหมดดังต่อไปนี้:

• Sfaira ONE Plus GNSS Receiver (1 unit)
• USB-Type C Cable (1 unit)
• SingularPad Software (1 unit - typically provided via USB drive or download link)
• Quick Start Guide & Card

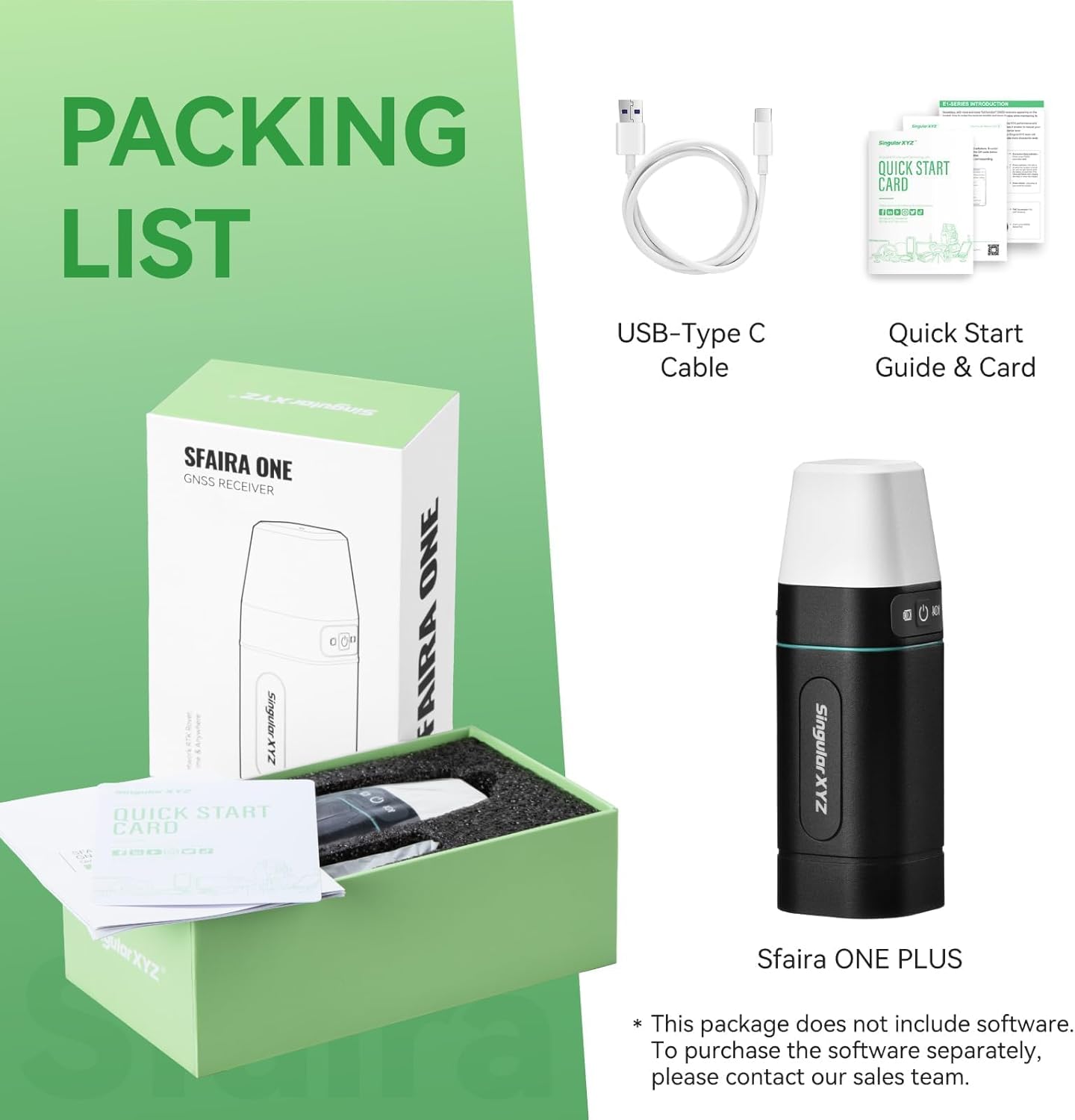

Image: A visual representation of the Sfaira ONE Plus packaging contents, including the receiver, USB-C cable, and quick start guide.

3. คุณสมบัติหลัก

• 60° Tilt Surveying: The built-in IMU allows for surveying with the pole tilted up to 60 degrees, eliminating the need for perfect vertical alignment and significantly increasing efficiency. This feature is immune to magnetic interference.
• Multi-Constellation GNSS Support: Tracks signals from GPS, BDS, GLONASS, Galileo, and QZSS satellite systems for robust and accurate positioning.
• ขนาดกะทัดรัดและพกพาสะดวก: Designed for ease of transport and use in various field conditions.
• อายุการใช้งานแบตเตอรี่ที่ยาวนานขึ้น: Provides up to 16 hours of continuous operation on a single charge.
• Fast Initialization: The tilt IMU function initializes quickly, typically within 5 seconds, by shaking the pole.

Image: A diagram demonstrating the 60-degree tilt surveying capability of the Sfaira ONE Plus, highlighting its built-in IMU and fast initialization.

ภาพ: อดีตamples of the Sfaira ONE Plus being used in challenging environments such as dense forests, near building corners, and areas with glass multi-path interference, demonstrating its strong anti-interference capabilities.

4. การสมัคร

The accurate coordinate, elevation, distance, and azimuth data provided by the Sfaira ONE Plus make it suitable for a wide range of professional applications, including but not limited to:

• Land Surveying
• GIS (Geographic Information Systems)
• Mine Surveying
• Topographic Survey
• Cadastral Survey
• Road Stakeout
• หุ่นยนต์

Image: The Sfaira ONE Network RTK Rover depicted in various application settings, such as urban construction, mountainous terrain, and open landscapes, illustrating its versatility.

5. SingularPad Field Surveying Software

The Sfaira ONE Plus operates in conjunction with the SingularPad field surveying software, an Android-based application. This software can be installed on smartphones, data collectors, and tablets, offering a flexible and powerful interface for your surveying needs. Software updates are regularly provided and available for free to all users.

5.1. คุณสมบัติของซอฟต์แวร์

SingularPad supports a wide array of surveying functions:

• การสำรวจจุด
• Detail Survey
• CAD Mapping
• CAD Stakeout
• Road Stakeout
• Surface Stakeout
• Layer Editing
• Volume Calculation
• Perimeter and Area Calculation
• การแปลภาษา
• Survey Range Settings

Image: A screenshot of the SingularPad software interface on a smartphone, displaying various surveying functions and a map view.

5.2. การติดตั้งซอฟต์แวร์

The necessary software is typically provided on a USB drive. Copy and install it onto your Android phone, tablet, or data collector before proceeding with the configuration and operation of the Sfaira ONE Plus.

Image: A SingularXYZ branded USB drive next to a smartphone displaying the SingularPad software, indicating the method of software installation.

5.3. รองรับ File รูปแบบ

The SingularPad software supports a wide range of file formats for import and export, ensuring compatibility with various surveying workflows and other software platforms. Common supported formats include:

• XLS (Microsoft Excel Spreadsheet)
• CSV (Comma Separated Values)
• NCN (Nikon Coordinate File)
• DXF (Drawing Exchange Format)
• CSX (Carlson Survey Exchange)
• DAT (Data File)
• HTML (HyperText Markup Language)
• SHP (ESRI Shapefile)
• CRD (Coordinate File)
• KML (Keyhole Markup Language)
• PXY (Point XY File)
• KMZ (Keyhole Markup Language Zipped)
• GPX (GPS Exchange Format)
• JPG (JPEG Image)
• TXT (Plain Text File)

Image: A circular diagram illustrating the various supported file formats for import and export within the SingularPad software.

6. คู่มือการติดตั้งและการใช้งาน

This section outlines the general steps to set up and operate your Sfaira ONE Plus for surveying tasks. For detailed instructions, refer to the SingularPad software manual.

6.1. Work Mode: RTK Rover + CORS Account

The Sfaira ONE Plus typically operates as an RTK Rover, receiving corrections from a CORS (Continuously Operating Reference Station) account. A CORS account is not included with the product and must be purchased from your local CORS provider.

Image: A diagram illustrating the components of an RTK Rover setup, including the GPS rover, range pole, data controller/phone/tablet, and the connection to a CORS account.

6.2. คู่มือเริ่มต้นอย่างรวดเร็ว

Follow these steps to begin surveying with your Sfaira ONE Plus:

1. Step 1: Device Connection via Bluetooth

   Connect the Sfaira ONE Plus receiver to your Android phone, tablet, or data collector via Bluetooth. Ensure Bluetooth is enabled on both devices and pair them through the SingularPad software.



   Image: A sequence of screenshots demonstrating the process of connecting the Sfaira ONE Plus to a mobile device via Bluetooth within the SingularPad application.

2. Step 2: Create a New Project & Set Coordinate Systems

   Within the SingularPad software, create a new project. Configure the project settings, including selecting the appropriate coordinate system for your survey area. You can choose from predefined projections or define custom ones.



   Image: A series of screenshots guiding the user through creating a new project and setting up coordinate systems in the SingularPad software.
3. Step 3: Log in to RTK Correction Service Account (CORS Account)

   Access the Rover settings in SingularPad. Configure the data link to use your phone's internet connection or connect to your RTK base station in GSM mode. Enter your CORS account details (server IP, port, username, password) to receive RTK corrections. Select the appropriate MountPoint from your account.



   Image: Screenshots detailing the process of logging into an RTK correction service (CORS) account within the SingularPad application.



   Image: A screenshot showing the selection of a MountPoint within the SingularPad software for RTK correction services.
4. Step 4: Initialize Tilt IMU Function & Start Surveying

   Once connected and receiving corrections, initialize the tilt IMU function by gently shaking the survey pole for approximately 5 seconds. This calibrates the IMU for accurate tilt compensation. Verify that the RTK status changes to "FIXED" in the software, indicating a stable and accurate solution. You can also view the number of satellites being tracked. With a FIXED solution, you can begin your surveying tasks with centimeter-level accuracy.



   Image: Screenshots illustrating how to check the RTK status for a "FIXED" solution and access the surveying functions within the SingularPad software.

Image: A comprehensive flowchart outlining the quick start process for Sfaira ONE surveying, from project creation to data export.

7. ข้อมูลจำเพาะ

8. การบำรุงรักษา

Proper maintenance ensures the longevity and optimal performance of your Sfaira ONE Plus GNSS receiver. Follow these general guidelines:

• การทำความสะอาด: เช็ดอุปกรณ์ด้วยผ้านุ่มๆ เป็นประจำamp ผ้า หลีกเลี่ยงการใช้สารเคมีรุนแรงหรือวัสดุขัดถูที่อาจทำให้ผ้าเสียหายได้asing หรือเซ็นเซอร์
• พื้นที่จัดเก็บ: When not in use, store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is charged to approximately 50% for long-term storage.
• การดูแลแบตเตอรี่ Avoid fully discharging the battery frequently. Charge the device using only the provided USB-Type C cable and a compatible power adapter.
• การตรวจร่างกาย: Periodically inspect the device for any signs of damage, such as cracks, loose connections, or debris in ports.
• การอัปเดตซอฟต์แวร์: Keep the SingularPad software updated to the latest version to benefit from performance improvements and new features.

9 การแก้ไขปัญหา

This section provides general guidance for common issues. For more specific problems, refer to the SingularPad software's help section or contact technical support.

• Device Not Connecting via Bluetooth:
  • Ensure the Sfaira ONE Plus is powered on and within range.
  • ตรวจสอบว่าบลูทูธได้เปิดใช้งานบนอุปกรณ์มือถือของคุณแล้ว
  • Try restarting both the Sfaira ONE Plus and your mobile device.
  • Check if the device is already paired with another mobile device.
• No RTK Fixed Solution:
  • Confirm your CORS account details (IP, port, username, password) are correctly entered in SingularPad.
  • ตรวจสอบให้แน่ใจว่าอุปกรณ์เคลื่อนที่ของคุณมีการเชื่อมต่ออินเทอร์เน็ตที่เสถียร
  • Check the status of your CORS service.
  • Ensure clear sky visibility for the GNSS receiver. Obstructions can affect signal reception.
• IMU Tilt Function Not Initializing:
  • Ensure you are shaking the pole sufficiently for about 5 seconds as instructed.
  • Verify that the IMU function is enabled in the SingularPad software settings.
• ซอฟต์แวร์ขัดข้องหรือหยุดทำงาน:
  • Ensure your SingularPad software is the latest version.
  • Clear the app cache on your Android device.
  • Ensure your Android device meets the minimum system requirements for the software.

10. ข้อมูลการรับประกัน

The SingularXYZ Sfaira ONE Plus RTK GNSS Survey Equipment comes with a การรับประกันจากผู้ผลิต 1 ปีการรับประกันนี้ครอบคลุมข้อบกพร่องด้านวัสดุและฝีมือการผลิตภายใต้การใช้งานปกติ โปรดเก็บหลักฐานการซื้อไว้เพื่อขอรับสิทธิ์การรับประกัน

For detailed warranty terms and conditions, please refer to the documentation included with your product or contact SingularXYZ customer support.

11. การสนับสนุนด้านเทคนิค

Should you require technical assistance or have questions regarding your Sfaira ONE Plus, SingularXYZ offers comprehensive support:

• คู่มือผู้ใช้: Refer to the detailed manual included in the product package.
• การสนับสนุนทางอีเมล์: Contact SingularXYZ technical support via email for assistance.
• เป็นทางการ Webเว็บไซต์: เยี่ยมชม เอกพจน์XYZ webเว็บไซต์ สำหรับข้อมูลผลิตภัณฑ์ คำถามที่พบบ่อย และรายละเอียดการติดต่อ
• Video Conference Guidance: SingularXYZ also offers video conference guidance to help users get started and resolve issues.
• วิดีโอสอน: Access tutorial videos for easy setup and operation.

12. วิดีโอผลิตภัณฑ์

The following videos provide visual demonstrations of the Sfaira ONE Plus and its features. Please note these are short preview วิดีโอ
