1. บทนำ
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Dapper Supply DP-FS1102 Walk-Behind Outdoor Floor Sweeper. Please read this manual thoroughly before first use and retain it for future reference.
2. ข้อมูลด้านความปลอดภัย
- Always operate the sweeper on stable, level ground.
- ให้มือและเท้าอยู่ห่างจากชิ้นส่วนที่กำลังเคลื่อนไหวในระหว่างการทำงาน
- Do not use the sweeper to pick up hazardous materials, liquids, or hot debris.
- Ensure the waste container is properly secured before operation.
- Store the sweeper in a dry, secure location away from children.
3. สินค้าหมดview
The Dapper Supply DP-FS1102 is a human-powered push sweeper designed for efficient cleaning of outdoor hard surfaces. It features a 10.5-gallon waste container and a 36-inch sweeping width.

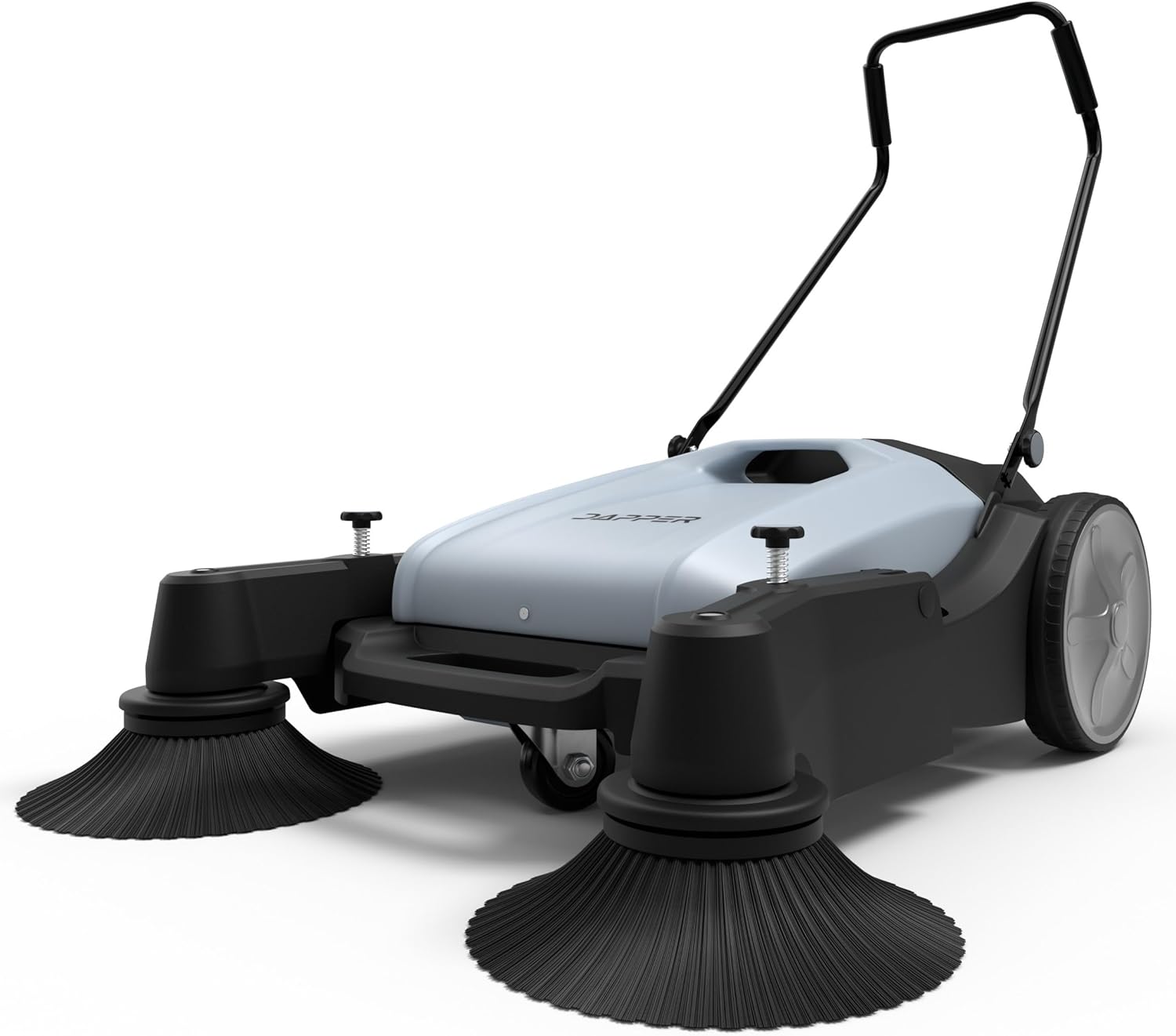

รูปที่ 1 : ด้านหน้า view of the Dapper Supply DP-FS1102 sweeper. This image displays the overall design of the sweeper, including its handle, main body, and side brushes.
ส่วนประกอบหลัก:
- รับมือ: For pushing and maneuvering the sweeper.
- แปรงด้านข้าง: Two rotating brushes at the front to gather debris.
- แปรงหลัก: Located underneath, sweeps debris into the container.
- ถังขยะ: Collects swept debris.
- ล้อ: Provide mobility and power the brushes.
4. การติดตั้งและการประกอบ
The Dapper Supply DP-FS1102 requires minimal assembly. Follow these steps to prepare your sweeper for use:
- ติดที่จับ: Secure the handle to the main body of the sweeper using the provided fasteners. Ensure it is firmly attached for safe operation.
- ติดตั้งแปรงด้านข้าง: The two side brushes attach to the front arms of the sweeper. Align the brush with the spindle and secure it according to the instructions.
- Position Waste Container: Place the 10.5-gallon waste container securely into its designated slot at the rear of the sweeper.
Figure 2: This image illustrates the sweeper with its main components, including the handle, side brushes, and waste container, ready for assembly.
5. คู่มือการใช้งาน
Operating your Dapper Supply sweeper is straightforward. Follow these guidelines for optimal performance:
- Adjust Brush Height: For optimal sweeping, adjust the height of the brushes to suit the surface and debris type. The brushes should lightly touch the surface.
- Push the Sweeper: Grip the handle firmly and push the sweeper forward at a steady walking pace. The wheels will drive the brushes, collecting debris into the container.
- การผ่านแบบทับซ้อน: For thorough cleaning, overlap each sweeping pass slightly to ensure no areas are missed.
- Empty Waste Container: Once the container is full, carefully remove it and empty the debris into a suitable receptacle. Reinsert the container securely before continuing.
Video 1: This video demonstrates the Dapper Supply Floor Sweeper in action, showcasing its effectiveness in collecting debris from various surfaces.
Video 2: This video shows an industrial walk-behind hand push sweeper, similar to the Dapper Supply model, effectively cleaning a large area.
6. การบำรุงรักษา
Regular maintenance ensures the longevity and performance of your sweeper:
- แปรงทำความสะอาด: Periodically inspect and clean the side and main brushes to remove any tangled debris or hair.
- Empty and Clean Container: Always empty the waste container after each use and rinse it if necessary to prevent odor and buildup.
- ตรวจสอบการสึกหรอ: Regularly check brushes and wheels for signs of wear. Replace worn parts as needed to maintain sweeping efficiency.
- พื้นที่จัดเก็บ: Store the sweeper in a dry, covered area to protect it from the elements. The handle can be folded for compact storage.
รูปที่ 3: ด้านหนึ่ง view of the Dapper Supply sweeper, illustrating the position of the brushes and wheels for easy inspection and maintenance.
7 การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ประสิทธิภาพการกวาดไม่ดี | Brushes worn or clogged; incorrect brush height. | Clean or replace brushes; adjust brush height. |
| Debris not collecting | Waste container full or improperly seated. | Empty and re-seat waste container. |
| Difficulty pushing | Wheels or brushes obstructed. | Clear any obstructions from wheels and brushes. |
8. ข้อมูลจำเพาะ
- หมายเลขรุ่น: DP-FS1102
- ความกว้างของการกวาด: 36 นิ้ว
- ความจุถังขยะ: 10.5 แกลลอน
- Sweeping Speed: Up to 39,500 sq ft/hour
- ระดับเสียง: 42dB (motorless operation)
- น้ำหนักสินค้า: 45 ปอนด์
- ขนาดสินค้า : 48 x 37 x 40 นิ้ว
9. การรับประกันและการสนับสนุน
The Dapper Supply DP-FS1102 is covered by a รับประกันจำกัด 1 ปี. For warranty claims, technical support, or replacement parts, please contact Dapper Supply customer service. Refer to your purchase documentation for contact details.
Dapper Supply is committed to providing high-quality products and support.
