XIBANY KT-15A Brushless Motor Controller User Manual

1. บทนำ

This manual provides detailed instructions for the installation, operation, and maintenance of your XIBANY KT-15A Brushless Motor Controller. Designed for 250W brushless motors, this controller is compatible with 36V and 48V systems, making it suitable for various electric bicycle and scooter applications. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. ข้อมูลด้านความปลอดภัย

ปฏิบัติตามข้อควรระวังด้านความปลอดภัยต่อไปนี้เสมอเพื่อป้องกันการบาดเจ็บหรือความเสียหายต่อผลิตภัณฑ์:

• ความปลอดภัยทางไฟฟ้า: Ensure all power is disconnected before attempting any installation, wiring, or maintenance. Incorrect wiring can cause damage to the controller, motor, or battery, and poses a risk of electric shock.
• เล่มที่tagความเข้ากันได้: ตรวจสอบให้แน่ใจว่าระดับแบตเตอรี่ของคุณอยู่ในระดับที่เหมาะสมtage (36V or 48V) matches the controller's rated voltagจ. การใช้ฉบับที่เข้ากันไม่ได้tage can lead to severe damage.
• การติดตั้งโดยมืออาชีพ: If you are unsure about any part of the installation process, seek assistance from a qualified technician.
• สภาพแวดล้อม : Protect the controller from water, excessive moisture, and extreme temperatures. While the casing ให้การปกป้องในระดับหนึ่ง แต่ไม่กันน้ำได้อย่างสมบูรณ์
• การติดตั้งที่ปลอดภัย: Mount the controller securely to prevent vibrations and physical damage during operation.

3. สินค้าหมดview

The XIBANY KT-15A controller is designed for efficient power management in electric drive systems. It features a robust aluminum casing for heat dissipation and various connectors for seamless integration with your e-bike or scooter components.

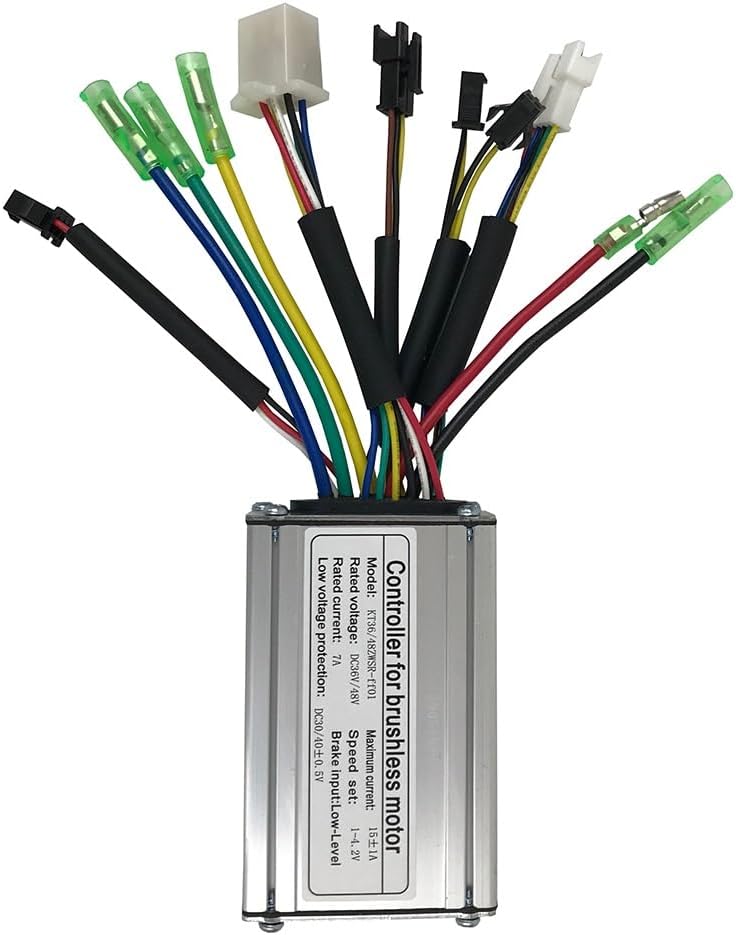

รูปที่ 3.1: ด้านบน view of the XIBANY KT-15A Brushless Motor Controller, showing the main unit and its array of colored wires with various connectors.

คุณสมบัติหลัก:

• Applicable to KT series motors.
• อะลูมิเนียมที่ทนทานasing for effective heat dissipation.
• Supports DC36V/48V rated voltage.
• Maximum current: 15±1A.
• ปริมาณต่ำtage protection: DC30/40±0.5V.
• SM interface connectors for easy installation.

รูปที่ 3.2: ระยะใกล้ view of the controller's label, detailing model number, rated voltage, maximum current, speed set, rated current, brake input, and low voltagการป้องกันอี

The label on the controller (Figure 3.2) provides essential technical specifications for quick reference during installation and troubleshooting.

4. การตั้งค่าและการติดตั้ง

This section outlines the general steps for installing the XIBANY KT-15A controller. Specific wiring configurations may vary based on your e-bike or scooter model. Always refer to your motor and display unit manuals for detailed wiring diagrams.

4.1 รายการตรวจสอบก่อนการติดตั้ง:

• Ensure the battery is fully charged and disconnected.
• Confirm compatibility with your 250W brushless motor and KT series components.
• Gather necessary tools (e.g., screwdrivers, wire cutters, electrical tape).

4.2 การเชื่อมต่อสายไฟ:

The controller features multiple color-coded wires with SM interface connectors. Connect them according to the following general guidelines. Always match colors and connector types.

รูปที่ 4.1: มุม view of the controller, highlighting the different wire bundles and their connectors, which include power, motor phase, Hall sensor, throttle, and brake connections.

1. สายเฟสมอเตอร์: Connect the three thick wires (typically green, blue, yellow) from the controller to the corresponding phase wires of your brushless motor.
2. สายเซนเซอร์ฮอลล์: Connect the smaller five-wire connector (typically red, black, yellow, green, blue) to the motor's Hall sensor connector. Ensure correct polarity (red to positive, black to negative).
3. พลังงานแบตเตอรี่: Connect the thick red wire (positive) and thick black wire (negative) from the controller to your battery pack. Double-check polarity before connecting.
4. Throttle/Accelerator: Connect the throttle unit to the designated connector (often a three-wire connector).
5. คันเบรก: Connect the brake lever wires to the controller's brake input connectors. This controller uses a low-level brake input.
6. Display/PAS (Pedal Assist Sensor): Connect any display unit or pedal assist sensor according to their respective manuals. The controller is designed to work with KT series displays and PAS sensors.

After making all connections, secure any loose wires and ensure they are protected from abrasion or pinching. Mount the controller in a location that allows for adequate airflow and protection from environmental elements.

5. คู่มือการใช้งาน

Once the controller is correctly installed and all connections are secure, you can begin operating your e-bike or scooter.

• เปิดเครื่อง: Turn on your e-bike's main power switch (usually on the battery or display unit). The display (if connected) should illuminate.
• การควบคุมความเร็ว: Use the throttle or pedal assist system to control the motor's speed. The speed setting range is 1-4.2V, corresponding to the throttle input.
• การเบรก: Engaging the brake levers will cut power to the motor, providing a safety feature.
• การติดตาม: If a display unit is connected, monitor battery level, speed, and other parameters as provided by your display.

Always start with low power settings or gentle throttle application to familiarize yourself with the system's response.

6. การบำรุงรักษา

Proper maintenance ensures the longevity and reliable performance of your XIBANY KT-15A controller.

• การตรวจสอบปกติ: Periodically check all wiring connections for looseness, corrosion, or damage. Ensure connectors are fully seated.
• การทำความสะอาด: Keep the controller casing clean and free from dust, dirt, and debris. Use a dry, soft cloth for cleaning. Avoid using water or chemical cleaners directly on the unit.
• การปกป้องสิ่งแวดล้อม: While riding, avoid deep puddles or heavy rain if the controller is not fully waterproof. Store your e-bike/scooter in a dry environment.
• การจัดการความร้อน: Ensure the controller's mounting location allows for adequate airflow to prevent overheating, especially during prolonged use or high power output.

7 การแก้ไขปัญหา

This section addresses common issues you might encounter with your controller.

หากปัญหายังคงมีอยู่หลังจากพยายามแก้ไขปัญหาเหล่านี้แล้ว โปรดติดต่อฝ่ายสนับสนุนลูกค้า

8. ข้อมูลจำเพาะ

Detailed technical specifications for the XIBANY KT-15A Brushless Motor Controller:

9. การรับประกันและการสนับสนุน

XIBANY products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding parts, please contact XIBANY customer service through the retailer's platform or the official XIBANY webเว็บไซต์ (ถ้ามี)

ข้อมูลติดต่อ:

• Webเว็บไซต์: www.อดีตample.com/xibany-support (Placeholder - please refer to actual product packaging or retailer for official support channels)
• อีเมล: support@xibany.com (Placeholder - please refer to actual product packaging or retailer for official support channels)
