Sofucor 76K001 BK DC THHTM 60 L S31

Sofucor 76 Inch Large Industrial Ceiling Fan User Manual

Model: 76K001 BK DC THHTM 60 L S31

แบรนด์: โซฟูคอร์

การแนะนำ

Thank you for choosing the Sofucor 76 Inch Large Industrial Ceiling Fan. This smart ceiling fan is designed to provide powerful airflow and versatile lighting for large indoor and outdoor spaces. Featuring a reversible DC motor, smart control options (remote, app, voice), and adjustable LED lighting, it offers comfort and convenience. This manual will guide you through the installation, operation, and maintenance of your new ceiling fan.

คุณสมบัติหลัก

  • 76-Inch Design: Ideal for large rooms up to 32ft x 32ft, providing substantial airflow with its 8 solid wood blades.
  • วิธีการควบคุมหลายวิธี: Seamlessly control your fan via the included remote, a dedicated mobile app, or voice commands through Alexa/Google Home.
  • มอเตอร์ DC แบบย้อนกลับ: Enjoy comfortable airflow in summer (downdraft mode) and improved heat circulation in winter (updraft mode). The DC motor offers 6 adjustable speeds and operates quietly.
  • ไฟ LED แบบปรับได้: Customize your lighting with 3 color temperatures (3000K Warm White, 4000K Natural White, 6000K Cool White) and 20-100% dimmable brightness.
  • การทำงานที่เงียบ: Engineered for minimal noise, operating at a low 35dB, comparable to falling leaves.
  • โครงสร้างทนทาน: Features solid wood blades and high-quality components for long-lasting performance.
  • การติดตั้งแบบยืดหยุ่น: Includes three down rods (5-inch, 10-inch, and 24-inch) to suit various ceiling heights.

เนื้อหาแพ็คเกจ

Please ensure all components are present and undamaged before beginning installation.

Sofucor 76 Inch Ceiling Fan with remote, app, and voice control options, showing included downrods.

รูปที่ 1: เกินview of the Sofucor 76-inch ceiling fan and its control accessories.

Close-up of the fan blades and motor housing, highlighting the solid wood construction and airflow capacity.

รูปที่ 2: รายละเอียด view of the fan's solid wood blades and motor housing.

โดยทั่วไปแพ็คเกจจะประกอบด้วย:

  • ชุดมอเตอร์พัดลม
  • ใบพัดลมไม้เนื้อแข็ง 8 ใบ
  • ตัวยึด
  • Downrods (5-inch, 10-inch, 24-inch)
  • ชุดไฟ LED
  • รีโมทคอนโทรลพร้อมขาติดผนัง
  • ตัวรับสัญญาณ
  • ชุดอุปกรณ์ฮาร์ดแวร์ (สกรู, ตัวเชื่อมสายไฟ ฯลฯ)
  • คู่มือการใช้งาน

การติดตั้งและการตั้งค่า

Installation requires basic electrical knowledge. If you are unsure, consult a qualified electrician. Always turn off power at the circuit breaker before beginning installation.

ขั้นตอนการติดตั้ง:

  1. เตรียมสถานที่ติดตั้ง: ตรวจสอบให้แน่ใจว่ากล่องไฟฟ้าบนเพดานติดตั้งอย่างแน่นหนาและสามารถรับน้ำหนักของพัดลมได้
  2. ติดตั้งตัวยึด: ติดตั้งขายึดเข้ากับกล่องไฟฟ้าบนเพดาน
  3. ประกอบใบพัด: Securely attach the solid wood blades to the fan motor assembly using the provided screws.
  4. ติดตั้ง Downrod: Select the appropriate downrod length and feed the fan's wires through it. Secure the downrod to the fan motor.
  5. ต่อสายพัดลม: Connect the fan's wiring to your household electrical wiring, ensuring proper grounding. Install the remote control receiver within the canopy.
  6. แขวนพัดลม: ยกและแขวนชุดพัดลมเข้ากับขายึดอย่างระมัดระวัง
  7. ติดตั้งชุดไฟ: Connect the LED light panel to the fan's wiring and secure the lampเงา
  8. คืนค่าพลัง: เมื่อต่อสายต่างๆ แน่นหนาดีแล้ว และประกอบพัดลมเสร็จสมบูรณ์แล้ว ให้เปิดไฟที่เบรกเกอร์อีกครั้ง

Video: Easy to install for our ceiling fan. This official seller video provides a visual guide to the installation process.

Diagram showing different downrod lengths and ceiling types (flat, sloped) for installation.

Figure 3: Multiple installation options with varying downrod lengths and ceiling types.

การใช้งานพัดลมของคุณ

Your Sofucor ceiling fan offers multiple convenient control methods.

วิธีการควบคุม:

  • รีโมทคอนโทรล: The included wireless remote allows you to turn the fan and light on/off, adjust fan speed (6 levels), change light color temperature, dim the light, and set timers. The remote can be mounted on the wall for easy access.
  • การควบคุมแอพมือถือ: Download the compatible app (e.g., Smart Life app) to control your fan from your smartphone or tablet. This offers advanced features like scheduling and more precise control.
  • การควบคุมด้วยเสียง: Integrate your fan with smart home assistants like Amazon Alexa or Google Home for hands-free operation.
Image showing the three control methods: voice control with Alexa/Google Home, phone app control, and remote control.

Figure 4: Three ways to control your Sofucor ceiling fan.

ฟังก์ชั่นพัดลม:

  • ความเร็วพัดลม: Choose from 6 speeds, ranging from a gentle breeze (Level 1-2) to a strong wind (Level 5-6).
  • ฟังก์ชั่นย้อนกลับ: Use the remote or app to switch between downdraft mode (summer) for cooling and updraft mode (winter) to circulate warm air.
  • การตั้งค่าตัวจับเวลา: Set the fan to automatically turn off after 1, 2, or 4 hours using the remote or app.

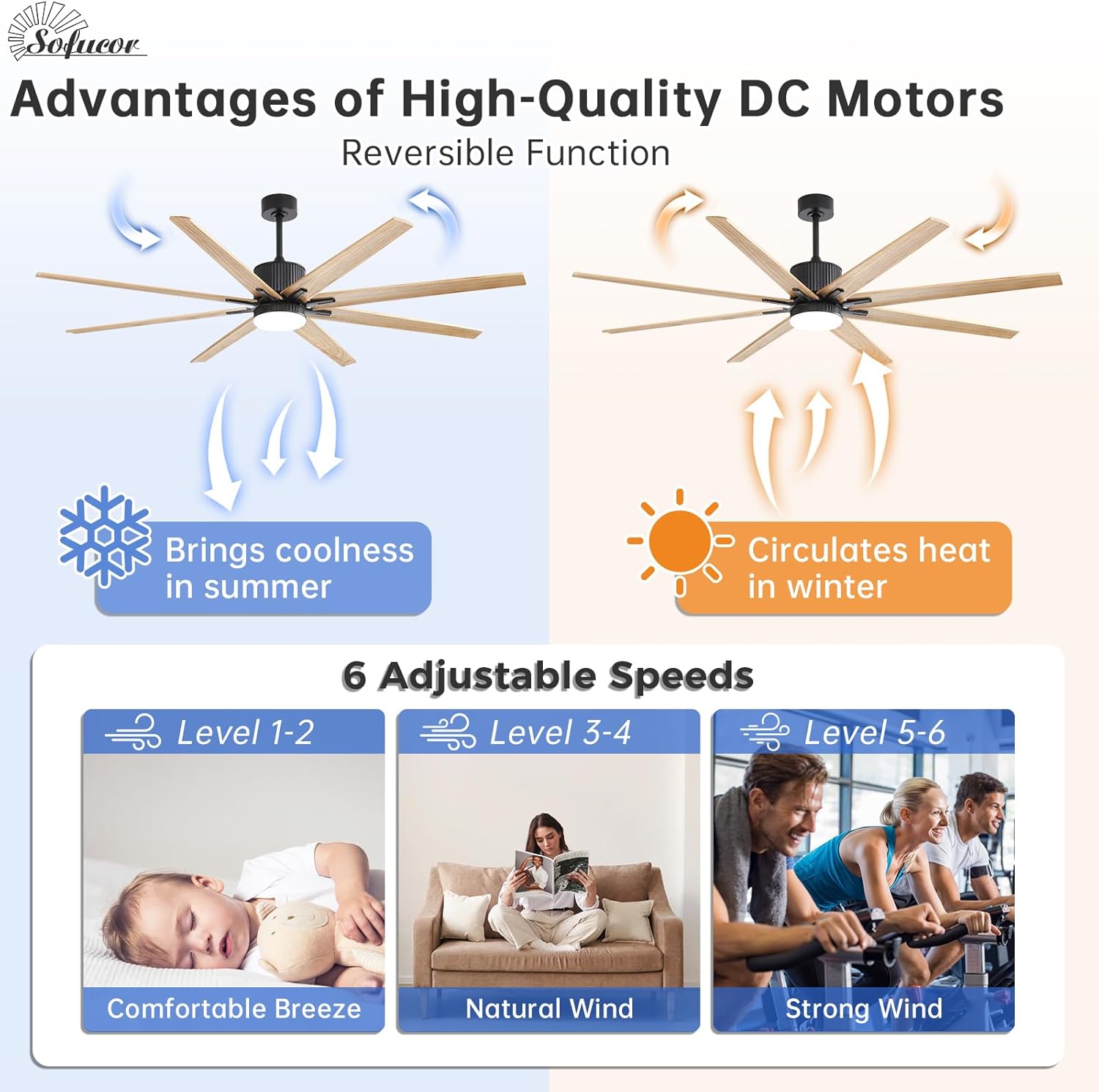

Diagram illustrating the reversible DC motor function for summer downdraft and winter updraft modes.

Figure 5: Reversible DC Motor function for year-round comfort.

ฟังก์ชั่นแสง:

  • อุณหภูมิสี: Select from Warm White (3000K), Natural White (4000K), or Cool White (6000K) to match your ambiance.
  • การปรับความสว่าง: Dim the light from 20% to 100% to create the perfect atmosphere.
Image showing the dimmable 18W LED light with three color temperature options: 3000K Warm Light, 4000K Natural Light, and 6000K Cool White.

Figure 6: Dimmable LED light with adjustable color temperatures.

การซ่อมบำรุง

การบำรุงรักษาตามปกติจะช่วยให้พัดลมเพดานของคุณมีอายุการใช้งานยาวนานและมีประสิทธิภาพเหมาะสมที่สุด

  • การทำความสะอาด: ปัดฝุ่นใบพัดลมและตัวเรือนมอเตอร์เป็นประจำด้วยผ้านุ่มๆamp ผ้า. หลีกเลี่ยงการใช้สารเคมีที่รุนแรงหรือน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อน
  • ขันสกรูให้แน่น: ควรตรวจสอบและขันสกรูทั้งหมดบนใบพัดพัดลมและอุปกรณ์ยึดให้แน่นเป็นระยะ เพื่อป้องกันการสั่นหรือเสียงดัง
  • ความสมดุลของใบมีด: If the fan wobbles, ensure all blades are securely attached and balanced. Balancing kits can be used if necessary.

การแก้ไขปัญหา

หากคุณพบปัญหาเกี่ยวกับพัดลม โปรดดูปัญหาทั่วไปและวิธีแก้ไขต่อไปนี้:

  • พัดลมไม่ทำงาน: Check the circuit breaker and wall switch to ensure power is supplied. Verify all wire connections are secure.
  • ไฟไม่ทำงาน: Ensure the light is turned on via the remote or app. Check the light kit's wiring connections.
  • รีโมตไม่ตอบสนอง: Replace the remote control battery. Ensure the receiver is properly installed and not obstructed.
  • Excessive Noise/Wobbling: Check that all blade screws and mounting bracket screws are tightened. Ensure blades are not bent or damaged.
  • พลัง Outagพฤติกรรม: If power is interrupted and restored, the fan light will typically turn back on, but the fan itself may remain off. Use the remote or app to restart the fan.

ข้อมูลจำเพาะ

คุณลักษณะค่า
ยี่ห้อโซฟูคอร์
ชื่อรุ่น76K001 BK DC THHTM 60 L S31
สีBlack+Burly Wood
ขนาดสินค้าลึก 34.6 นิ้ว x กว้าง 11.8 นิ้ว x สูง 15.2 นิ้ว
จำนวนใบมีด8
วัสดุใบมีดไม้แปรรูป
ประเภทมอเตอร์มอเตอร์ DC (หมุนได้สองทิศทาง)
ความเร็วพัดลม6
ความจุการไหลของอากาศ7300 CMPH (11416 CFM mentioned in feature bullets)
ระดับเสียง30 เดซิเบล
ประเภทไฟLED (18W, 2100 LM)
อุณหภูมิสี3000K, 4000K, 6000K
วิธีการควบคุมApp, Remote, Voice (Alexa/Google Home)
การใช้งานภายใน/ภายนอกอาคารIndoor/Outdoor (Not to be exposed directly to rain)
การรับรองETL and FCC-certified

การรับประกันและการสนับสนุน

Sofucor stands behind the quality of its products:

  • Lifetime Maintenance for Motor: The fan motor is covered by a lifetime maintenance policy.
  • 3-Year Protection for Fan Kit: The ceiling fan kit (excluding the motor) is protected for 3 years.
  • บริการลูกค้า: A dedicated 24-hour technical team is available to assist with any issues or installation questions.

คำถามที่พบบ่อย:

  • Why Choose Sofucor? Sofucor aims to make cool comfort effortless and affordable, with rigorous material selection, precision manufacturing, and multi-point performance validation to exceed international safety standards.
  • What Can Sofucor Offer? Beyond fan lights, Sofucor provides an exceptional experience built on superior quality, thoughtful design, and reliable support.
