SmallRig Handheld Camera Cage Kit User Manual

1. บทนำ

This manual provides comprehensive instructions for the assembly, operation, and maintenance of the SmallRig Handheld Camera Cage Kit, designed specifically for Sony FX30 and FX3 cameras. The kit includes a camera cage (Kit 4184) and a versatile Sling Handle for DJI RS 2, RSC 2, RS 3, RS 3 Pro, and RS 3 Mini gimbals. This kit enhances camera protection, expands accessory mounting options, and improves handling for various shooting scenarios, including low-angle shots.

2. สินค้าหมดview

The SmallRig Handheld Camera Cage Kit is engineered to provide a robust and ergonomic solution for professional videography. It comprises two primary components:

• Camera Cage Kit 4184: A form-fitting cage for Sony FX30/FX3, offering protection and multiple mounting points.
• Sling Handle 3028C: An adjustable handle designed for DJI gimbals, providing enhanced stability and comfort for low-angle shooting.

2.1 คุณสมบัติหลัก

• Dedicated Design: Custom-fit for Sony FX30 and FX3 cameras, ensuring full access to controls and ports.
• การติดตั้งอเนกประสงค์: Features multiple 1/4"-20 and ARRI anti-twist 3/8"-16 threaded holes, cold shoe mounts, and NATO rails for attaching accessories.
• XLR Extension Compatibility: Supports the separately available Sony audio handle for expanded audio input options.
• Adjustable Sling Handle: The handle can be adjusted up to 180° and used as a side handle, featuring a comfortable, anti-slip silicone grip.
• การสลับอย่างรวดเร็ว: Facilitates rapid transitions between tripod and handheld shooting configurations.
• Integrated HDMI Cable Clamp: Protects cables and ensures stable signal transmission.
• ความสามารถในการรับน้ำหนักสูง: The sling handle supports up to 8kg (17.6 lbs), reducing arm fatigue during extended use.

2.2 Components and Features Visual Guide

รูปที่ 2.2.1: เกินview of the SmallRig Handheld Camera Cage Kit, showing the camera cage mounted on a Sony camera and the adjustable sling handle.

รูปที่ 2.2.2: Illustration of included accessories: an extension rig for Sony XLR audio handle, a dedicated HDMI cable clamp, and a hand strap for increased stability.

รูปที่ 2.2.3: รายละเอียด view of the camera cage highlighting various mounting points: 1/4"-20 threaded holes, cold shoe mounts, strap slots, 3/8"-16 locating holes for ARRI accessories, and NATO rails.

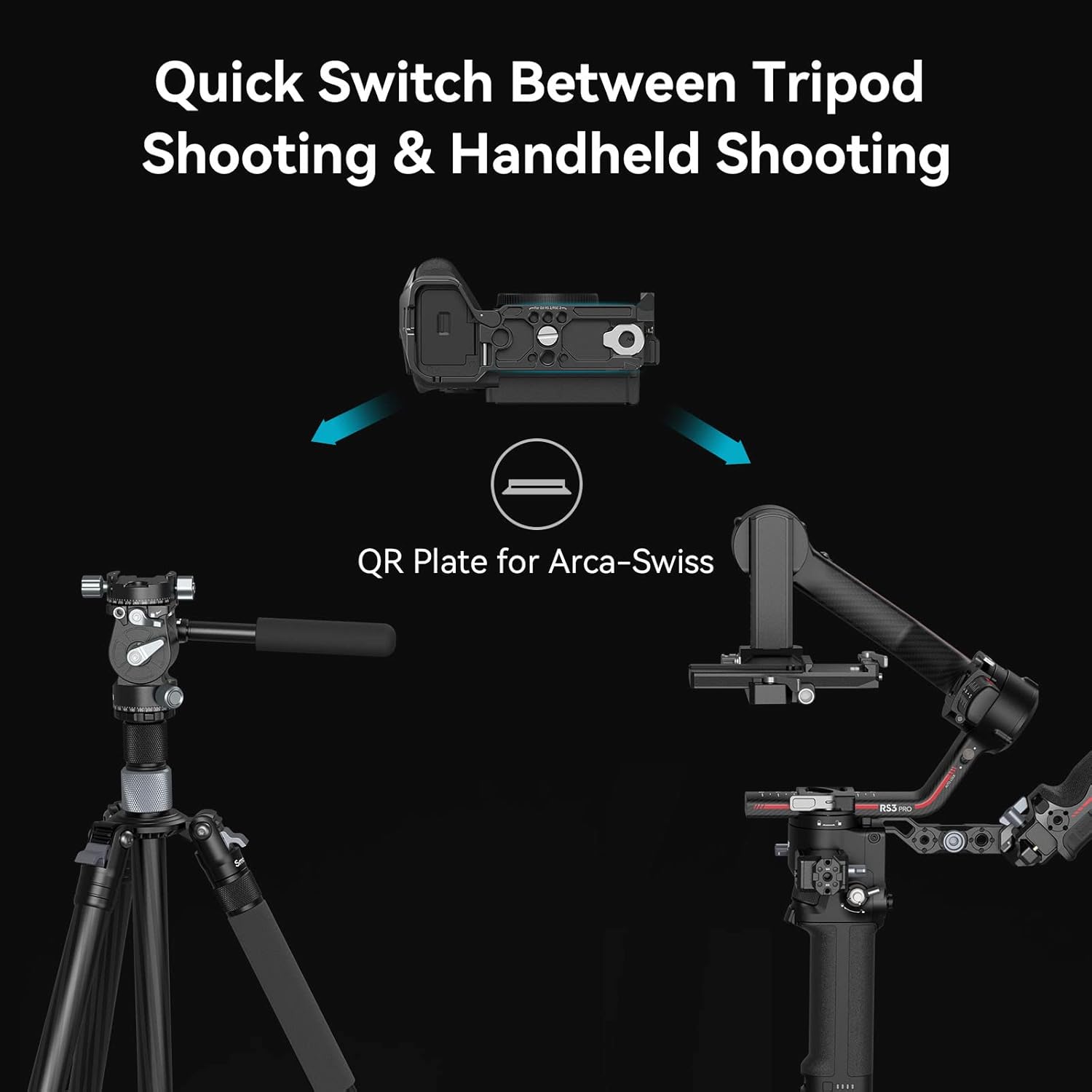

รูปที่ 2.2.4: Diagram illustrating the quick transition capability between tripod shooting and handheld shooting using the integrated QR plate for Arca-Swiss compatibility.

รูปที่ 2.2.5: ภาพระยะใกล้ view of the camera cage showing precise cutouts for power cables, hinge arm access, and the integrated HDMI cable clamp เพื่อการเชื่อมต่อที่ปลอดภัย

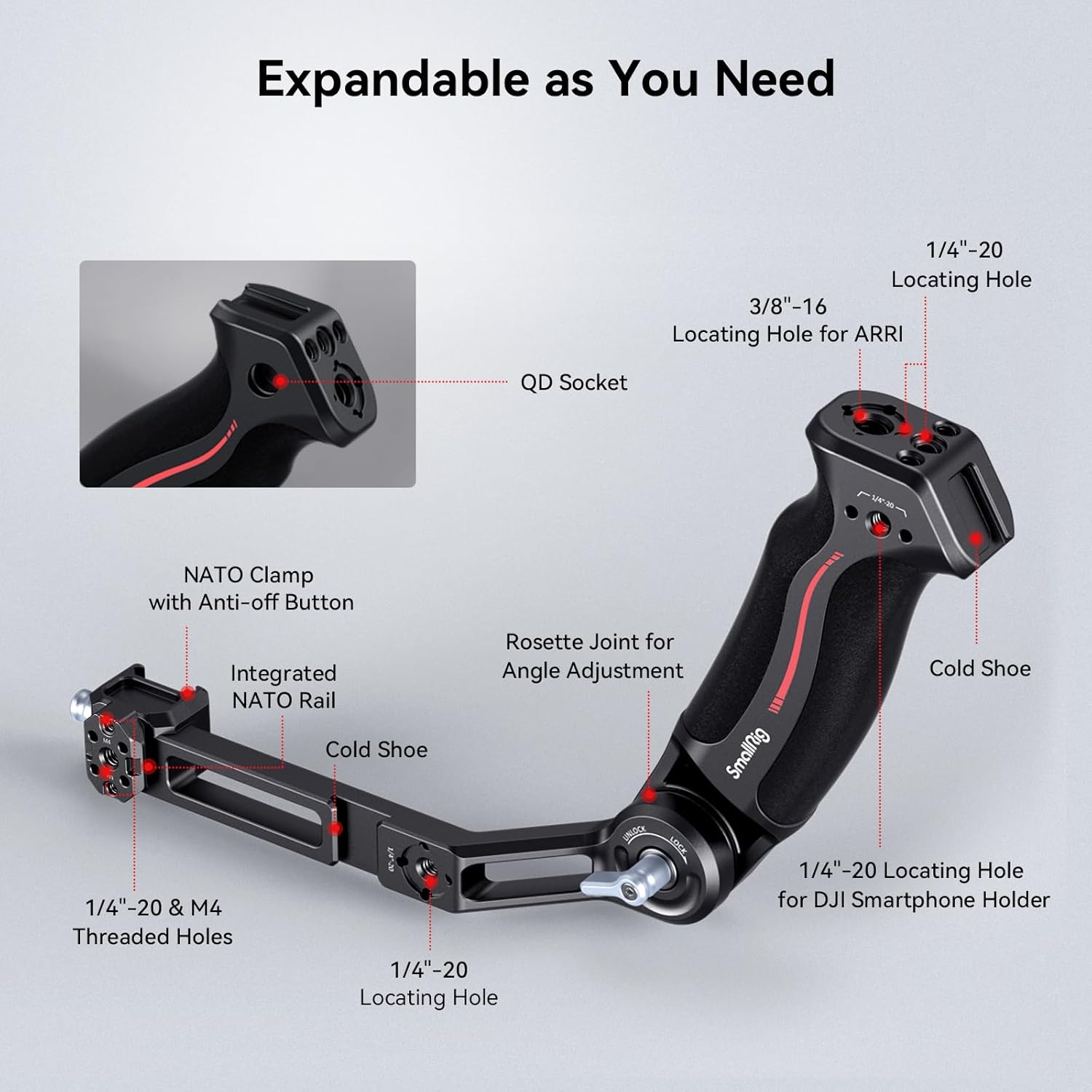

รูปที่ 2.2.6: Detailed diagram of the sling handle, showcasing its expandability with features like a QD socket, 3/8"-16 locating hole for ARRI, 1/4"-20 locating hole, NATO clamp with anti-off button, integrated NATO rail, and cold shoe mounts.

รูปที่ 2.2.7: Visual representation of the sling handle's ergonomic design, featuring a curved shape and increased grip length for comfortable handling, made from a lightweight yet strong aluminum alloy and silicone combination.

รูปที่ 2.2.8: Demonstration of the sling handle in use, illustrating its effectiveness in reducing arm fatigue and adding stability for low-angle shots, with a stated load capacity of 8kg (17.6 lbs).

รูปที่ 2.2.9: ภาพระยะใกล้ view detailing the reinforced structure of the sling handle and its proper installation location on the left side of the gimbal, ensuring no interference with control buttons and providing stronger load bearing.

3. การตั้งค่า

3.1 Assembling the Camera Cage (Kit 4184)

1. Ensure your Sony FX30 or FX3 camera is powered off and lenses are removed for safety.
2. Carefully align the camera with the cage. The cage is designed to fit precisely around the camera body.
3. Secure the camera within the cage using the provided screws. Typically, a 1/4"-20 screw at the bottom and an anti-twist pin or side screw will secure the camera firmly. Refer to the included tools for tightening.
4. Attach the dedicated HDMI cable clamp to the cage if you plan to use an external monitor or recorder. Ensure the cable is securely fastened to prevent accidental disconnections. (Refer to Figure 2.2.5)
5. If using the Sony audio handle, attach the XLR extension component to the cage as needed.

3.2 Attaching the Sling Handle (3028C)

1. Identify the NATO rail on your DJI RS 2, RSC 2, RS 3, RS 3 Pro, or RS 3 Mini gimbal.
2. Align the NATO clamp of the Sling Handle with the gimbal's NATO rail.
3. Tighten the NATO clamp's locking lever until the handle is securely attached to the gimbal. Ensure the anti-off button is engaged for added security. (Refer to Figure 2.2.6)
4. Adjust the angle of the handle using the ratchet knob. The handle can pivot up to 180° to achieve desired low-angle or side-handle configurations.
5. Ensure the handle is mounted on the left side of the gimbal to avoid interference with control buttons. (Refer to Figure 2.2.9)

4. ปฏิบัติการ

4.1 การใช้งานแบบพกพา

• Once the camera is secured in the cage, use the cage's integrated grip or attach the hand strap for stable handheld shooting.
• For low-angle shots or improved ergonomics with a gimbal, utilize the Sling Handle. Adjust its angle to find the most comfortable and stable position. (Refer to Figure 2.2.7 and 2.2.8)
• The cage provides numerous 1/4"-20 and 3/8"-16 ARRI anti-twist threads, as well as cold shoe mounts, for attaching external monitors, microphones, LED lights, or other accessories.

4.2 Tripod and Gimbal Integration

• The cage features an Arca-Swiss compatible quick release plate at the bottom, allowing for rapid transitions between handheld and tripod setups without removing the camera from the cage. (Refer to Figure 2.2.4)
• When using the Sling Handle with a DJI gimbal, ensure the gimbal is properly balanced with the camera and cage attached. The handle's weight and position will affect the gimbal's balance.

5. การบำรุงรักษา

• การทำความสะอาด: Wipe the cage and handle with a soft, dry cloth to remove dust and fingerprints. For stubborn dirt, a slightly damp สามารถใช้ผ้าเช็ดทำความสะอาดได้ แล้วเช็ดให้แห้งทันที หลีกเลี่ยงการใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลาย
• การตรวจสอบ: Regularly check all screws and connections for tightness. Re-tighten if necessary to ensure the camera and accessories remain secure.
• พื้นที่จัดเก็บ: Store the kit in a clean, dry environment, away from extreme temperatures and humidity. If disassembling, keep all components and tools together to prevent loss.
• การหล่อลื่น: The moving parts of the sling handle (e.g., ratchet knob) are designed for smooth operation and generally do not require lubrication. If movement becomes stiff, contact support.

6 การแก้ไขปัญหา

• Camera not fitting in cage: Ensure you have the correct cage model for your Sony FX30 or FX3. Double-check alignment and ensure no obstructions are present. Do not force the camera into the cage.
• Accessories feel loose: Verify that all 1/4"-20, 3/8"-16, and NATO clamp screws are fully tightened. If an accessory continues to loosen, inspect the threads for damage.
• Sling handle not adjusting smoothly: Check the ratchet knob for any debris or obstructions. Ensure it is not overtightened or damaged.
• HDMI cable disconnecting: Ensure the HDMI cable clamp is properly installed and tightened around the cable. Use a high-quality HDMI cable.
• Gimbal balance issues with sling handle: Re-balance your gimbal after attaching the sling handle and any additional accessories. The handle's weight and position will affect the gimbal's balance.

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

SmallRig products are manufactured to high quality standards. For information regarding warranty coverage, please refer to the warranty policy provided with your purchase or visit the official SmallRig webเว็บไซต์.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact SmallRig customer service directly. Contact information can typically be found on the product packaging or the official SmallRig webเว็บไซต์.

เป็นทางการ Webเว็บไซต์: www.smallrig.com
