คู่มือผู้ใช้ไฟประดับ LED แบบยืดได้ XANLITE ความยาว 10 เมตร

1. สินค้าหมดview

The Xanlite 10M Extendable LED String Lights are designed to provide reliable and safe outdoor illumination. This robust black PVC cable features 10 E27 bulb sockets and is rated IP44 for outdoor use, capable of supporting up to 1500W total (bulbs not included). Its extendable design allows for flexible lighting solutions in various outdoor settings.

คุณสมบัติหลัก:

• 10-meter (approximately 32.8 feet) black string light cable.
• IP44 rated for outdoor use, offering protection against solid objects larger than 1mm and water splashes from any direction.
• Extendable design for connecting multiple sets.
• Features 10 E27 bulb sockets (bulbs are not included).
• Maximum power capacity of 1500 Watts.

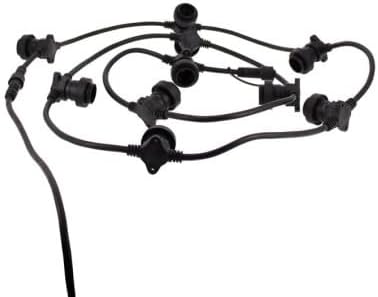

This image displays the black PVC cable of the Xanlite string lights, featuring 10 evenly spaced E27 bulb sockets. The cable is designed for outdoor use and is shown without bulbs installed.

2. ข้อมูลด้านความปลอดภัยที่สำคัญ

โปรดอ่านคำแนะนำด้านความปลอดภัยทั้งหมดอย่างละเอียดก่อนการติดตั้งและใช้งาน การไม่ปฏิบัติตามคำแนะนำเหล่านี้อาจส่งผลให้เกิดไฟฟ้าช็อต ไฟไหม้ หรือบาดเจ็บสาหัสได้

• ความปลอดภัยทางไฟฟ้า: Always ensure the power is off before installing or replacing bulbs, or performing any maintenance. Do not overload the circuit.
• การใช้งานกลางแจ้ง: This product is rated IP44 for outdoor use. While it is water-resistant, do not submerge it in water. Ensure all connections are secure and protected from direct heavy rain or standing water.
• ความเข้ากันได้ของหลอดไฟ: Use only E27 base bulbs. Do not exceed the maximum total wattage of 1500W for the entire string. Use LED bulbs for energy efficiency and lower heat output.
• การติดตั้ง: Install the string lights securely to prevent them from falling or swinging excessively in wind. Do not run the cable through doorways or windows where it could be pinched or damaged.
• การตรวจสอบความเสียหาย: Regularly inspect the cable, sockets, and plug for any signs of damage, fraying, or corrosion. Do not use if any part is damaged.
• เด็กและสัตว์เลี้ยง: Keep the string lights out of reach of children and pets, especially during installation and when powered on.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่าส่วนประกอบทั้งหมดอยู่ครบและไม่เสียหายเมื่อเปิดบรรจุภัณฑ์:

• 1 x Xanlite 10M Extendable LED String Lights (Model GRL10230VB)
• หมายเหตุ: หลอดไฟ E27 ไม่ได้รวมอยู่ในชุด ต้องซื้อแยกต่างหาก

4. คำแนะนำในการตั้งค่า

1. แกะกล่องและตรวจสอบ: Carefully remove the string lights from the packaging. Uncoil the cable completely and inspect it for any signs of damage, such as cuts, fraying, or bent pins on the plug. Do not proceed with installation if any damage is found.
2. เลือกสถานที่: Select a suitable outdoor location for your string lights. Ensure the area is dry and that the cable can be routed safely without creating tripping hazards or being exposed to sharp edges. Remember the IP44 rating is for water splashes, not submersion.
3. ติดตั้งหลอดไฟ: Ensure the string lights are unplugged from any power source. Carefully screw E27 bulbs (not included) into each of the 10 sockets. Do not overtighten. Ensure the total wattage of all bulbs does not exceed 1500W.
4. การติดตั้ง: Securely hang the string lights using appropriate outdoor-rated hooks, clips, or cable ties. Ensure the weight of the lights and bulbs is adequately supported. Avoid stretching the cable tightly.
5. เชื่อมต่อกับพลังงาน: Once the string lights are securely installed and all bulbs are in place, plug the power cord into a suitable outdoor-rated electrical outlet. Ensure the outlet is protected by a Residual Current Device (RCD) for added safety.
6. Extending (Optional): If you have additional compatible Xanlite extendable string light sets, you can connect them end-to-end using the integrated connectors. Ensure the total combined wattage of all connected sets does not exceed the maximum capacity of the circuit or the first string light set (1500W).

5. คู่มือการใช้งาน

Operating the Xanlite 10M Extendable LED String Lights is straightforward:

• เปิด/ปิดเครื่อง: Once properly installed and plugged into a power outlet, the lights will illuminate. To turn them off, simply unplug the power cord from the outlet.
• Extensibility: If you have connected multiple extendable sets, all connected sets will operate simultaneously when the first set is powered on.

6. การบำรุงรักษา

Regular maintenance will help prolong the life of your string lights and ensure safe operation.

• การทำความสะอาด: Disconnect the string lights from power before cleaning. Wipe the cable and sockets with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all parts are dry before reconnecting to power.
• การเปลี่ยนหลอดไฟ: Always unplug the string lights before replacing any bulbs. Allow hot bulbs to cool down before handling. Screw in new E27 bulbs carefully.
• การจัดเก็บตามฤดูกาล: If storing the lights for an extended period, clean them thoroughly, coil the cable neatly, and store them in a cool, dry place away from direct sunlight and extreme temperatures.
• การตรวจสอบเป็นระยะ: Before each use, especially after storage or severe weather, inspect the entire string for any signs of damage, such as cracked sockets, frayed wires, or corrosion on the plug.

7 การแก้ไขปัญหา

If you encounter issues with your string lights, refer to the following table for common problems and solutions:

8. ข้อมูลจำเพาะทางเทคนิค

9. การรับประกันและการสนับสนุน

Xanlite products are manufactured to high-quality standards. In the unlikely event of a defect, please refer to the following information:

• ความพร้อมของอะไหล่: Spare parts are guaranteed for 2 years from the date of purchase.
• การสนับสนุนลูกค้า: For technical assistance, warranty claims, or further inquiries, please contact the retailer where you purchased the product or visit the official Xanlite website for contact information. Please have your model number (GRL10230VB) and proof of purchase ready.
