1. บทนำ
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Scheppach CSP530S gasoline chainsaw. Please read these instructions thoroughly before initial use and keep them for future reference. Proper understanding and adherence to these guidelines will ensure optimal performance and extend the lifespan of your tool.
2. คำแนะนำด้านความปลอดภัย
Operating a chainsaw can be dangerous if proper safety precautions are not observed. Always prioritize your safety and the safety of others.
- อุปกรณ์ป้องกันส่วนบุคคล (PPE): Always wear appropriate PPE, including safety glasses, ear protection, a helmet, heavy-duty gloves, and chainsaw protective trousers and boots. The Scheppach CSP530S includes safety glasses and ear protection.
- พื้นที่ทำงาน : Ensure the work area is clear of bystanders, children, and pets. Maintain a firm footing and balance. Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
- การจัดการเชื้อเพลิง: Mix and handle fuel in a well-ventilated area, away from sparks or open flames. Use a proper fuel container.
- การป้องกันการตีกลับ: Be aware of kickback, which can occur when the moving chain at the tip of the guide bar contacts an object, or when the wood closes in and pinches the saw chain in the cut. Always hold the chainsaw firmly with both hands.
- การซ่อมบำรุง: Regularly inspect the chainsaw for damaged parts, loose fasteners, or worn components. Ensure the chain is sharp and properly tensioned.
- หยุดฉุกเฉิน: Familiarize yourself with the chain brake mechanism for immediate chain stoppage in emergencies.
Image: The Scheppach CSP530S gasoline chainsaw, featuring its ProCut guide bar and chain, accompanied by essential safety equipment: clear safety glasses and red ear protection. This illustrates the complete package for safe operation.
3. สินค้าหมดview และส่วนประกอบ
The Scheppach CSP530S is a powerful gasoline chainsaw designed for various cutting tasks, including forestry work. Key features include:
- Powerful 2.7 HP / 2.0 kW 53 cm³ 2-stroke gasoline engine.
- 50 cm (20 inch) ProCut guide and chain for superior cutting results.
- High-performance air filter for extended engine life.
- Maximum cutting diameter of 47 cm.
- Anti-vibration system to absorb shocks and reduce user fatigue.
- Large metal claw stop to protect cut material from slipping.
- Automatic chain lubrication system.
- Wrap-around handle for maximum flexibility during operation.
- Chain brake that stops the chain in milliseconds in case of kickback.
Image: A diagram highlighting key features of the Scheppach CSP530S chainsaw, including its low maintenance design, 2-stroke gasoline engine (2.7 HP / 53 cm³ / 2.0 kW), maximum cutting diameter of 47 cm, and anti-vibration system.
4. การตั้งค่า
4.1 การประกอบ
Before first use, ensure the guide bar and chain are correctly assembled and tensioned according to the detailed instructions in the full manual. The guide bar cover is included for protection during storage and transport.
4.2 Fuel and Oil Mixture
The CSP530S uses a 2-stroke gasoline engine. It requires a specific mixture of unleaded gasoline and 2-stroke engine oil. Refer to the engine manufacturer's recommendations for the correct mixing ratio. Always use fresh, high-quality fuel and oil. Fill the fuel tank in a well-ventilated area, away from any ignition sources.
4.3 การหล่อลื่นโซ่
The chainsaw features an automatic chain lubrication system. Before each use, ensure the chain oil reservoir is filled with appropriate chain lubricant. The system will automatically supply oil to the chain and guide bar during operation, which is crucial for reducing friction and wear.
Image: A diagram illustrating the wrap-around handle design for versatile grip and the automatic lubrication system, showing oil being dispensed onto the chain.
5. คู่มือการใช้งาน
5.1 การสตาร์ทเครื่องยนต์
The CSP530S is equipped with an Easy Start system for simplified starting. Follow the specific starting procedure outlined in the full manual, typically involving priming, choke settings, and pulling the starter cord. Ensure the chain brake is engaged before starting.
Image: The 'Easy Start' logo, indicating a simplified starting mechanism for the chainsaw.
5.2 เทคนิคการตัด
Always maintain a firm grip on the chainsaw with both hands. Position yourself securely and ensure the cutting path is clear. Use the metal claw stop to brace the chainsaw against the wood for stable cutting. The anti-vibration system helps reduce operator fatigue during extended use.
Image: A user, wearing full safety gear including a helmet with face shield and ear protection, operates the Scheppach CSP530S chainsaw to cut large logs in an outdoor setting.

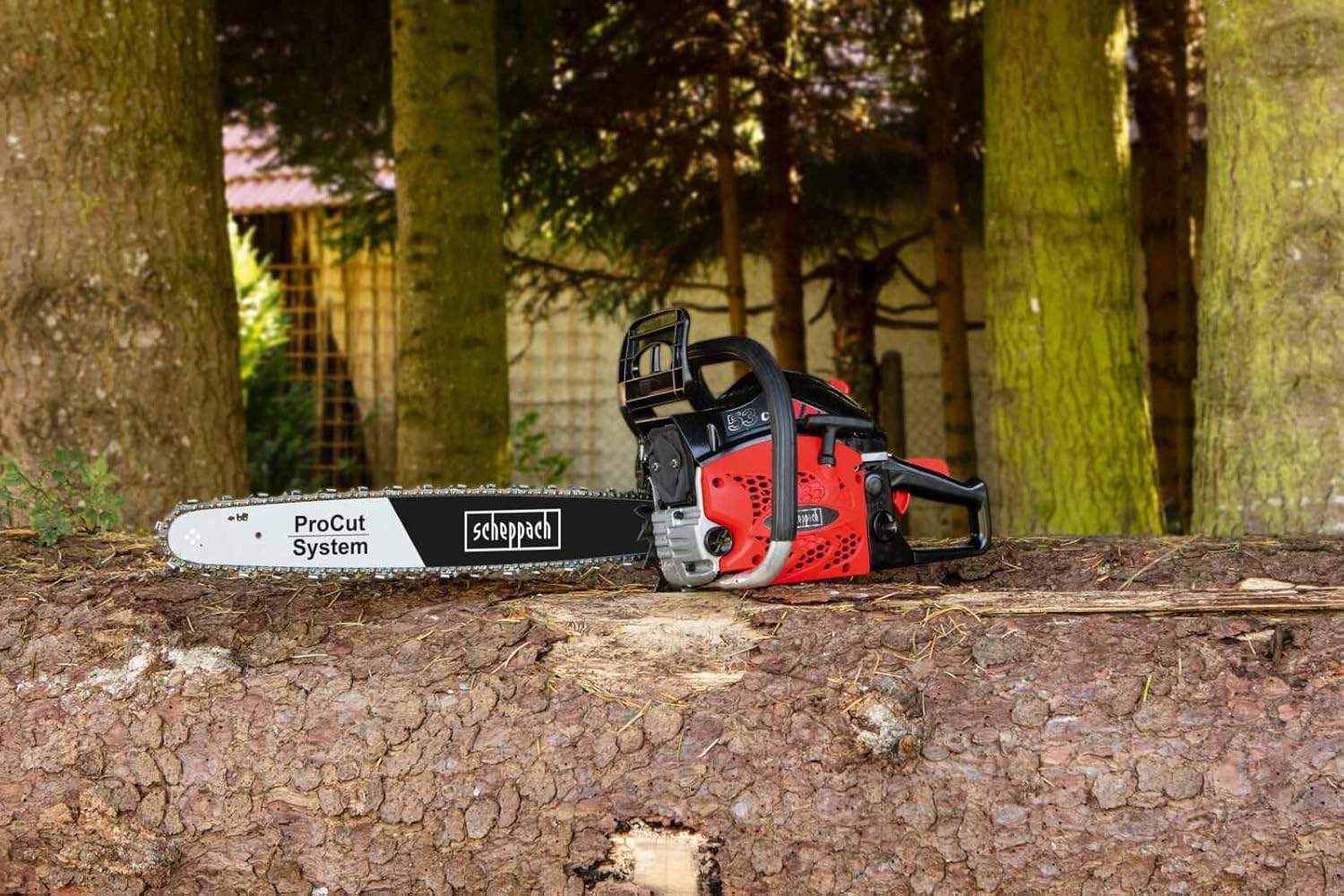

Image: The Scheppach CSP530S chainsaw resting on a large, freshly cut log in a forest environment, showcasing การออกแบบที่แข็งแกร่ง
6. การบำรุงรักษา
การบำรุงรักษาอย่างสม่ำเสมอเป็นสิ่งสำคัญอย่างยิ่งต่ออายุการใช้งานและความปลอดภัยในการใช้งานเลื่อยยนต์ของคุณ
- ตัวกรองอากาศ: Periodically clean or replace the high-performance air filter to ensure optimal engine performance and prevent premature wear.
- Chain Sharpening and Tension: Keep the saw chain sharp and properly tensioned. A dull or loose chain can lead to inefficient cutting and increased risk of kickback.
- การบำรุงรักษาแถบนำทาง: ทำความสะอาดร่องนำทางและรูน้ำมันของรางนำทางเป็นประจำ พลิกรางนำทางเป็นระยะเพื่อให้สึกหรออย่างสม่ำเสมอ
- หัวเทียน: Inspect and clean the spark plug as needed. Replace if worn.
- การทำความสะอาดทั่วไป: Keep the chainsaw clean from sawdust and debris, especially around the engine cooling fins.
7 การแก้ไขปัญหา
If you encounter issues with your Scheppach CSP530S, consult the following common troubleshooting tips:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| เครื่องยนต์ไม่ติด | No fuel, incorrect fuel mixture, clogged fuel filter, fouled spark plug, engaged chain brake. | Check fuel level and mixture, clean/replace fuel filter, clean/replace spark plug, disengage chain brake. |
| ประสิทธิภาพการตัดต่ำ | Dull chain, incorrect chain tension, insufficient chain lubrication. | Sharpen chain, adjust chain tension, check chain oil level and lubrication system. |
| แรงสั่นสะเทือนมากเกินไป | Loose components, damaged chain/guide bar. | Inspect and tighten all fasteners, replace damaged chain or guide bar. |
| โซ่ไม่เคลื่อนที่ | Chain brake engaged, chain jammed, clutch issue. | Disengage chain brake, clear any obstructions, consult a service technician if clutch is suspected. |
For issues not resolved by these steps, please contact authorized service personnel.
8. ข้อมูลจำเพาะ
- ผู้ผลิต: เชปปาเช่
- หมายเลขรุ่น: CSP530S (S71003399)
- ขนาดสินค้า (กว้าง x ยาว x สูง) : 47.75 x 26.67 x 30.48 ซม.
- น้ำหนัก: 8.28 กิโลกรัม
- ประเภทพลังงาน: น้ำมันเบนซิน
- เครื่องยนต์: 2-stroke, 53 cm³
- แรงม้า: 2.7 แรงม้า
- ความยาวแถบนำทาง: 50 cm (20 inches) ProCut
- เส้นผ่านศูนย์กลางการตัดสูงสุด: 47 ซม.
- ส่วนประกอบที่รวมอยู่: Guide bar cover, safety glasses, ear protection, CSP530s gasoline chainsaw.
9. การรับประกันและการสนับสนุน
Specific warranty details for the Scheppach CSP530S chainsaw are typically provided with the product packaging or can be obtained from your retailer. For technical support, spare parts, or service inquiries, please contact your authorized Scheppach dealer or visit the official Scheppach webเว็บไซต์สำหรับข้อมูลการติดต่อ
